AI Flow run: Codex (Astra) on board-0

Delivered at 2026-09-14T04:32:32Z: 78.5 min of AI time from the prompt to "done, here is your video" (78.5 min on the wall clock). Since then 446.8 min more of AI time over 55 follow-up prompt(s), listed under Sessions; none of it is in the delivery number.

Prompt at 2026-09-14T03:14:00.700Z (UTC). Flow: board. Every number here is from the run's append-only ledger (run.jsonl). AI time is the time the AI was working on a prompt: from the human's prompt to the AI's done, with any gap over 15 min where no command ran (the human away) cut out.

The video

The final cut of this run, 120 s: only the moments something moved, every step in order, the AI's analysis drawings fullscreen, the run and step clocks in the corner, the words cut to the picture.

Sessions

One row per human prompt: the AI's time on it, the idle it did not get charged for.

Session	Prompt at	Done at	AI time min	Idle cut min	What
1	2026-09-14T03:14:00Z	2026-09-14T04:32:32Z	78.5	0	the first prompt
2	2026-09-14T04:32:45Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
3	2026-09-14T17:49:22Z	(open)	78.4	0	follow-up (no prompt mark; say prompt --text next time)
4	2026-09-15T15:52:02Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
5	2026-09-15T15:52:02Z	2026-09-15T15:56:42Z	4.7	0	add the fields step
6	2026-09-15T15:56:42Z	(open)	10.1	0	follow-up (no prompt mark; say prompt --text next time)
7	2026-09-15T16:06:48Z	2026-09-15T16:09:19Z	2.5	0	install Fields 0.1.2, restart this run server by PID, reload and verify its window
8	2026-09-15T16:09:19Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
9	2026-09-16T12:14:56Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
10	2026-09-16T12:46:20Z	(open)	11.2	0	follow-up (no prompt mark; say prompt --text next time)
11	2026-09-16T13:43:47Z	(open)	0.2	0	follow-up (no prompt mark; say prompt --text next time)
12	2026-09-16T14:01:41Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
13	2026-09-16T14:01:41Z	2026-09-16T14:41:14Z	9.0	31	Early component library quality, per-file provenance and separate detailed/overview video
14	2026-09-16T14:41:14Z	(open)	13.8	0	follow-up (no prompt mark; say prompt --text next time)
15	2026-09-16T14:55:02Z	2026-09-16T15:15:14Z	0.0	20	Larger thumbnail previews in the Hydrogen widget hover card and core PR hand-off
16	2026-09-16T15:15:14Z	(open)	6.8	0	follow-up (no prompt mark; say prompt --text next time)
17	2026-09-16T15:22:05Z	2026-09-16T15:24:54Z	2.8	0	Stabilize widget rendering and add permanent Adom AI Flow identity
18	2026-09-16T15:24:54Z	(open)	0.1	0	follow-up (no prompt mark; say prompt --text next time)
19	2026-09-16T15:42:14Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
20	2026-09-16T15:42:14Z	2026-09-16T15:45:35Z	3.4	0	Resume ESC global component library quality and AI Flow component workflow and video integ
21	2026-09-16T15:45:35Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
22	2026-09-16T16:27:11Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
23	2026-09-16T16:27:11Z	2026-09-16T16:57:55Z	30.7	0	Apply optional MPN chip-laseretch to all ESC components, cache variants with provenance, a
24	2026-09-16T16:57:55Z	(open)	3.4	0	follow-up (no prompt mark; say prompt --text next time)
25	2026-09-16T17:01:19Z	2026-09-16T17:11:48Z	10.5	0	Add reusable lit LED STEP and GLB variants with LED and MPN toggle groups and provenance
26	2026-09-16T17:11:48Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
27	2026-09-16T19:06:44Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
28	2026-09-16T19:06:44Z	2026-09-16T19:17:58Z	11.2	0	Add datasheet-angle LED lights to GLB and wrap lens color onto sides; speak result hands-f
29	2026-09-16T19:17:58Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
30	2026-09-16T22:09:12Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
31	2026-09-16T22:09:12Z	2026-09-16T22:20:32Z	11.3	0	Fix LED hero models and gentle one-shot animation; audit component wiki skills and titles
32	2026-09-16T22:20:32Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
33	2026-09-16T22:36:36Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
34	2026-09-16T22:36:36Z	(open)	26.8	26	Finish component hero bindings, page quality and model qualification; resolve J1; refresh
35	2026-09-16T23:29:47Z	(open)	49.9	0	Add a rich two-sided silkscreen stage and reusable 3rd party fab silkscreen guidance; apply it
36	2026-09-17T00:19:39Z	2026-09-17T00:20:42Z	1.1	0	Record silkscreen population and actual rework as individual labels or useful groups
37	2026-09-17T00:20:42Z	(open)	2.2	0	follow-up (no prompt mark; say prompt --text next time)
38	2026-09-17T00:22:52Z	2026-09-17T00:40:52Z	18.0	0	Use curved leaders, smaller contact function text, and positionally adjacent contact label
39	2026-09-17T00:40:52Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
40	2026-09-17T01:05:10Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
41	2026-09-17T01:05:10Z	2026-09-17T01:06:21Z	1.2	0	Always update and verify both native 2D and 3D views after changes; encode in skills and A
42	2026-09-17T01:06:21Z	(open)	5.3	0	follow-up (no prompt mark; say prompt --text next time)
43	2026-09-17T01:11:40Z	(open)	4.7	650	Annotate all ESC component wiki heroes with dashed pads/silkscreen per shared skill; EDA s
44	2026-09-17T12:06:08Z	2026-09-17T12:54:44Z	32.7	16	Build the live silkscreen solver dashboard and recorded decision walkthrough; continue ESC
45	2026-09-17T12:54:44Z	(open)	13.2	0	follow-up (no prompt mark; say prompt --text next time)
46	2026-09-17T13:07:54Z	(open)	0.0	41	Audit silkscreen dashboard UI; fresh full top and bottom placement with font sizes and 108
47	2026-09-17T13:48:58Z	2026-09-17T15:00:58Z	29.2	43	Repair silkscreen grouping regression: reference/value hierarchy and earlier connector qua
48	2026-09-17T15:00:58Z	(open)	8.1	0	follow-up (no prompt mark; say prompt --text next time)
49	2026-09-17T15:09:06Z	2026-09-17T15:29:12Z	20.1	0	Final documentation pass: prefer open board interior, add a source-backed board descriptio
50	2026-09-17T15:29:12Z	(open)	0.3	0	follow-up (no prompt mark; say prompt --text next time)
51	2026-09-17T18:32:11Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
52	2026-09-17T18:32:11Z	2026-09-17T18:46:19Z	14.1	0	Fresh full silkscreen solve and video at most 60 seconds, ending with 10 seconds native Ki
53	2026-09-17T18:46:19Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
54	2026-09-17T19:07:17Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
55	2026-09-17T19:07:17Z	2026-09-17T19:16:53Z	9.6	0	Re-cut fresh silkscreen video with full-board fixed camera, separate faces, ffmpeg speed-u
56	2026-09-17T19:16:53Z	(open)	0.0	0	follow-up (no prompt mark; say prompt --text next time)
all			525.3

Per step

AI time only, the idle cut out.

Step	AI min	AI thinking min	Tool min	Turns	Visits	Returns	Longest think
intake	3.1	3.1	0.0	2	0	0	2.0 min
placement	6.4	5.6	0.8	16	3	2	2.0 min
routing	39.4	19.1	20.3	33	5	4	7.7 min
pours	14.4	5.8	8.6	30	4	3	1.0 min
current	4.7	2.6	2.1	11	4	3	1.2 min
thermal	391.7	3.8	387.9	18	4	3	2.4 min
capture	7.0	5.8	1.2	4	2	1	4.2 min
finish	4.6	4.1	0.5	84	3	0	3.5 min
3d	1.6	0.2	1.4	2	1	0	0.1 min
components	2.1	0.0	2.1	47	2	2	0.0 min
fields	1.7	0.0	1.7	2	1	1	0.0 min
nets	25.9	11.7	14.2	13	3	2	4.6 min
other	0.0	0.0	0.0	1	0	0	0.0 min
silkscreen	5.6	0.0	5.6	89	2	1	0.0 min
total	508.3	61.7	446.5

Returns to earlier steps

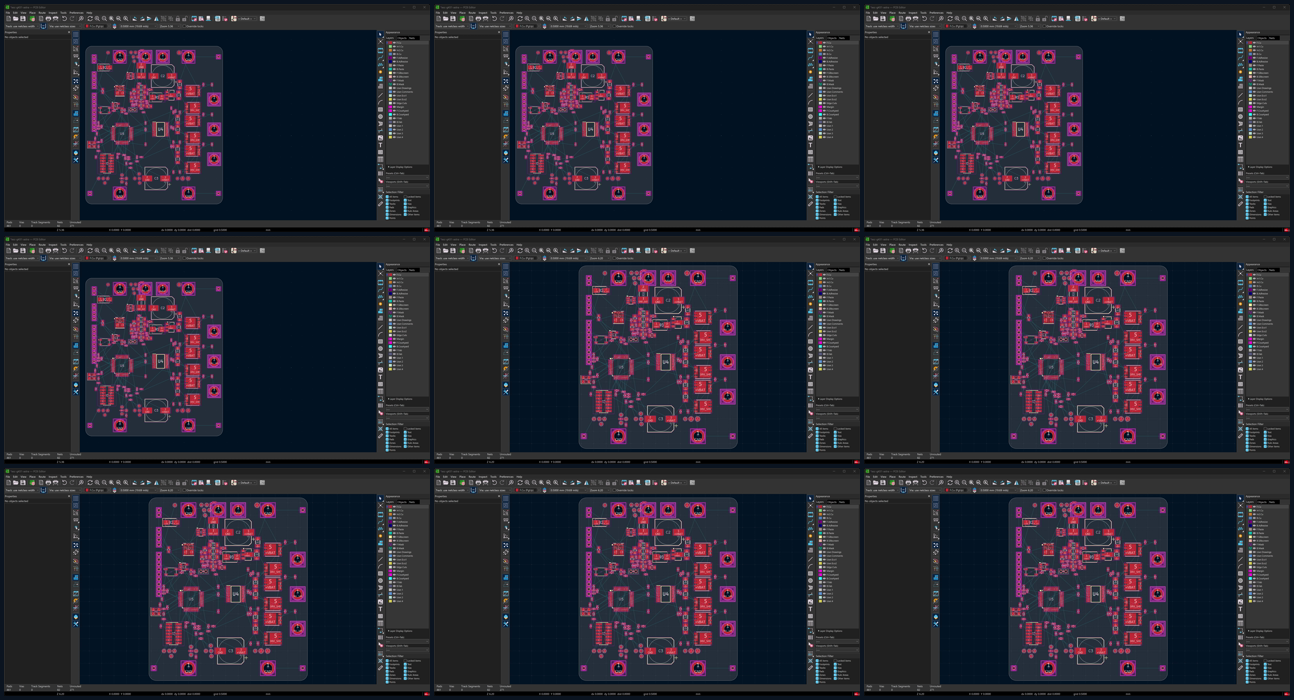

• 2026-09-14T03:24:31Z back to placement (visit 2): First five routing passes left 21 connections blocked around U5 and U2; move nearby passives out of the pin escape corridors.

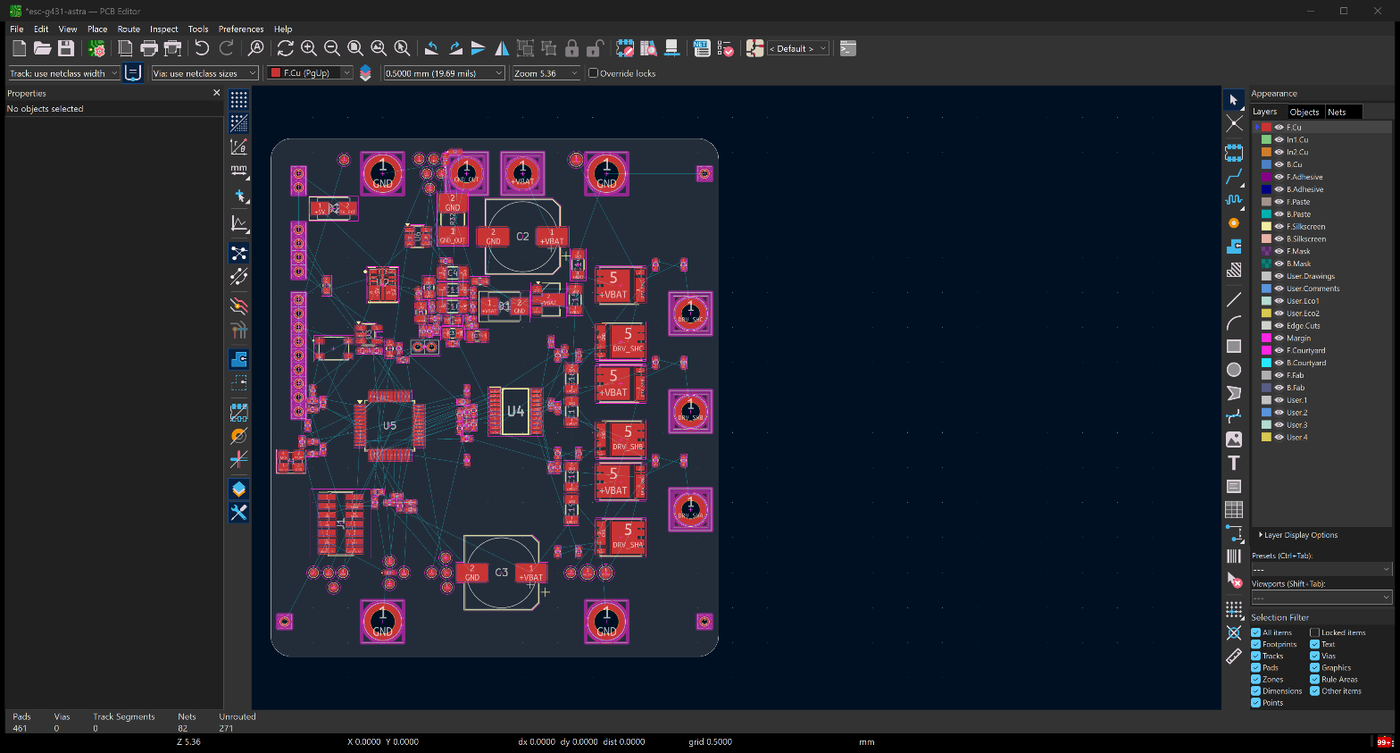

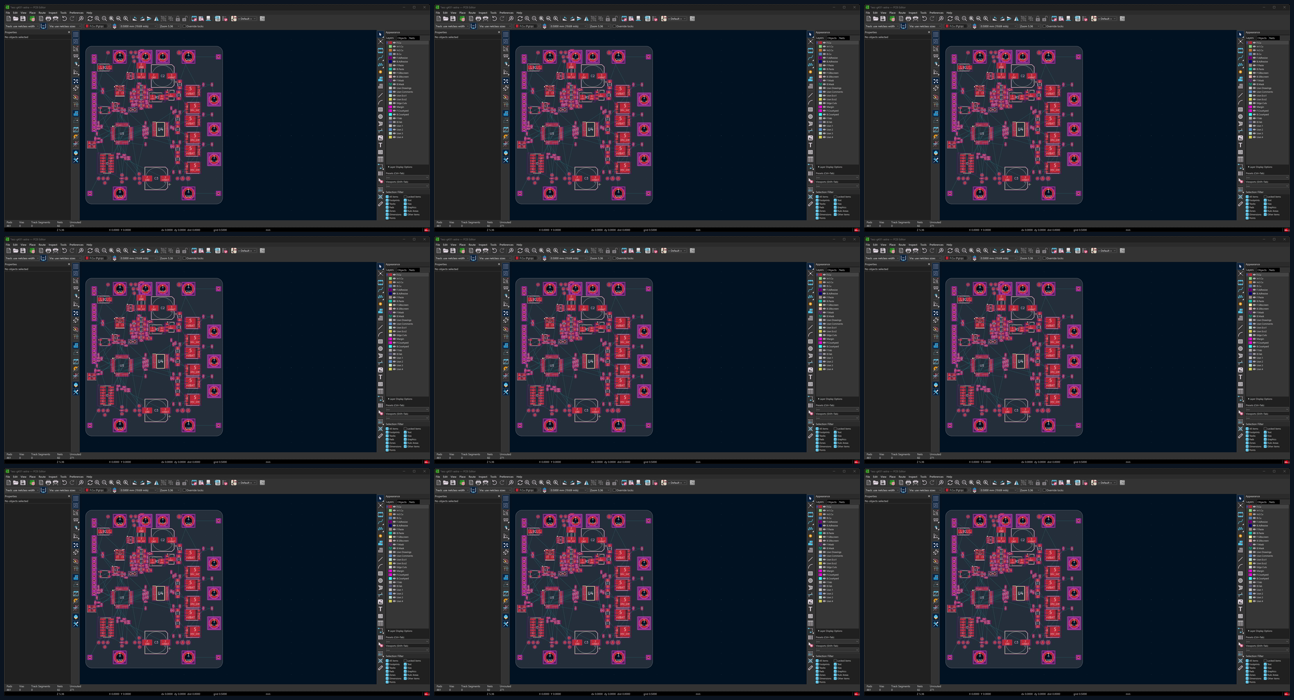

• 2026-09-14T03:25:50Z back to routing (visit 2): Retry routing after opening U5 and U2 escape space; placement remains at 13 inherited DRC errors.
• 2026-09-14T03:40:34Z back to placement (visit 3): Fresh-state and repaired-escape trials did not close routing. Spread remaining sense-divider and LED parts and align U5 pin centerlines to the 0.1 mm router grid.
• 2026-09-14T03:42:17Z back to routing (visit 3): Retry the native router on grid-aligned U5 and the spread sense/LED parts; placement verified at 13 inherited errors.
• 2026-09-14T03:47:09Z back to routing (visit 4): Missing GND and +3V3 inner planes are now present both locally and live. Re-run native connectivity gate before landing the zero-unrouted routing plan.

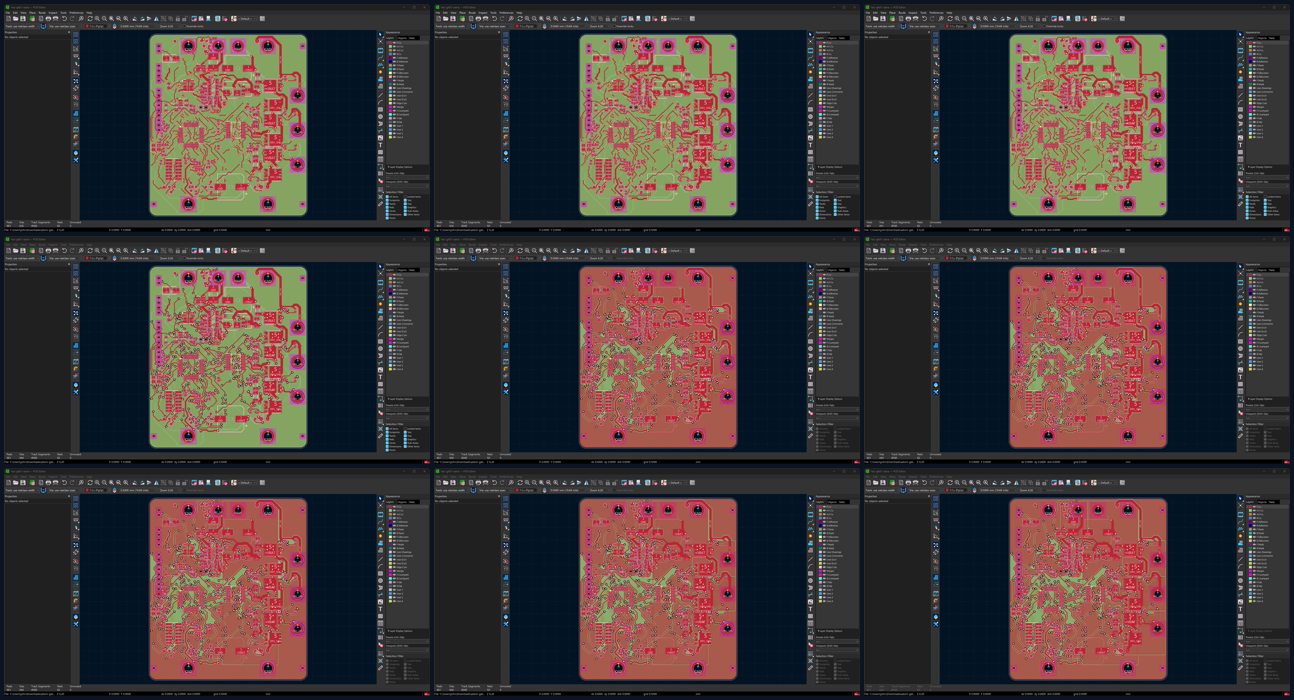

• 2026-09-14T03:59:29Z back to pours (visit 2): Routing is now fully landed with zero unconnected. Add outer battery, phase, shunt-return and ground pours for current and thermal analysis.

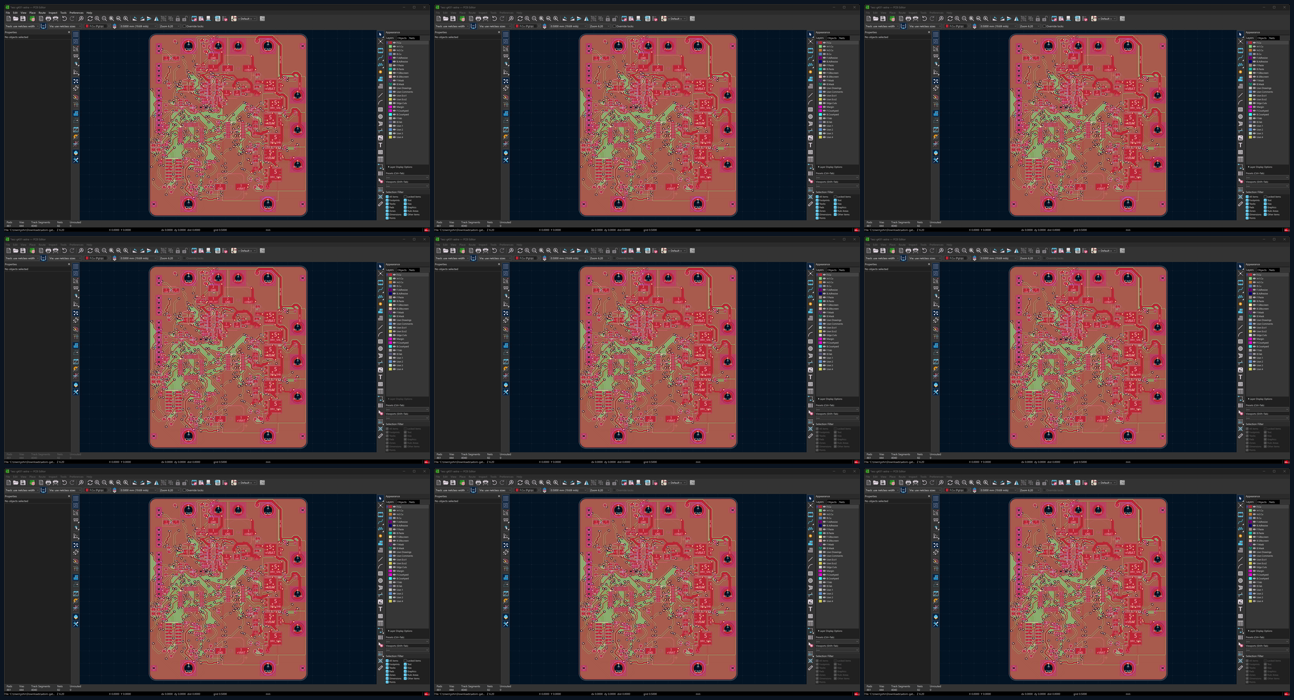

• 2026-09-14T04:08:51Z back to pours (visit 3): Thermal analysis estimates Q4 at 63 C rise against the unchanged 60 C budget; expand its connected rear phase-B copper and remeasure.
• 2026-09-14T04:12:47Z back to current (visit 2): Recheck all loaded nets after the connected phase-B thermal extension and native refill.

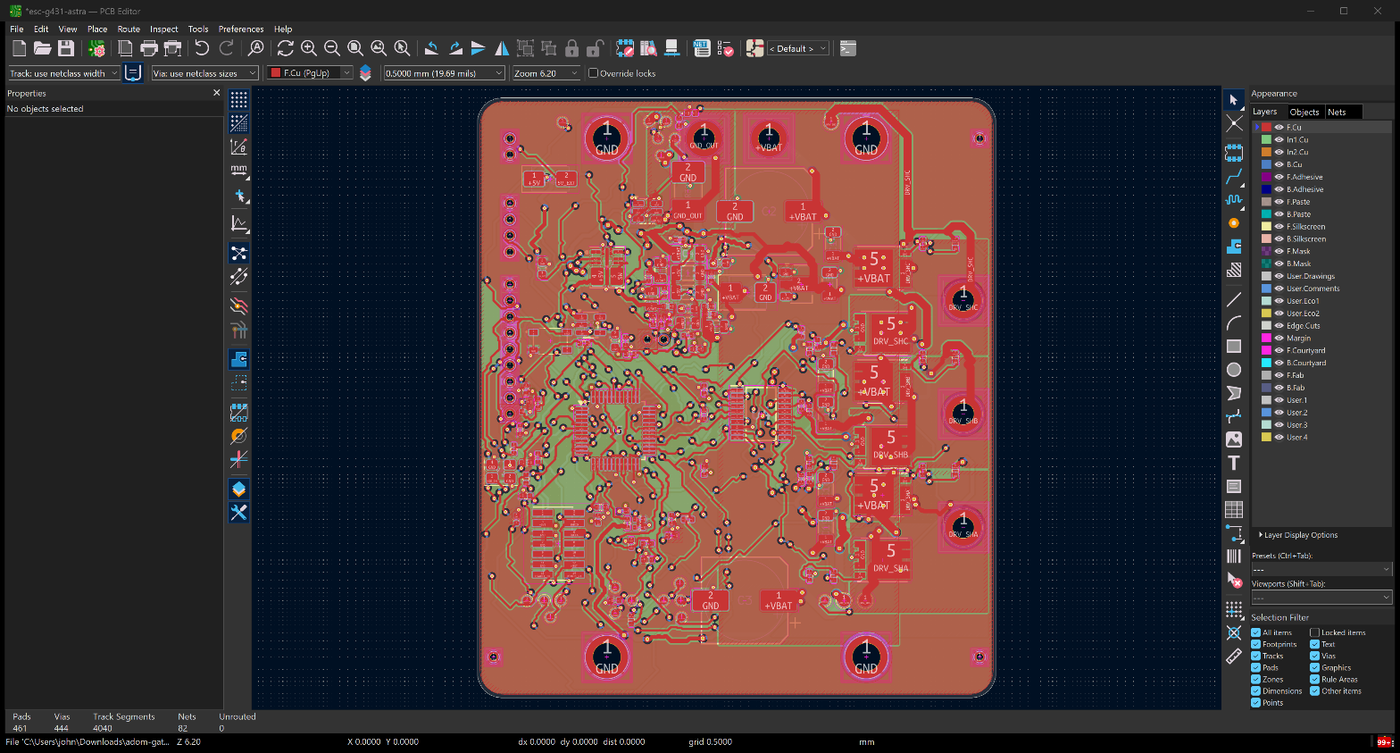

• 2026-09-14T04:13:20Z back to thermal (visit 2): All seven current checks pass after the phase-B extension; reevaluate Q4 against the same 60 C rise budget.

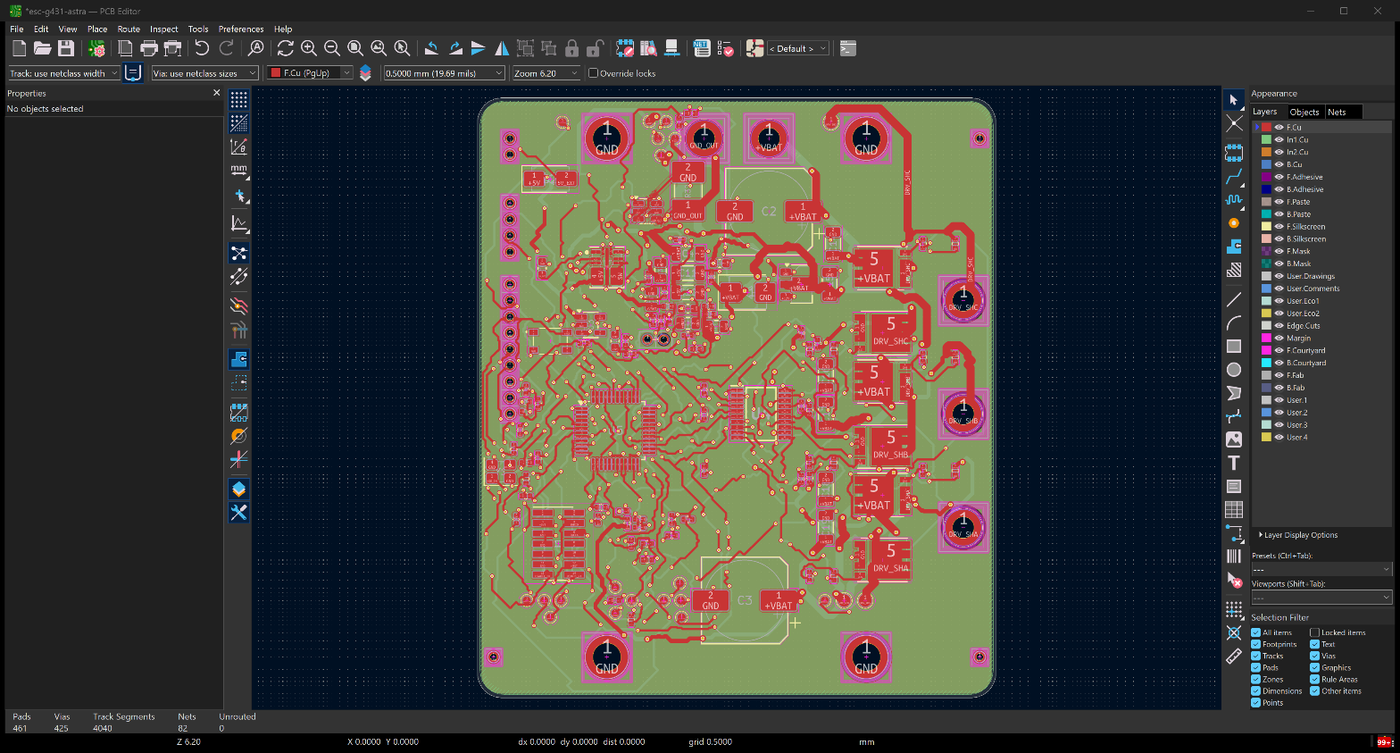

• 2026-09-14T04:18:28Z back to routing (visit 5): Saved-board DRC found one manufacturing warning: two GND_OUT via holes have 0.1831 mm separation against 0.2495 mm minimum. Repair the local via geometry before finish.
• 2026-09-14T04:24:40Z back to pours (visit 4): Remeasure native filled copper after the final via-spacing repair.

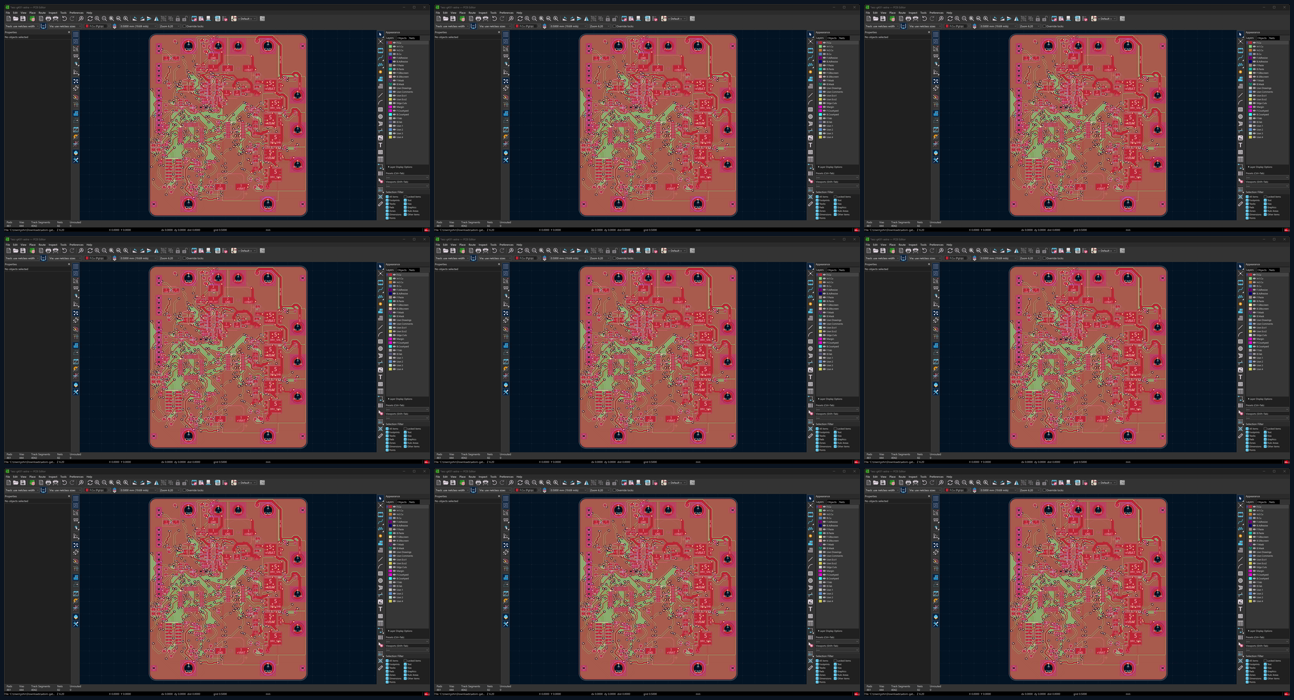

• 2026-09-14T04:25:16Z back to current (visit 3): Recheck the unchanged electrical loads against copper measured after the final via repair.

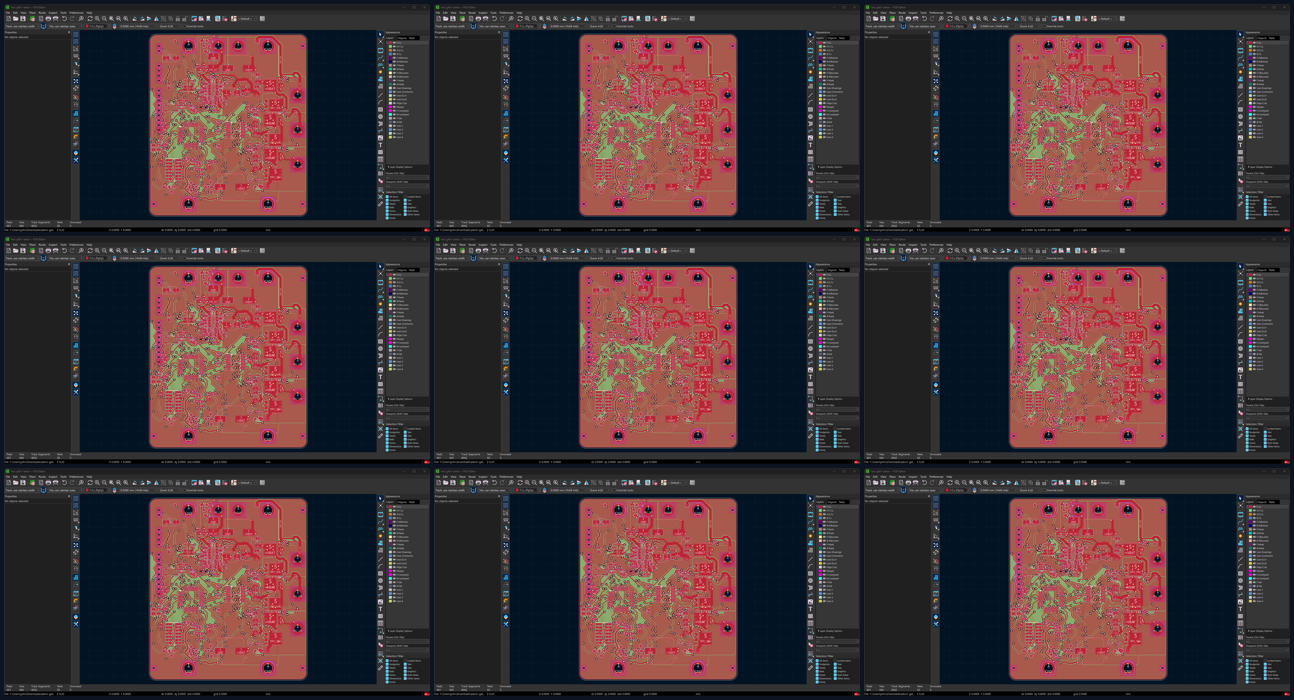

• 2026-09-14T04:25:36Z back to thermal (visit 3): Repeat the unchanged thermal checks against the final native copper measurement.
• 2026-09-14T04:26:03Z back to capture (visit 2): Save and independently read back the repaired final board, including full saved-file DRC and preservation of every fixed interface.
• 2026-09-14T18:02:14Z back to nets (visit 2): The first tour selected zero items because the IPC endpoint belonged to Fable; retake on the verified isolated Astra socket.
• 2026-09-14T18:20:03Z back to nets (visit 3): Visual review found stale recorder pixels after a mid-take window resize; retake with fixed 1920x1080 framing and the unused Properties sidebar hidden.
• 2026-09-14T18:24:07Z back to current (visit 4): the flow now asks for the AI's own current density drawing and a walkthrough of the pours the analysis judged
• 2026-09-14T18:27:07Z back to thermal (visit 4): the flow now asks for the AI's own coupled copper and dielectric heat-flow solve, temperature drawing, and walkthrough of the judged pours
• 2026-09-15T15:54:26Z back to fields (visit 1): the flow gained the fields step

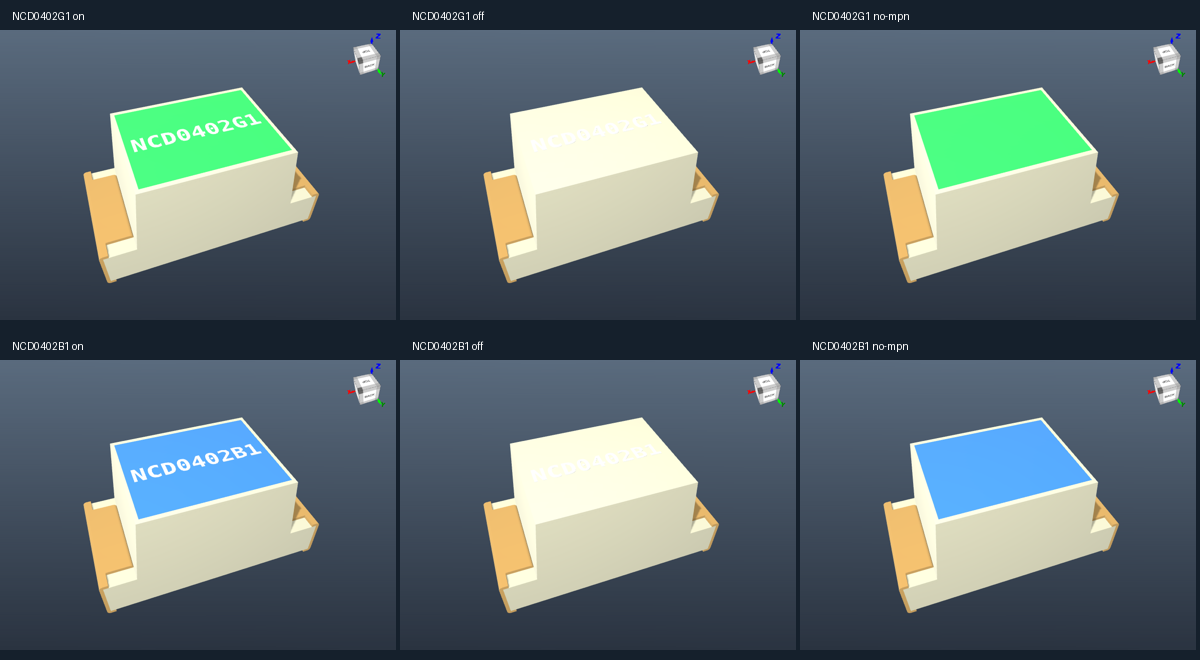

• 2026-09-16T16:34:10Z back to components (visit 1): User enabled MPN identification on every component; generate and verify the selected marked library
• 2026-09-16T23:03:02Z back to components (visit 2): Complete live wiki hero verification, source qualification, and native missing-model repair

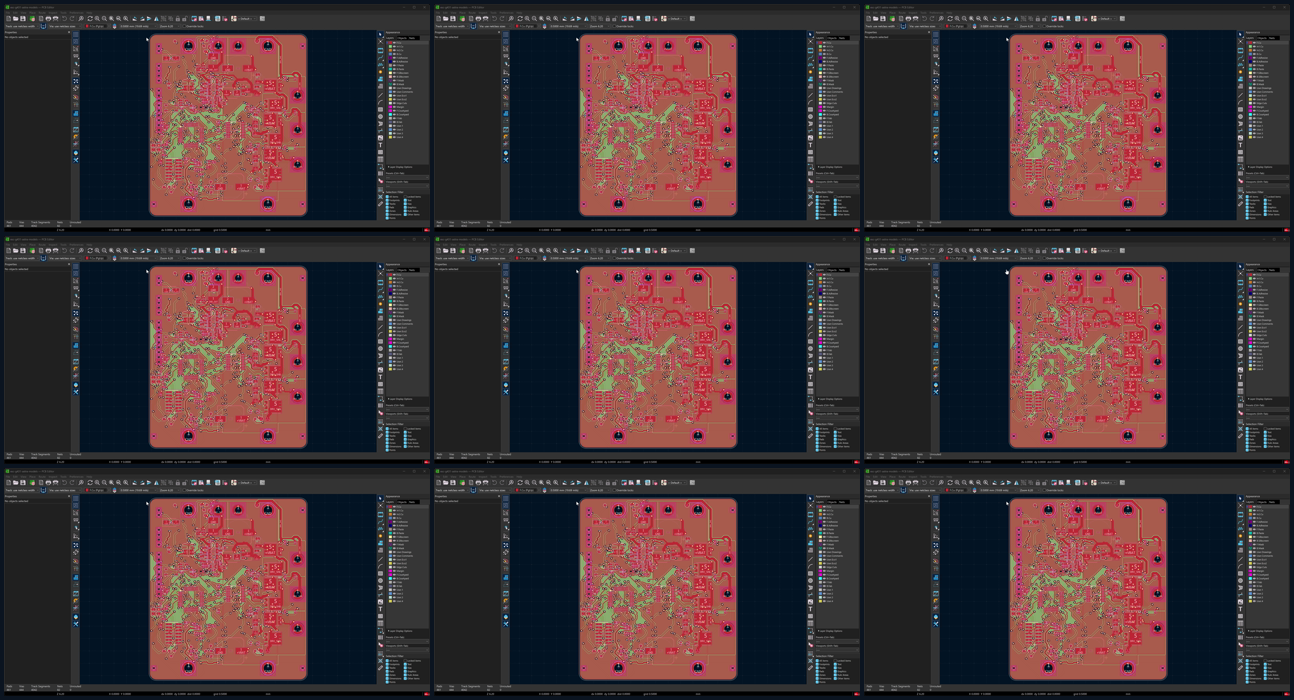

• 2026-09-17T18:34:22Z back to silkscreen (visit 2): New from-scratch complete silkscreen solve and under-one-minute video requested

Decisions along the way

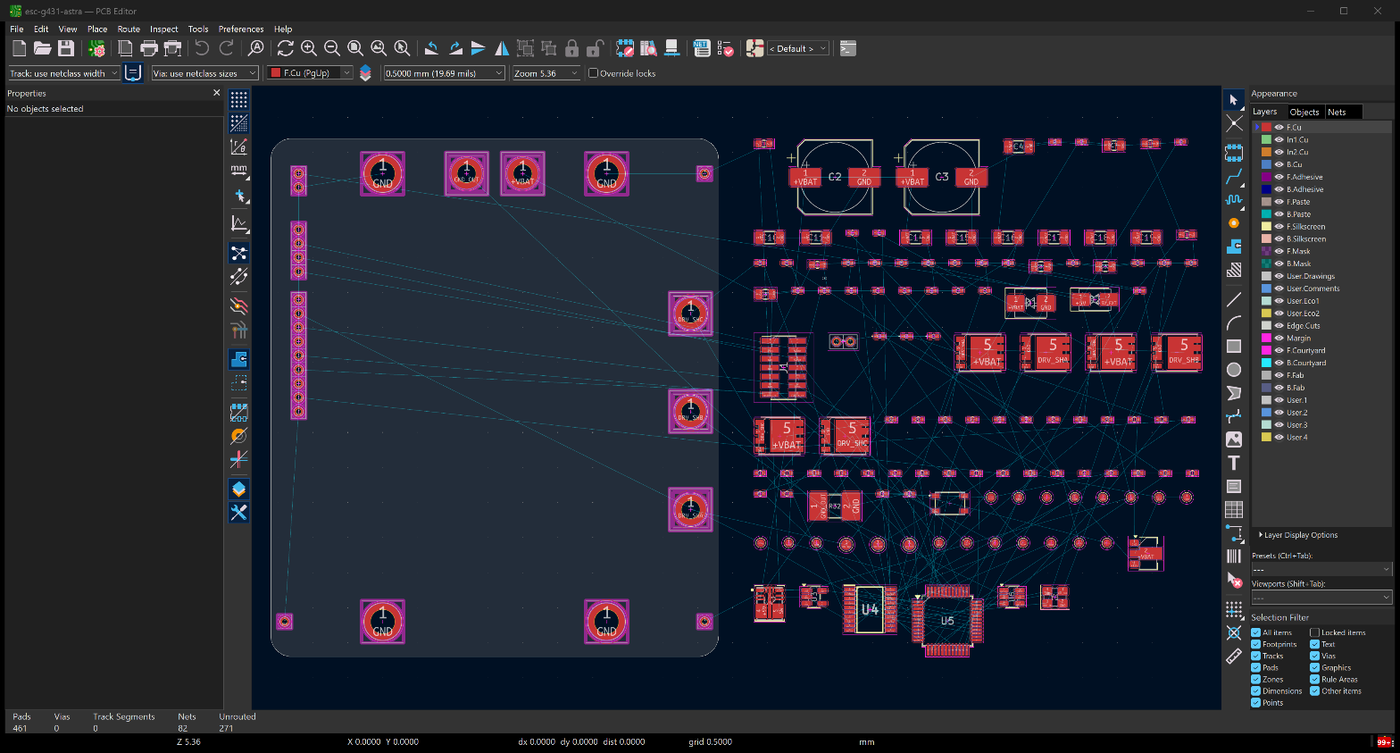

• 2026-09-14T03:18:01Z clip-start:placement-1

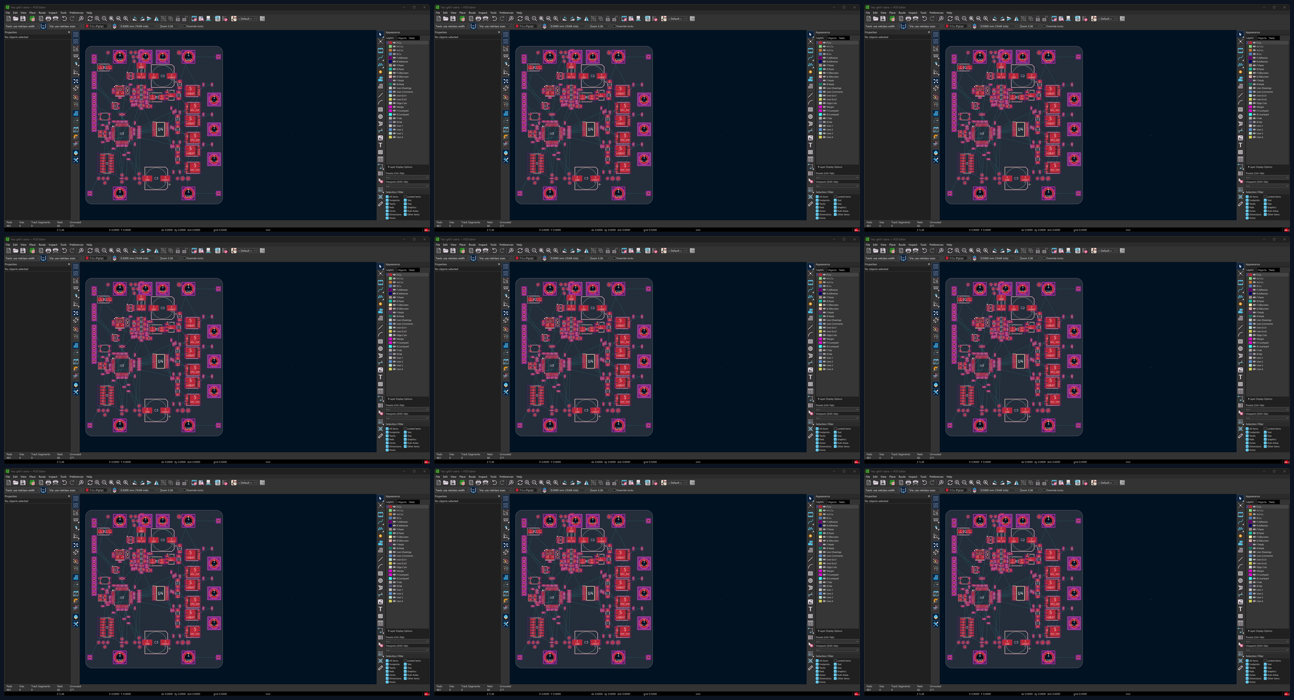

• 2026-09-14T03:21:30Z clip-start:routing-1
• 2026-09-14T03:24:31Z First router search finished 21 connections short; all waiting counted. Giveback issue 1 requests streamed progress.
• 2026-09-14T03:24:37Z clip-start:placement-2
• 2026-09-14T03:25:54Z clip-start:routing-2
• 2026-09-14T03:33:22Z Nine binary passes left six connections. AI takes routing orchestration with fresh Router state each pass; same geometry rules and native gates retained.
• 2026-09-14T03:37:02Z Stopped fresh-state experiment after seven completed trials without beating six remaining connections. Testing restoration of cleared escape terminals before retrying.
• 2026-09-14T03:38:02Z Escape-terminal regression fails on original source and passes with isolated helper repair; patch and test filed as issue 3.
• 2026-09-14T03:40:59Z clip-start:placement-3
• 2026-09-14T03:41:56Z I started placement pack/check before the previous step finished processing its clip. The overlapping step save dropped board-3 from the derived manifest and charged those two commands to routing. Ledger untouched; rerunning check sequentially to restore the accepted board reference.
• 2026-09-14T03:42:21Z clip-start:routing-3
• 2026-09-14T03:44:06Z Grid-aligned MCU and spread passives closed routing: zero unrouted. Refitted native editor view. Proceeding to native DRC gate.

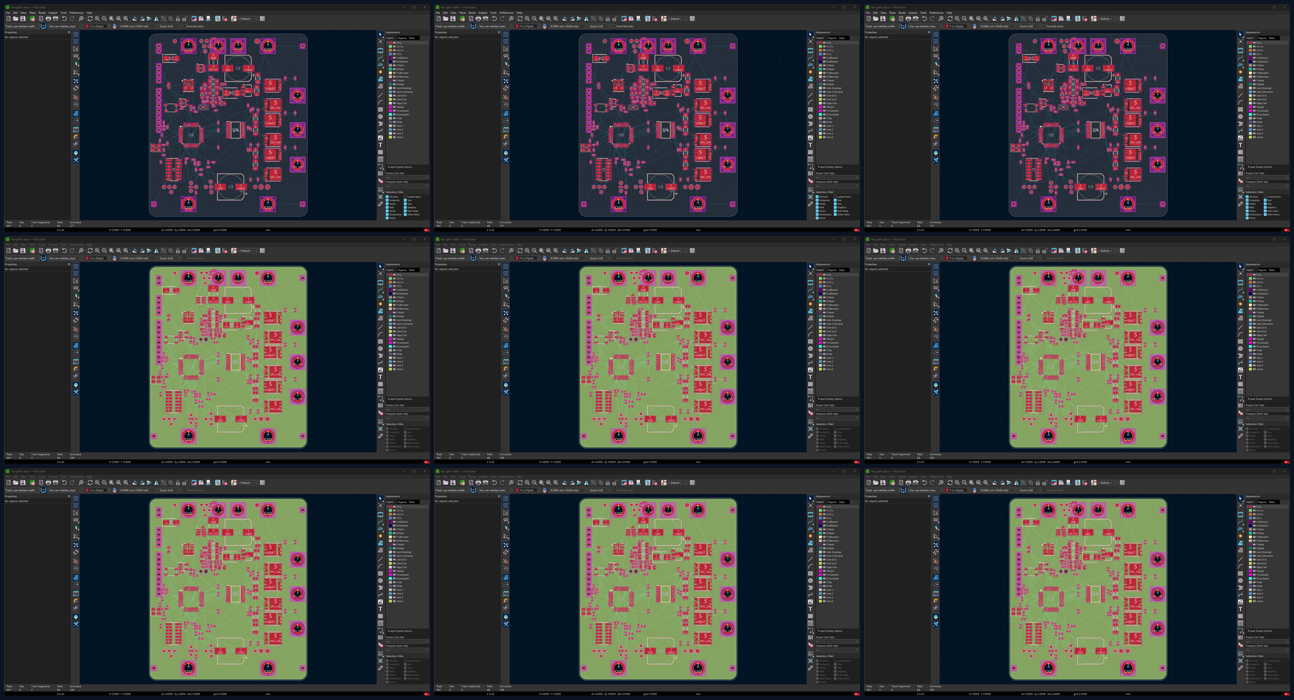

• 2026-09-14T03:45:22Z clip-start:pours-1
• 2026-09-14T03:47:09Z Added matching inner-plane geometry to separate local board-with-inner-planes.kicad_pcb through AI helper and adopted it in derived boards list. Original and placed checkpoints preserved; live planes natively landed and filled.

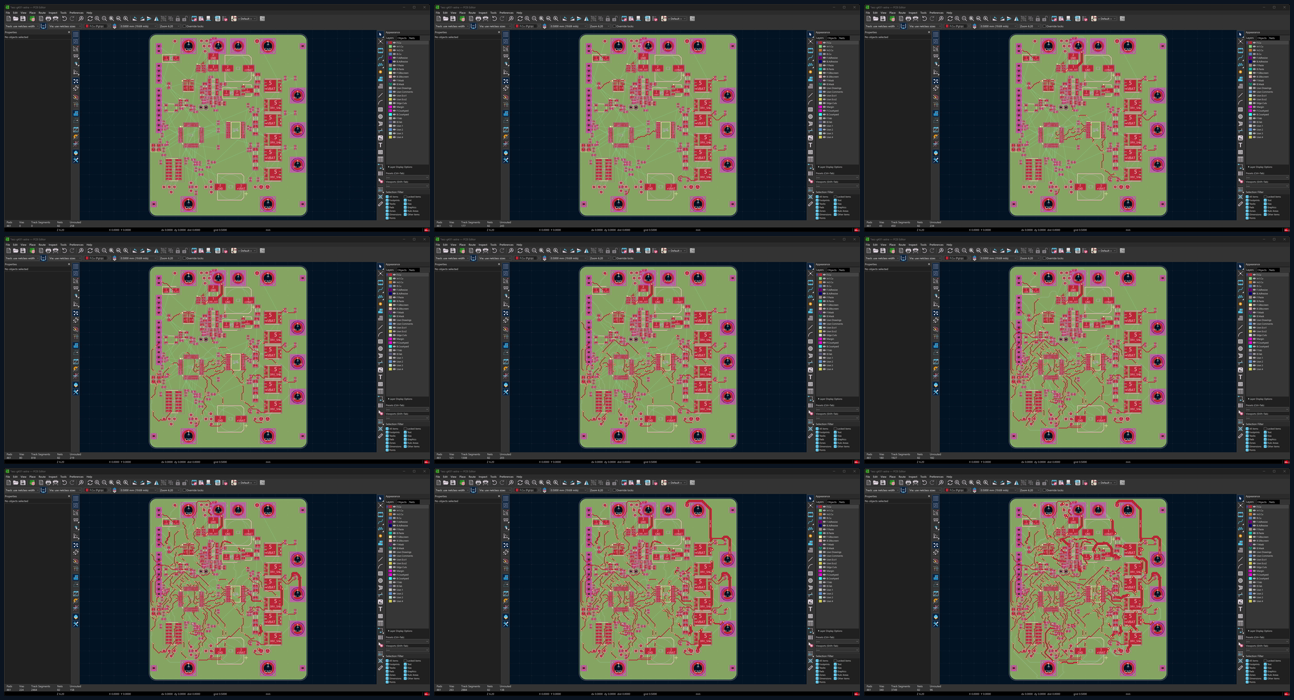

• 2026-09-14T03:47:14Z clip-start:routing-4
• 2026-09-14T03:59:29Z All 116 routing entries accepted live in 669.9 seconds; KiCad now reports zero unconnected.
• 2026-09-14T04:00:04Z clip-start:pours-2
• 2026-09-14T04:03:14Z Outer GND pour preflight refused three starved thermal connections: MC18.1 on B.Cu, C36.2 and C9.2 on F.Cu. Add targeted solid joints at these pads; preserve clearance rules.
• 2026-09-14T04:04:31Z Ground pour now passes; adding the battery region exposed one starved ground thermal at U1.1. Add a local solid ground joint and retry.
• 2026-09-14T04:07:46Z clip-start:current-1
• 2026-09-14T04:08:18Z clip-start:thermal-1
• 2026-09-14T04:08:54Z clip-start:pours-3
• 2026-09-14T04:11:25Z Q4 left-arm expansion grew the outline by 76.7 mm2 but filled phase-B copper by only 0.67 mm2; disconnected area was dropped. Replace with a connected right-side extension beside MC9.
• 2026-09-14T04:12:55Z clip-start:current-2
• 2026-09-14T04:13:23Z clip-start:thermal-2
• 2026-09-14T04:14:12Z clip-start:capture-1
• 2026-09-14T04:18:37Z clip-start:routing-5
• 2026-09-14T04:24:34Z Via repair passed native and canonical gates: zero unconnected, 13 inherited errors, zero hole-spacing warnings. Replaced one GND_OUT via and added two short links; all verification and recovery time remains counted.
• 2026-09-14T04:24:52Z clip-start:pours-4
• 2026-09-14T04:25:20Z clip-start:current-3
• 2026-09-14T04:25:39Z clip-start:thermal-3
• 2026-09-14T04:26:06Z clip-start:capture-2
• 2026-09-14T04:27:51Z Saved-file verification passed: 149 footprints, 27 fixed unchanged, zero parked, 4042 segments, 444 vias, 57 zones; zero unconnected, exactly 13 inherited errors and no hole-to-hole warning. Library and silkscreen warnings remain documented.
• 2026-09-14T04:28:01Z clip-start:finish-1

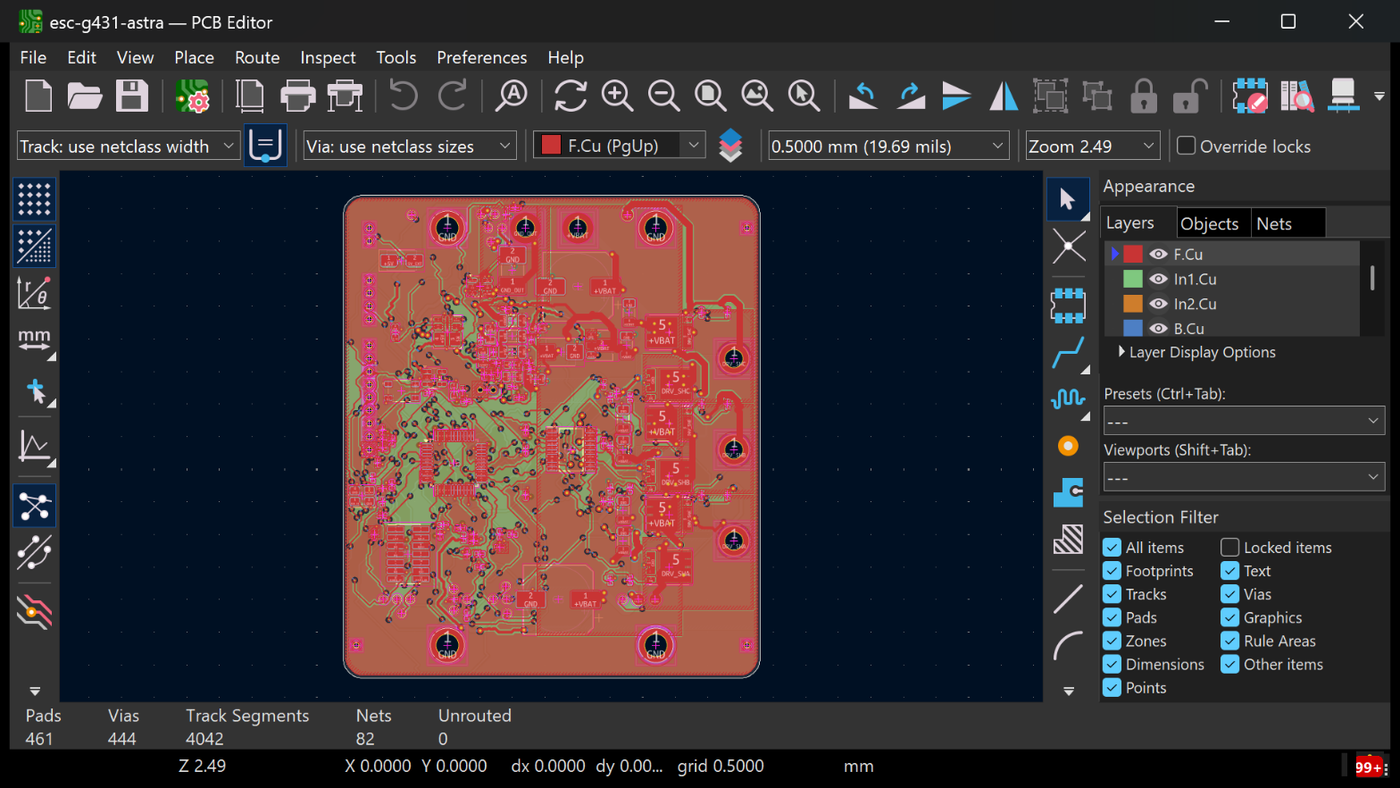

• 2026-09-14T04:28:53Z Finish passed at 74.7 minutes. Stopping the last step recording to compose every 10x visit clip in ledger order. Encoding, verification, publishing and any gaps remain on the clock until deliver.
• 2026-09-14T04:28:59Z capture-stop
• 2026-09-14T04:32:04Z Video composed and decoded successfully: 21 recorded visits in ledger order, 444.53 seconds at 10x with labeled reading holds. Explicit capture stop omitted the finish visit tag/end screenshot; composer recovered the visit from capture metadata and extracted its end screenshot from the original clip. Issue 7 records the tag defect. Token snapshot is recorded; API USD and its 20x line are null because the harness exposes no applicable model price. Encoding, checks and publication preparation remain counted.
• 2026-09-14T17:52:10Z recut: 21 clips re-cut (10x and action) with this binary's rules
• 2026-09-14T17:53:48Z Post-delivery upgrade requested by John: preserve prompt 2026-09-14T03:14:00.700Z, finish 04:28:40Z and deliver 04:32:32Z. Reviewed Fable video and all three drawings, and all 21 original clip sheets; none blank. Original 0.1.5 did not capture start/end plan usage; the new snapshot is post-delivery only. Geometry parser reproduces native filled areas and reads the actual 35/15.2/15.2/35 um stackup.
• 2026-09-14T17:56:38Z clip-start:nets-1
• 2026-09-14T17:59:41Z capture-stop
• 2026-09-14T18:01:17Z First nets tour was invalid: every selection returned zero after board_mismatch, yet tour printed OK. Clip has 0.3 seconds motion and stays out. Restarted only Astra under isolated TEMP; exact socket now verifies 4042 tracks and 444 vias. A task-local bridge adapter supplies socketPath to IPC verbs; no installed bridge or board geometry was modified. Original delivery clocks remain unchanged.
• 2026-09-14T18:02:17Z clip-start:nets-2
• 2026-09-14T18:05:03Z net +12V: 172 items highlighted
• 2026-09-14T18:09:08Z net +5V: 213 items highlighted
• 2026-09-14T18:10:03Z net +VBAT: 570 items highlighted
• 2026-09-14T18:10:55Z net /DRV_SHA: 144 items highlighted
• 2026-09-14T18:11:58Z net /DRV_SHB: 113 items highlighted
• 2026-09-14T18:12:47Z net /DRV_SHC: 125 items highlighted
• 2026-09-14T18:13:47Z net GND_OUT: 24 items highlighted
• 2026-09-14T18:13:52Z net GND: 412 items highlighted
• 2026-09-14T18:15:09Z capture-stop
• 2026-09-14T18:19:48Z Framing review: nets-2 rejected visually because resizing the window mid-recording retained stale pixels. Retake at fixed 1920x1080, Properties sidebar collapsed, native Zoom to Fit; original delivery clocks remain unchanged.

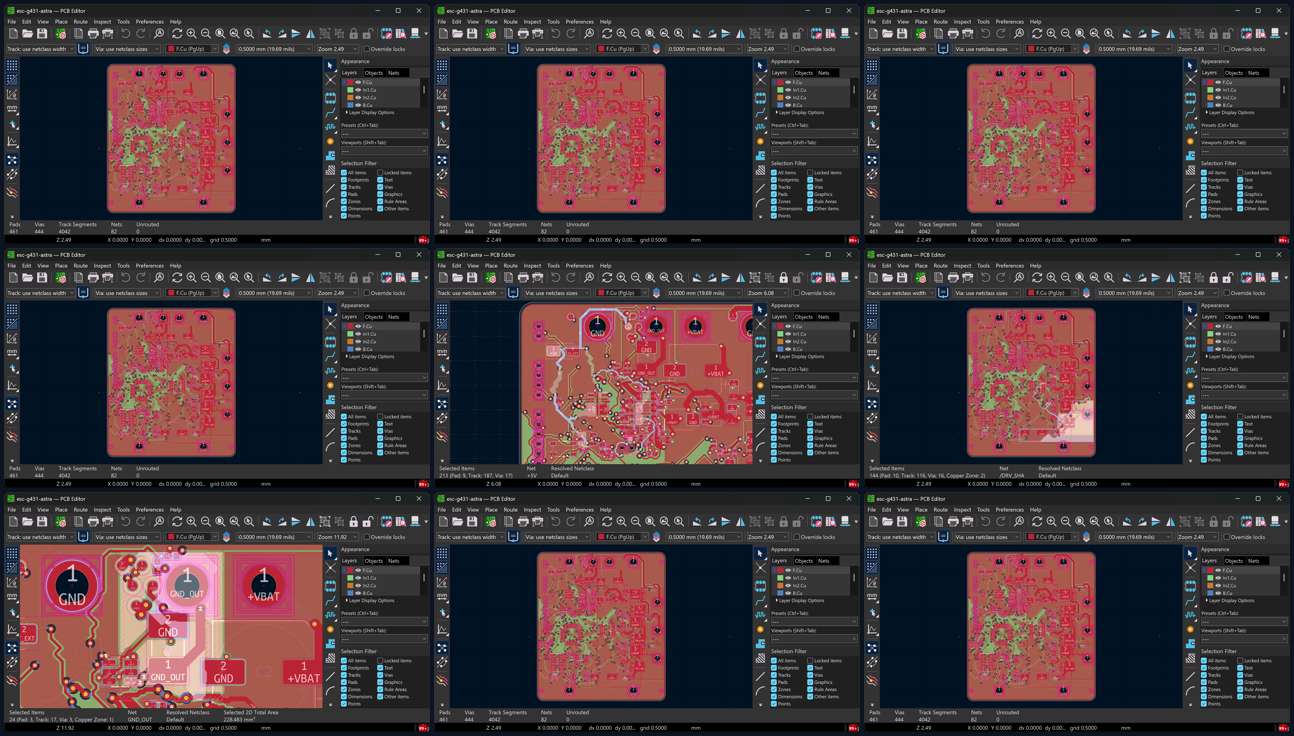

• 2026-09-14T18:20:06Z clip-start:nets-3
• 2026-09-14T18:20:51Z net +12V: 172 items highlighted
• 2026-09-14T18:20:56Z net +5V: 213 items highlighted
• 2026-09-14T18:21:02Z net +VBAT: 570 items highlighted
• 2026-09-14T18:21:08Z net /DRV_SHA: 144 items highlighted
• 2026-09-14T18:21:13Z net /DRV_SHB: 113 items highlighted
• 2026-09-14T18:21:18Z net /DRV_SHC: 125 items highlighted
• 2026-09-14T18:21:23Z net GND_OUT: 24 items highlighted
• 2026-09-14T18:21:28Z net GND: 412 items highlighted
• 2026-09-14T18:21:56Z capture-stop
• 2026-09-14T18:22:30Z clip-start:3d-1

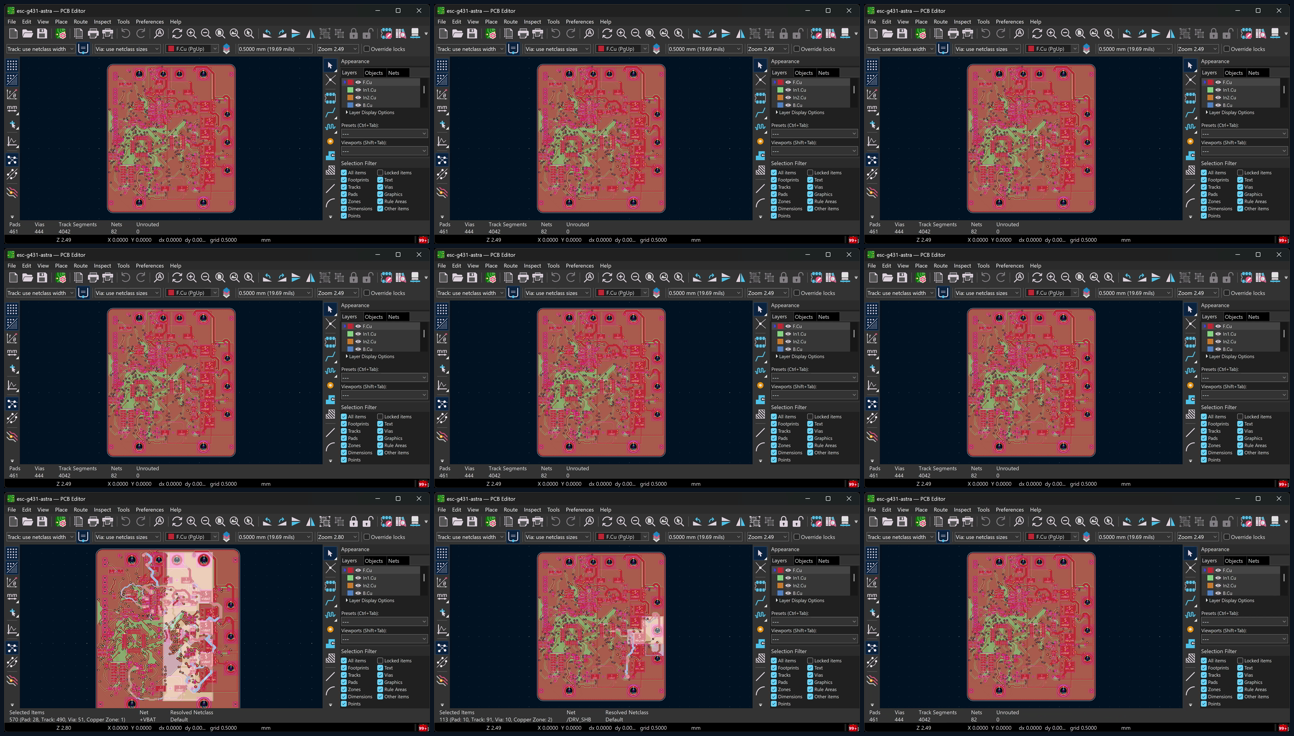

• 2026-09-14T18:24:09Z clip-start:current-4

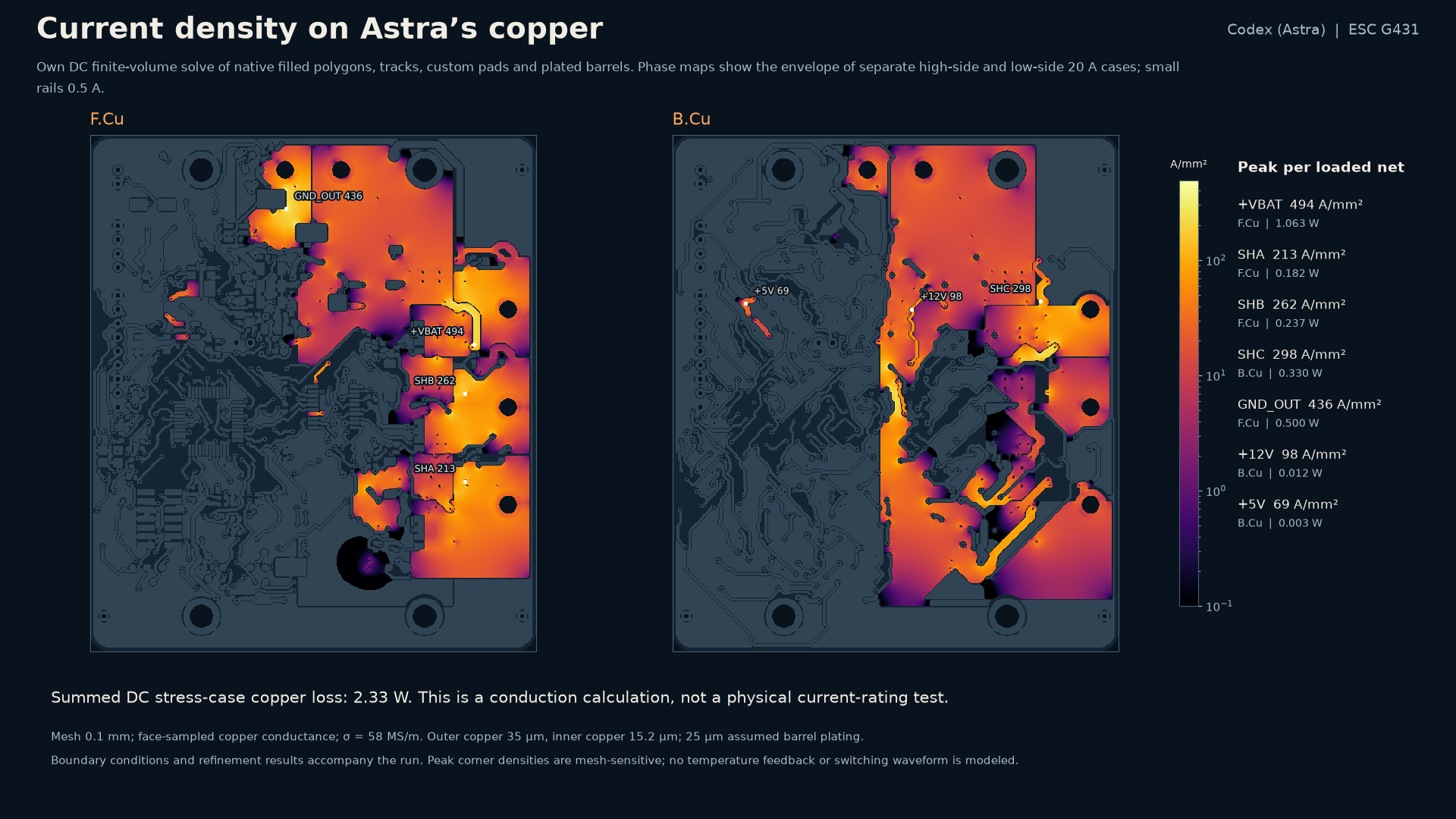

• 2026-09-14T18:25:49Z artifact analysis-image for current-4: Independent four-layer DC conduction solve of native filled polygons, tracks, pads and 473 plated barrels: F.Cu and B.Cu current density, with each loaded net peak annotated. The 0.1 mm stress-case solve gives 2.327 W copper loss; +VBAT peaks at 494 A/mm² and GND_OUT at 436 A/mm², with mesh-sensitive corner peaks and 0.3% total-loss change on refinement.
• 2026-09-14T18:25:58Z net +VBAT: 570 items highlighted
• 2026-09-14T18:26:04Z net /DRV_SHA: 144 items highlighted
• 2026-09-14T18:26:12Z net /DRV_SHB: 113 items highlighted
• 2026-09-14T18:26:19Z net /DRV_SHC: 125 items highlighted
• 2026-09-14T18:26:25Z net GND_OUT: 24 items highlighted
• 2026-09-14T18:26:45Z capture-stop
• 2026-09-14T18:27:09Z clip-start:thermal-4
• 2026-09-14T18:28:28Z Independent thermal solve running: actual four-layer stack, every plated barrel, 4.1 W tab losses plus DC Joule heat; numerical work and waiting are post-delivery ledger time. Nets-2 raw is preserved but marked discarded in run.json after visual rejection; run.jsonl is untouched.
• 2026-09-14T18:31:00Z capture-stop
• 2026-09-14T18:36:09Z recut: 28 clips re-cut (10x and action) with this binary's rules

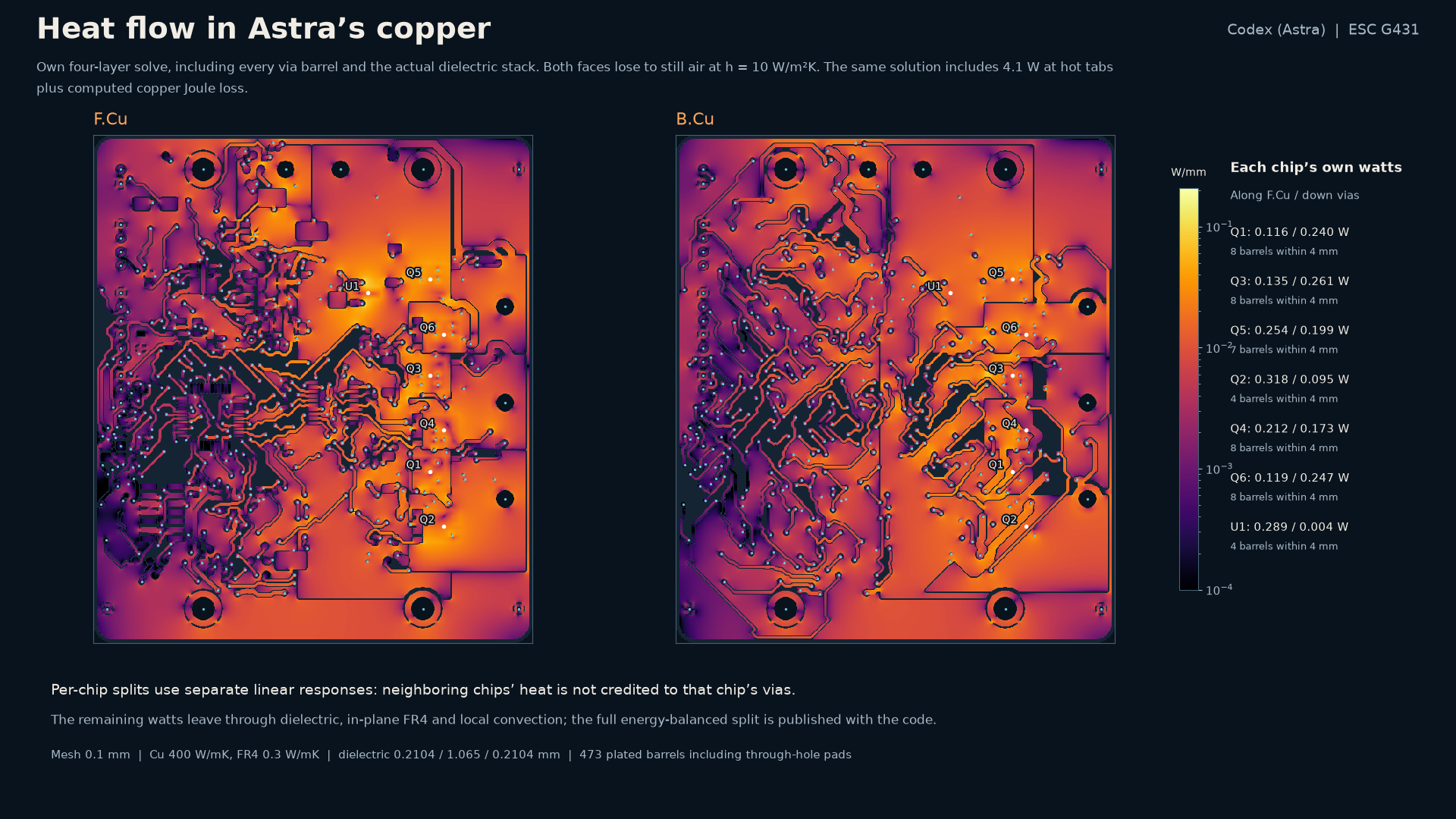

• 2026-09-14T18:40:20Z artifact analysis-image for thermal-4: Own four-layer heat solve carries 6.427 W from the hot tabs and copper losses through native copper, dielectric and 473 plated barrels. F.Cu and B.Cu show watts per millimetre of width with via dots; each chip is labeled with its own along-layer and down-via heat within 4 mm, with full balanced splits and mesh sensitivity in the numerical report.

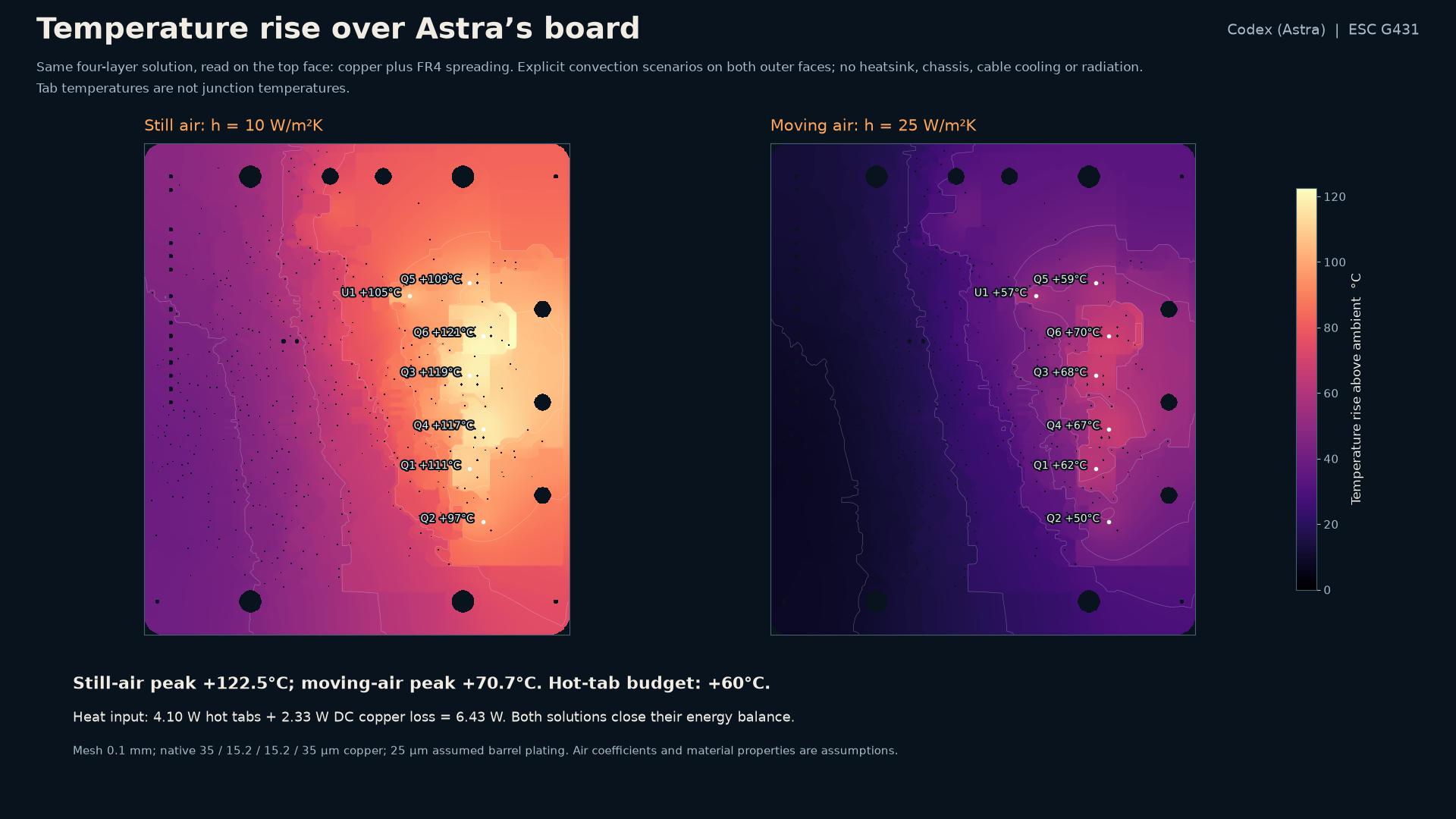

• 2026-09-14T18:40:31Z artifact analysis-image for thermal-4: The independent coupled solve fails the 60 C hot-tab rise budget: Q6 reaches +121 C in still air and +70 C with moving air; board peaks are +122.5 C and +70.7 C. Top-face temperature from the same 6.427 W solve uses h=10 and 25 W/m²K; results remain mesh-sensitive and are predictions under stated assumptions, not measured junction temperatures.
• 2026-09-14T18:40:37Z capture-start
• 2026-09-14T18:41:19Z net +VBAT: 570 items highlighted
• 2026-09-14T18:41:25Z net /DRV_SHA: 144 items highlighted
• 2026-09-14T18:41:31Z net /DRV_SHB: 113 items highlighted
• 2026-09-14T18:41:37Z net /DRV_SHC: 125 items highlighted
• 2026-09-14T18:42:23Z artifact analysis-source for thermal-4: Reproducible Astra source, final board, spec, numerical reports, analytic fixture validation and assumptions for the independent DC and coupled thermal drawings.
• 2026-09-14T18:42:45Z clip-start:finish-2
• 2026-09-14T18:44:45Z capture-stop
• 2026-09-14T18:47:07Z compose: the delivered video replaced by the composed cut (motion only, the ledger's overlays, the AI's drawings, narration cut to the picture); the clock of record unchanged
• 2026-09-14T18:50:43Z Final composition rejected on visual review: action cuts retain approximately 0.23 s of black recorder startup. AI preserves original raw/10x clips and original action copies, trims only measured leading black frames from action derivatives, and recomposes. Details in action-black-trim.json; clocks and run.jsonl remain unchanged.
• 2026-09-14T18:52:27Z compose: the delivered video replaced by the composed cut (motion only, the ledger's overlays, the AI's drawings, narration cut to the picture); the clock of record unchanged
• 2026-09-14T18:55:00Z Compose reads raw recordings again, so action-copy trimming alone did not remove its startup frame. A run-local ffmpeg adapter now seeks past each measured leading black interval only on raw input; source files and clocks are untouched. Exact map: raw-startup-skip.json; every effective command: compose-ffmpeg-calls.jsonl.
• 2026-09-14T18:55:48Z compose: the delivered video replaced by the composed cut (motion only, the ledger's overlays, the AI's drawings, narration cut to the picture); the clock of record unchanged
• 2026-09-14T18:56:25Z Runtime command trace resolves the exact input: compose rebuilds motion from the 10x copies, not the action copies. Adapter now skips only measured black startup in those 10x inputs via compose-input-startup-skip.json. Raw and 10x files remain unchanged; earlier attempted fixes and this correction remain in the ledger.
• 2026-09-14T18:57:12Z compose: the delivered video replaced by the composed cut (motion only, the ledger's overlays, the AI's drawings, narration cut to the picture); the clock of record unchanged
• 2026-09-14T19:06:55Z Wiki rejected the complete handover body at 98012 characters (65536-character cap). Preserve the full requested handover and ledger as attachments; put all metadata and ledger part 1 in the issue body, with the unabridged remainder in a continuation comment.
• 2026-09-15T15:53:19Z Fields follow-up: reviewing reference clip and solving the saved filled final board; this Hydrogen workspace is local WSL, so its discovered localhost proxy will be used on AdomLapper.
• 2026-09-15T15:58:55Z compose: the delivered video replaced by the composed cut (motion only, the ledger's overlays, the AI's drawings, narration cut to the picture); the clock of record unchanged
• 2026-09-15T15:59:12Z artifact analysis-review for finish-3: My answer to every Fields issue, independent same-net via checks, solver assumptions, and proposed board changes.
• 2026-09-16T15:16:11Z Session 15 contained active external build, source, browser and wiki work; the reported 20-minute idle interval is wrong, see AI Flow issue 18.
• 2026-09-16T16:42:49Z capture-stop
• 2026-09-16T16:52:25Z artifact component-tour for components-1: All 40 selected MPN-marked component variants; detailed review tour, kept separate from the short final video.
• 2026-09-16T16:52:25Z artifact component-overview for components-1: Moving overview of all 40 selected marked variants; intended as the brief library segment within the final video budget.
• 2026-09-16T16:55:58Z artifact component-library for components-1: Exact 40-component MPN-on selection manifest used by the recorded tour; STEP hashes match the marked board binding map. Later native proof is recorded separately.
• 2026-09-16T17:11:48Z artifact component-preview for components-1: Two LED types, six verified states: green/blue light on, light off with MPN, and MPN hidden with light on. Illustrative emission; public STEP and GLB extras cached on both global pages.
• 2026-09-16T23:04:15Z capture-stop
• 2026-09-16T23:20:09Z compose: the delivered video replaced by the composed cut (motion only, the ledger's overlays, the AI's drawings, narration cut to the picture); the clock of record unchanged
• 2026-09-16T23:21:29Z All 40 native wiki heroes checked; J1 visibility repaired; updated board uses lit LED STEP variants and independent switch. External CAD and browser commands are recorded in completion evidence; no ledger rows were rewritten.
• 2026-09-16T23:23:02Z Correction: the newly submitted hero acceptance guidance is PR 11, not PR 10. The preceding giveback command used the wrong ordinal; retain this correction in the append-only ledger and count unique verified URLs.
• 2026-09-16T23:23:49Z artifact component-tour for components-2: All 40 component types, MPN marking enabled; lit green and blue LED variants and independent Alps switch, with links and hashes in the component index. Detailed tour remains separate from the short final overview.
• 2026-09-16T23:39:18Z capture-stop
• 2026-09-16T23:44:40Z artifact silkscreen-review for silkscreen-1: Two-sided ESC service labels; native review and default-text-height DRC limitations documented at https://wiki.adom.inc/adom/esc-g431/files/docs/astra/silkscreen/README.md
• 2026-09-16T23:46:09Z artifact silkscreen-tour for silkscreen-1: Raw native AdomLapper recording, 10x and action cuts, exact HWND and timings; reviewed contact sheet linked on the ESC silkscreen page.
• 2026-09-16T23:50:15Z artifact video-edit-record for silkscreen-1: 119.719-second final cut, 7.53 MB, reviewed binary base plus current component and two-sided silk appendices; original delivery timestamp unchanged.
• 2026-09-16T23:56:53Z User review: reduce crowded reference fonts to stay close, allow 0.3/0.2 mm values, label every test point, and repeat interface labels on both faces. Applying this to skill, hints and board; physical microtext readability remains unverified.
• 2026-09-17T00:04:05Z artifact accounting-note for silkscreen-1: Built CLI confirms required both-face interfaces, every test point, proximity-first sizing and tiny values. Current harness token/dollar usage unavailable; null follow-up accounting recorded without altering historical snapshots.
• 2026-09-17T00:16:38Z Close-label revision v16: all149 refs,21 TP,27 MC/MP; native DRC13 inherited errors and23 inherited mask warnings; tiny-font and modified-footprint warnings retained. Active external geometry/DRC work continued.
• 2026-09-17T00:18:02Z artifact verification for silkscreen-1: Close labels v16: all149 references, all21 test points, unchanged13 inherited errors; no new mask or silk overlap findings. Tiny text and modified passive outlines retain DRC warnings.
• 2026-09-17T00:37:50Z Native contact/value/J1 and MOSFET pin1 revisions v17–v25; genuine intermediate boards and DRC retained. No progressive video claimed: native incremental text editing remains unavailable; final-state screenshots only.
• 2026-09-17T00:40:52Z artifact verification for silkscreen-1: All79 R/C values;27 contact/pin pairs beside their positions on both faces,30 curved leaders,14 J1 labels per face, explicit MOSFET pin1 markers. Native v25 DRC retains13 inherited errors, no new mask or silk overlap findings.
• 2026-09-17T12:33:23Z artifact review for silkscreen-1: Silkscreen dashboard proposal replay, 4.52 seconds; not native KiCad edits; three component groups unresolved
• 2026-09-17T12:33:54Z artifact review for silkscreen-1: Detailed solver-event replay, 76.50 seconds; candidate review rather than native board edits; C9/C32/C36 remain unresolved
• 2026-09-17T13:58:40Z Fresh grouped solver: no earlier label positions used; name/value and connector-order constraints enabled
• 2026-09-17T14:54:37Z Rejected v35 review cut: camera framing lagged bottom label events. Retaking with independent active-group capture extent.
• 2026-09-17T15:00:45Z artifact review-video for silkscreen-1: Fresh v35 silkscreen replay: semantic sections, pad-facing alignment and shared contact borders, followed by native KiCad proof. 67.07s, 1080p; five association reviews remain.
• 2026-09-17T15:29:12Z artifact analysis-image for silkscreen-1: KiCad bottom view of v36: native Rust placed interior documentation and a wiki-sourced board description. Four documentation edge fallbacks remain for review; physical interface labels remain local.
• 2026-09-17T15:29:28Z artifact review-screenshot for silkscreen-1: Native KiCad review evidence, not an analysis drawing or fullscreen video insert. v36 bottom includes the new interior board description; four documentation edge fallbacks remain.
• 2026-09-17T18:35:00Z capture-stop
• 2026-09-17T18:46:07Z artifact review-video for silkscreen-2: Fresh ESC silkscreen solve: all 441 labels regenerated; 58-second 1080p video, with final 10 seconds in native KiCad 3D. Six association reviews and four documentation edge fallbacks remain.
• 2026-09-17T19:16:40Z artifact review-video for silkscreen-2: 58-second full-board fixed-camera placement replay: top then bottom, accelerated with ffmpeg, final 10 seconds native KiCad 3D.

Where the board stands

• routing: 0 unrouted after null passes
• gate: 0 new DRC errors, 0 unconnected, null inherited
• landed live: 116 of 116 route entries
• pours: 3 groups, failed []
• copper kept (mm2 per layer): {"B.Cu":3169.87,"F.Cu":2891.08,"In1.Cu":4128.9,"In2.Cu":3963.0}
• analyze-current: pass
• analyze-thermal: pass

The steps on camera

One clip per step visit, sped up 10x, with the editor at the start and the end of the visit. A caption above every clip and screenshot says what it shows.

placement

What this step does: place the parts for routability, current and heat; the binary packs, checks courtyards and lands moves

Clip: placement, the PCB editor from 2026-09-14T03:18:01Z to 2026-09-14T03:21:26Z. Motion only: 3.4 min of real time, 1 s of it had something moving; the clock in the corner is the real elapsed time.

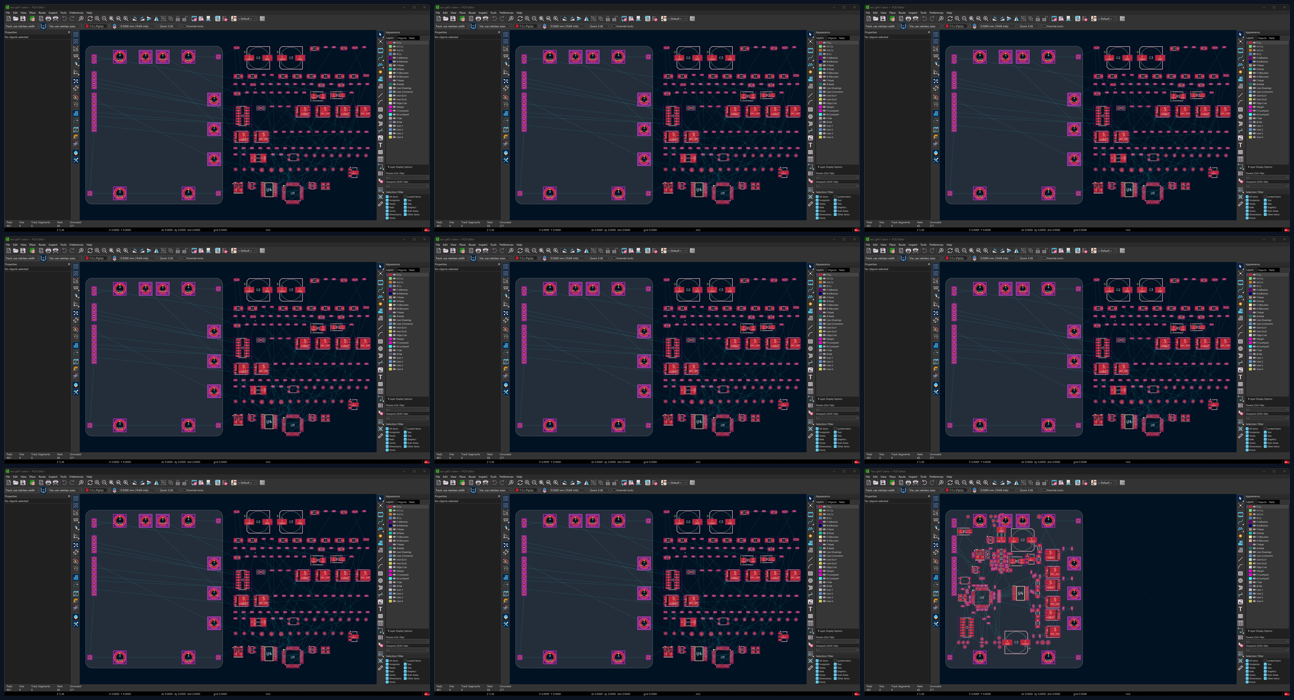

Contact sheet: nine frames spread through the placement clip, what the camera saw.

Screenshot: the board when placement began.

Screenshot: the board when placement ended.

routing

What this step does: route to 100 percent with the spec's rules, gate with KiCad's DRC, land as undo steps; the AI takes it with take route=ai

Clip: routing, the PCB editor from 2026-09-14T03:21:30Z to 2026-09-14T03:24:34Z. Motion only: 3.0 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the routing clip, what the camera saw.

Screenshot: the board when routing began.

Screenshot: the board when routing ended.

placement, visit 2 (rework)

What this step does: place the parts for routability, current and heat; the binary packs, checks courtyards and lands moves

Why the AI came back here: First five routing passes left 21 connections blocked around U5 and U2; move nearby passives out of the pin escape corridors.

Clip: placement, visit 2 (rework), the PCB editor from 2026-09-14T03:24:37Z to 2026-09-14T03:25:52Z. Motion only: 1.2 min of real time, 1 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the placement, visit 2 (rework) clip, what the camera saw.

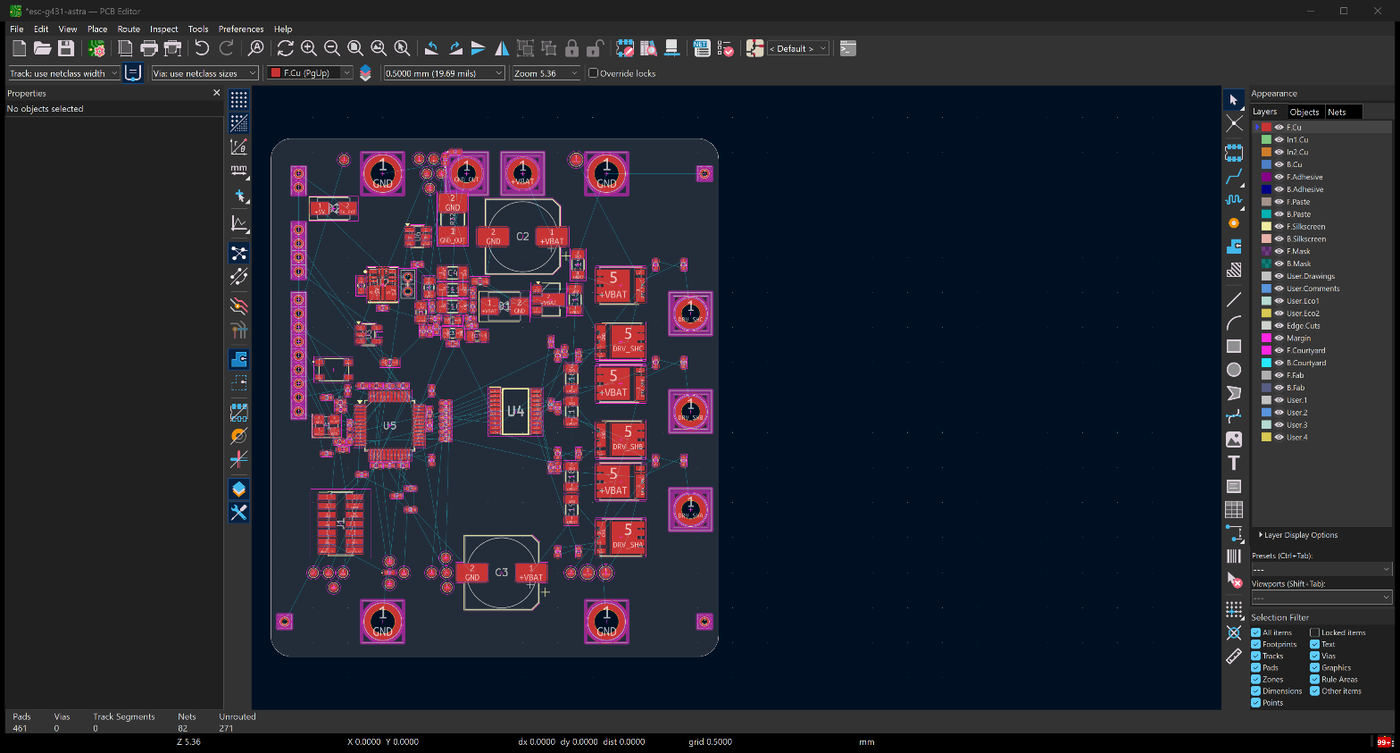

Screenshot: the board when placement, visit 2 (rework) began.

Screenshot: the board when placement, visit 2 (rework) ended.

routing, visit 2 (rework)

What this step does: route to 100 percent with the spec's rules, gate with KiCad's DRC, land as undo steps; the AI takes it with take route=ai

Why the AI came back here: Retry routing after opening U5 and U2 escape space; placement remains at 13 inherited DRC errors.

Clip: routing, visit 2 (rework), the PCB editor from 2026-09-14T03:25:54Z to 2026-09-14T03:40:48Z. Motion only: 14.7 min of real time, 1 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the routing, visit 2 (rework) clip, what the camera saw.

Screenshot: the board when routing, visit 2 (rework) began.

Screenshot: the board when routing, visit 2 (rework) ended.

placement, visit 3 (rework)

What this step does: place the parts for routability, current and heat; the binary packs, checks courtyards and lands moves

Why the AI came back here: Fresh-state and repaired-escape trials did not close routing. Spread remaining sense-divider and LED parts and align U5 pin centerlines to the 0.1 mm router grid.

Clip: placement, visit 3 (rework), the PCB editor from 2026-09-14T03:40:59Z to 2026-09-14T03:42:18Z. Motion only: 1.3 min of real time, 1 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the placement, visit 3 (rework) clip, what the camera saw.

Screenshot: the board when placement, visit 3 (rework) began.

Screenshot: the board when placement, visit 3 (rework) ended.

routing, visit 3 (rework)

What this step does: route to 100 percent with the spec's rules, gate with KiCad's DRC, land as undo steps; the AI takes it with take route=ai

Why the AI came back here: Retry the native router on grid-aligned U5 and the spread sense/LED parts; placement verified at 13 inherited errors.

Clip: routing, visit 3 (rework), the PCB editor from 2026-09-14T03:42:21Z to 2026-09-14T03:45:19Z. Motion only: 2.9 min of real time, 1 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the routing, visit 3 (rework) clip, what the camera saw.

Screenshot: the board when routing, visit 3 (rework) began.

Screenshot: the board when routing, visit 3 (rework) ended.

pours

What this step does: pour every net the spec names, keepouts along Kelvin taps, thermal and stitching vias, land, measure the copper kept

Why the AI came back here: Native gate found 97 unconnected items exclusively on GND and +3V3: clean source has no zones despite spec.planes. Create inner planes before route landing.

Clip: pours, the PCB editor from 2026-09-14T03:45:22Z to 2026-09-14T03:47:11Z. Motion only: 1.8 min of real time, 4 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the pours clip, what the camera saw.

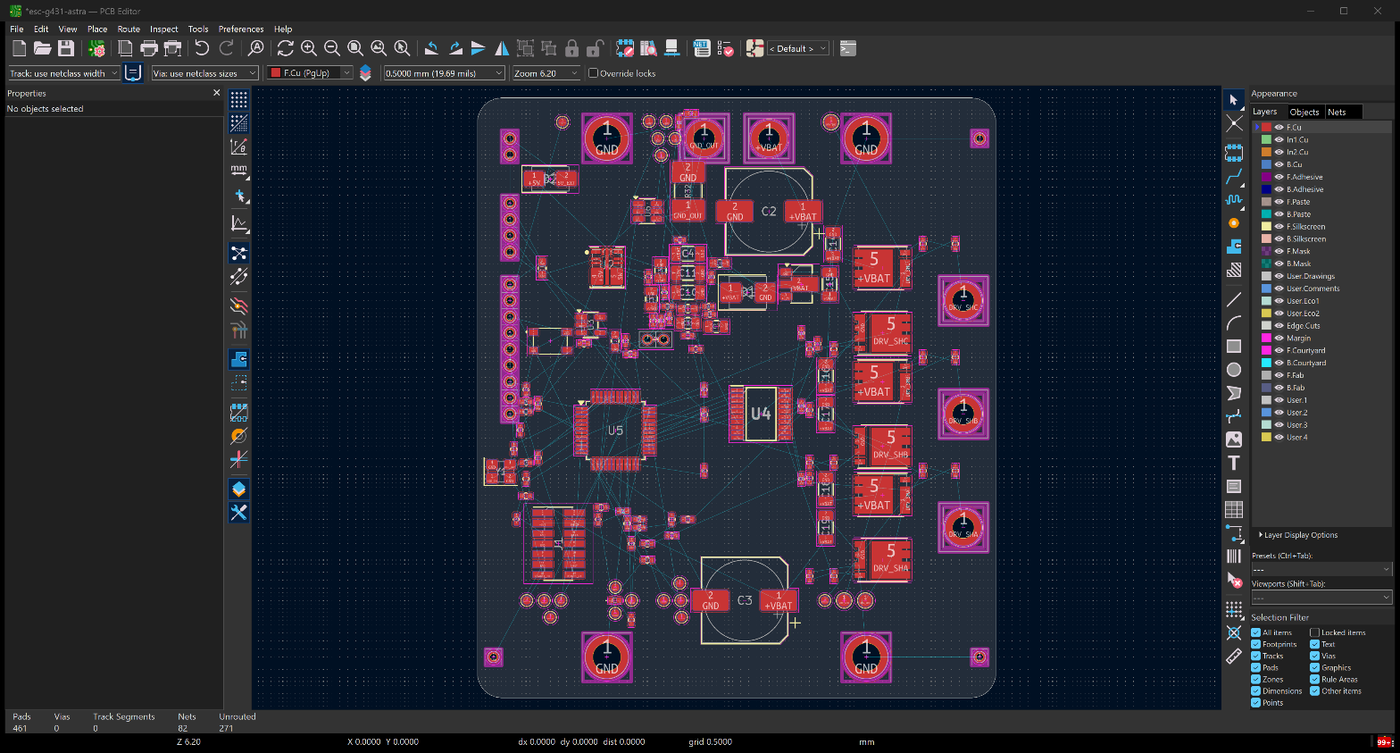

Screenshot: the board when pours began.

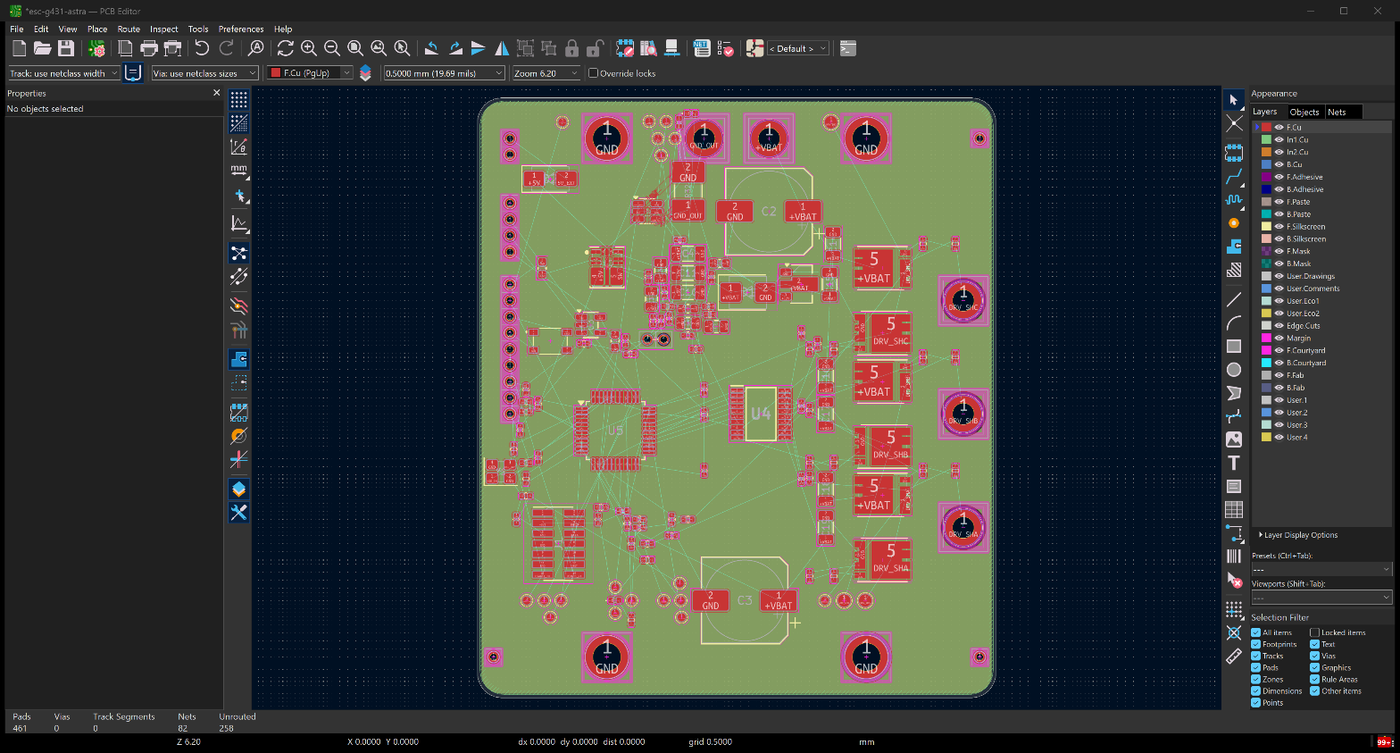

Screenshot: the board when pours ended.

routing, visit 4 (rework)

What this step does: route to 100 percent with the spec's rules, gate with KiCad's DRC, land as undo steps; the AI takes it with take route=ai

Why the AI came back here: Missing GND and +3V3 inner planes are now present both locally and live. Re-run native connectivity gate before landing the zero-unrouted routing plan.

Clip: routing, visit 4 (rework), the PCB editor from 2026-09-14T03:47:14Z to 2026-09-14T03:59:51Z. Motion only: 12.3 min of real time, 52 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the routing, visit 4 (rework) clip, what the camera saw.

Screenshot: the board when routing, visit 4 (rework) began.

Screenshot: the board when routing, visit 4 (rework) ended.

pours, visit 2 (rework)

What this step does: pour every net the spec names, keepouts along Kelvin taps, thermal and stitching vias, land, measure the copper kept

Why the AI came back here: Routing is now fully landed with zero unconnected. Add outer battery, phase, shunt-return and ground pours for current and thermal analysis.

Clip: pours, visit 2 (rework), the PCB editor from 2026-09-14T04:00:04Z to 2026-09-14T04:07:38Z. Motion only: 7.4 min of real time, 24 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the pours, visit 2 (rework) clip, what the camera saw.

Screenshot: the board when pours, visit 2 (rework) began.

Screenshot: the board when pours, visit 2 (rework) ended.

current

What this step does: IPC-2221 on every loaded net, pour and via capacity, the same-layer rule

Clip: current, the PCB editor from 2026-09-14T04:07:46Z to 2026-09-14T04:08:16Z. Motion only: 0.5 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the current clip, what the camera saw.

Screenshot: the board when current began.

Screenshot: the board when current ended.

thermal

What this step does: copper and vias at every hot tab against the rise budget

Clip: thermal, the PCB editor from 2026-09-14T04:08:18Z to 2026-09-14T04:08:52Z. Motion only: 0.6 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the thermal clip, what the camera saw.

Screenshot: the board when thermal began.

Screenshot: the board when thermal ended.

pours, visit 3 (rework)

What this step does: pour every net the spec names, keepouts along Kelvin taps, thermal and stitching vias, land, measure the copper kept

Why the AI came back here: Thermal analysis estimates Q4 at 63 C rise against the unchanged 60 C budget; expand its connected rear phase-B copper and remeasure.

Clip: pours, visit 3 (rework), the PCB editor from 2026-09-14T04:08:54Z to 2026-09-14T04:12:51Z. Motion only: 3.9 min of real time, 8 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the pours, visit 3 (rework) clip, what the camera saw.

Screenshot: the board when pours, visit 3 (rework) began.

Screenshot: the board when pours, visit 3 (rework) ended.

current, visit 2 (rework)

What this step does: IPC-2221 on every loaded net, pour and via capacity, the same-layer rule

Why the AI came back here: Recheck all loaded nets after the connected phase-B thermal extension and native refill.

Clip: current, visit 2 (rework), the PCB editor from 2026-09-14T04:12:55Z to 2026-09-14T04:13:21Z. Motion only: 0.4 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the current, visit 2 (rework) clip, what the camera saw.

Screenshot: the board when current, visit 2 (rework) began.

Screenshot: the board when current, visit 2 (rework) ended.

thermal, visit 2 (rework)

What this step does: copper and vias at every hot tab against the rise budget

Why the AI came back here: All seven current checks pass after the phase-B extension; reevaluate Q4 against the same 60 C rise budget.

Clip: thermal, visit 2 (rework), the PCB editor from 2026-09-14T04:13:23Z to 2026-09-14T04:14:10Z. Motion only: 0.8 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the thermal, visit 2 (rework) clip, what the camera saw.

Screenshot: the board when thermal, visit 2 (rework) began.

Screenshot: the board when thermal, visit 2 (rework) ended.

capture

What this step does: window recording with markers, so every engine's video lines up

Why the AI came back here: Both analyses pass. Save the native board, pull it back, verify the 27 fixed interfaces and run DRC on the saved result before finish.

Clip: capture, the PCB editor from 2026-09-14T04:14:12Z to 2026-09-14T04:18:32Z. Motion only: 4.3 min of real time, 2 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the capture clip, what the camera saw.

Screenshot: the board when capture began.

Screenshot: the board when capture ended.

routing, visit 5 (rework)

What this step does: route to 100 percent with the spec's rules, gate with KiCad's DRC, land as undo steps; the AI takes it with take route=ai

Why the AI came back here: Saved-board DRC found one manufacturing warning: two GND_OUT via holes have 0.1831 mm separation against 0.2495 mm minimum. Repair the local via geometry before finish.

Clip: routing, visit 5 (rework), the PCB editor from 2026-09-14T04:18:37Z to 2026-09-14T04:24:46Z. Motion only: 6.1 min of real time, 2 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the routing, visit 5 (rework) clip, what the camera saw.

Screenshot: the board when routing, visit 5 (rework) began.

Screenshot: the board when routing, visit 5 (rework) ended.

pours, visit 4 (rework)

What this step does: pour every net the spec names, keepouts along Kelvin taps, thermal and stitching vias, land, measure the copper kept

Why the AI came back here: Remeasure native filled copper after the final via-spacing repair.

Clip: pours, visit 4 (rework), the PCB editor from 2026-09-14T04:24:52Z to 2026-09-14T04:25:18Z. Motion only: 0.4 min of real time, 2 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the pours, visit 4 (rework) clip, what the camera saw.

Screenshot: the board when pours, visit 4 (rework) began.

Screenshot: the board when pours, visit 4 (rework) ended.

current, visit 3 (rework)

What this step does: IPC-2221 on every loaded net, pour and via capacity, the same-layer rule

Why the AI came back here: Recheck the unchanged electrical loads against copper measured after the final via repair.

Clip: current, visit 3 (rework), the PCB editor from 2026-09-14T04:25:20Z to 2026-09-14T04:25:37Z. Motion only: 0.3 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the current, visit 3 (rework) clip, what the camera saw.

Screenshot: the board when current, visit 3 (rework) began.

Screenshot: the board when current, visit 3 (rework) ended.

thermal, visit 3 (rework)

What this step does: copper and vias at every hot tab against the rise budget

Why the AI came back here: Repeat the unchanged thermal checks against the final native copper measurement.

Clip: thermal, visit 3 (rework), the PCB editor from 2026-09-14T04:25:39Z to 2026-09-14T04:26:04Z. Motion only: 0.4 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

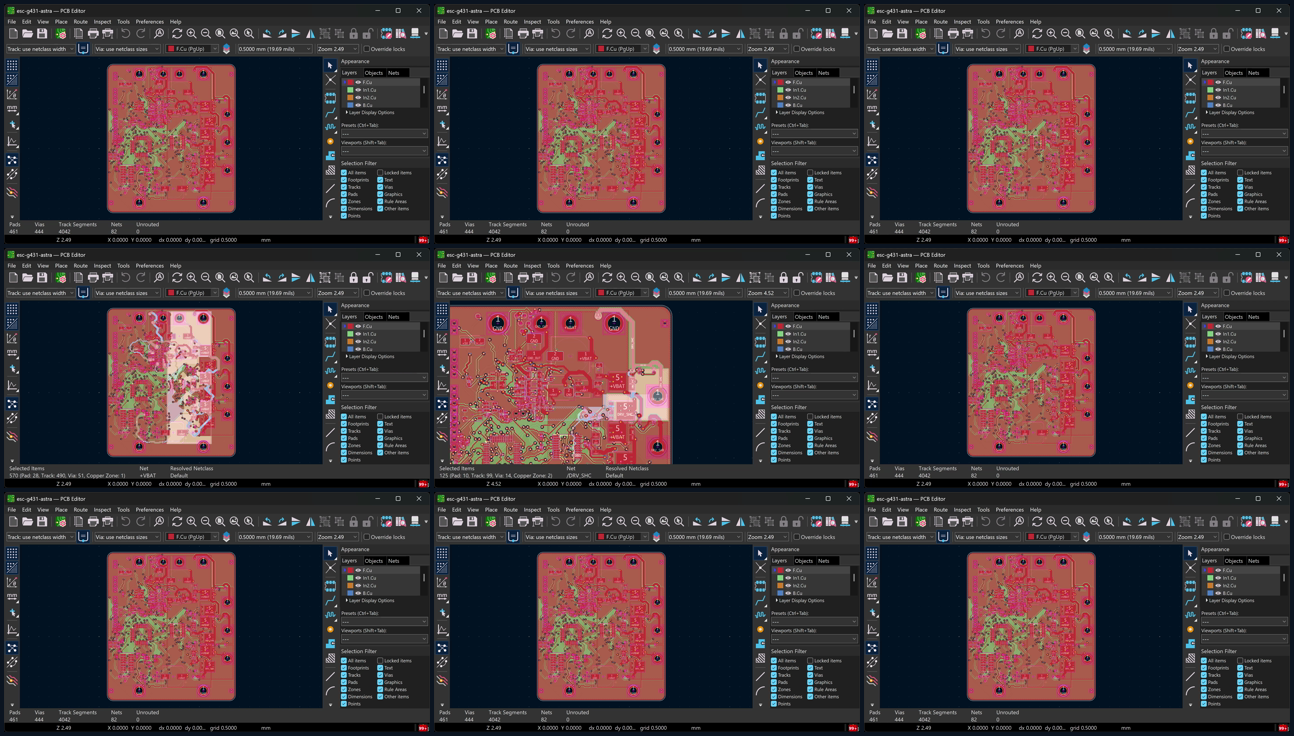

Contact sheet: nine frames spread through the thermal, visit 3 (rework) clip, what the camera saw.

Screenshot: the board when thermal, visit 3 (rework) began.

Screenshot: the board when thermal, visit 3 (rework) ended.

capture, visit 2 (rework)

What this step does: window recording with markers, so every engine's video lines up

Why the AI came back here: Save and independently read back the repaired final board, including full saved-file DRC and preservation of every fixed interface.

Clip: capture, visit 2 (rework), the PCB editor from 2026-09-14T04:26:06Z to 2026-09-14T04:27:58Z. Motion only: 1.8 min of real time, 2 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the capture, visit 2 (rework) clip, what the camera saw.

Screenshot: the board when capture, visit 2 (rework) began.

Screenshot: the board when capture, visit 2 (rework) ended.

finish

What this step does: finish refuses until everything is true; the AI cuts the video and delivers

Clip: finish, the PCB editor from 2026-09-14T04:28:01Z to 2026-09-14T04:28:59Z. Motion only: 1.0 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the finish clip, what the camera saw.

Screenshot: the board when finish began.

nets

What this step does:

Clip: nets, the PCB editor from 2026-09-14T17:56:38Z to 2026-09-14T17:59:41Z. Motion only: 3.0 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the nets clip, what the camera saw.

Screenshot: the board when nets began.

nets, visit 3 (rework)

What this step does:

Why the AI came back here: Visual review found stale recorder pixels after a mid-take window resize; retake with fixed 1920x1080 framing and the unused Properties sidebar hidden.

Clip: nets, visit 3 (rework), the PCB editor from 2026-09-14T18:20:06Z to 2026-09-14T18:21:56Z. Motion only: 1.8 min of real time, 11 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the nets, visit 3 (rework) clip, what the camera saw.

Screenshot: the board when nets, visit 3 (rework) began.

3d

What this step does:

Clip: 3d, the PCB editor from 2026-09-14T18:23:21Z to 2026-09-14T18:23:52Z. Motion only: 0.4 min of real time, 12 s of it had something moving; the clock in the corner is the real elapsed time.

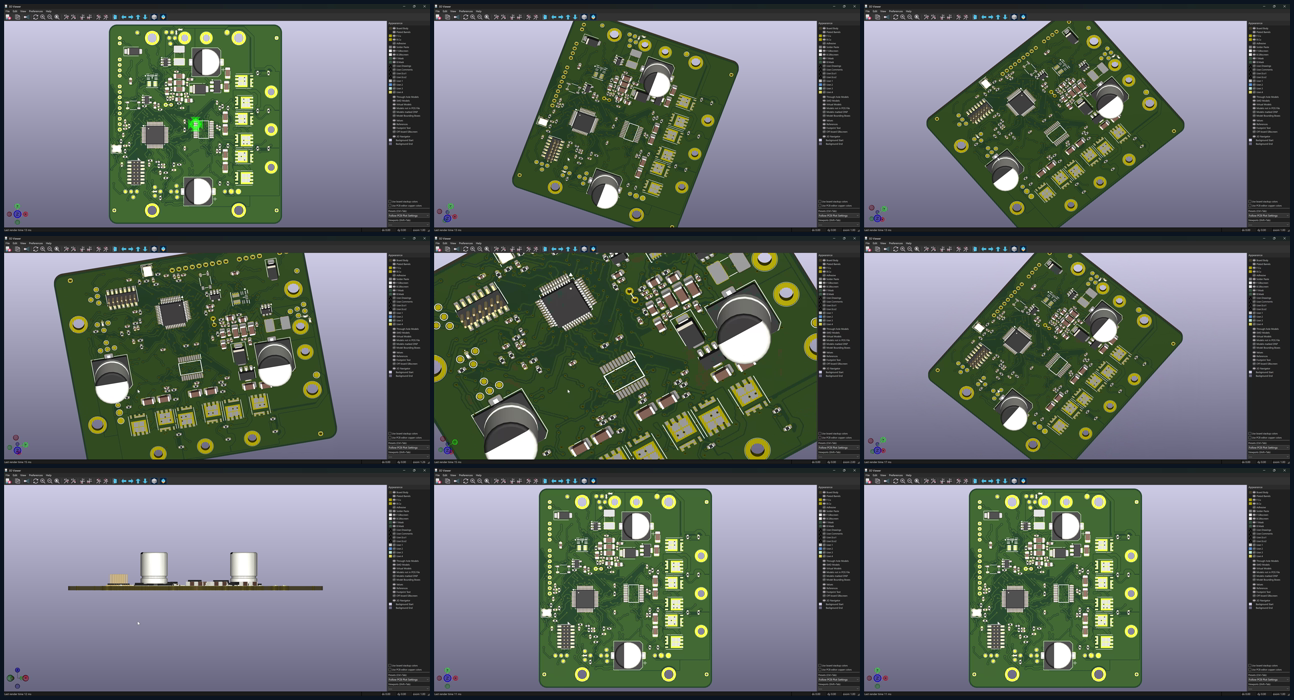

Contact sheet: nine frames spread through the 3d clip, what the camera saw.

Screenshot: the board when 3d began.

current, visit 4 (rework)

What this step does: IPC-2221 on every loaded net, pour and via capacity, the same-layer rule

Why the AI came back here: the flow now asks for the AI's own current density drawing and a walkthrough of the pours the analysis judged

Clip: current, visit 4 (rework), the PCB editor from 2026-09-14T18:24:09Z to 2026-09-14T18:26:45Z. Motion only: 2.6 min of real time, 7 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the current, visit 4 (rework) clip, what the camera saw.

Screenshot: the board when current, visit 4 (rework) began.

The AI's drawing: Independent four-layer DC conduction solve of native filled polygons, tracks, pads and 473 plated barrels: F.Cu and B.Cu current density, with each loaded net peak annotated. The 0.1 mm stress-case solve gives 2.327 W copper loss; +VBAT peaks at 494 A/mm² and GND_OUT at 436 A/mm², with mesh-sensitive corner peaks and 0.3% total-loss change on refinement.

thermal, visit 4 (rework)

What this step does: copper and vias at every hot tab against the rise budget

Why the AI came back here: the flow now asks for the AI's own coupled copper and dielectric heat-flow solve, temperature drawing, and walkthrough of the judged pours

Clip: thermal, visit 4 (rework), the PCB editor from 2026-09-14T18:27:09Z to 2026-09-14T18:31:00Z. Motion only: 2.0 min of real time, 5 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the thermal, visit 4 (rework) clip, what the camera saw.

Screenshot: the board when thermal, visit 4 (rework) began.

Screenshot: the board when thermal, visit 4 (rework) ended.

The AI's drawing: Own four-layer heat solve carries 6.427 W from the hot tabs and copper losses through native copper, dielectric and 473 plated barrels. F.Cu and B.Cu show watts per millimetre of width with via dots; each chip is labeled with its own along-layer and down-via heat within 4 mm, with full balanced splits and mesh sensitivity in the numerical report.

The AI's drawing: The independent coupled solve fails the 60 C hot-tab rise budget: Q6 reaches +121 C in still air and +70 C with moving air; board peaks are +122.5 C and +70.7 C. Top-face temperature from the same 6.427 W solve uses h=10 and 25 W/m²K; results remain mesh-sensitive and are predictions under stated assumptions, not measured junction temperatures.

The AI's file: Reproducible Astra source, final board, spec, numerical reports, analytic fixture validation and assumptions for the independent DC and coupled thermal drawings. thermal-4-analysis-source-2.gz

thermal, visit 4 (rework)

What this step does: copper and vias at every hot tab against the rise budget

Why the AI came back here: Resume the same thermal visit after the recorded numerical-compute gap; film the judged pours.

Clip: thermal, visit 4 (rework), the PCB editor from 2026-09-14T18:40:37Z to 2026-09-14T18:42:38Z. Motion only: 2.0 min of real time, 5 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the thermal, visit 4 (rework) clip, what the camera saw.

Screenshot: the board when thermal, visit 4 (rework) began.

Screenshot: the board when thermal, visit 4 (rework) ended.

The AI's drawing: Own four-layer heat solve carries 6.427 W from the hot tabs and copper losses through native copper, dielectric and 473 plated barrels. F.Cu and B.Cu show watts per millimetre of width with via dots; each chip is labeled with its own along-layer and down-via heat within 4 mm, with full balanced splits and mesh sensitivity in the numerical report.

The AI's drawing: The independent coupled solve fails the 60 C hot-tab rise budget: Q6 reaches +121 C in still air and +70 C with moving air; board peaks are +122.5 C and +70.7 C. Top-face temperature from the same 6.427 W solve uses h=10 and 25 W/m²K; results remain mesh-sensitive and are predictions under stated assumptions, not measured junction temperatures.

The AI's file: Reproducible Astra source, final board, spec, numerical reports, analytic fixture validation and assumptions for the independent DC and coupled thermal drawings. thermal-4-analysis-source-2.gz

finish, visit 2

What this step does: finish refuses until everything is true; the AI cuts the video and delivers

Clip: finish, visit 2, the PCB editor from 2026-09-14T18:42:45Z to 2026-09-14T18:44:45Z. Motion only: 2.0 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

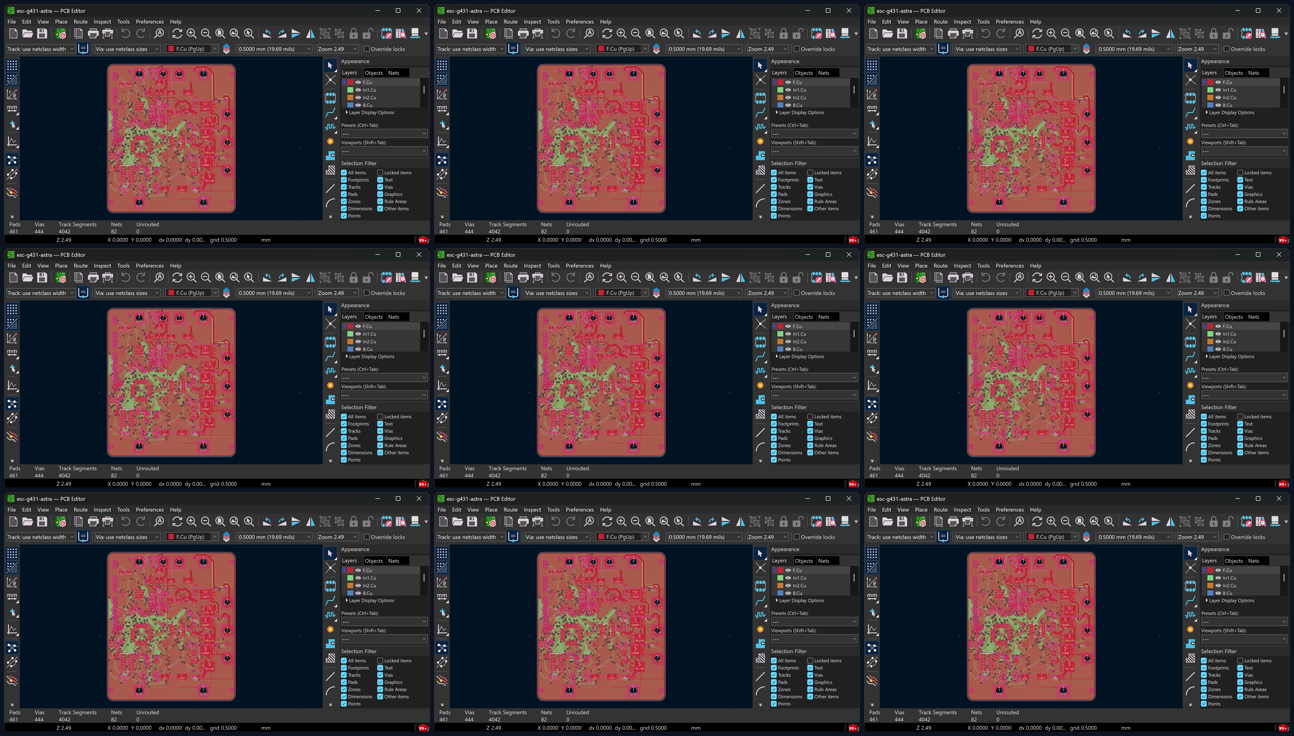

Contact sheet: nine frames spread through the finish, visit 2 clip, what the camera saw.

Screenshot: the board when finish, visit 2 began.

fields

What this step does:

Clip: fields, the PCB editor from 2026-09-15T15:54:54Z to 2026-09-15T15:55:56Z. Motion only: 1.0 min of real time, 46 s of it had something moving; the clock in the corner is the real elapsed time.

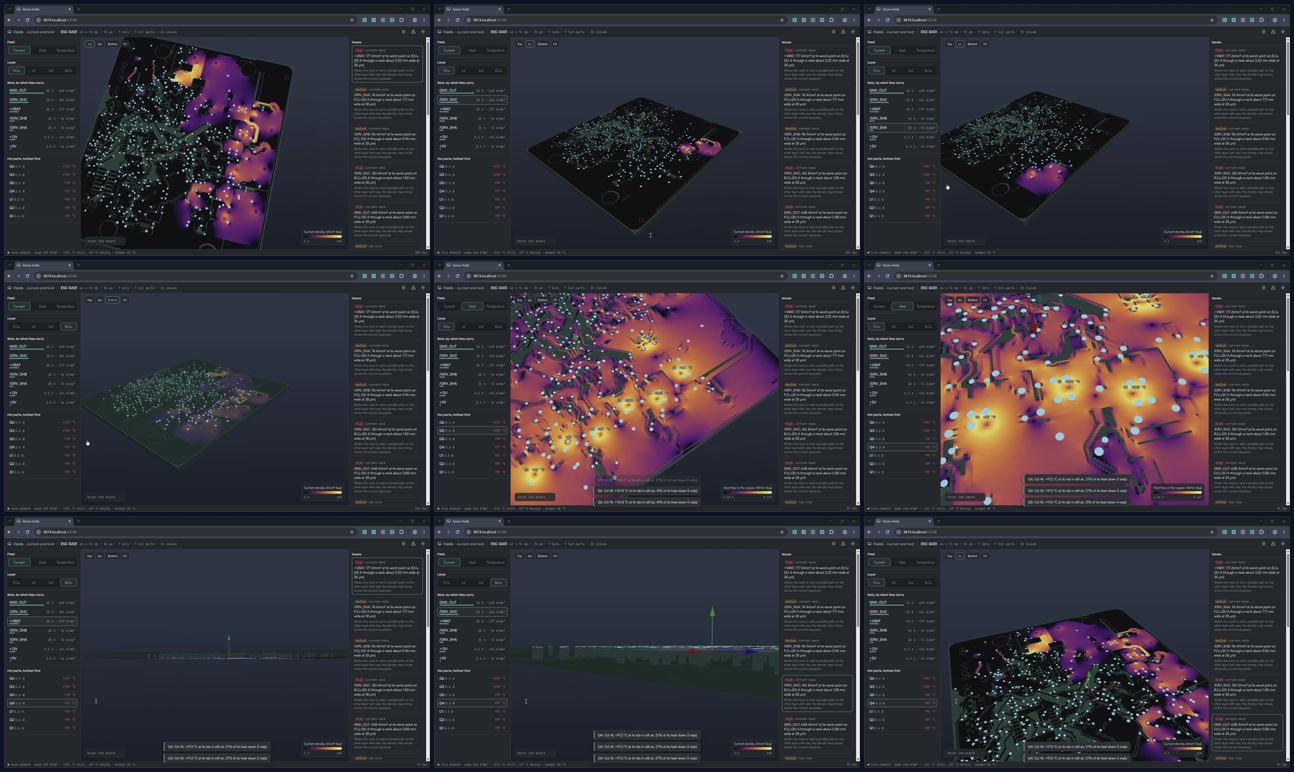

Contact sheet: nine frames spread through the fields clip, what the camera saw.

components

What this step does:

Why the AI came back here: User enabled MPN identification on every component; generate and verify the selected marked library

This clip filmed nothing usable: rejected by the AI: The automatic editor capture does not show the component marking work; use the separately recorded marked-library tour. It is kept as evidence and left out of the video.

Clip: components, the PCB editor from 2026-09-16T16:34:13Z to 2026-09-16T16:42:49Z. Motion only: 8.4 min of real time, 1 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the components clip, what the camera saw.

The AI's file: All 40 selected MPN-marked component variants; detailed review tour, kept separate from the short final video. components-1-component-tour-0.mp4

The AI's file: Moving overview of all 40 selected marked variants; intended as the brief library segment within the final video budget. components-1-component-overview-1.mp4

The AI's file: Exact 40-component MPN-on selection manifest used by the recorded tour; STEP hashes match the marked board binding map. Later native proof is recorded separately. components-1-component-library-2.json

The AI's drawing: Two LED types, six verified states: green/blue light on, light off with MPN, and MPN hidden with light on. Illustrative emission; public STEP and GLB extras cached on both global pages.

components, visit 2 (rework)

What this step does:

Why the AI came back here: Complete live wiki hero verification, source qualification, and native missing-model repair

This clip filmed nothing usable: rejected by the AI: Recorded the original test-box editor while this component review occurred in wiki and AdomLapper; no useful motion. It is kept as evidence and left out of the video.

Clip: components, visit 2 (rework), the PCB editor from 2026-09-16T23:03:05Z to 2026-09-16T23:04:15Z. Motion only: 1.1 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the components, visit 2 (rework) clip, what the camera saw.

The AI's file: All 40 component types, MPN marking enabled; lit green and blue LED variants and independent Alps switch, with links and hashes in the component index. Detailed tour remains separate from the short final overview. components-2-component-tour-0.mp4

silkscreen

What this step does:

This clip filmed nothing usable: rejected by the AI: Automatic recorder used historical ConfRoomROG window, not the new silkscreen board on AdomLapper; native review evidence is recorded separately.. It is kept as evidence and left out of the video.

Clip: silkscreen, the PCB editor from 2026-09-16T23:32:39Z to 2026-09-16T23:39:18Z. Motion only: 6.5 min of real time, 4 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the silkscreen clip, what the camera saw.

The AI's file: Two-sided ESC service labels; native review and default-text-height DRC limitations documented at https://wiki.adom.inc/adom/esc-g431/files/docs/astra/silkscreen/README.md silkscreen-1-silkscreen-review-0.json

The AI's file: Raw native AdomLapper recording, 10x and action cuts, exact HWND and timings; reviewed contact sheet linked on the ESC silkscreen page. silkscreen-1-silkscreen-tour-1.json

The AI's file: 119.719-second final cut, 7.53 MB, reviewed binary base plus current component and two-sided silk appendices; original delivery timestamp unchanged. silkscreen-1-video-edit-record-2.json

The AI's file: Built CLI confirms required both-face interfaces, every test point, proximity-first sizing and tiny values. Current harness token/dollar usage unavailable; null follow-up accounting recorded without altering historical snapshots. silkscreen-1-accounting-note-3.txt

The AI's file: Close labels v16: all149 references, all21 test points, unchanged13 inherited errors; no new mask or silk overlap findings. Tiny text and modified passive outlines retain DRC warnings. silkscreen-1-verification-4.json

The AI's file: All79 R/C values;27 contact/pin pairs beside their positions on both faces,30 curved leaders,14 J1 labels per face, explicit MOSFET pin1 markers. Native v25 DRC retains13 inherited errors, no new mask or silk overlap findings. silkscreen-1-verification-5.json

The AI's file: Silkscreen dashboard proposal replay, 4.52 seconds; not native KiCad edits; three component groups unresolved silkscreen-1-review-6.mp4

The AI's file: Detailed solver-event replay, 76.50 seconds; candidate review rather than native board edits; C9/C32/C36 remain unresolved silkscreen-1-review-7.mp4

The AI's file: Fresh v35 silkscreen replay: semantic sections, pad-facing alignment and shared contact borders, followed by native KiCad proof. 67.07s, 1080p; five association reviews remain. silkscreen-1-review-video-8.mp4

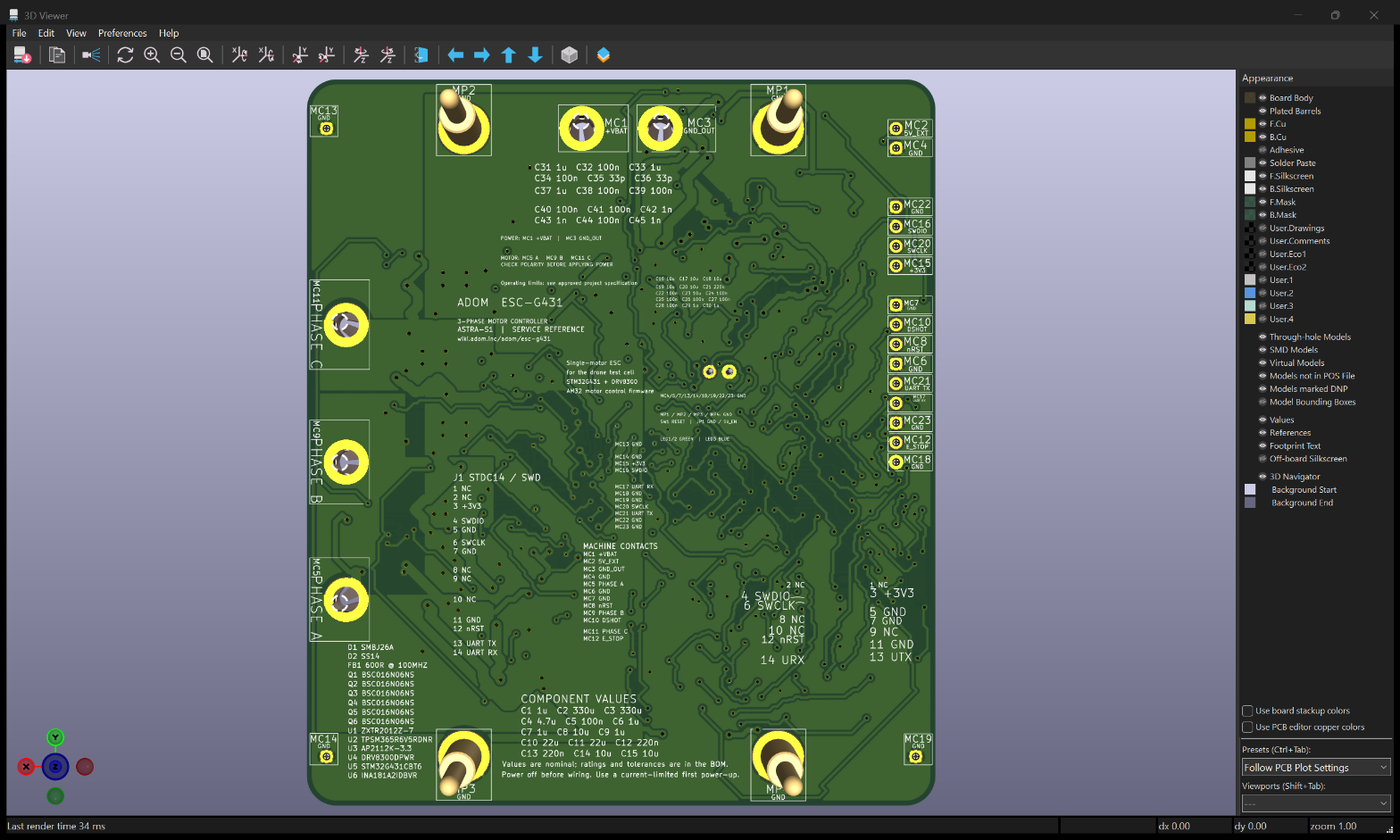

The AI's drawing: Native KiCad review evidence, not an analysis drawing or fullscreen video insert. v36 bottom includes the new interior board description; four documentation edge fallbacks remain.

silkscreen, visit 2 (rework)

What this step does:

Why the AI came back here: New from-scratch complete silkscreen solve and under-one-minute video requested

This clip filmed nothing usable: rejected by the AI: Automatic recorder selected editor 329592, while the verified ESC editor is 860210. Exclude this take; explicit verified-window recording will be used.. It is kept as evidence and left out of the video.

Clip: silkscreen, visit 2 (rework), the PCB editor from 2026-09-17T18:34:25Z to 2026-09-17T18:35:00Z. Motion only: 0.6 min of real time, 0 s of it had something moving; the clock in the corner is the real elapsed time.

Contact sheet: nine frames spread through the silkscreen, visit 2 (rework) clip, what the camera saw.

The AI's file: 58-second full-board fixed-camera placement replay: top then bottom, accelerated with ffmpeg, final 10 seconds native KiCad 3D. silkscreen-2-review-video-0.mp4

Delivered

What the AI said when it delivered (the video is at the top of this page):

John, done: here is the video of the fresh ESC run, with all 21 recorded step visits and reworks in order. All 149 footprints are placed, the 27 fixed interfaces are unchanged, routing has zero unconnected items, and DRC has zero new errors against the 13 inherited errors. Pours, measurement, current and thermal gates pass; the analyses are AI Flow heuristic estimates, not physical load or temperature tests. Seven issues were given back. Download the final board, spec, verification evidence and token/cost accounting.

Plan usage, the second cost line

Percent of each plan limit used, as the provider reports it, at the start of the run and at its end.

Provider	Limit	At start	At end	Used by this run
claude	5h	0 %	0 %	0.0 %
claude	Fable	100 %	100 %	0.0 %
claude	week	56 %	56 %	0.0 %
codex	week	68 %	28 %	-40.0 %

The limits are per account, not per run: every AI thread signed in as this user draws on the same numbers, so a run made while other threads were working shows their usage too. Read it as an upper bound unless this run was the only thread active.

Given back

82 issue(s) or PR(s) filed by this run's AI to make the tool better for every Adom user:

• issue https://wiki.adom.inc/adom/adom-aiflow/issues/1
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/2
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/3
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/4
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/5
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/6
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/7
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/8: Post-delivery tour targeting repair and semantic success validation.
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/9: Visually rejected nets-2 after window resize retained stale pixels; fresh fixed-size nets-3 take replaces it.
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/10: Own coupled DC/thermal source and refinement evidence: independent thermal rise exceeds the budget despite the historical heuristic pass.
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/11: Removed measured black startup from action derivatives, preserving raw and 10x clips, then recomposed; original action copies and exact trim map retained.
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/12: Bulk report push failed twice; bounded incremental uploads succeeded, with README last and every batch logged.
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/13: hand-over for the comparison video
• issue https://wiki.adom.inc/adom/adom-fields/issues/1: Fields omitted a +12V hotspot above its documented threshold
• issue https://wiki.adom.inc/adom/adom-fields/issues/2: Fields counts nearby unrelated-net vias as tab thermal vias
• issue https://wiki.adom.inc/adom/adom-fields/issues/3: Fields issue camera sometimes turns edge-on and obscures the copper
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/14: Fields-only capture sequence reports irrelevant native recorder errors
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/15: Fields step results and issue-by-issue hand-over for Fable
• issue https://wiki.adom.inc/adom/adom-fields/issues/5: Camera still loops after verified Fields 0.1.2 reload
• issue https://wiki.adom.inc/adom/adom-wiki-cli/issues/55: Package upgrade left PATH binary stale; packaged install script repaired it
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/1: Built and tested wiki-first component sourcing workflow on the ESC
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/2: Supersedes PR 1: global reusable components versus project-local CAD, rebuilt and tested
• issue https://wiki.adom.inc/adom/kicad-bridge/issues/99: Reported wrong 3D viewer evidence with two PCB editor processes; verified by matching PID
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/3: Early component quality register and optional cached MPN models; rebuilt and tested
• issue https://wiki.adom.inc/adom/adom-step2glb/issues/12: Top and underside thumbnail orientations are identical; reproducible evidence and workaround
• issue https://wiki.adom.inc/adom/adom-wiki-cli/issues/56: Binary-safe GLB downloads and corrected provenance hashes
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/16: Release source mismatch blocks complete compose integration
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/5: Early component provenance and opt-in Hydrogen progress widget; rebuilt and tested
• issue https://wiki.adom.inc/adom/adom-step2glb/issues/13: Default marking should maximize font along longest usable top-face direction
• issue https://wiki.adom.inc/adom/hydrogen-bootstrap/issues/6: Curated widget availability after AI Flow package publication
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/6: Consolidated tested widget, component provenance and bounded library tours
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/17: Hand-over of tested component tours and optional live widget
• pr https://wiki.adom.inc/adom/hydrogen-dev/prs/1: Core same-frame hover expansion; compiled component and live WebView2 checks
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/7: Responsive expanded widget with larger cached previews
• issue https://wiki.adom.inc/adom/hydrogen/issues/82: Hand-off to main AH Claude build thread
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/18: Session 15 external build/browser activity was incorrectly classified as idle
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/8: Stable polling and permanent Adom AI Flow widget identity
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/9: Explicit early native library and component-tour steps, rebuilt and ESC-tested
• issue https://wiki.adom.inc/adom/adom-step2glb/issues/14: 0402 etcher text overflow; fitted text-only workaround
• issue https://wiki.adom.inc/adom/adom-step2glb/issues/15: Etcher top-plane assumption; explicit generic source and local glyph fallback
• issue https://wiki.adom.inc/adom/adom-step2glb/issues/16: Async conversion job vanished during polling; individual retry succeeded
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/19: Tour readiness race fixed and re-recorded successfully
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/10: Tour-frame readiness fix and small-part marking guidance, tested on the full marked tour
• issue https://wiki.adom.inc/adom/kicad-bridge/issues/100: Blank native capture falsely reported rendered; rejected and verified the second viewer
• pr https://wiki.adom.inc/adom/adom-step2glb/prs/1: Reusable upper-body MPN fitting and colour-preserving STEP postprocessor; checked on 40 parts
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/20: Reusable LED on/off assets, independent MPN groups, sharing verification and custom stage actor limitation
• pr https://wiki.adom.inc/adom/hydrogen-dev/prs/2: Hover retention tested during eight live updates
• issue https://wiki.adom.inc/adom/hydrogen/issues/83: AH handoff for hover retention fix
• issue https://wiki.adom.inc/adom/kicad-bridge/issues/101: Native model visibility and binding; complete zone reconciliation
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/21: Keep reusable native operations in bridges
• issue https://wiki.adom.inc/adom/adom-step2glb/issues/17: Datasheet-angle LED spotlights and shared viewer performance guidance
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/22: Audit exposed live hero binding gap; require actual wiki viewer verification
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/10: Rebuilt and tested hero-binding, scoped permission and native visibility guidance
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/11: Correct URL: rebuilt and tested hero-binding, scoped permission and native visibility guidance
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/23: Expose active external-work spans instead of misclassifying long AI work as idle
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/12: Two-sided service silkscreen stage; rebuilt and tested
• pr #1 on the 3rd party fab's page: Reusable 3rd party fab silkscreen skill in existing repo
• issue https://wiki.adom.inc/adom/kicad-bridge/issues/102: Native viewer must bind evidence to exact PCB editor; missing silk primitives belong in bridge
• issue https://wiki.adom.inc/adom/wiki/issues/210: Nested README media resolution failure and verified absolute-URL workaround
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/13: Consolidated silk guidance: both faces, all test points, closer references, 0.3/0.2mm values
• pr #2 on the 3rd party fab's page: Consolidated silk guidance: both faces, all test points, closer references, 0.3/0.2mm values
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/14: Progressive silkscreen recording and real rework; release build and CLI plan verified
• pr #3 on the 3rd party fab's page: Reusable skill teaches progressive label capture and honest replay provenance
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/15: Both-face positional labels, curved leaders and exhaustive local values; rebuilt CLI hints tested
• pr #4 on the 3rd party fab's page: Skill corrects remote-table fallback and requires paired microtext and positional contact labels
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/16: Always refresh and verify both native views after edits; root skill and emitted hints rebuilt/tested
• pr #5 on the 3rd party fab's page: Skill requires current 2D and 3D views, preserving work and avoiding stale windows
• pr https://wiki.adom.inc/adom/eda-engineering/prs/1: Shared component hero and LED appearance skills with source-preserving generator
• pr https://wiki.adom.inc/adom/eda-engineering/prs/2: Include hero and LED skills and shared generator in installed package
• issue https://wiki.adom.inc/adom/kicad-bridge/issues/103: Correct misleading native-parser availability report
• issue https://wiki.adom.inc/adom/kicad-bridge/issues/104: Native text metrics and undoable silkscreen edits belong in the bridge
• issue https://wiki.adom.inc/adom/kicad-bridge/issues/105: Native 3D framing belongs in the bridge
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/17: Shared live silkscreen dashboard, solver events and whole-board obstacle audit; built and tested
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/18: CLI-driven replay recording and automatic run artifact retention
• pr #6 on the 3rd party fab's page: Complete fitted-body and via obstacle coverage with locality-first silkscreen placement
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/20: Fresh grouped typography, contact border consistency, pad-facing alignment and native preflight; tested development draft
• pr #7 on the 3rd party fab's page: Silkscreen design guidance: semantic blocks, pad-facing text, common contact frames and ESC phase prominence
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/21: Rejected and retook camera-lagged replay; record active group bounds independently
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/22: Native Rust interior documentation solver and full priority checklist
• pr #8 on the 3rd party fab's page: Interior documentation and human-readable silkscreen review priorities
• pr https://wiki.adom.inc/adom/adom-aiflow/prs/23: Recording now honors follow-off and supports full-board face population
• issue https://wiki.adom.inc/adom/adom-aiflow/issues/27: Hidden webview throttles canvas capture; visible-tab retakes verified

Adom processes PRs within minutes during business hours: a non-stop PR intake runs all day.
