Hardware

5.1 kΩ Resistor 0603 - Royalohm 0603WAF5101T5E

0603WAF5101T5E·Royalohm (UNI-ROYAL)·0603

0603 thick film chip resistor · 5.1 kΩ ±1% · 1/10 W · 75 V

USB Type-C Receptacle, Power Only, SMT - GCT USB4135-GF-A

USB4135-GF-A·GCT·USB Type-C receptacle, horizontal SMT, 6 contacts + 4 shell stakes

GCT USB4135-GF-A: horizontal SMT USB Type-C receptacle for power and charging only (VBUS, CC1, CC2, GND), 3 A, 4 SMT shell stakes.

LW A6SG-V2BA-FK0PN0

LW A6SG-V2BA-FK0PN0·ams OSRAM·SIDELED®

ams OSRAM Standard LEDs - SMD, White SIDELED®, side-emitting. Datasheet-verified pinout, KiCad symbol/footprint/3D.

BSC016N06NS - N-Channel Power MOSFET

BSC016N06NS·Infineon Technologies·TDSON-8-1_BSC016N06NS

234A Id, 60V Vds, OptiMOS N-Channel Power MOSFET, 1.6mOhm Ron, Qg(0-10V) 71nC, PG-TDSON-8, +/- 20V Vgs,

TPSM365R6V5RDNR - 5 V Buck Power Module

TPSM365R6V5RDNR·Texas Instruments·TPSM336_int-buck

3V to 65V Input, 600mA, FIXED 5VOUT, 1MHz

0402CG330J500NT - Multilayer Ceramic Capacitor

0402CG330J500NT·Not specified in source board·C_0402_1005Metric

FH, 50V, C0G, 5%

GRM31CR71H475KA12L - Multilayer Ceramic Capacitor

GRM31CR71H475KA12L·Murata Electronics·C_1206_3216Metric

4.7uF 50V X7R ±10%

ZXTR2012Z-7 - 12 V Linear Regulator

ZXTR2012Z-7·Diodes Incorporated·SOT-89-3

100V INPUT, 12V 30mA REGULATOR, SOT-89-3

SMBJ26A - Unidirectional TVS Diode

SMBJ26A·Littlefuse·D_SMB

Uni-directional, V_RWM = 26V, V_BR = 28.9V, V_CL = 42.1 @ I_PP 14.3A, 600W, I_LK = 1uA, −65 to +150 °C

X32258MSB4SI - 8 MHz SMD Crystal

X32258MSB4SI·Not specified in source board·Crystal_SMD_3225-4Pin_3.2x2.5mm

-40℃~+85℃ 120Ω 20pF 8MHz Crystal Oscillator ±10ppm ±20ppm SMD3225-4P Crystals ROHS

SVZ1VM331GCRE00RAXXX - Aluminium Electrolytic Capacitor

SVZ1VM331GCRE00RAXXX·AISHI(Aihua Group)·CP_Elec_10x12.5

-55℃~+105℃ 10mm 12.5mm 2.7A@100kHz 2000hrs@105℃ 30mΩ@100kHz 330uF 35V ±20%

0402WGF1501TCE - 0402 Chip Resistor

0402WGF1501TCE·UNI-ROYAL(Uniroyal Elec)·R_0402_1005Metric

-55℃~+155℃ 1.5kΩ 50V 62.5mW Thick Film Resistor ±1% ±100ppm/℃

SS14 - Schottky Rectifier

SS14·MDD (Microdiode Semiconductor)·D_SMA

-55℃~+150℃ 1A 25A 300uA@40V 40V 550mV@1A Independent SMA(DO-214AC) Schottky Diodes ROHS

GRM31CR71A226KE15L - Multilayer Ceramic Capacitor

GRM31CR71A226KE15L·Murata Electronics·C_1206_3216Metric

10V 22uF X7R ±10%

LR2512D-3W-0.5mR-1% - 2512 Current-Sense Resistor

LR2512D-3W-0.5mR-1%·Milliohm·R_HoLR2512D_0R0005_3W

0.5mΩ 25ppm/℃~+50ppm/℃ 3W Current Sense Resistor SMD ±1% 2512

0402WGF2002TCE - 0402 Chip Resistor

0402WGF2002TCE·UNI-ROYAL(Uniroyal Elec)·R_0402_1005Metric

-55℃~+155℃ 20kΩ 50V 62.5mW Thick Film Resistor ±1% ±100ppm/℃

0402WGF2202TCE - 0402 Chip Resistor

0402WGF2202TCE·Not specified in source board·R_0402_1005Metric

0402, 1%

CGA2B1X7R1V224KT000F - Multilayer Ceramic Capacitor

CGA2B1X7R1V224KT000F·TDK·C_0402_1005Metric

220nF 35V X7R ±10%

CL10A106MA8NRNC - Multilayer Ceramic Capacitor

CL10A106MA8NRNC·Samsung Electro-Mechanics·C_0603_1608Metric

10uF 25V X5R ±20%

SuperSpeed USB 3.1 to 10/100/1000 Ethernet Controller - LAN7800

LAN7800·Microchip Technology

Microchip LAN7800 — single-chip SuperSpeed USB 3.1 Gen 1 to 10/100/1000 Gigabit Ethernet controller with integrated USB device controller + PHY, Ethernet MAC, and Gigabit PHY. QFN-48 in 7x7 mm (Y9X) and 6x6 mm (VSX).

mp2393gtl-z

MP2393GTL-Z·MPS

MP2393GTL-Z (LCSC C6674609). MP2393GTL-Z

cl10a105ko8nnnc

CL10A105KO8NNNC

CL10A105KO8NNNC (LCSC C1592). 1uF 0603 Capacitor

744314490

744314490

744314490 (LCSC C5157557). 4.9uH 6.5A 14.5mR 7x6.9 Inductor

0603waf4022t5e

0603WAF4022T5E

0603WAF4022T5E (LCSC C12447). 40.2K 0603 1% Resistor

cl21a226mqqnnne

CL21A226MQQNNNE

CL21A226MQQNNNE (LCSC C5674). 22uF 0805 Capacitor

0402wgf200jtce

0402WGF200JTCE

0402WGF200JTCE (LCSC C25089). 20R 0402 Resistor

0402cg100j500nt

0402CG100J500NT

0402CG100J500NT (LCSC C1545). 10pF 0402 Capacitor

0603waf7681t5e

0603WAF7681T5E

0603WAF7681T5E (LCSC C23102). 7.68K 0603 1% Resistor

0603waf6043t5e

0603WAF6043T5E

0603WAF6043T5E (LCSC C23216). 604K 0603 1% Resistor

[DEPRECATED] 1 A Low-Dropout Regulator - AMS1117 → ams-ams1117 / umw-ams1117

AMS1117·Advanced Monolithic Systems

DEPRECATED - split by manufacturer. Use adom/ams-ams1117 (Advanced Monolithic Systems: 1.5-5.0 V incl. 2.85 V, SOT-223/TO-252/SO-8) or adom/umw-ams1117 (UMW/Youtai: 1.2-5.0 V, SOT-223/TO-252/SOT-89). The two vendors ship different voltage lineups, different packages and materially different limits.

1 A Low-Dropout Regulator AMS - AMS1117

AMS1117·Advanced Monolithic Systems

Advanced Monolithic Systems AMS1117 - the original three-terminal 1 A low-dropout linear regulator. Fixed 1.5/1.8/2.5/2.85/3.3/5.0 V or adjustable, in SOT-223, TO-252 (DPAK) and 8-lead SOIC.

1 A Low-Dropout Regulator UMW - AMS1117

AMS1117·UMW (Youtai Semiconductor)

UMW / Youtai Semiconductor AMS1117 - second-source three-terminal 1 A low-dropout linear regulator. Fixed 1.2/1.5/1.8/2.5/3.3/5.0 V or adjustable, in SOT-223-3L, TO-252-2L and SOT-89-3L.

mp2393-buck-5v-library

MP2393GTL-Z·MPS

Component library for the MP2393 12V-to-5V buck converter circuit (design-block BOM). The circuit depends on this library the same way a board does.

Adom Machine Parts Library

Adom's machine pin/contact component library — the six machine parts (contacts + press-fit pins, medium/large, standard/short) linked as dependencies, with the assembled 'Adom Machine Symbols' and 'Adom Machine Footprints' libraries for KiCad, Altium, and Fusion 360 hosted here. Install with the adom-library-importer skill to register them in your EDA. The per-part symbol/footprint source files live on each component's own wiki page.

mp2393-buck-5v

MP2393GTL-Z·MPS

MP2393 synchronous buck converter configured for 12V to 5V output. A reusable KiCad 10 design block (schematic + routed layout): drop it into a project, or export the native .kicad_block. Built on adom-lbr / adom-design-blocks.

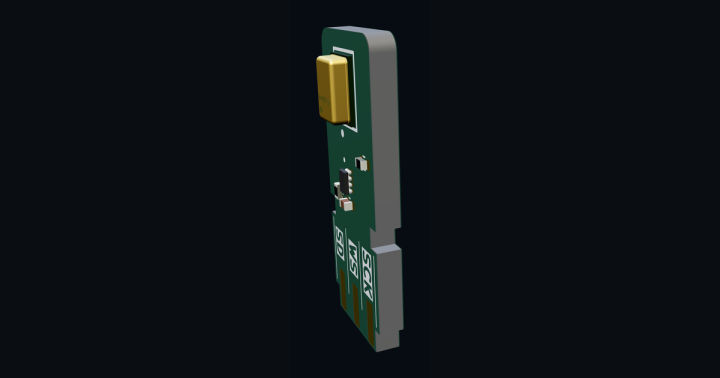

Infineon: IM72D128

IM72D128V01XTMA1·Infineon·PG-LLGA-5-4 (mic) on I2S daughter card

Infineon_IM72D128: PDM MEMs Microphone using ADAU7002 for PDM-TO-I²S convertion. To be fitted into I2S_Carrier.
