MP2393 synchronous buck converter configured for 12V to 5V output. A reusable KiCad 10 design block (schematic + routed layout): drop it into a project, or export the native .kicad_block. Built on adom-lbr / adom-design-blocks.
3D Model
Open in new tab ↗
README
markdownMP2393 Buck Converter (12V to 5V)
A reusable circuit design block: an MP2393GTL-Z synchronous step-down converter configured for a 5V output from a 12V input, with its full passive network and a routed layout.
This is a KiCad 10 design block. You can:
- View the schematic and the board layout in the interactive viewers.
- Export the native
.kicad_block(inblock/) and drop it straight into KiCad 10 from the Design Blocks panel, layout and routing intact. - Ask to add this circuit to your PCB and have the parts and layout placed into your own project.
Contents
| File | What |
|---|---|
mp2393-buck-5v.kicad_sch / .kicad_pcb |
KiCad 10 sources (schematic + routed layout) |
block/ |
The native .kicad_block (schematic + layout + metadata) |
adom-block.json |
Neutral block model (parts + placement), for cross-EDA export |

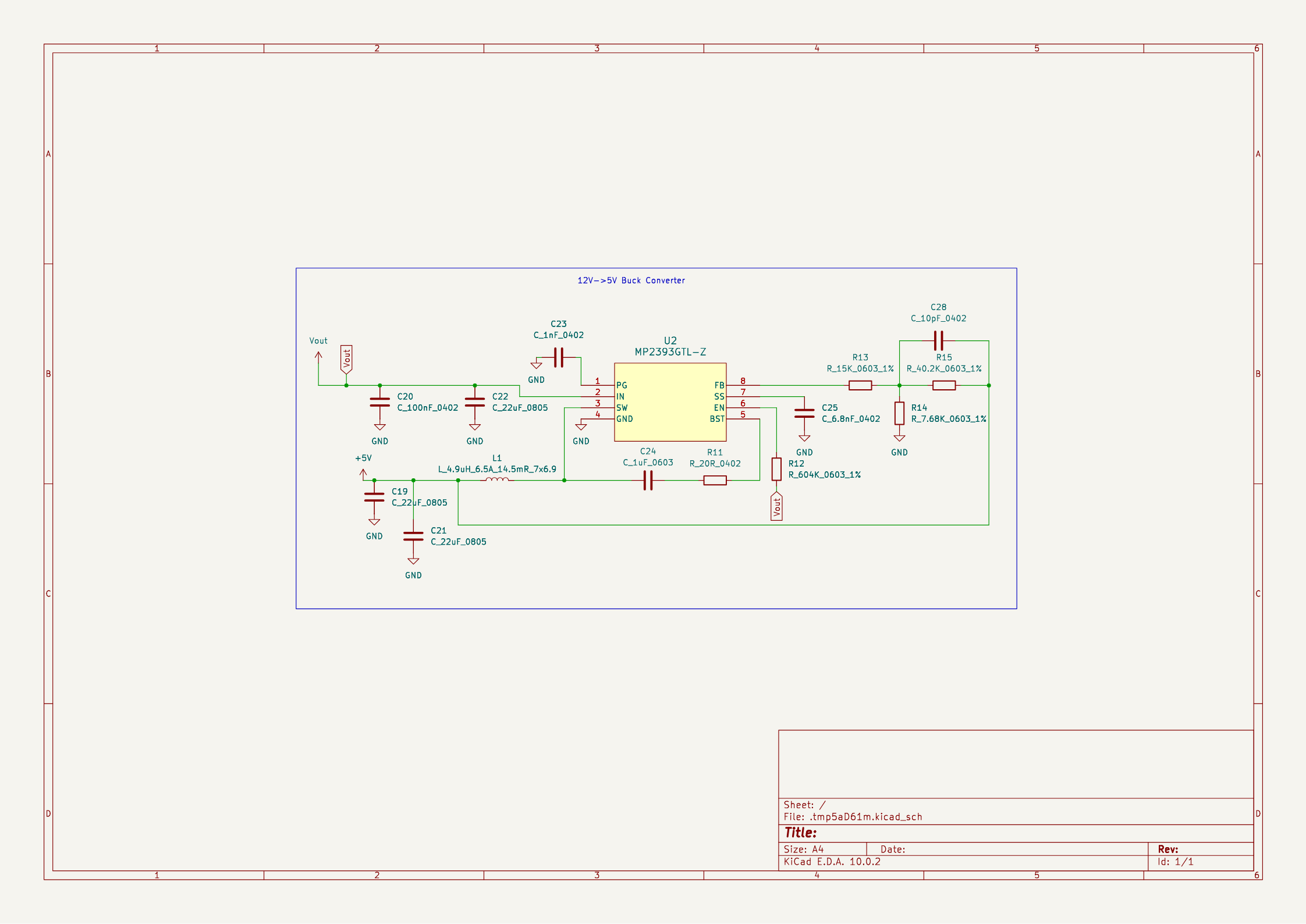

Circuit
Main device: MP2393GTL-Z (MPS, SOT-583-8). 15 parts including the power inductor (4.9uH), input/output caps (22uF 0805), and the feedback divider setting 5V out. Interface: VIN, Vout, GND.
Symbol & Footprint
PCB Footprint
