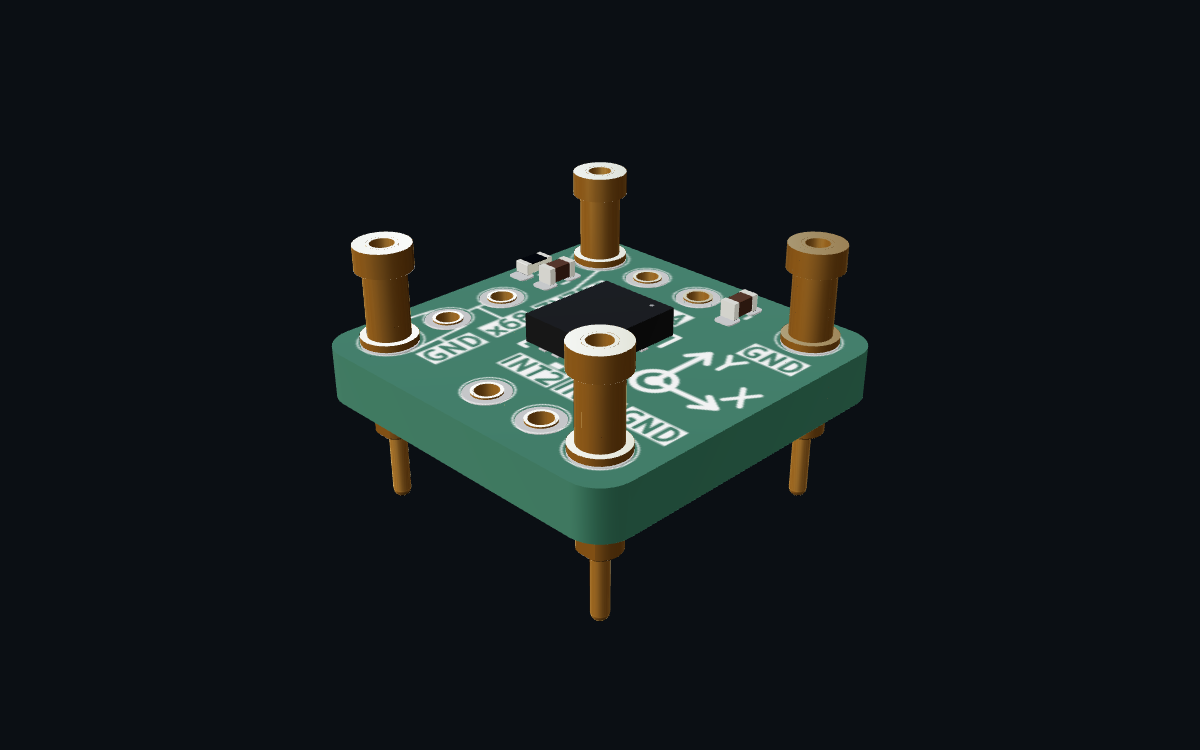

3D Model

Open in new tab ↗
Loads when you scroll to it. Unloads after 5 minutes in the background.
Contents

README

markdown

BMI270 Molecule

Bosch BMI270 6-axis IMU (3-axis accelerometer + 3-axis gyroscope) packaged as an Adom molecule — anchored GLB, machine-pin wings, KiCad source.

Molecule
MPN BMI270
Manufacturer Bosch Sensortec
Machine pins 4 (medium, short)
Anchoring MP1–MP4 markers, OCCT molecule mode
Source EDA KiCad

Revision

Board revision v1.2 (KiCad project Bosch_BMI270-v1.2). Changes from the previous revision:

  • Copper stack-up 2 → 4 layers, with GND planes on In1/In2 and a VDDIO fill on top
  • Teardrops added to pads
  • R1 (SDO pull-up) changed from 2.2 kΩ to 10 kΩ
  • BMI270 footprint changed to BMI270_BOS
  • Silkscreen title now taken from the KiCad title block (title, revision, date)

Files

  • bmi270-molecule.glb — anchored OCCT molecule model (gold machine pins, Z-up, front-left pin at origin)
  • BMI270_Molecule.step — STEP export with all 3D models substituted
  • BMI270_Molecule.kicad_pcb / .kicad_sch / .kicad_pro — KiCad source
  • bmi270-molecule_footprint.json — per-pad wire-attach Z
  • bmi270-molecule_symbol.json — generated symbol

Provenance

Exported from KiCad 10 (kicad-cli pcb export step --subst-models), converted through the OCCT molecule pipeline (step2glb --board --pin medium) with the publish gates green: molecule_anchored: true, footprint_applied: true, contact_z: 2.8 mm, no warnings.
