ABM8AIG-25.000MHZ-12-2Z-T3: 25 MHz Automotive Crystal, 3.2 x 2.5 mm

ABM8AIG-25.000MHZ-12-2Z-T3·Abracon·SMD-3225-4P

Abracon ABM8AIG automotive quartz crystal, 25 MHz, 12 pF load capacitance, +/-20 ppm tolerance, -40 to +125 C, AEC-Q200 qualified, 3.2 x 2.5 mm 4-pad ceramic SMD.

Teazzers Taprite Solenoid 638-0031 v1

Teazzers Taprite Solenoid 638-0031 v1

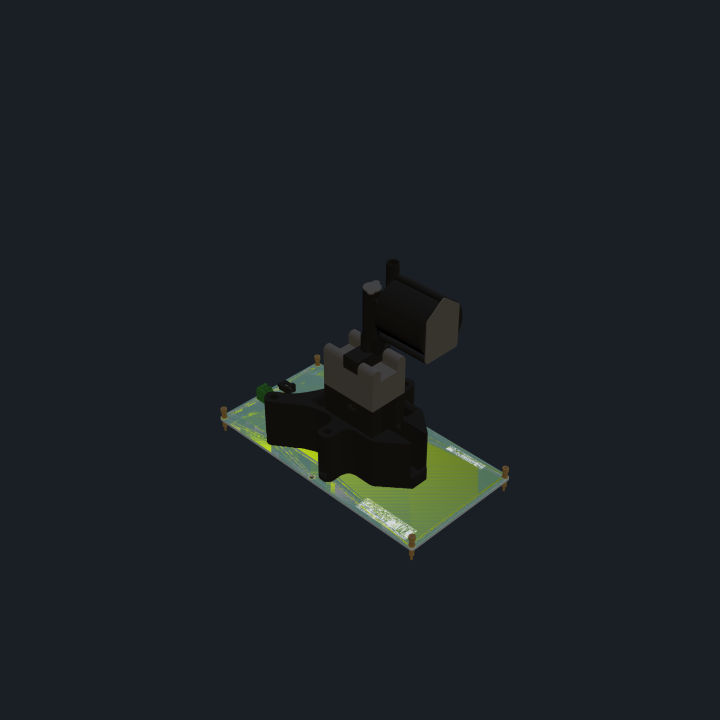

Electromechanical carrier molecule for the Taprite 638-0031 DC 24V solenoid valve — 198×102 mm, 6 machine contacts (2× GND, 2× VCC), 4 alignment machine pins. Designed for the Teazzers beverage dispen

cosmocoil-mol

cosmocoil-mol·COSMIIC

COSMIIC COSMOCOIL wireless power transfer coil molecule

BP2 FRAME MOL

bp2-frame-mol·COSMIIC

Molecule exported from Fusion 360: BP2 FRAME MOL

PG4 FRAME MOL

pg4-frame-mol·COSMIIC

Molecule exported from Fusion 360: PG4 FRAME MOL

AP62300TWU-7 — 3 A Synchronous Buck Converter, 4.2 to 18 V (Diodes)

AP62300TWU-7·Diodes Incorporated·TSOT-26 (TSOT-23-6), 2.90 × 1.60 mm body, 0.95 mm pitch

Diodes Incorporated AP62300T — 3 A synchronous buck converter with a 4.2 to 18 V input and 0.8 to 7 V adjustable output. Constant on-time control, 0.763 V feedback reference, integrated 75 mΩ high-side and 45 mΩ low-side MOSFETs, 750 kHz typical switching, PFM at light load for 155 µA quiescent current, EMI-shaped gate driver, UVLO, valley current limit, output UVP and thermal shutdown, 6-pin TSOT-26.

LP5912Q1.1DRVRQ1 — Automotive 500 mA Low-Noise LDO, 1.1 V (TI)

LP5912Q1.1DRVRQ1·Texas Instruments·WSON-6 (DRV0006A), 2.00 × 2.00 mm, 0.65 mm pitch, exposed thermal pad

Texas Instruments LP5912-Q1 — AEC-Q100 grade-1 automotive 500-mA low-noise low-IQ LDO, fixed 1.1 V output. 1.6–6.5 V input, 12 µVRMS noise with no bypass capacitor, 75 dB PSRR at 1 kHz, 30 µA typical quiescent current, 170 mV typical dropout at 500 mA, open-drain power good, output auto-discharge and reverse-current protection, –40 to +125 °C junction, 6-pin WSON (DRV) 2.00 × 2.00 mm with exposed thermal pad.

TPD2EUSB30DRTR — 2-Channel USB 3.0 TVS ESD Array (TI)

TPD2EUSB30DRTR·Texas Instruments·SOT-3 (DRT), 1.00 × 0.80 mm

Texas Instruments TPD2EUSB30DRTR — 2-channel TVS-based ESD protection array for USB 3.0 SuperSpeed (5 Gbps) and other high-speed differential IO. 0.7 pF typical IO-GND capacitance, IEC 61000-4-2 ±8 kV contact and air-gap, IEC 61000-4-5 5 A (8/20 µs) surge, 5.5 V reverse stand-off, flow-through pin mapping, 3-pin SOT (DRT) 1.00 × 0.80 mm.

conn-01x04-pin

conn-01x04-pin

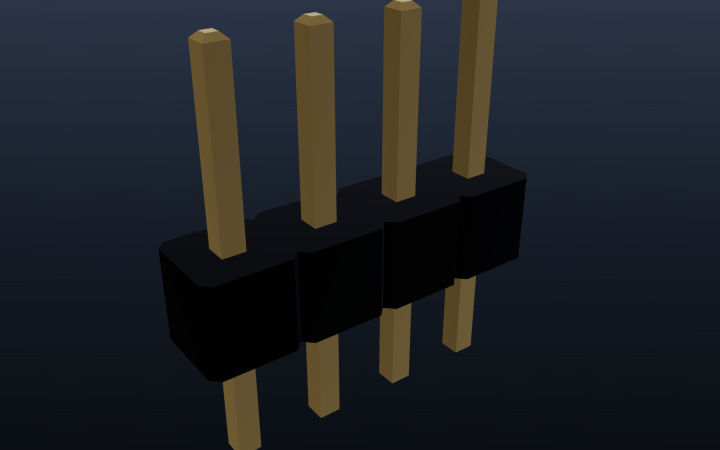

DEPRECATED generic 1x4 2.0mm pin header — replaced by real part JXTCONN PZ2.0V-1104P-H20 (adom/pz2-0v-1104p-h20)

wireless-link

wireless-link·COSMIIC

Molecule exported from Fusion 360: wireless-link

adipose-molecule

adipose-molecule·COSMIIC

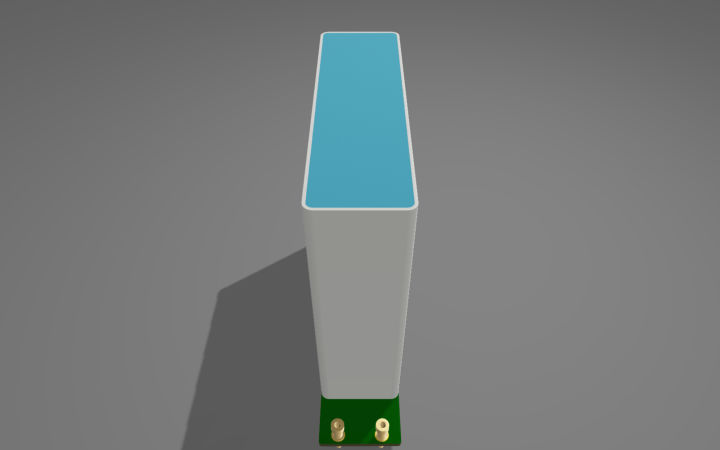

COSMIIC ADIPOSE tissue interface molecule for bioelectronic implants

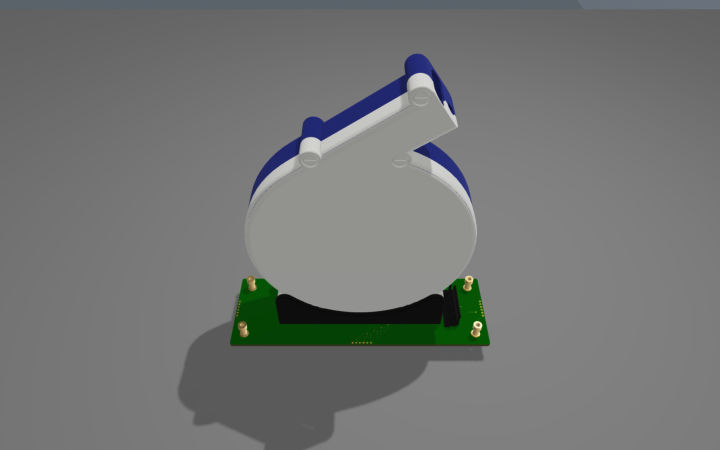

pm1-frame-mol-refined

pm1-frame-mol-refined·COSMIIC

COSMIIC PM1 refined frame molecule for power management packaging

502535-lipo-molecule

502535-lipo-molecule·COSMIIC

COSMIIC 502535 LIPO battery molecule for implantable neural interfaces

pm-coil-molecule

pm-coil-molecule·COSMIIC

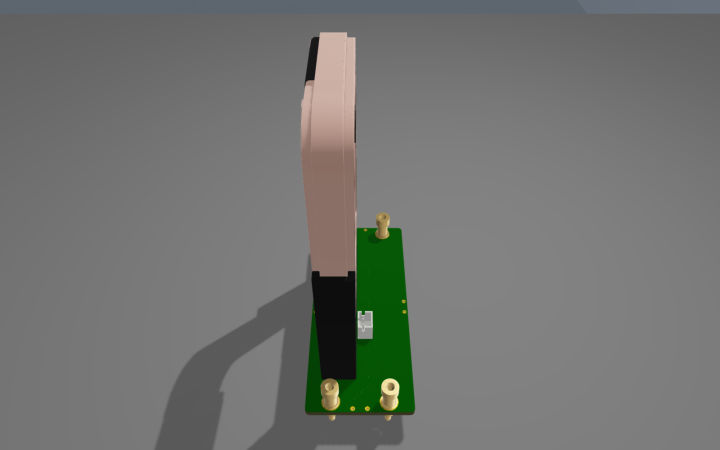

COSMIIC PM power management coil molecule for wireless charging

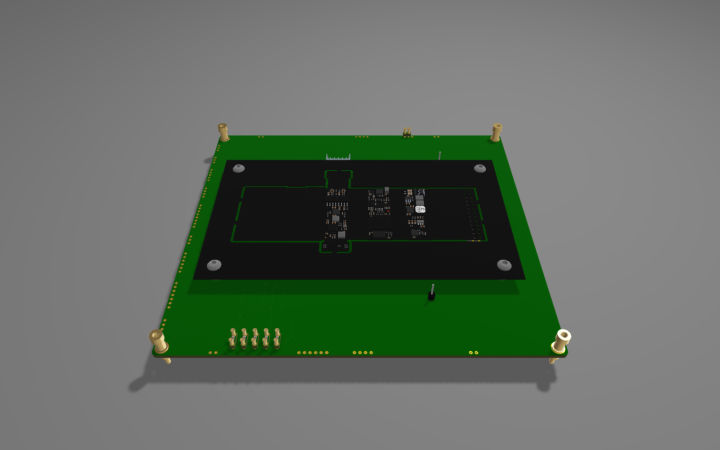

COSMIIC Biopotential Amplifier Eval Board

COSMIIC Biopotential Amplifier Eval Board·COSMIIC

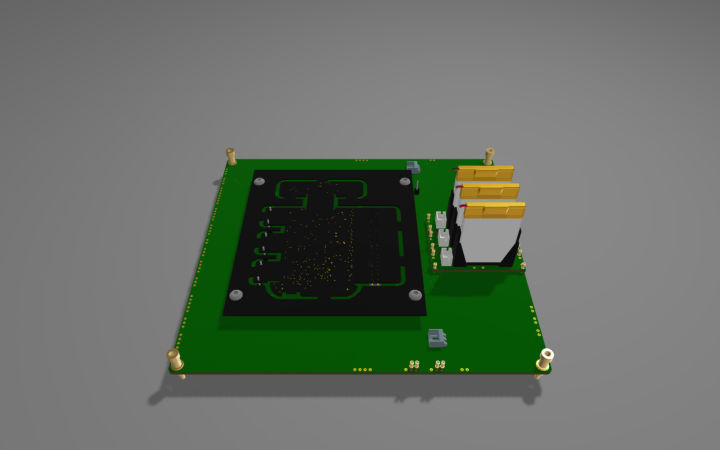

COSMIIC BP2 Biopotential Amplifier — AT90CAN128 AVR, 2-channel differential EMG/MES recording, on-board feature extraction, 4-layer micro-via PCB. Altium project, Gerbers, STEP, BOM.

COSMIIC Pulse Generator Eval Board

COSMIIC Pulse Generator Eval Board·COSMIIC

COSMIIC PG4 Pulse Generator — AT90CAN128 AVR, 4-channel monopolar stimulation (0–20 mA, 1–255 μs), triple failsafe, CANopen networked. Altium project, Gerbers, STEP, BOM.

bss123

BSS123·onsemi

onsemi BSS123. 100 V, 170 mA logic-level N-channel MOSFET, SOT-23

si3437dv-t1-ge3

SI3437DV-T1-GE3·Vishay Siliconix

Vishay Siliconix SI3437DV-T1-GE3. P-channel power MOSFET, TSOP-6

irl80hs120

IRL80HS120·Infineon Technologies

Infineon Technologies IRL80HS120. 80 V, 12.5 A logic-level N-channel power MOSFET, PQFN 2x2 (DFN2020-6)

abm3b-8-000mhz-10-1-u-t

ABM3B-8.000MHZ-10-1-U-T·Abracon

Abracon ABM3B-8.000MHZ-10-1-U-T. 8.000 MHz quartz crystal, 10 pF load, +/-10 ppm, 5.0 x 3.2 mm 4-pad SMD

s10b-ph-sm4-tb

S10B-PH-SM4-TB(LF)(SN)·JST

JST S10B-PH-SM4-TB(LF)(SN). 10-circuit PH-series 2.0 mm-pitch top-entry SMT wire-to-board header

ftsh-107-01-l-dv-k

FTSH-107-01-L-DV-K·Samtec

Samtec FTSH-107-01-L-DV-K. 2x7 (14-pin) 1.27 mm-pitch SMT micro header, Arm Cortex STDC14 debug

srr1280-220m

SRR1280-220M·Bourns

Bourns SRR1280-220M. 22 uH shielded SMD power inductor, Isat 4.1 A, 12.5 x 12.5 mm

udzvte-1710b

UDZVTE-1710B·ROHM Semiconductor

ROHM Semiconductor UDZVTE-1710B. 10 V, 200 mW Zener voltage-regulator diode, SOD-323F

b340a-e3-61t

B340A-E3/61T·Vishay

Vishay B340A-E3/61T. 40 V, 3 A Schottky barrier rectifier, SMA (DO-214AC)

10tpb220m

10TPB220M·Panasonic

Panasonic 10TPB220M — 220 uF 10 V conductive-polymer tantalum (POSCAP) SMD capacitor, TPB/D case, +/-20%, low ESR.

rp2350a-mini

RP2350A_Mini·Adom·molecule-module

General-purpose RP2350A castellated module — 20×36 mm, dual-core Arm Cortex-M33 / Hazard3 RISC-V MCU with 16 Mbit QSPI flash, USB, UART, SWD debug, and 4 ADC channels. 26 user-programmable GPIO/ADC pins on castellated machine contacts (44 contacts + 4 corner machine pins). Drop-in MCU module for Adom workcell designs.

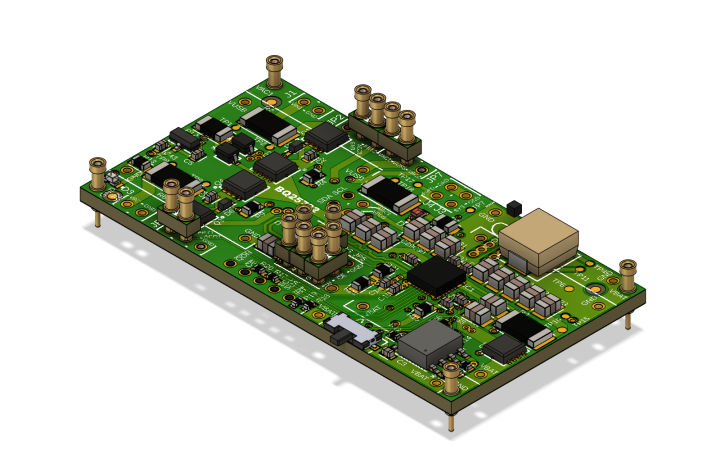

BQ25792 Charger

BQ25792·Texas Instruments·Charger board (Adom modular)

Buck-boost 1S-4S battery charger board (TI BQ25792) with 14 Adom machine pins, by Adonis

STM32F103C8T6 - Arm Cortex-M3 MCU (Blue Pill)

STM32F103C8T6·STMicroelectronics·LQFP-48 7x7mm P0.5mm

STMicroelectronics mainstream Arm Cortex-M3 MCU. 72 MHz, 64 KB Flash, 20 KB SRAM, USB, CAN, LQFP-48. The workhorse Blue Pill microcontroller.

mp2393-buck-5v

MP2393GTL-Z·MPS

MP2393 synchronous buck converter configured for 12V to 5V output. A reusable KiCad 10 design block (schematic + routed layout): drop it into a project, or export the native .kicad_block. Built on adom-lbr / adom-design-blocks.

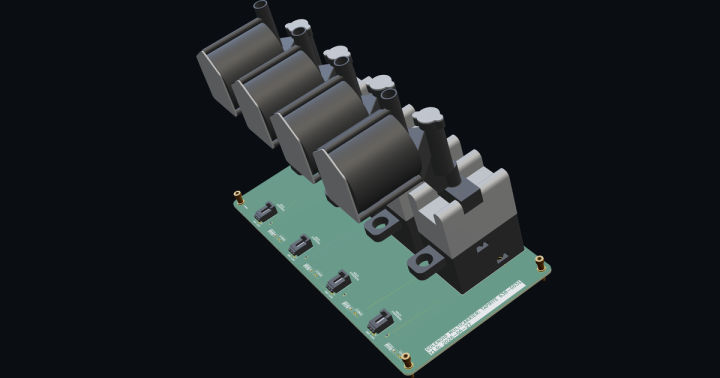

Teazzers - Taprite: Solenoid Multi-Carrier

Teazzers_Taprite_Solonoid-638-0031_Multicarrier_v1.0·Teazzers x Taprite·molecule-carrier

Teazzers_Taprite_Solonoid-638-0031_Multicarrier_v1.0 - Carrier board for (4) Taprite Solenoid (638-0031) breaking out [Power]. Includes red "power on" LEDs. Drive current = 0.7A/solenoid

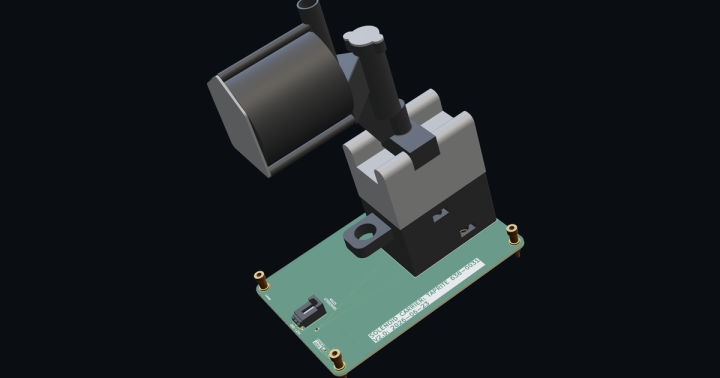

Teazzers - Taprite: Solenoid Carrier

Teazzers_Taprite_Solonoid-638-0031_v2.0·Teazzers x Taprite·molecule-carrier

Teazzers_Taprite_Solonoid-638-0031_v2.0 - Carrier board for single Taprite Solenoid (638-0031) breaking out [Power]. Includes red "power on" LED. Solenoid drive current = 0.7A

CL05B104KO5NNNC

CL05B104KO5NNNC·Samsung Electro-Mechanics

CL05B104KO5NNNC — Capacitor. Canonical adom-lbr JSON + KiCad symbol/footprint/3D. Used on the USB3-to-Ethernet Data-Only Molecule.

0603waf6043t5e

0603WAF6043T5E

0603WAF6043T5E (LCSC C23216). 604K 0603 1% Resistor

0603waf7681t5e

0603WAF7681T5E

0603WAF7681T5E (LCSC C23102). 7.68K 0603 1% Resistor

0402cg100j500nt

0402CG100J500NT

0402CG100J500NT (LCSC C1545). 10pF 0402 Capacitor

0402wgf200jtce

0402WGF200JTCE

0402WGF200JTCE (LCSC C25089). 20R 0402 Resistor

cl21a226mqqnnne

CL21A226MQQNNNE

CL21A226MQQNNNE (LCSC C5674). 22uF 0805 Capacitor

0603waf4022t5e

0603WAF4022T5E

0603WAF4022T5E (LCSC C12447). 40.2K 0603 1% Resistor

744314490

744314490

744314490 (LCSC C5157557). 4.9uH 6.5A 14.5mR 7x6.9 Inductor

cl10a105ko8nnnc

CL10A105KO8NNNC

CL10A105KO8NNNC (LCSC C1592). 1uF 0603 Capacitor

mp2393gtl-z

MP2393GTL-Z·MPS

MP2393GTL-Z (LCSC C6674609). MP2393GTL-Z

0603waf4702t5e

0603WAF4702T5E·UNI-ROYAL

UNI-ROYAL 0603WAF4702T5E - 47 kOhm 1% 0603 chip resistor. Canonical adom-lbr JSON + KiCad symbol/footprint + step2glb 3D. Referenced by the Teazzers Taprite solenoid carrier boards.

taprite-solonoid-wiretest

Taprite Solonoid molecule (KiCad) wiring-pipeline test: anchored GLB + .kicad_pcb. Validates KiCad publish->import->footprint->wiring end to end.

SKRPACE010

SKRPACE010·ALPSALPINE

SKRPACE010 — Switch. Canonical adom-lbr JSON + KiCad symbol/footprint/3D. Used on the USB3-to-Ethernet Data-Only Molecule.

USB4115-03-C

USB4115-03-C

USB4115-03-C — Connector. Canonical adom-lbr JSON + KiCad symbol/footprint/3D. Used on the USB3-to-Ethernet Data-Only Molecule.

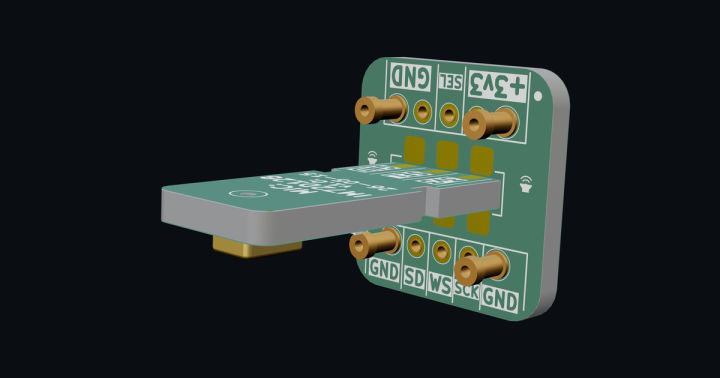

I2S: Carrier

I2S_Carrier·Adom·molecule-carrier

I2S_Carrier_v1.0: Carrier for I2S MEMs Microphones, standardized to fit all MEMs varients. Jumper selects Left or Right.

Oliver's LED Nameplate

Oliver's LED Nameplate

USB-C powered desk nameplate spelling OLIVER in 57 white 0603 LEDs. Plug in any phone charger and the name lights up.
