wireless-link

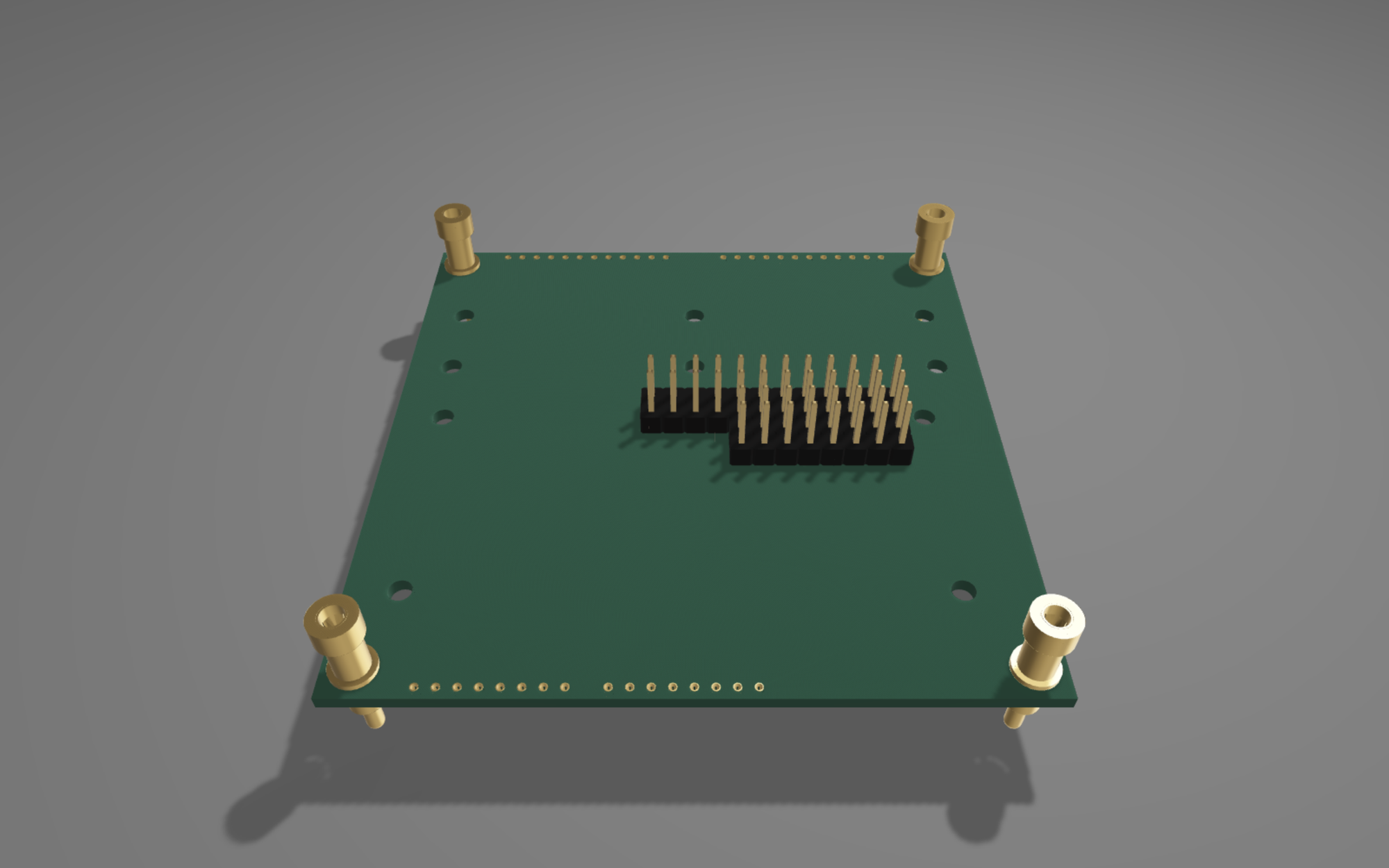

Cosmiic wireless-link molecule — a press-fit interconnect/breakout board. It carries 40 Adom medium machine contacts (MC1–MC40), 4 large press-fit machine pins (MP1–MP4), two 2.54 mm pin headers (J1/J3 1x12, J2/J4 1x08), and 10 × 2.5 mm mounting holes.

Component symbol/footprint/3D details are linked through the wireless-link Library.

Files

  • wireless-link.kicad_pro / .kicad_sch / .kicad_pcb — the KiCad 9 project (single-sheet schematic).
  • wireless-link.glb — pre-rendered 3D board (author's KiCad export).
  • wireless-link.3dshapes/ — bundled 3D models for the Adom machine parts (MachineContactMedium.step, MachinePinLargeStandard.step).

Provenance — project files. Pulled unmodified from C:\Users\noah\KiCAD Workspace\Cosmiic-Molecules\wireless-link on Noah's PC via the adom-desktop bridge, 2026-07-09 — except wireless-link.kicad_pcb, whose (model …) refs were normalized from ${ADOM_LIBRARY_DIR}/… to absolute-path form (basenames matching wireless-link.3dshapes/) because the wiki render service resolves neither ${ADOM_LIBRARY_DIR} nor relative refs. Pad/net data is untouched. Machine-part STEPs come from their wiki component pages; pin-header 3D resolves from the render service's KiCad library.
