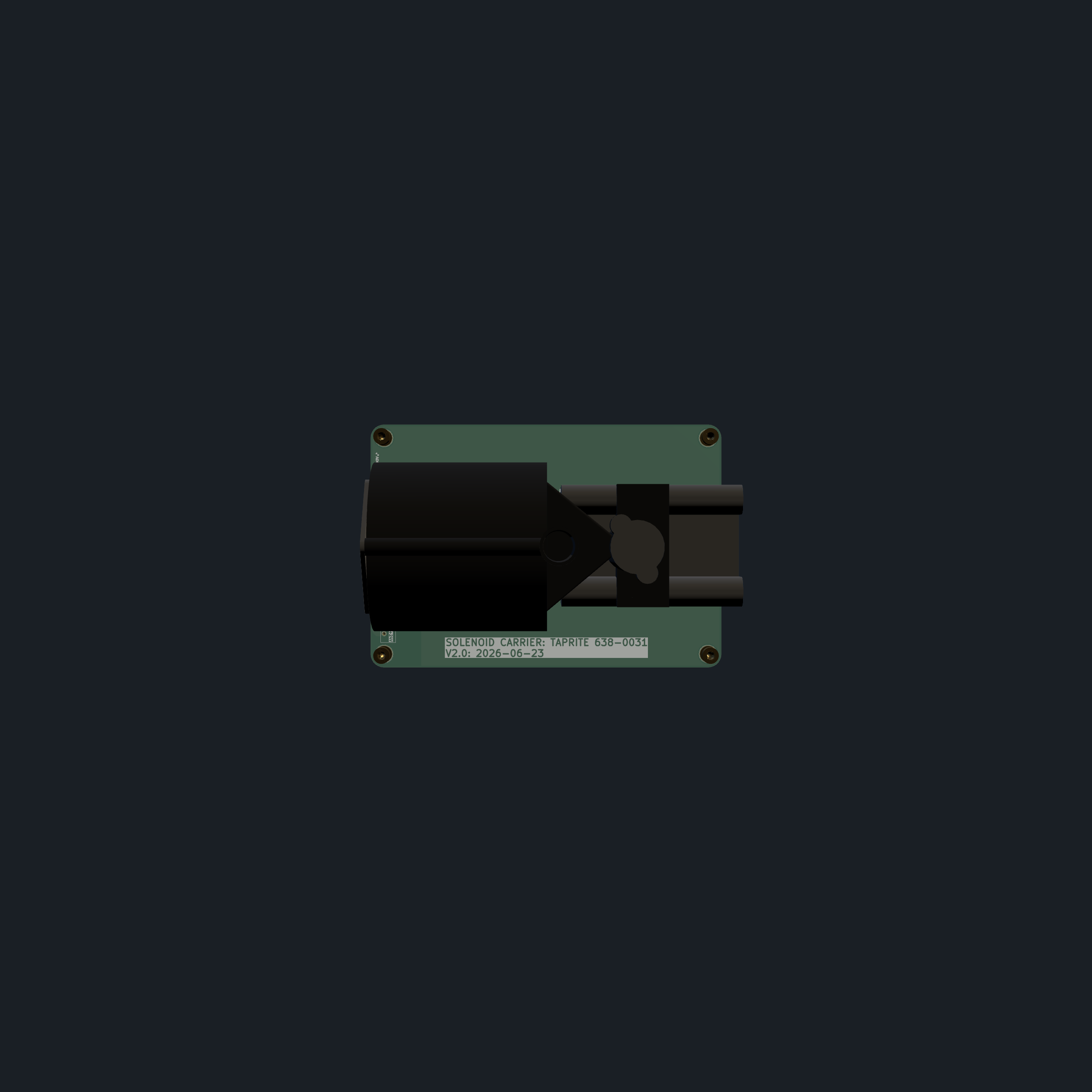

Teazzers_Taprite_Solonoid-638-0031_v2.0 - Carrier board for single Taprite Solenoid (638-0031) breaking out [Power]. Includes red "power on" LED. Solenoid drive current = 0.7A
3D Model
Contents
Teazzers_Taprite_Solonoid-638-0031_v2.0
Carrier board for a single Taprite 638-0031 solenoid valve, breaking out Power, with a red "power on" LED. Solenoid drive current 0.7 A.
Rev notes (V2.0.0)
- Update for smaller print footprint
- Updated print reduces size deleting wells for liquid
Pipeline
OCCT molecule conversion (step2glb job 90d47872f612ed28, 2026-07-09): anchored on MP2, 4 machine pins + 2 medium contacts, contact_z 5.6 mm, zero warnings. Solenoid 3D body baked into the design-machine STEP.
Bundle
GLB (OCCT, draco) · STEP · kicad_pcb / kicad_sch / kicad_pro · footprint/symbol JSON (per-pad wire-attach) · RevNotes · JLCPCB gerbers + BOM + CPL.
Import
adom-molecule create with --no-optimize reusing this GLB — do not regenerate from EDA export.
