Hero Picker

Point it at one or more molecule GLBs and pick each board's thumbnail orientation with three bars — Z spin, X tilt, Y tilt — in a Hydrogen webview tab. The flat image rotates live as an approximation; True render preview runs the bundled studio renderer (room-environment lighting, ACES tone mapping, PBR material inference, grey backdrop) at the chosen angles, and Save hero writes a 1200 × 630 hero PNG ready for a wiki page.

The bars map one-to-one to renderer flags, so a picked orientation is always reproducible from the CLI:

bin/glb2png.mjs <board.glb> --view studio --spin -45 --tiltx 10 --tilty 0

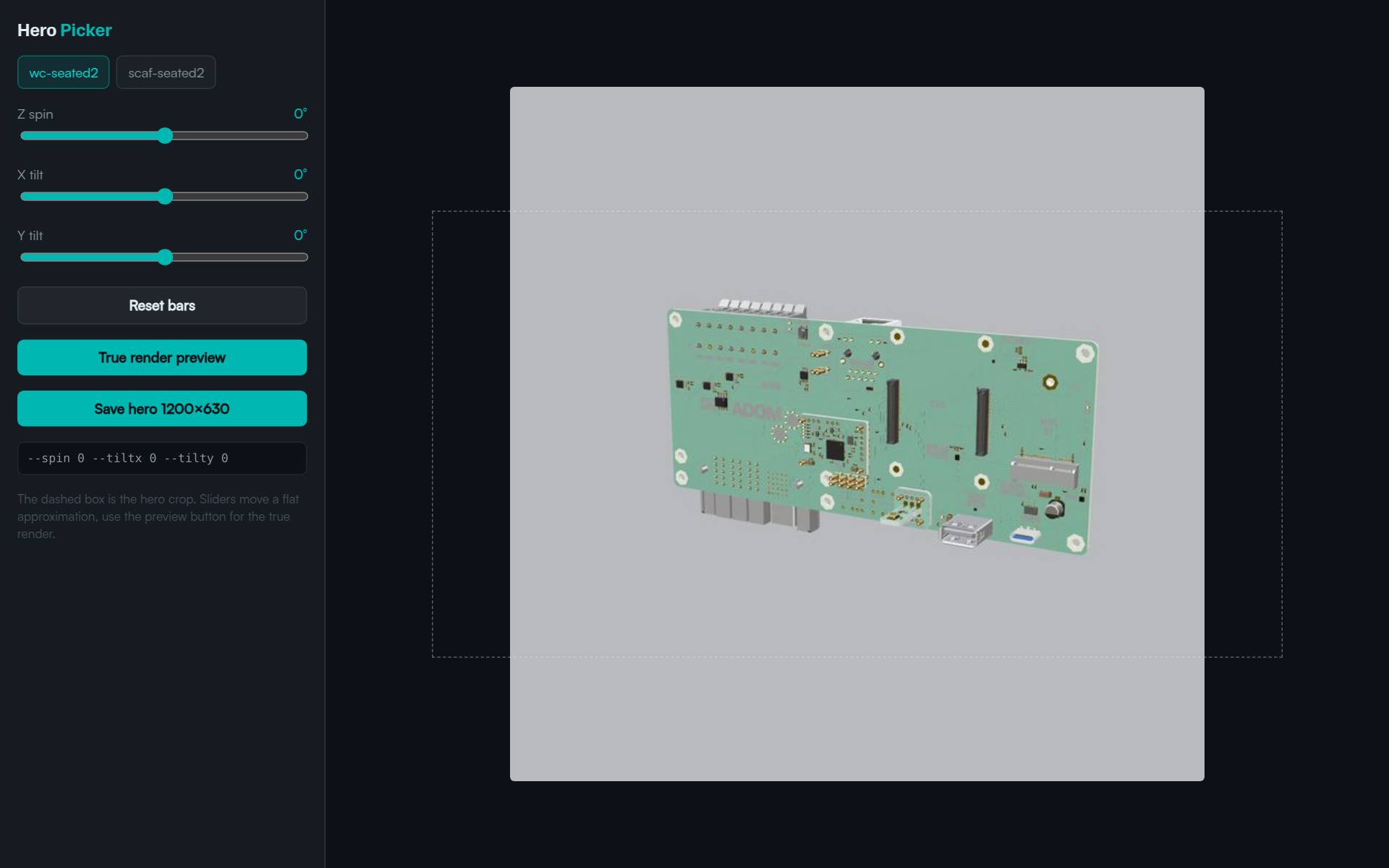

Hero Picker UI

Run

hero-picker <board.glb> [more.glb ...] [--port 8848] [--out-dir .]

Then open the printed URL in a Hydrogen webview tab (adom-cli hydrogen webview open-or-refresh --name "Hero Picker" --url <url>). Base renders take ~15 s per board; the UI polls until they appear.

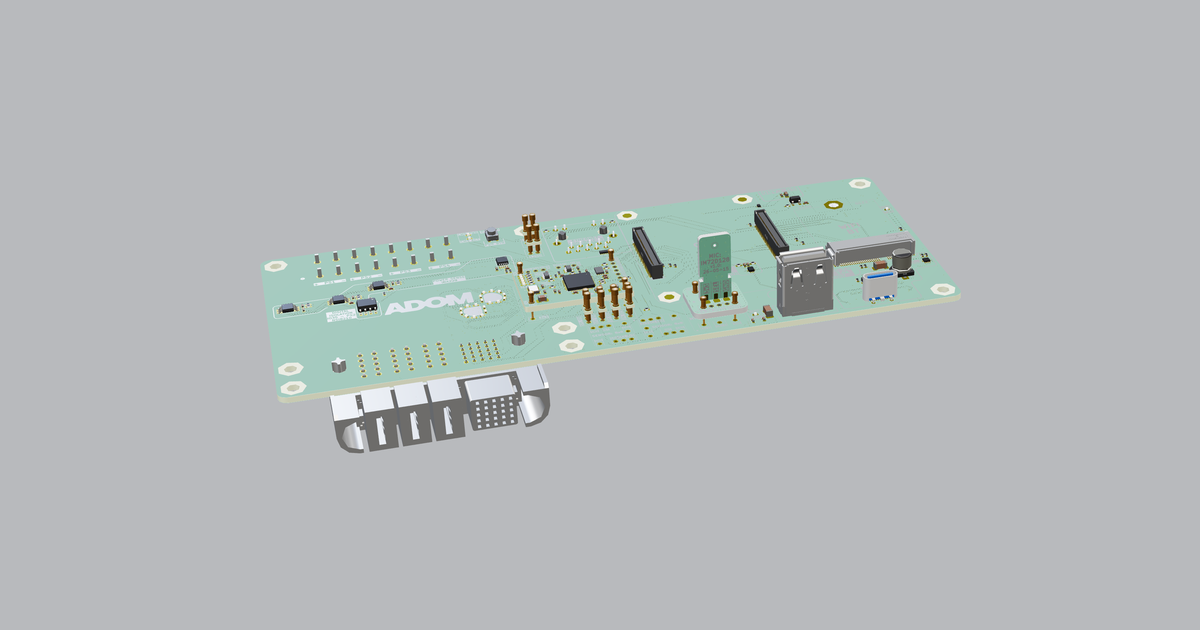

A saved hero looks like this (Control Panel: Workcell at spin 40, tiltx -75, tilty 5):

Example saved hero

API

Every UI action has a matching endpoint (JSON {status, data, hints[]}):

Route Does
GET /api/boards Board list + base-render readiness
POST /api/preview {board, spin, tiltx, tilty} True render at 700 px, returns image URL
POST /api/save {board, spin, tiltx, tilty} Full render, saves <out-dir>/<board>-hero.png (1200×630)

Install

adom-wiki pkg install caleb/hero-picker && bash ~/project/adom_modules/caleb/hero-picker/install.sh

Needs Node 20+ (npm i puppeteer happens in install.sh) and python3 + Pillow.

Bundled renderer

bin/glb2png.mjs is an extended adom-glb2png with --view studio|studio2, --spin, --tiltx, --tilty — headless three.js with a Draco loader, logarithmic depth buffer (kills soldermask/pour z-fighting), and studio material inference (gold → metallic, soldermask → semi-gloss).
