service-kicad — shared headless KiCad

The shared service. service-kicad is a headless KiCad 10 service Adom runs as free shared infrastructure — DRC/ERC, Gerber/SVG/STEP export, Altium library conversion, and symbol/footprint/3D-model lookups with no local KiCad install. Every Adom tool and user container shells to the service-kicad CLI rather than hitting the HTTP API raw.

Fair use. It's free today and we intend to keep it that way. We reserve the right to rate-limit or block abusive usage, and if scale ever demands it, heavy usage may become paid. Nothing about your designs is retained beyond the job lifecycle.

Self-hosting. The service is a single container you can run yourself — full source on this page (Files tab / adom-wiki repo clone adom/service-kicad). If the shared instance doesn't fit, spin up your own and point the CLI at it. See Self-hosting below.

Install

adom-wiki pkg install adom/service-kicad

That installs the CLI to your PATH, the Claude skill, and bash completions. Verify:

service-kicad health

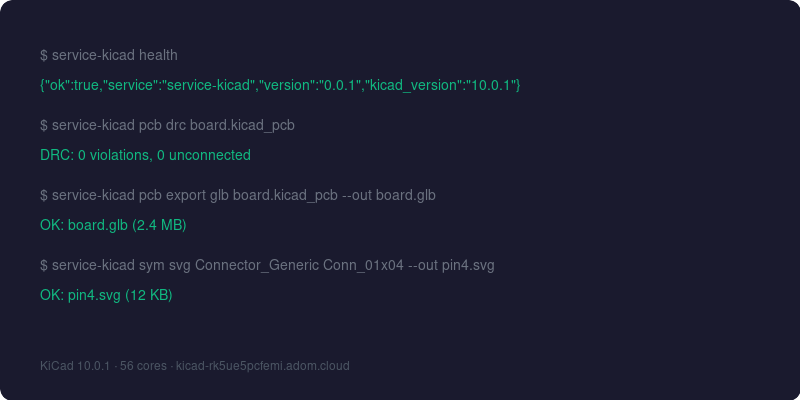

Usage

# Health / diagnostics
service-kicad health                  # service + KiCad version + running git_sha
service-kicad config                  # effective service URL and where it came from

# DRC / ERC
service-kicad pcb drc board.kicad_pcb
service-kicad sch erc schematic.kicad_sch

# PCB export
service-kicad pcb export gerbers board.kicad_pcb --out ./gerbers/
service-kicad pcb export step board.kicad_pcb --out board.step
service-kicad pcb export svg board.kicad_pcb --out board.svg
service-kicad pcb export svg board.kicad_pcb --layers F.Cu,F.Mask,Edge.Cuts --out board.svg

# Schematic export
service-kicad sch export svg schematic.kicad_sch --out sch.svg
service-kicad sch export svg-project ./project-dir --out ./sheets/   # hierarchical: one SVG per sheet
service-kicad sch export pdf schematic.kicad_sch --out sch.pdf
service-kicad sch export bom schematic.kicad_sch --out bom.csv

# Altium → KiCad library conversion
service-kicad altium sym part.SchLib      # → part.kicad_sym
service-kicad altium fp part.PcbLib       # → part.kicad_mod

# Symbol / footprint / 3D lookups (KiCad official libraries)
service-kicad sym svg Connector_Generic Conn_01x04
service-kicad fp svg Connector_PinHeader_2.54mm PinHeader_1x04_P2.54mm_Vertical
service-kicad model fetch Connector_PinHeader_2.54mm.3dshapes/PinHeader_1x04_P2.54mm_Vertical.step

Reading a DRC / ERC result

kicad-cli's JSON carries no totals, only the finding collections. The CLI derives every count from those findings and states the verdict on the first line, separately from HTTP success (page issues #2, #3):

$ service-kicad pcb drc board.kicad_pcb
DRC FAILED: 2 errors, 1 warnings  (schematic_parity 0 · unconnected_items 0 · violations 3; 5 checks ignored)
kicad 10.0.2 · units mm · input board.kicad_pcb (3150 B, sha256 16a6ff56135e…) · service 1.1.0 @08def5a7
  [error] clearance: Clearance violation ( clearance 0.2000 mm; actual 0.1500 mm)  @ (9.45, 9.5)
        Pad 1 [<no net>] of REF** on F.Cu
  ...
hint [DRC_FAILED]: 2 error-severity finding(s); the report was produced but the DRC did not pass; exit code 5

Count policy. DRC counts span violations, unconnected_items and schematic_parity; ERC counts span every sheets[].violations. error and warning count; exclusion (user-excluded markers) is listed but never counts toward pass/fail; any other severity is listed under other. A collection the schema promises but the report lacks makes the status unknown, never passed. ignored_checks are the checks kicad-cli did not run: a pass says nothing about them.

Exit codes. 0 passed (warnings allowed), 5 the report was produced and carries error findings, 1 the input could not be loaded, 2/3/4 transport, auth, service failures. Pass --exit-zero to keep the old always-zero behaviour while still getting the verdict.

Formats. --format text (default) is the summary above. --format json is the native report with ONE added top-level key, adom_summary (counts, status, exit_code, input.sha256, service version + git sha, hints, erc_scale); every native key is untouched. --format native is the byte-for-byte kicad-cli report. With --out, the file gets the JSON and the terminal gets the text.

ERC positions are 100x too small on KiCad 10.0.x. Upstream eeschema/erc/erc_report.cpp builds WriteJsonReport's units provider with pcbIUScale (1e6 IU/mm) while the text report and the schematic use schIUScale (1e4 IU/mm), so every JSON pos is the true millimetre value divided by 100. The CLI cross-checks item positions against the symbols they name in the uploaded schematic and, when a factor other than 1 puts them where the symbols are, prints hint [ERC_COORDINATES_SCALED] with the factor. Nothing is rescaled: multiply pos.x/pos.y yourself and keep the raw report. A report that checks out prints nothing; one that cannot be cross-checked says why (ERC_COORDINATES_UNCHECKED).

"Failed to load". kicad-cli gives no parser location. The CLI reads the file structurally before uploading and, for a truncated file, wrong file kind, legacy .sch, or missing (version ...), prints the line/column and paren balance under INPUT_UNLOADABLE (exit 1). The service does the same on its 400 (diagnostics + hint fields). A file that parses but is still refused is a semantic problem (unknown lib_id, unsupported format version); open it in KiCad for the message.

3D models: STEP is the contract

For board 3D models, export STEP here and convert with adom-step2glb / service-occt — that is the only supported GLB path. KiCad-native GLB export is gated (page issue #106) because it bypasses the molecule pipeline: no MP-marker anchoring, no gold machine-pin material, no meter normalization, no footprint emit. The endpoints remain for legacy callers, but every GLB that leaves this service is provenance-stamped in its glTF JSON (asset.extras.adom.provenance = "kicad-native-glb", plus an X-Adom-Provenance response header) so importers and humans can catch it downstream, and the CLI verb requires an explicit --i-know-this-skips-the-pipeline acknowledgment.

The shared instance carries the official KiCad symbol/footprint/packages3D libraries only. Adom's machine-pin 3D libraries are not installed server-side, so molecule STEP export for boards using Adom library parts still runs on the laptop (see the kicad-export-molecule skill); boards built purely from the official libraries can use pcb export step here directly.

Service URLs — channels

Two channels run in parallel. The default URL serves KiCad 10; KiCad 9 is opt-in for callers that need to pin to the older toolchain.

The default URL is baked into the CLI. To pin a run to v9 (or any other instance):

SERVICE_KICAD_URL=https://kicad-v9-7f1gq8j5ohbq.adom.cloud service-kicad pcb drc board.kicad_pcb

(KICAD_SERVICE_API is honored as a legacy alias.) Health probe shape is the same on both channels; kicad_version and git_sha differ:

curl -sf https://kicad-rk5ue5pcfemi.adom.cloud/health
# → {"git_sha":"…","git_sha_short":"…","kicad_version":"10.0.2","ok":true,"service":"service-kicad","version":"1.1.0"}

Self-hosting

The whole service is one container: a Rust API binary shelling to kicad-cli, plus the official KiCad libraries. Everything you need is in this repo.

1. Provision a container. Follow the standalone service guide for creating a dedicated lightweight container with SSH. Any Ubuntu 24.04 host with ~10 GB free (KiCad + libraries) works too.
2. Get the source and deploy.

   adom-wiki repo clone adom/service-kicad && cd service-kicad
   bash deploy.sh


   deploy.sh is the canonical one-shot setup: installs KiCad 10 from the official PPA, overlays the upstream symbol/footprint/packages3D libraries (see library staleness below), builds the API, and installs the watchdog cron. Dockerfile documents the same steps as a reference image. KiCad 9 fallback: deploy-v9.sh on a separate host — the two PPAs ship the same kicad package, so it's one channel per host.
3. The watchdog keeps it running. watchdog.sh (cron, every 2 min) fetches origin, rebuilds on new commits, and health-checks the running service. It kills the old process by /proc/PID/exe readlink — not pkill -f path matching, which self-kills SSH sessions and can match unrelated processes. Keep that.
4. Expose the port. The API listens on PORT (default 8780). On an Adom container: adom-cli carbon containers port-add <slug> --port 8780 --prefix kicad. Health check: curl <url>/health — git_sha tells you exactly what's deployed.
5. Point the CLI at it.

   export SERVICE_KICAD_URL=https://your-instance.example
   service-kicad config   # confirms: source = SERVICE_KICAD_URL env


   Same commands, your container.

Service configuration

Uploads are capped at 100 MB per request.

Library staleness

The Ubuntu apt packages of kicad-symbols / kicad-footprints / kicad-packages3d lag the upstream KiCad GitHub repos by years (24.04 ships a ~2020 snapshot). Dockerfile + deploy.sh overlay shallow git clones of the upstream libraries at /opt/kicad-*-upstream, point the KICAD_*_DIR env vars at them, and refresh weekly via /etc/cron.d/kicad-lib-pull. The apt packages stay installed — they bring kicad-cli itself — but their library data is shadowed by the upstream clones.

HTTP API

Full contract: docs/service-kicad-api.md. Prefer the CLI over curling the API — it has the production URL baked in and insulates you from container reprovisions. Major endpoints:

Design doctrine

• Tool-agnostic by design. Zero aci-* deps — nothing in this repo imports adom-circuit. Bug fixes land once for every consumer.
• Body is the file. Every POST endpoint takes the raw .kicad_* bytes as the request body, not a multipart upload. Keeps clients trivial (curl --data-binary @file).
• Shell out; don't reimplement. kicad-cli is the source of truth. We're a thin HTTP layer over subprocess calls, not a KiCad reimpl.
• All exports pass KICAD{6,7,8,9,10}_3DMODEL_DIR so component 3D models resolve during STEP export, regardless of which kicad-cli major version is on the host.
• Static library mounts are read-only — nobody writes back through the service.
• $PORT configurable so the same binary can host side-by-side dev/prod instances on one container.

Contributing

Every change on main triggers the prod watchdog: on the next 2-minute cycle the container pulls, rebuilds, and relaunches — /health's git_sha confirms what's actually serving. Breaking changes bump api_version in service.json + docs/service-kicad-api.md. Open PRs against the wiki page (adom-wiki pr) so review happens where users look; the GitHub repo (adom-inc/service-kicad) is the working origin.

Candidate: project-aware PCB DRC

The feature/project-aware-drc candidate adds a complete-project path for fab-rule qualification. This source has protocol/transport tests, but is not deployed on the shared service and has not yet passed the native KiCad negative-control fixtures. Check the installed CLI's help and service capabilities before using it.

service-kicad pcb drc-project ./project --board board.kicad_pcb \
  --include Parts.pretty --out project-drc.json
# Separate intentionally failing fixture: prove a named custom rule ran.
service-kicad pcb drc-project ./rule-fixture --board rule-probe.kicad_pcb \
  --expect-rule depth-lab-proof-custom-rules-loaded --out probe-drc.json

The board, matching .kicad_pro and .kicad_dru are required. Use --allow-no-custom-rules only when intentionally relying on project settings without custom rules. Adjacent library tables are included; include their local libraries explicitly. Unrelated boards, credentials and arbitrary project-directory files are not scanned/uploaded. The package supports regular KiCad text inputs; links, duplicate/case-aliased paths, unsafe paths and special archive entries are rejected. Select a board relative to the project root, including subdirectories.

The response contains the native report, service/native versions, supplied input hashes, diagnostics and optional expected-rule observation. ok means the operation and requested probe completed, not that the board passed DRC. A negative-control probe normally produces a native violation. Removing that probe in a separate copy is required before evaluating the real design. Input hashes do not establish rule enforcement by themselves. HTTP 422 reports a requested rule absent from native violation descriptions; the CLI saves this full response to --out before exiting nonzero. Native failures never retry with default rules.

The legacy single-file pcb drc command now emits PROJECT_RULES_OMITTED on stderr when matching project or rule files are present locally. It retains its existing response format. The new operation uses a separate endpoint and does not alter shared production settings or require desktop focus.

Validation: cargo test --workspace; tests using a subprocess fixture explicitly report test-double-not-native. A real KiCad project run must still verify the named probe, malformed-rule rejection and the intended fabrication constraints.

A self-contained local CLI/HTTP check is also available after cargo build --workspace: python3 verification/test_project_drc.py. It starts only its own temporary API process, uses a clearly labeled protocol test double, verifies five transport cases, and stops its process. It does not install software or call the shared service.
