Molecule_NTX15R

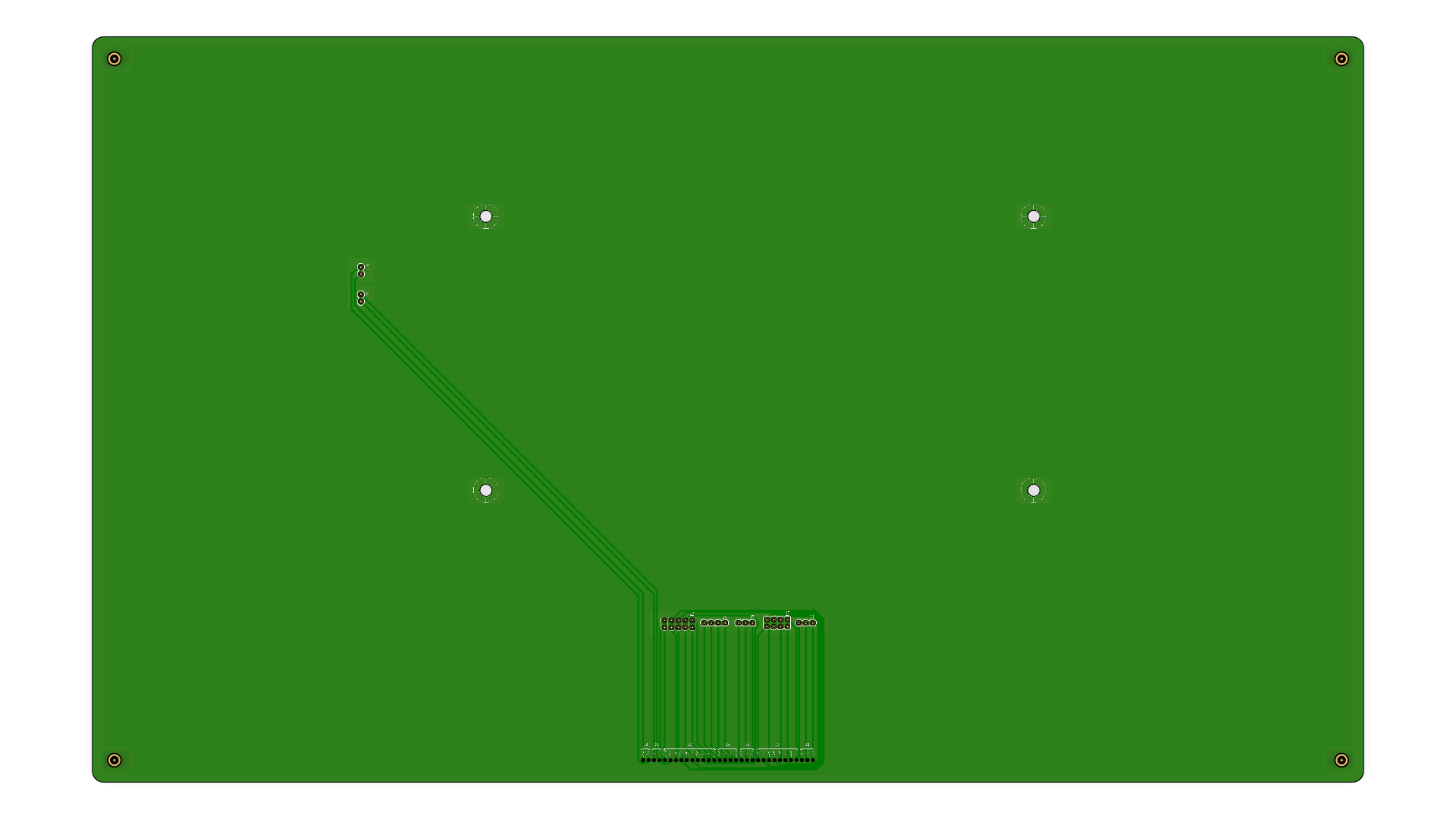

NTX Embedded carrier molecule, exported from Fusion 360 (Main/Molecules/NTX Embedded, board v5) and converted through the OCCT molecule pipeline.

Machine pins: 4× large standard (MP1–MP4)
Contacts: 32× medium (J1/J2/J5–J9 banks)
Anchored GLB: moleculentx15r.glb (OCCT molecule mode — anchored, gold-upgraded, footprint applied, contact_z 8.4 mm)
Wire attach: moleculentx15r_footprint.json / moleculentx15r_symbol.json
Sources: Molecule_NTX15R.brd / .sch (EAGLE XML), .f3d (Fusion archive), .usdz
Manufacturing: Molecule_NTX15R_gerbers.zip, bom.csv, cpl.csv
