BMV080 Molecule

Bosch BMV080 ultra-compact PM2.5 particulate-matter sensor packaged as an Adom molecule — anchored GLB, machine-pin wings, FPC connector, KiCad source.

Molecule


MPN	`BMV080`
Manufacturer	Bosch Sensortec
Machine pins	4 (medium, short)
Anchoring	MP1–MP4 markers, OCCT molecule mode
Source EDA	KiCad

Files

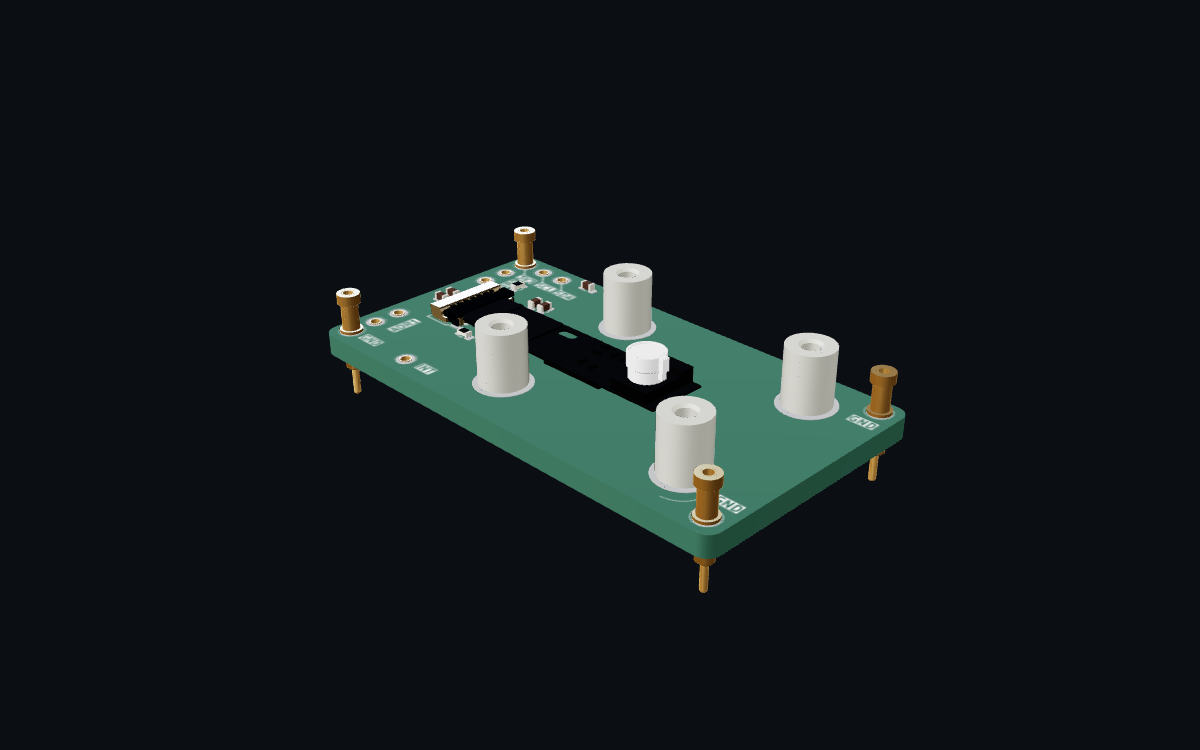

bmv080-molecule.glb — anchored OCCT molecule model (gold machine pins, Z-up, front-left pin at origin)
BMV080_Molecule.step — STEP export with all 3D models substituted
BMV080_Molecule.kicad_pcb / .kicad_sch / .kicad_pro — KiCad source
bmv080-molecule_footprint.json — per-pad wire-attach Z
bmv080-molecule_symbol.json — generated symbol

Provenance

Exported from KiCad 10 (kicad-cli pcb export step --subst-models), converted through the OCCT molecule pipeline (step2glb --board --pin medium) with the publish gates green: molecule_anchored: true, footprint_applied: true, contact_z: 2.8 mm, no warnings.
