Native Rust converter: EAGLE/Fusion .lbr + Altium .SchLib/.PcbLib → KiCad symbol+footprint, rendering each format's OWN geometry. No KiCad install, no service round-trip.

adom-wiki pkg install adom/adom-sfconvert

Latest: v1.0.8, published 2026-06-29

Dependencies 2 skills

skill adom/altium-schlib *
skill adom/altium-pcblib *

Contents

What this is
Why native matters
Usage
Where it's used
Companions
License

What this is

adom-sfconvert converts foreign EDA libraries — EAGLE / Fusion 360 .lbr and Altium .SchLib / .PcbLib / .IntLib — into standard KiCad symbol + footprint, and renders each format's own geometry as a native SVG. The name echoes adom-ds2sf: sf = symbol + footprint.

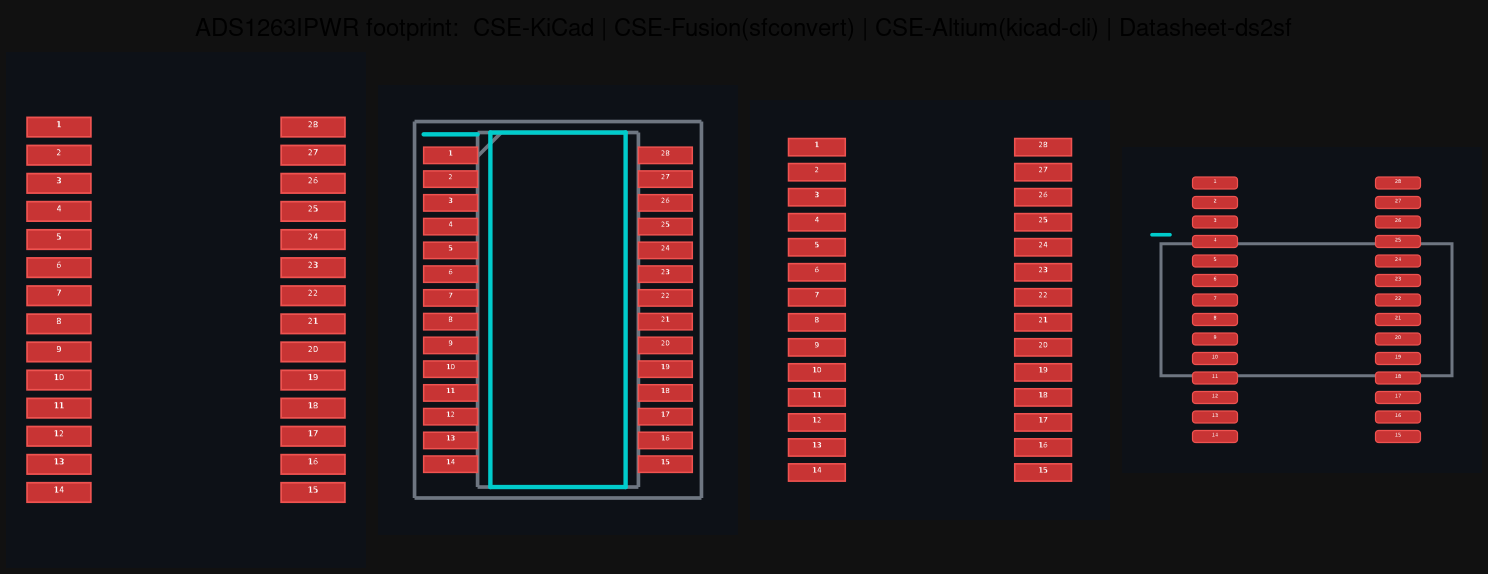

Same footprint from four sources, each rendered from its own geometry

The same part's footprint from four sources — KiCad, Fusion, Altium (native), and the datasheet — each rendered from its OWN geometry so you can see what disagrees.

It is fully native — pure Rust, runs in your container, no KiCad install and no service round-trip. Each format is read by the right native reader:

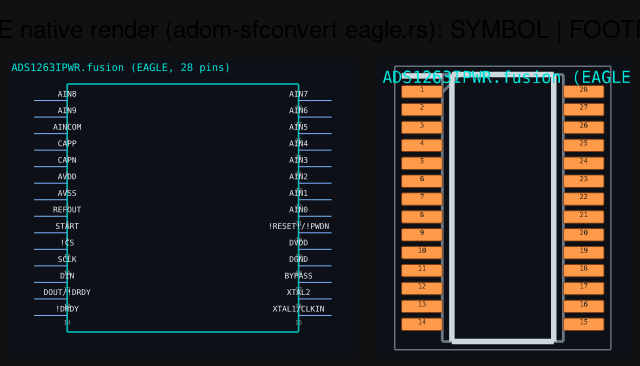

EAGLE/Fusion .lbr rendered natively — symbol + footprint, no KiCad round-trip

An EAGLE/Fusion .lbr rendered straight from its own geometry by eagle.rs — symbol and footprint, never round-tripped through KiCad.

Input	Read by	Native?
EAGLE / Fusion `.lbr` (XML)	built-in `eagle.rs`	✅
Altium `.PcbLib` (footprints)	`altium-pcblib`	✅
Altium `.SchLib` (symbols)	`altium-schlib`	✅

Why native matters

The point of pulling a part's CAD from many sources is to compare what's right and what's wrong. If every format is normalised through KiCad's importer first, the sources converge — they all become "KiCad's interpretation," and the disagreements you wanted to catch are erased. adom-sfconvert renders each library from its own bytes, so EAGLE looks like EAGLE and Altium looks like Altium. Conversion to .kicad_sym / .kicad_mod happens only on export.

Usage

adom-sfconvert convert part.lbr     --out-dir ./out --name part   # EAGLE/Fusion
adom-sfconvert convert part.SchLib  --out-dir ./out --name part   # Altium symbol
adom-sfconvert convert part.PcbLib  --out-dir ./out --name part   # Altium footprint
adom-sfconvert version

Each convert emits, into --out-dir:

<name>.kicad_sym / <name>.kicad_mod — the export files.
<name>-symbol.svg / <name>-footprint.svg — the native thumbnails, drawn straight from the source geometry.

Where it's used

chip-fetcher calls adom-sfconvert to turn every downloaded EAGLE/Fusion and Altium library into a per-source thumbnail, shown side-by-side with the KiCad and datasheet renders so you can pick what to export to your preferred EDA app. After this tool went native, nothing foreign touches the KiCad service — only KiCad's own format is rendered remotely.

Companions

adom-ds2sf — extract symbol + footprint from a datasheet PDF.
altium-pcblib / altium-schlib — the native Altium readers this builds on.
chip-fetcher — the consumer that shows every source for comparison.
