adom-layout-viewer

Interactive PCB layout viewer. The picture is your EDA's own export — the real silkscreen, the real trace widths, the real theme colours — and on top of it sits an invisible, coordinate-aligned interaction layer that knows the netlist. So you get a board that looks exactly like it does in KiCad, except you can click a pad and watch its entire net light up.

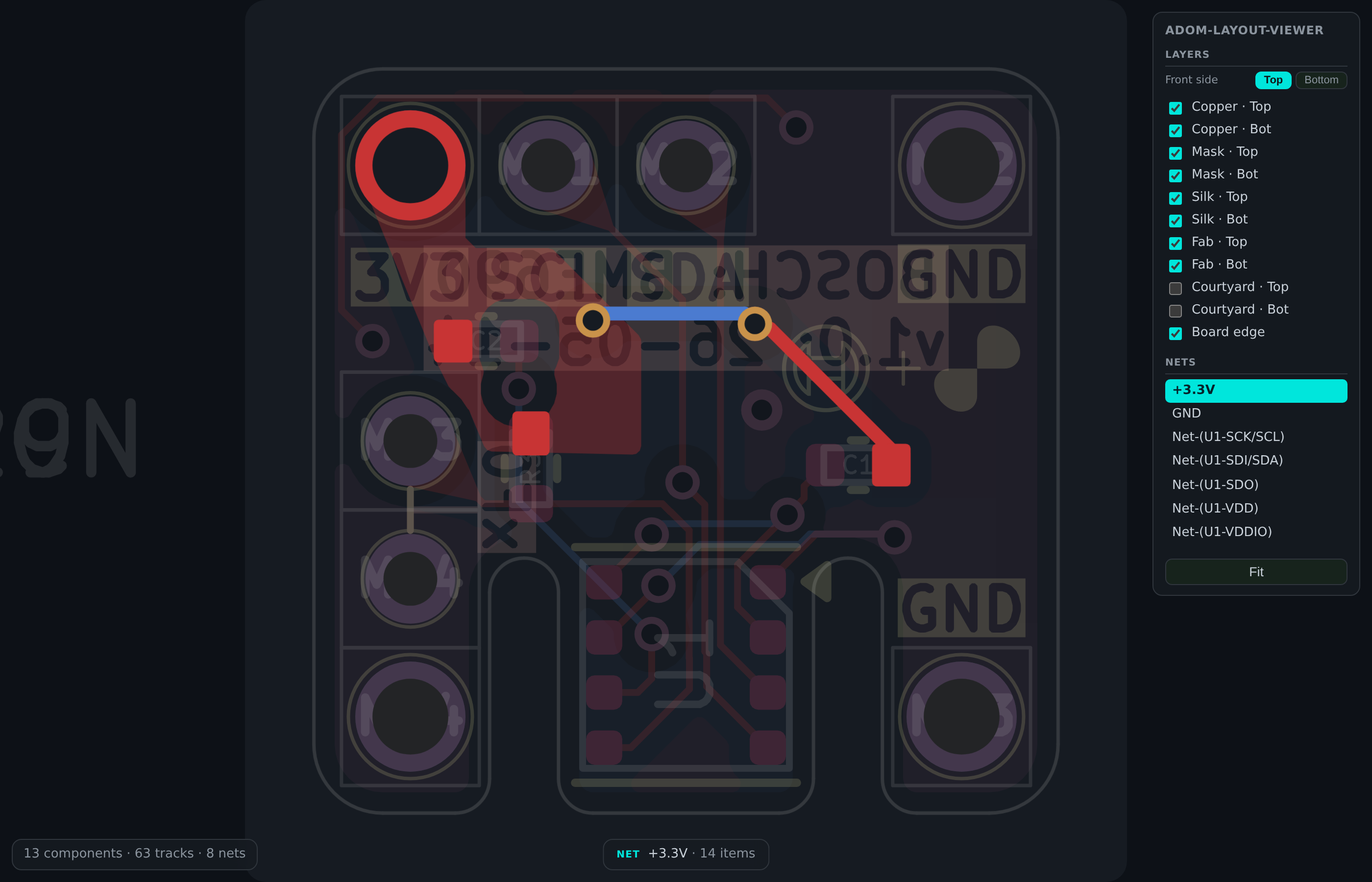

A net highlighted in adom-layout-viewer

Why it works this way

A flat SVG export is authentic but dead — no nets, no pads, nothing to click. A self-drawn render is interactive but never quite looks like your EDA. This app does both at once:

  • Visual base — per-layer SVG straight from the EDA (KiCad via the shared service-kicad container, POST /kicad/pcb/export/svg?layers=<L>), one group per layer, in KiCad's own theme colours.
  • Interaction overlay — the .kicad_pcb parsed in Rust into pads, traces, vias and zones carrying data-net / data-ref, drawn invisibly in the same board-mm coordinate system. No Y-flip, no offset, so the two align exactly.

What you get

  • Net highlighting — click any pad, via, trace or zone fill; the whole net lights in its own copper colour while the rest of the board dims. The net list on the right stays in sync (and is clickable itself).

  • Per-pad hover — pad number, size, shape, side and net, plus live stock, price, wiki page and popularity for the parent part.

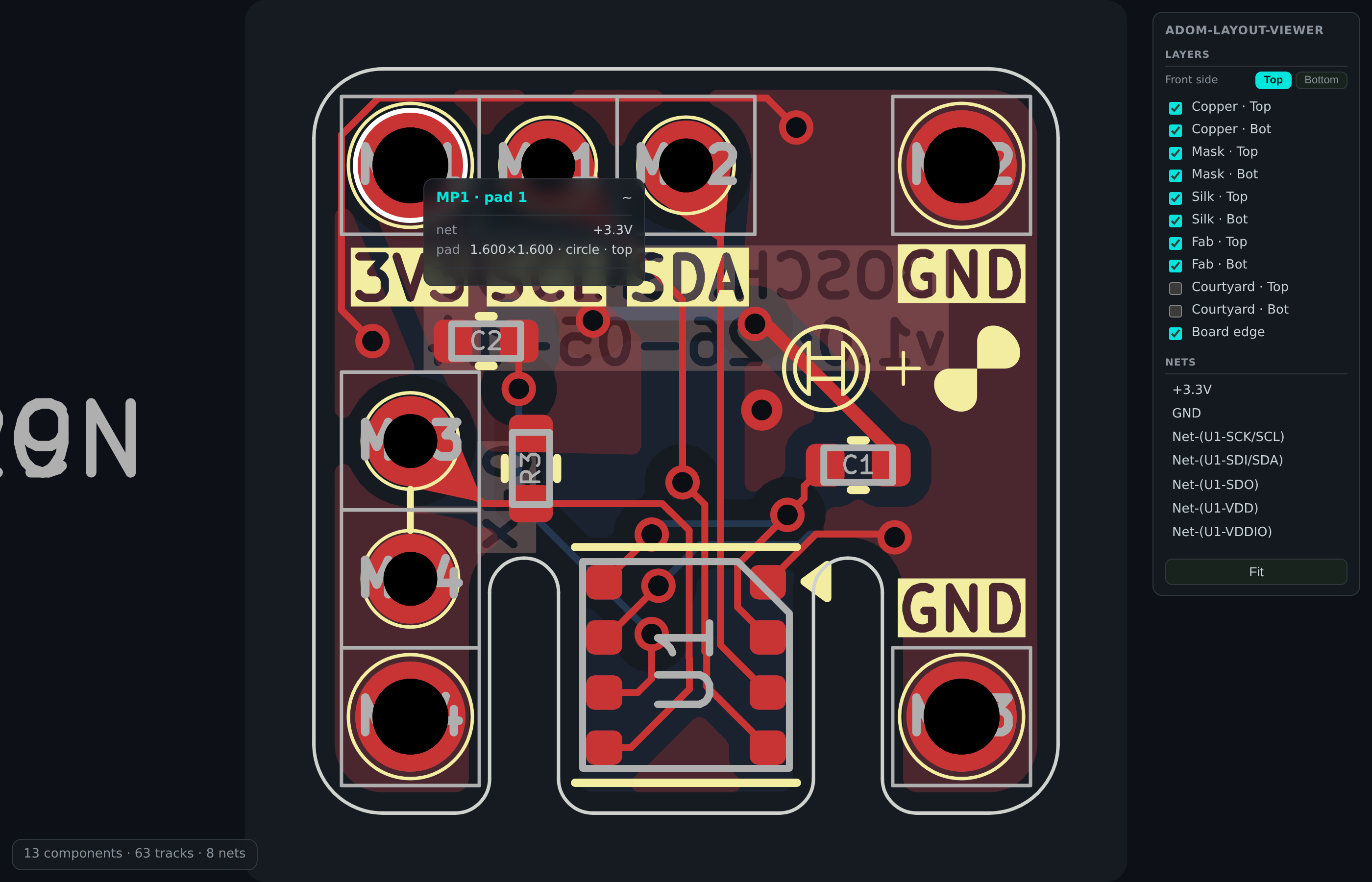

    Hovering a pad

  • Layer control — every layer toggles independently, and the Top/Bottom switch mirrors the board and brings that side's stack to the front so you can select parts on the far side.

  • Embeddable — embed emits one self-contained interactive HTML file with no external assets, so any app can drop it in an iframe as a live PCB view. (adom-nucleus uses exactly this for its board pane.)

Install

adompkg install adom-layout-viewer

Use

# one self-contained interactive HTML (what you embed in another app)
adom-layout-viewer embed --file board.kicad_pcb --out board.html

# a composed interactive SVG (+ board.meta.json with --meta)
adom-layout-viewer render --file board.kicad_pcb --out board.svg --meta

# the live app — hover/click, with enrichment served from /enrich
adom-layout-viewer serve --file board.kicad_pcb --port 8790

Embedding in your own app

embed inlines the SVG, the metadata and the viewer JS into a single file, so an iframe is all you need:

<iframe src="/board-view/my-board/pcb" style="border:0;width:100%;height:100%"></iframe>

An embed has no server of its own, so its enrichment fetch("enrich") is relative — it resolves against whatever serves the page. Host apps can answer it (/…/enrich?mpn=&lcsc=) to give the embedded card live stock and price; if nothing answers, the card simply shows identity only.

Enrichment

Hover data comes from sibling Adom CLIs, cached per part and fetched off the render path (/enrich returns {"pending":true} and warms in the background, so hovering never blocks):

  • adom-parts-search search <mpn> — stock and price
  • adom-wiki discover search --query <mpn> --json — wiki page and popularity

Notes

  • Requires network access to service-kicad; override with KICAD_SERVICE_API. If it is unreachable the app falls back to its own self-render so you still get a usable (if less authentic-looking) board.
  • KiCad today; the same overlay architecture is what will carry Altium and Fusion exports.

See also: adom-schematic-viewer — the same idea for .kicad_sch.
