Adom Basic Parts - Fusion 360 Library

The entire Adom basic parts catalog as ONE drop-in Fusion 360 Electronics library: 138 parts, every value placeable with its real footprint and a rendering 3D model on it.

What's inside

Type Count Packages
Resistors 79 0402, 0603
MLCC capacitors 40 0402, 0603, 0805
LEDs 11 0402, 0603, 2020
Inductors 6 -
Ferrite beads 2 0402

Those 138 values share just 10 footprints (one R-0402 used by all 41 of the 0402 resistor values, etc.) - the real-EAGLE way - so the whole thing is 10 rendering 3D packages + 138 devicesets that share them. Every deviceset carries VALUE / MPN / MF / MOUSER attributes from the catalog.

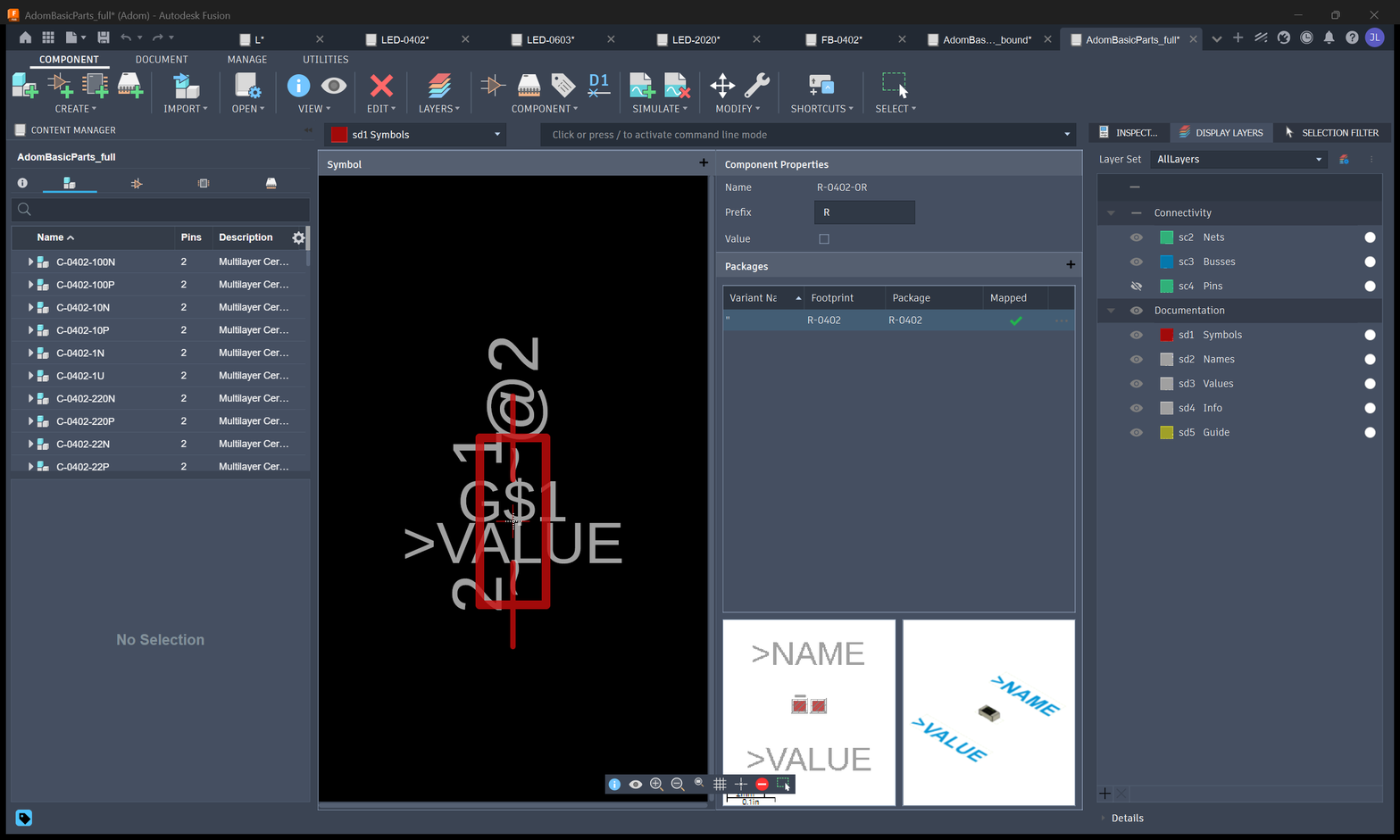

The 138-part library in Fusion's Content Manager - symbol, footprint, package Mapped, 3D preview

Real footprints + 3D, per package type

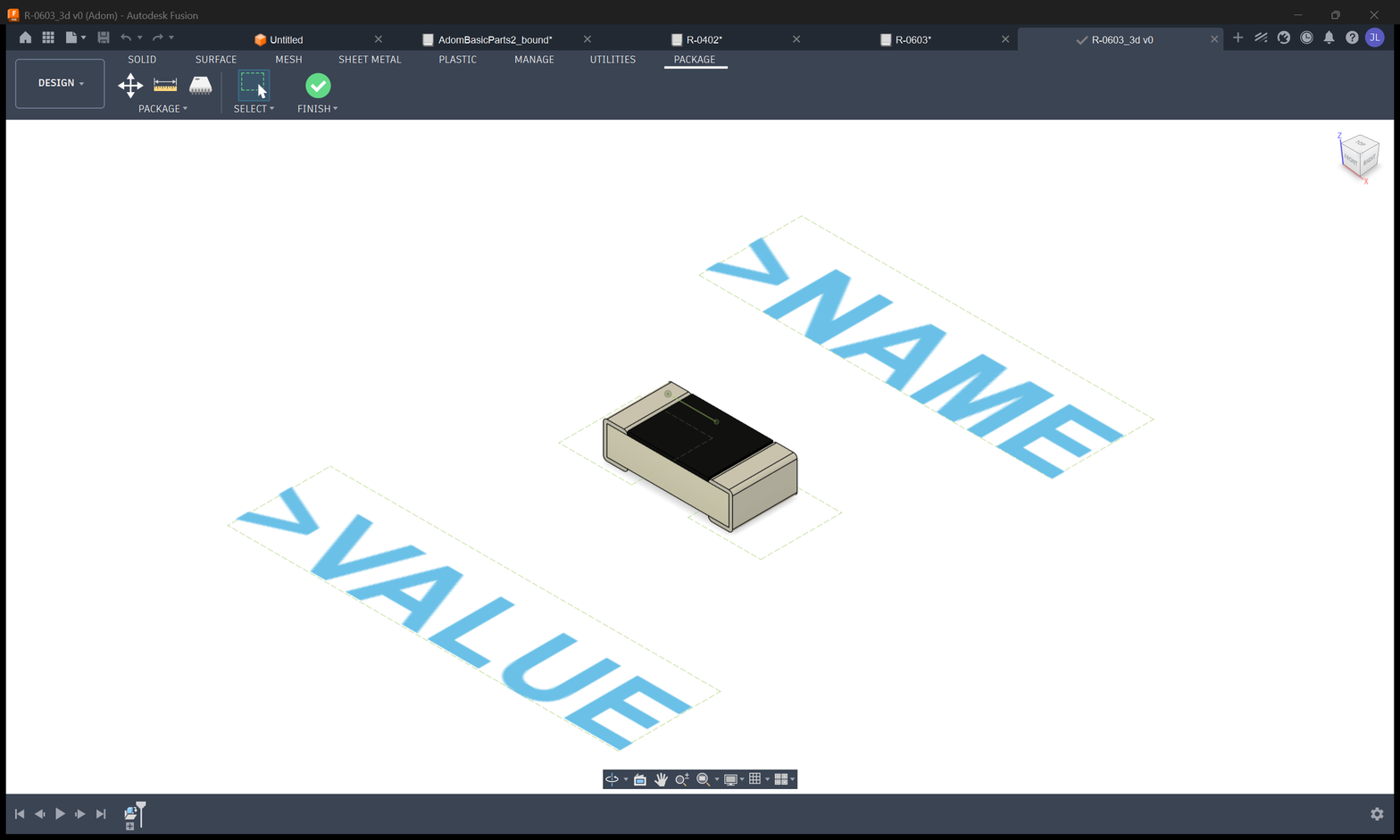

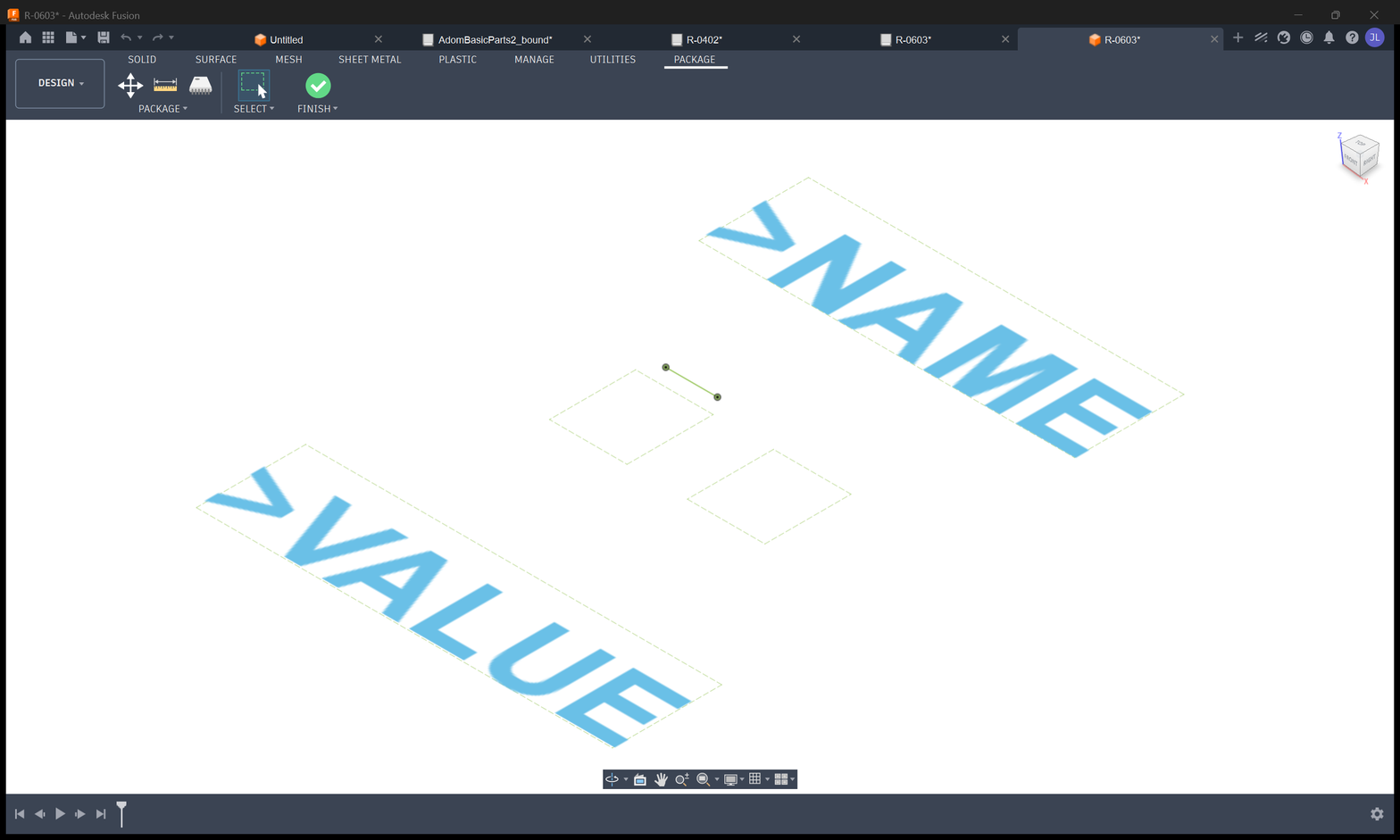

Resistor footprint Resistor 3D on its footprint

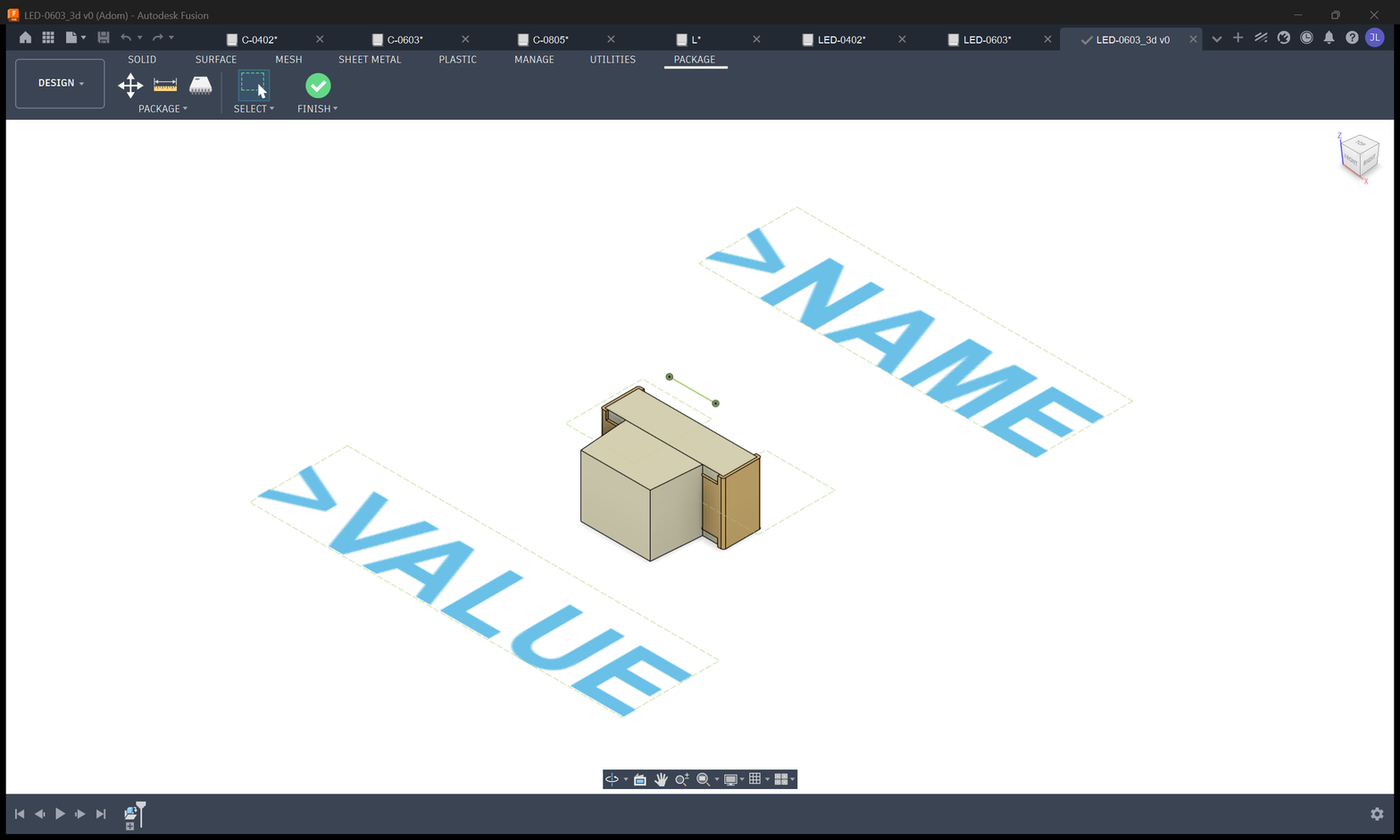

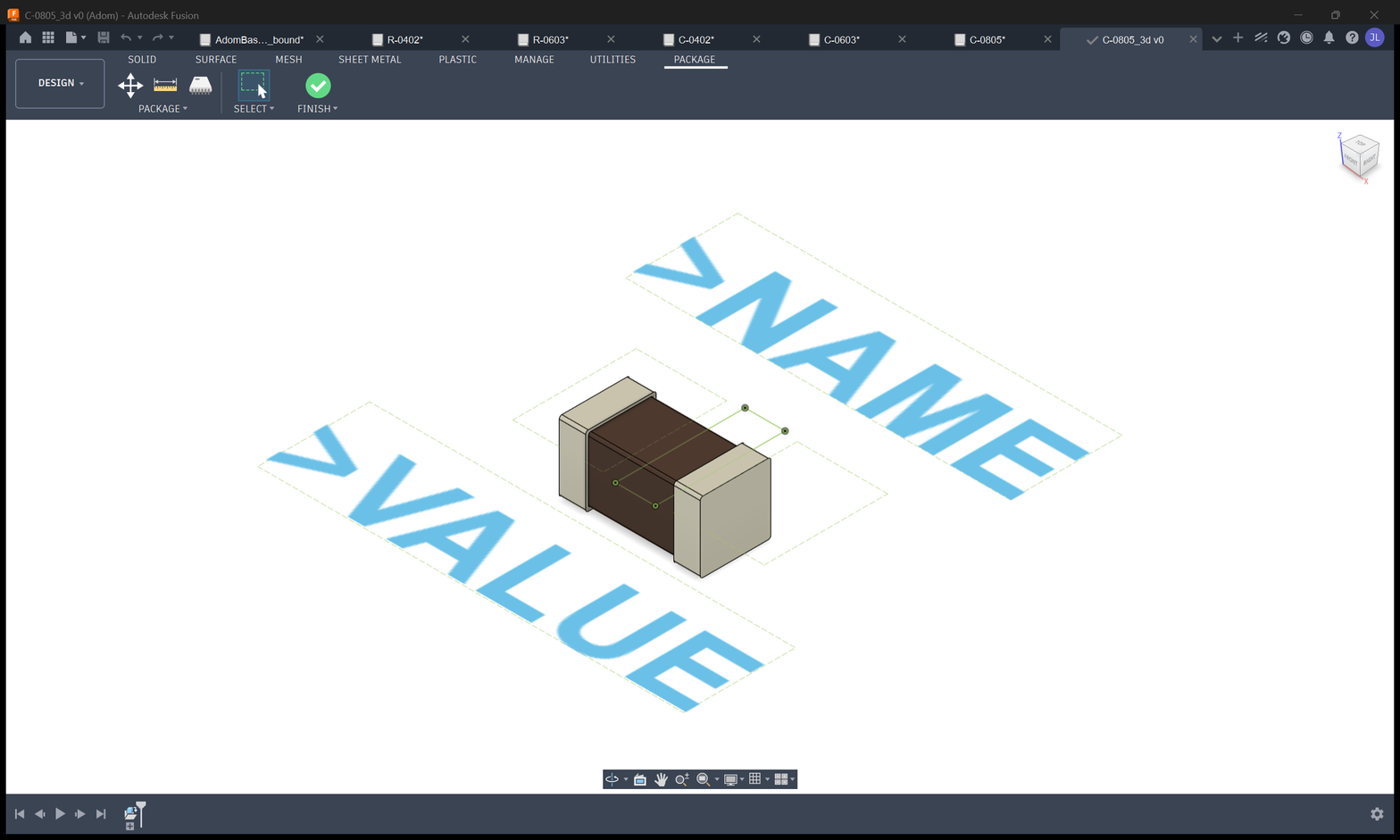

Capacitor 3D LED 3D

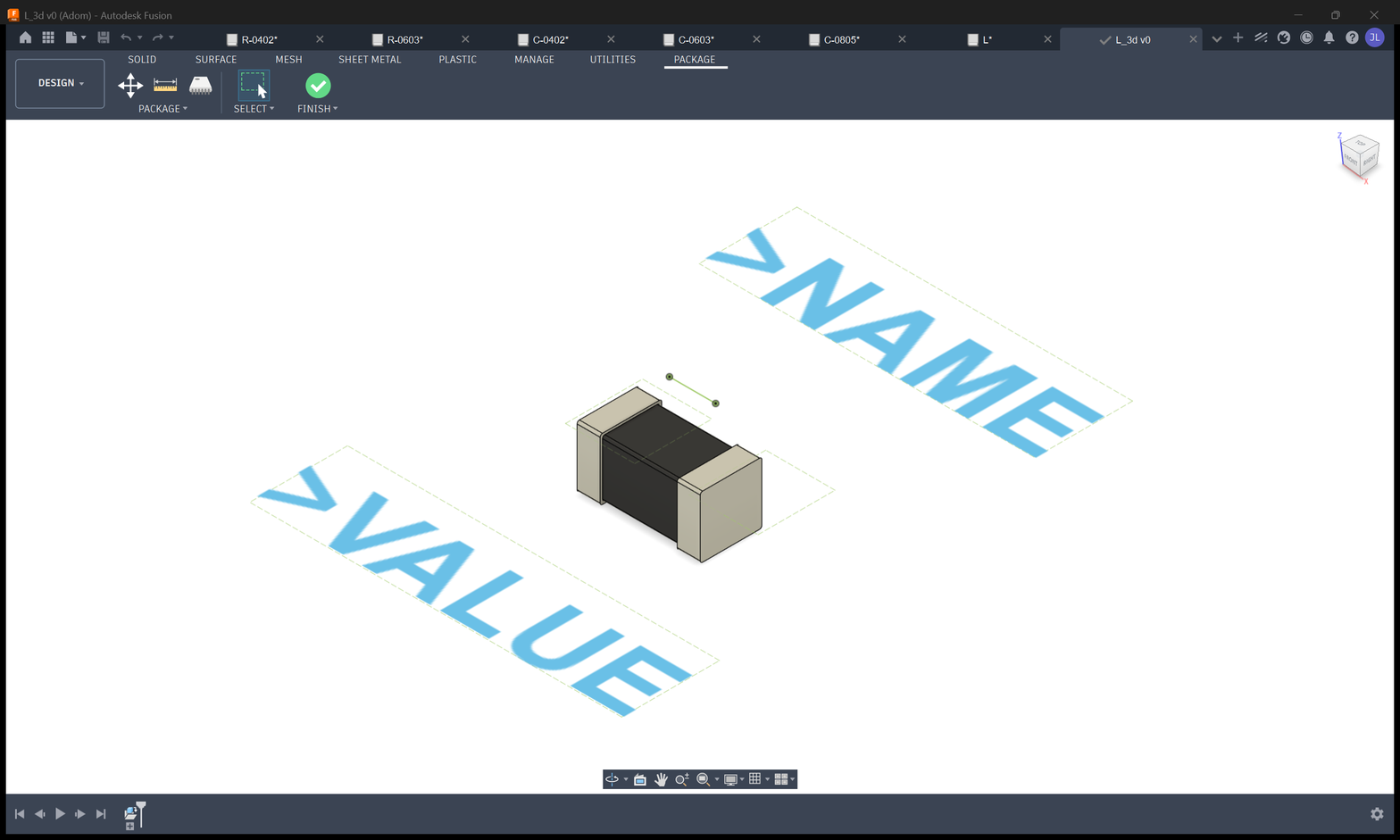

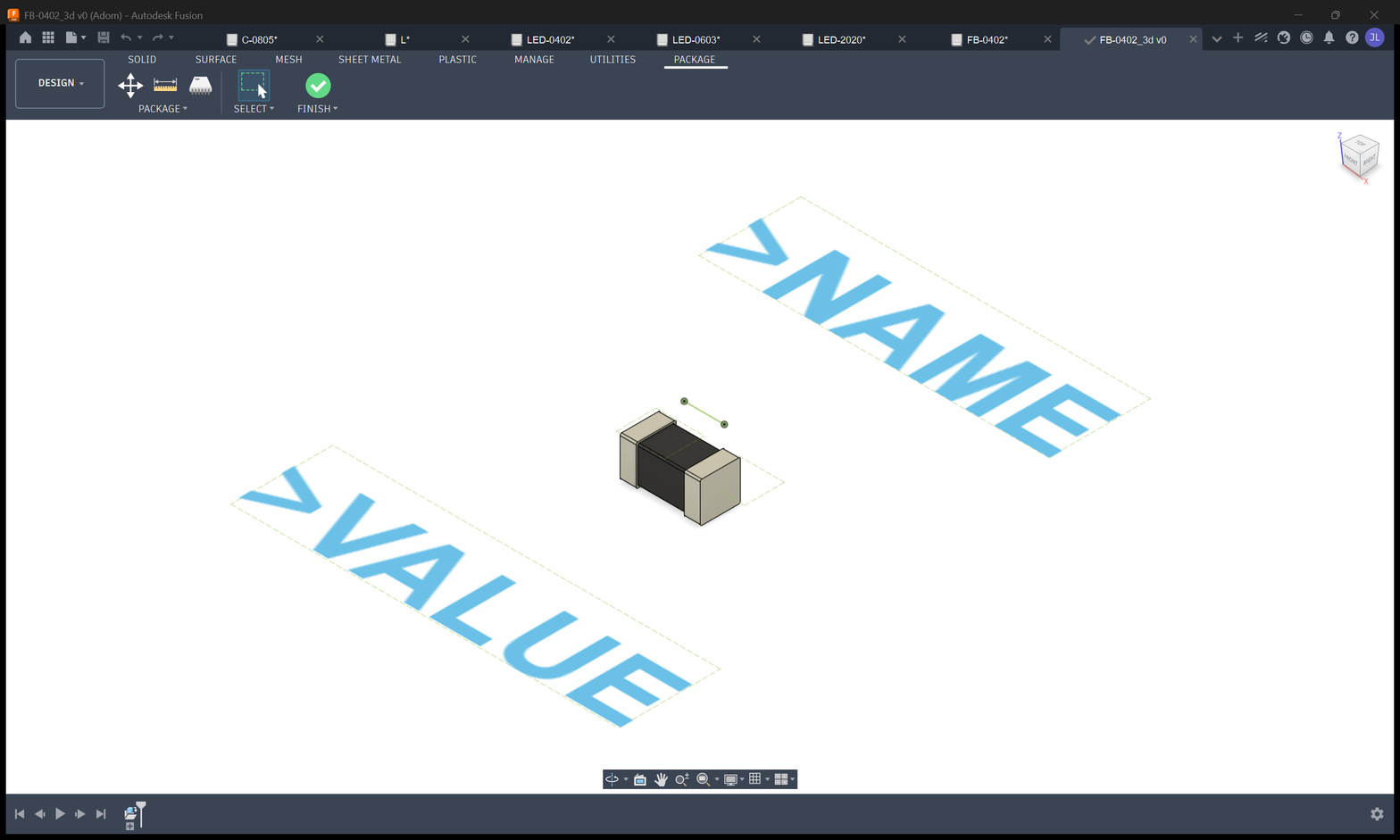

Inductor 3D Ferrite bead 3D

Use it

Download AdomBasicParts.lbr and fusion_open_lbr it (or import it in Fusion's Electronics Library workspace), then place any value into a schematic.

3D note: the 3D models live in the shared Adom Autodesk hub, so the 3D renders for Adom employees signed into the Adom Autodesk team. Footprints + symbols work for everyone; an outside user gets 2D only.

How it was built

Fully programmatically with the Adom Desktop Fusion bridge (fusion_build_library_3d + deviceset cloning). The reproducible recipe is the fusion-build-parts-library skill in that repo.

Full parts list

Resistors (79)

Value Package Mfr Part # Manufacturer
0Ω 0402 CQ02WGF0000TCE Royalohm
1Ω 0402 CQ02WGF100KTCE Royalohm
1.5Ω 0402 CQ02WGF150KTCE Royalohm
2.2Ω 0402 CQ02WGF220KTCE Royalohm
3.3Ω 0402 CQ02WGF330KTCE Royalohm
4.7Ω 0402 CQ02WGF470KTCE Royalohm
6.8Ω 0402 CQ02WGF680KTCE Royalohm
10Ω 0402 CR0402-FX-10R0GLF Bourns
15Ω 0402 CR0402-FX-15R0GLF Bourns
22Ω 0402 CR0402-FX-22R0GLF Bourns
33Ω 0402 CR0402-FX-33R0GLF Bourns
47Ω 0402 CR0402-FX-47R0GLF Bourns
68Ω 0402 CR0402-FX-68R0GLF Bourns
100Ω 0402 CR0402-FX-1000GLF Bourns
150Ω 0402 CR0402-FX-1500GLF Bourns
220Ω 0402 CR0402-FX-2200GLF Bourns
330Ω 0402 CR0402-FX-3300GLF Bourns
470Ω 0402 CR0402-FX-4700GLF Bourns
680Ω 0402 CR0402-FX-6800GLF Bourns
1kΩ 0402 CR0402-FX-1001GLF Bourns
1.5kΩ 0402 CR0402-FX-1501GLF Bourns
2.2kΩ 0402 CR0402-FX-2201GLF Bourns
3.3kΩ 0402 CR0402-FX-3301GLF Bourns
4.7kΩ 0402 CR0402-FX-4701GLF Bourns
6.8kΩ 0402 CR0402-FX-6801GLF Bourns
10kΩ 0402 CR0402-FX-1002GLF Bourns
15kΩ 0402 CR0402-FX-1502GLF Bourns
22kΩ 0402 CR0402-FX-2202GLF Bourns
33kΩ 0402 CR0402-FX-3302GLF Bourns
47kΩ 0402 CR0402-FX-4702GLF Bourns
68kΩ 0402 CR0402-FX-6802GLF Bourns
100kΩ 0402 CR0402-FX-1003GLF Bourns
150kΩ 0402 CR0402-FX-1503GLF Bourns
220kΩ 0402 CR0402-FX-2203GLF Bourns
330kΩ 0402 CR0402-FX-3303GLF Bourns
470kΩ 0402 CR0402-FX-4703GLF Bourns
680kΩ 0402 CR0402-FX-6803GLF Bourns
1MΩ 0402 CR0402-FX-1004GLF Bourns
0Ω 0603 CQ03WAF0000T5E Royalohm
1Ω 0603 0603WAF100KT5E Royalohm
1.5Ω 0603 RMCF0603FT1R50 SEI Stackpole
2.2Ω 0603 0603WAF220KT5E Royalohm
3.3Ω 0603 0603WAF330KT5E Royalohm
4.7Ω 0603 0603WAF470KT5E Royalohm
6.8Ω 0603 RMCF0603FT6R80 SEI Stackpole
10Ω 0603 0603WAF100JT5E Royalohm
15Ω 0603 0603WAF150JT5E Royalohm
22Ω 0603 0603WAF220JT5E Royalohm
33Ω 0603 0603WAF330JT5E Royalohm
47Ω 0603 0603WAF470JT5E Royalohm
68Ω 0603 0603WAF680JT5E Royalohm
100Ω 0603 CQ03WAF1000T5E Royalohm
150Ω 0603 0603SAF1500T5E Royalohm
220Ω 0603 CQ03WAF2200T5E Royalohm
330Ω 0603 0603WAF3300T5E Royalohm
470Ω 0603 0603WAF4700T5E Royalohm
680Ω 0603 0603WAF6800T5E Royalohm
1kΩ 0603 CQ03WAF1001T5E Royalohm
1.5kΩ 0603 0603SAF1501T5E Royalohm
2.2kΩ 0603 CQ03SAF2201T5E Royalohm
3.3kΩ 0603 CQ03SAF3301T5E Royalohm
4.7kΩ 0603 CQ03SAF4701T5E Royalohm
6.8kΩ 0603 0603WAF6801T5E Royalohm
10kΩ 0603 CQ03WAF1002T5E Royalohm
15kΩ 0603 0603SAF1502T5E Royalohm
22kΩ 0603 0603WAF2202T5E Royalohm
33kΩ 0603 CQ03SAF3302T5E Royalohm
47kΩ 0603 CQ03SAF4702T5E Royalohm
68kΩ 0603 0603WAF6802T5E Royalohm
100kΩ 0603 CQ03WAF1003T5E Royalohm
150kΩ 0603 0603SAF1503T5E Royalohm
220kΩ 0603 0603WAF2203T5E Royalohm
330kΩ 0603 0603WAF3303T5E Royalohm
470kΩ 0603 CQ03WAF4703T5E Royalohm
680kΩ 0603 0603WAF6803T5E Royalohm
1MΩ 0603 CQ03SAF1004T5E Royalohm
2kΩ 0402 CR0402-FX-2001GLF Bourns
120Ω 0402 CR0402-FX-1200GLF Bourns
5.6kΩ 0402 CR0402-FX-5601GLF Bourns

Capacitors (MLCC) (40)

Value Package Mfr Part # Manufacturer
10pF 0402 MT15N100J500CT Walsin
22pF 0402 0402N220J500CT Walsin
33pF 0402 0402N330J500CT Walsin
47pF 0402 0402N470G500CT Walsin
100pF 0402 0402N101J500CT Walsin
220pF 0402 0402N221J500CT Walsin
1nF 0402 0402B102J500CT Walsin
4.7nF 0402 0402B472J500CT Walsin
10nF 0402 0402B103J500CT Walsin
22nF 0402 0402B223K250CT Walsin
47nF 0402 0402B473J250CT Walsin
100nF 0402 0402B104J160CT Walsin
220nF 0402 0402B224K160CT Walsin
1uF 0402 0402X105K250CT Walsin
100pF 0603 0603N101J500CT Walsin
220pF 0603 0603N221J500CT Walsin
470pF 0603 0603N471J500CT Walsin
1nF 0603 0603N102J500CT Walsin
4.7nF 0603 0603B472J500CT Walsin
10nF 0603 0603B103J250CT Walsin
47nF 0603 0603B473J500CT Walsin
100nF 0603 0603B104J500CT Walsin
220nF 0603 0603B224K250CT Walsin
470nF 0603 0603B474M100CT Walsin
1uF 0603 0603B105K160CT Walsin
2.2uF 0603 0603X225K160CT Walsin
4.7uF 0603 0603X475K100CT Walsin
10uF 0603 0603X106K100CT Walsin
100nF 0805 CL21B104KBCNFNC Samsung Electro-Mechanics
470nF 0805 CL21B474KBFNNNG Samsung Electro-Mechanics
1uF 0805 CL21B105KBFNNNE Samsung Electro-Mechanics
2.2uF 0805 CL21A225KAFNNNG Samsung Electro-Mechanics
4.7uF 0805 CL21A475KAQNNNG Samsung Electro-Mechanics
10uF 0805 CL21A106KOQNNNG Samsung Electro-Mechanics
22uF 0805 CL21A226MPQNNNE Samsung Electro-Mechanics
47uF 0805 CL21A476MQYNNNE Samsung Electro-Mechanics
68pF 0402 0402N680J500CT Walsin
330pF 0402 0402N331J500CT Walsin
470pF 0402 0402B471J500CT Walsin
3.3nF 0402 0402B332J500CT Walsin

Inductors (6)

Value Package Mfr Part # Manufacturer
470nH TBD
100nH TBD
1uH TBD
10uH TBD
2.2uH TBD
4.7uH TBD

LEDs (11)

Value Package Mfr Part # Manufacturer
white 0402 IN-S42ATUW Inolux
red 0402 IN-S42ATR Inolux
blue 0402 IN-S42ATB Inolux
green 0402 IN-S42ATG Inolux
amber 0402 IN-S42ATA Inolux
white 0603 IN-S63BT5UW Inolux
red 0603 IN-S63BTR Inolux
blue 0603 IN-S63BT5B Inolux
green 0603 IN-S63BTG Inolux
amber 0603 IN-S63BTA Inolux
WS2812 2020-metric WS2812B-2020 World Semi

Ferrite Beads (2)

Value Package Mfr Part # Manufacturer
47 Ω @ 100 MHz 0402 BLM15BA470SN1D Murata
600 Ω @ 100 MHz 0402 BLM15AX601SN1D Murata
