Description

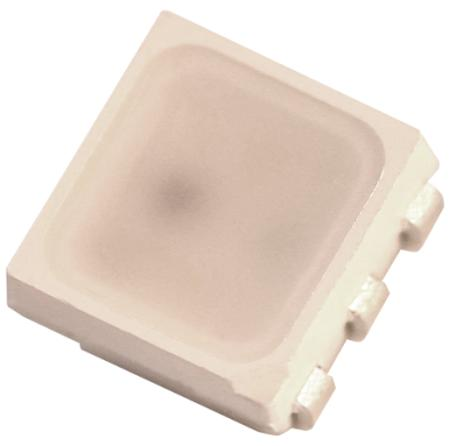

The P34-RGB05P02N3P1IMA03-CC is an addressable RGB LED from Shenzhen H-Great Optoelectronic in a 3.4 x 3.3 x 1.9 mm PLCC-6 SMD package. It integrates a constant-current driver IC with 8-bit PWM control (256 grayscale levels per channel) and a single-wire serial data interface running at 800 Kbps. The device supports daisy-chain cascading via DIN/DOUT for LED strip and matrix applications.
Features
- Integrated constant-current driver with 8-bit PWM per R/G/B channel (256 grayscales)
- Single-wire NRZ serial data interface at 800 Kbps
- Viewing angle: 120 degrees
- Supply voltage: 3.5 - 5.5 V (VDD)
- Maximum output current: 12 mA per channel
- ESD protection up to 2 kV
- MSL: Level 3
- RoHS compliant
- Daisy-chain cascading via DIN/DOUT
Pin Configuration
| Pin |
Symbol |
Function |
| a |
DOUT |
Serial data output |
| b |
VDD |
Supply voltage |
| c |
VDD |
Supply voltage |
| d |
DIN |
Serial data input |
| e |
NC |
No connection |
| f |
GND |
Ground terminal |
Absolute Maximum Ratings
Ta = 25 C
| Parameter |
Symbol |
Value |
Unit |
| DC forward current (VDD) |
VDD |
+3.5 to +5.5 |
V |
| Maximum output current |
Iledout |
12 |
mA |
| Electrostatic discharge |
ESD |
2000 |
V |
| Operating temperature |
Topr |
-40 to +85 |
C |
| Storage temperature |
Tstg |
-40 to +85 |
C |
| Maximum junction temperature |
Tj |
125 |
C |
Electrical Characteristics
Electro-Optical Characteristics (IF = 12 mA, Ta = 25 C)
| Parameter |
Symbol |
Color |
Min |
Max |
Unit |
| Luminous intensity |
Iv |
R |
285 |
560 |
mcd |
| Luminous intensity |
Iv |
G |
1150 |
1800 |
mcd |
| Luminous intensity |
Iv |
B |
235 |
350 |
mcd |
| Dominant wavelength |
ld |
R |
615 |
625 |
nm |
| Dominant wavelength |
ld |
G |
520 |
530 |
nm |
| Dominant wavelength |
ld |
B |
460 |
470 |
nm |
Data Transfer Characteristics
| Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
| Input high voltage |
VIH |
0.7*VDD |
-- |
-- |
V |
| Input low voltage |
VIL |
-- |
-- |
0.3*VDD |
V |
| DOUT output current |
IOH |
-- |
-40 |
-- |
mA |
| Power supply current to DOUT |
IOL |
-- |
40 |
-- |
mA |
| Quiescent current |
IDD |
-- |
0.5 |
-- |
mA |
| Standby current |
Isleep |
-- |
1 |
-- |
uA |
Switching Characteristics
| Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Conditions |
| DOUT transmission delay |
tPLH/tPHL |
-- |
160 |
-- |
ns |
DOUT load 30 pF |
| IOUT rise time |
tr |
-- |
-- |
50 |
ns |
IOUT R/G/B = 12 mA |
| IOUT fall time |
tf |
-- |
-- |
100 |
ns |
IOUT R/G/B = 12 mA |
| Data transmission rate |
fDIN |
-- |
800 |
-- |
Kbps |
|
Software API
Data Protocol (NRZ encoding)
| Code |
High Time (T0H/T1H) |
Low Time (T0L/T1L) |
| 0 |
300 ns |
900 ns |
| 1 |
600 ns |
600 ns |
| Reset |
-- |
>= 200 us |
24-bit Data Structure (GRB order)
Data is transmitted MSB first in Green-Red-Blue order: G7-G0, R7-R0, B7-B0 (24 bits per LED).
Connection Notes
- Add 100-200 ohm series resistor between DOUT and next DIN for signal isolation
- 0.1 uF bypass capacitor on VDD pin required for stable operation
Packages
3.4 x 3.3 x 1.9 mm PLCC-6 SMD package. Pad dimensions: 0.80 x 0.50 mm (side pads), 1.80 x 0.60 mm (thermal pad). Recommended land pattern: 4.40 x 4.30 mm overall. Tolerance: +/- 0.1 mm. Available on tape and reel (reel diameter 178 +/- 1 mm).
Applications
- Automotive interior ambient lighting
- Full color LED light strips
- Indoor ambient lighting
- LED matrix displays
