LM36011 LED Flash Driver Qual-Ready

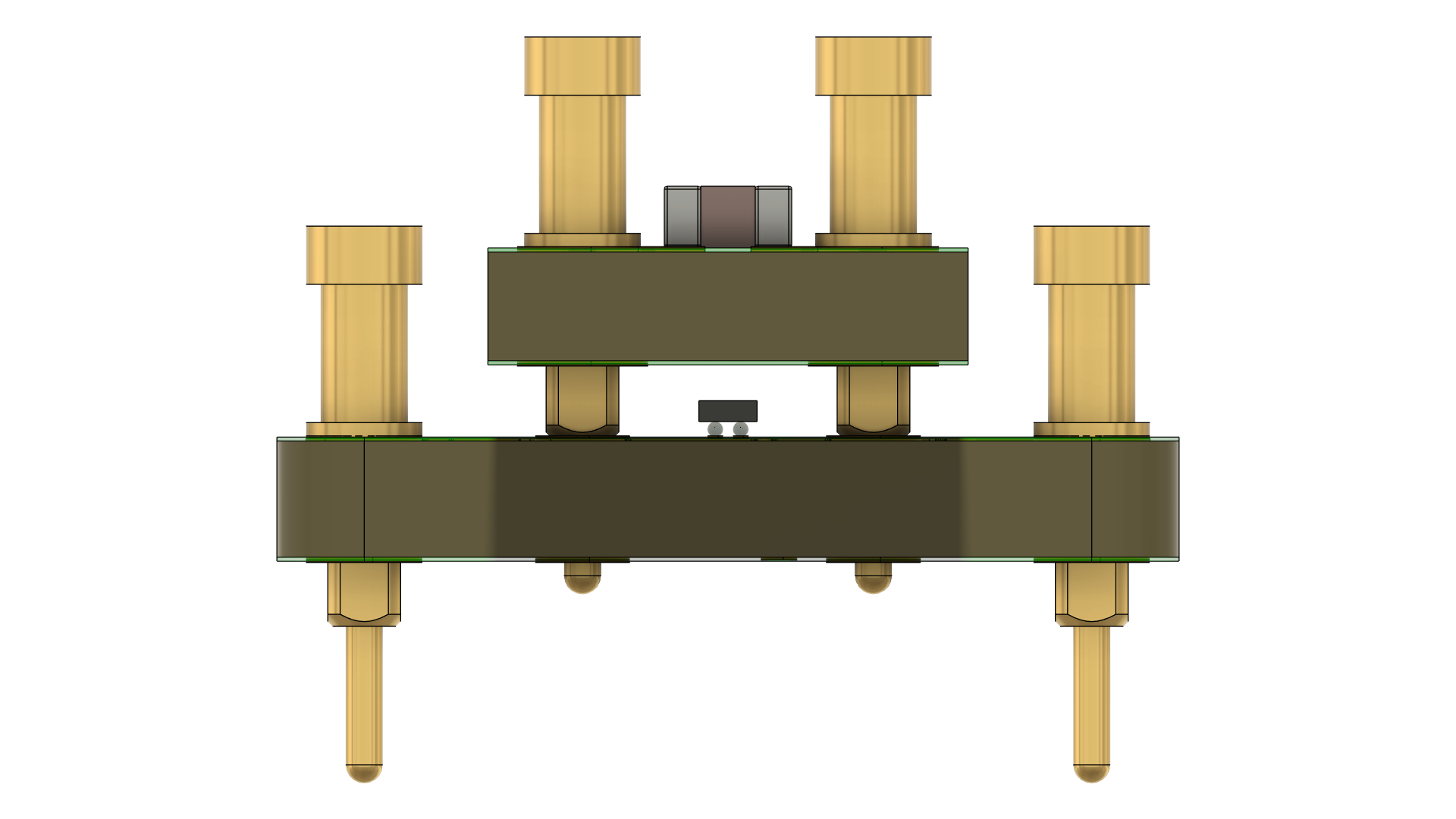

The LM36011 is an ultra-small LED flash driver that provides a high level of adjustability. It can produce up to 1.5 A of LED flash current or up to 376 mA of torch current. This is all done from an accurately I2C programmable current source without the need of a pre-regulated voltage. This molecule is prebroken out to act as a DUT in a chip qualification test, enabling rapid environmental and electronic testing with included nested footprints for on-device functional validation.

NSF Relevance

This molecule serves as an example of a chip qualification coupon within the Adom Factory, demonstrating how discrete devices can be mounted, instrumented, and stress-tested under controlled electrical and environmental conditions. It provides a standardized platform for validating device performance and reliability throughout automated qualification workflows.

Science Drivers

chip_qualification

Created by: adonis
Version: v1
Category: motor_driver
