Jumper 2x2

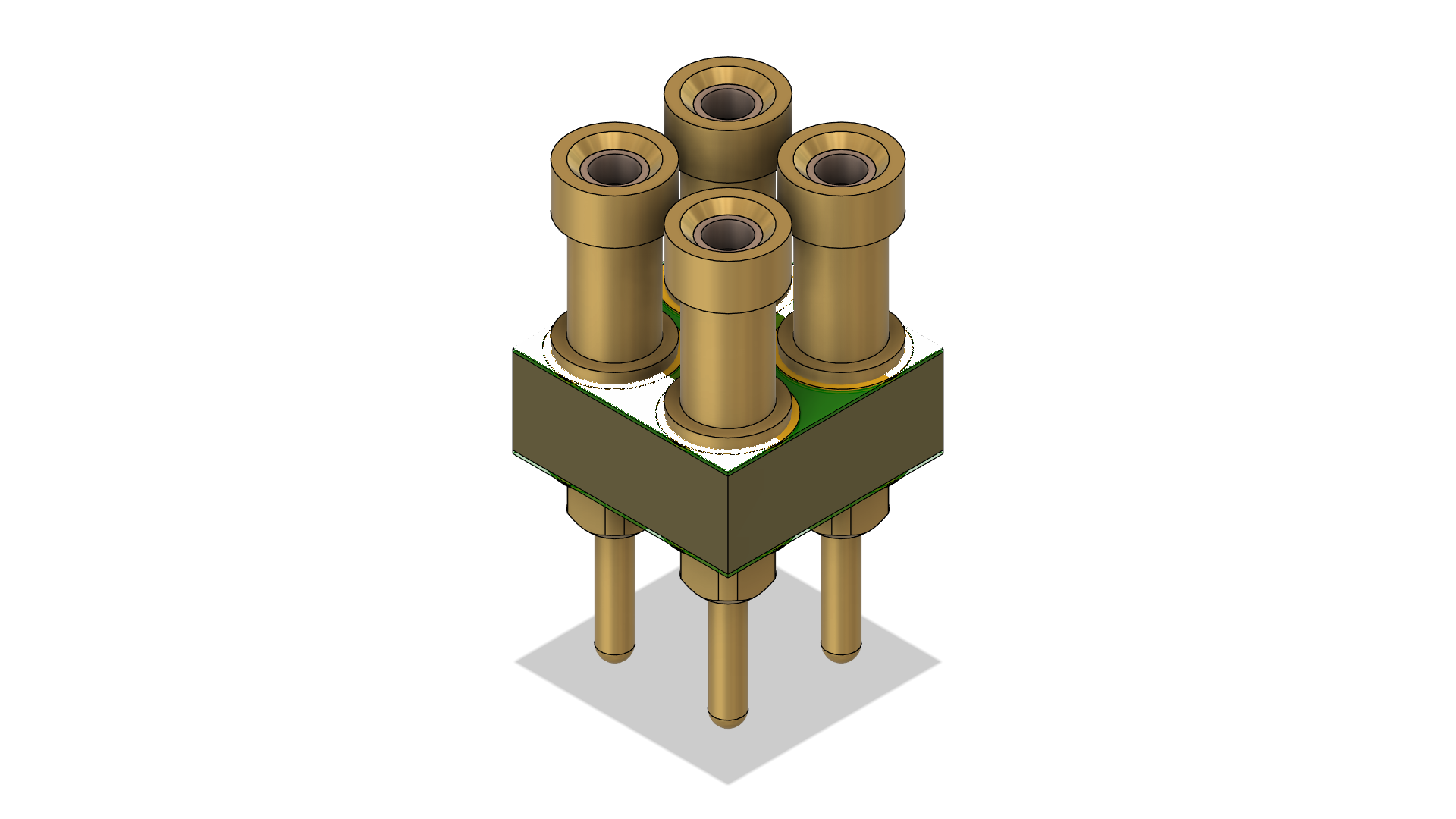

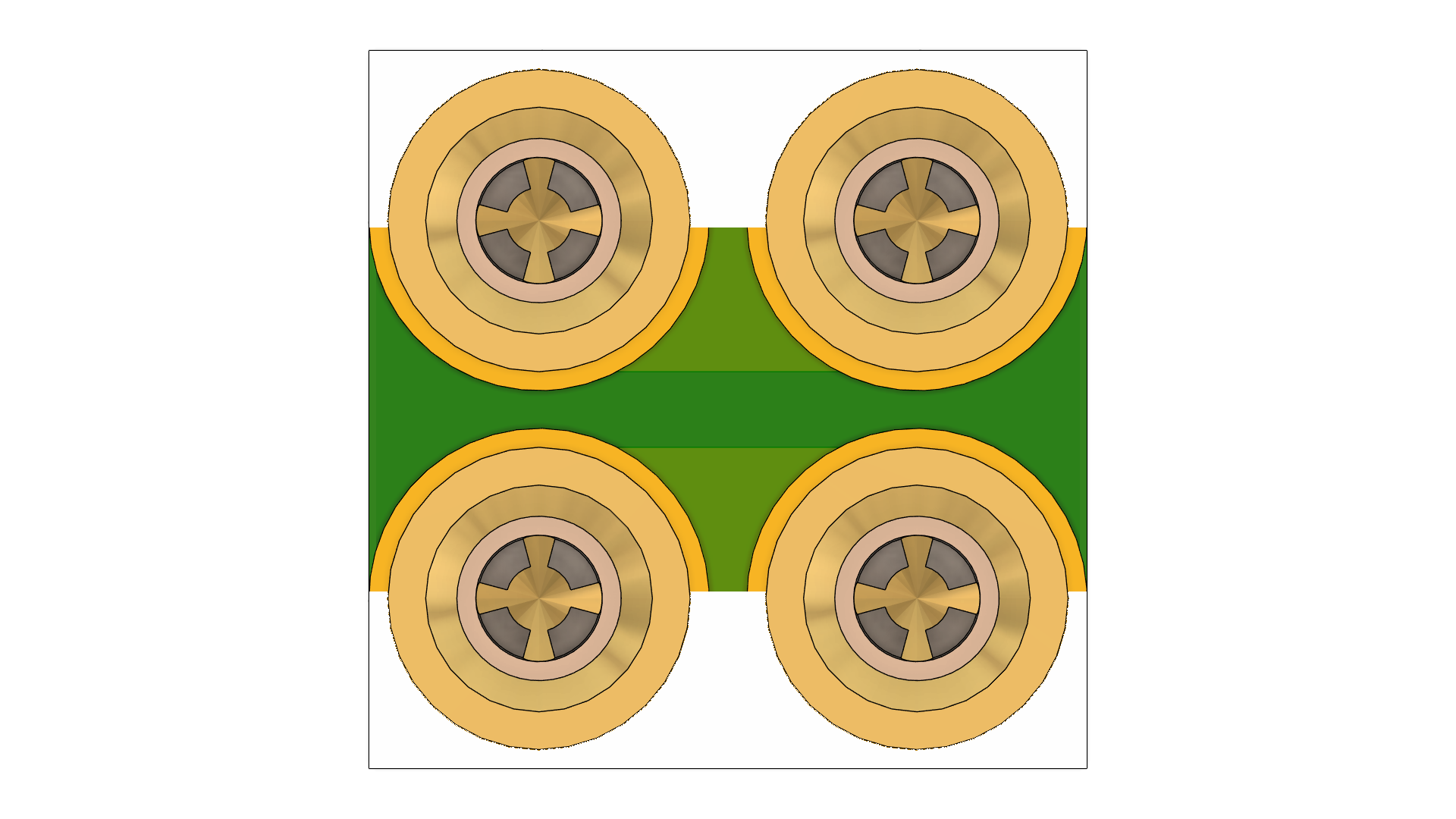

This molecule is composed of four medium-short machine pins at a pitch of 2mm and serves the purpose of forming two electrical contacts at once. There are two traces running parallel to the black indicator line which short opposing machine pins.

NSF Relevance

This molecule enables rapid testing and validation by simultaneously forming two electrical contacts, simplifying connectivity during prototype setup.

Science Drivers

component_testing, chip_qualification, xrp_platform, bosch_sensortec, open_source_drone

Created by: adom
Version: v1
Category: connector
