ITR-9608 — Slotted Opto-Interrupter (IR LED + NPN Phototransistor)
UnreviewedZhuhai Dapeng ITR-9608 is a 4-pin through-hole slotted photo-interrupter pairing an IR928-6c IR LED with a PT928-6c NPN phototransistor on a 5 mm slot. Typical 940 nm emission, 0.4 V max VCE(sat), 15
Source: Zhuhai Dapeng Elec-Tech Opto Interrupter Datasheet
Manufacturer: Zhuhai Dapeng Elec-Tech Co., Ltd.
Part Number: ITR-9608
Document: Technical Data Sheet — Opto Interrupter
Description
The ITR-9608 is a slotted optical switch (photo-interrupter) consisting of an infrared emitting diode (IR928-6c) and an NPN silicon phototransistor (PT928-6c) housed side-by-side on converging optical axes in a black thermoplastic housing. In normal operation the phototransistor receives radiation from the IR LED through the open slot; when an object is inserted into the slot the beam is broken and the phototransistor stops conducting. The device is intended for non-contact detection in mechanical systems where presence, position, or edge must be sensed optically.
Key Specifications
| Parameter | Value |
|---|---|
| Device type | Slotted opto-interrupter (IR LED + NPN phototransistor) |
| Peak emission wavelength (λp) | 940 nm |
| Peak collector current (Ic(ON)) | 0.5 mA (min) at IF = 20 mA, VCE = 5 V |
| C-E saturation voltage (VCE(sat)) | 0.4 V (max) at Ic = 2 mA |
| Rise time (tr) | 15 µs (typ) |
| Fall time (tf) | 15 µs (typ) |
| IR LED forward voltage (VF) | 1.2 V typ / 1.5 V max at IF = 20 mA |
| Collector-emitter breakdown (BVCEO) | 30 V |
| Emitter-collector breakdown (BVECO) | 5 V |
| Forward current (IF) | 50 mA (max) |
| Collector current (Ic) | 20 mA (max) |
| Power dissipation (emitter / collector) | 75 mW / 75 mW at Ta = 25 °C |
| Operating temperature | −25 °C to +85 °C |
| Storage temperature | −40 °C to +85 °C |
| Package | 4-pin through-hole, 13.0 × 6.8 × 6.0 mm body |
| RoHS | Compliant, Pb-free |
Features
- Fast response time
- High sensitivity
- Visible-light-cutoff design, peak wavelength λp = 940 nm
- Pb-free, RoHS compliant
- For direct PCB mounting
Applications
- Mouse / scanner edge detection
- Switch scanner
- Floppy disk drive position sensing
- Non-contact limit switching
- Direct board-mount presence sensing
Pin Configuration
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | Anode | AI | IR LED anode |
| 2 | Cathode | AI | IR LED cathode |
| 3 | Collector | AO | Phototransistor collector |
| 4 | Emitter | AO | Phototransistor emitter |
Absolute Maximum Ratings
Over operating free-air temperature range (Ta = 25 °C).
| Section | Parameter | Symbol | Rating | Unit |
|---|---|---|---|---|
| IR LED (Input) | Power dissipation at Ta ≤ 25 °C | Pd | 75 | mW |
| IR LED (Input) | Reverse voltage | VR | 5 | V |
| IR LED (Input) | Forward current | IF | 50 | mA |
| IR LED (Input) | Peak forward current (tw = 100 µs, DC = 1%) | IFP | 1 | A |
| Phototransistor (Output) | Collector power dissipation | Pc | 75 | mW |
| Phototransistor (Output) | Collector current | Ic | 20 | mA |
| Phototransistor (Output) | Collector-emitter breakdown | BVCEO | 30 | V |
| Phototransistor (Output) | Emitter-collector breakdown | BVECO | 5 | V |
| Operating temperature | Topr | −25 to +85 | °C | |
| Storage temperature | Tstg | −40 to +85 | °C | |
| Lead soldering temperature (1/16 in from body, 5 s max) | Tsol | 260 | °C |

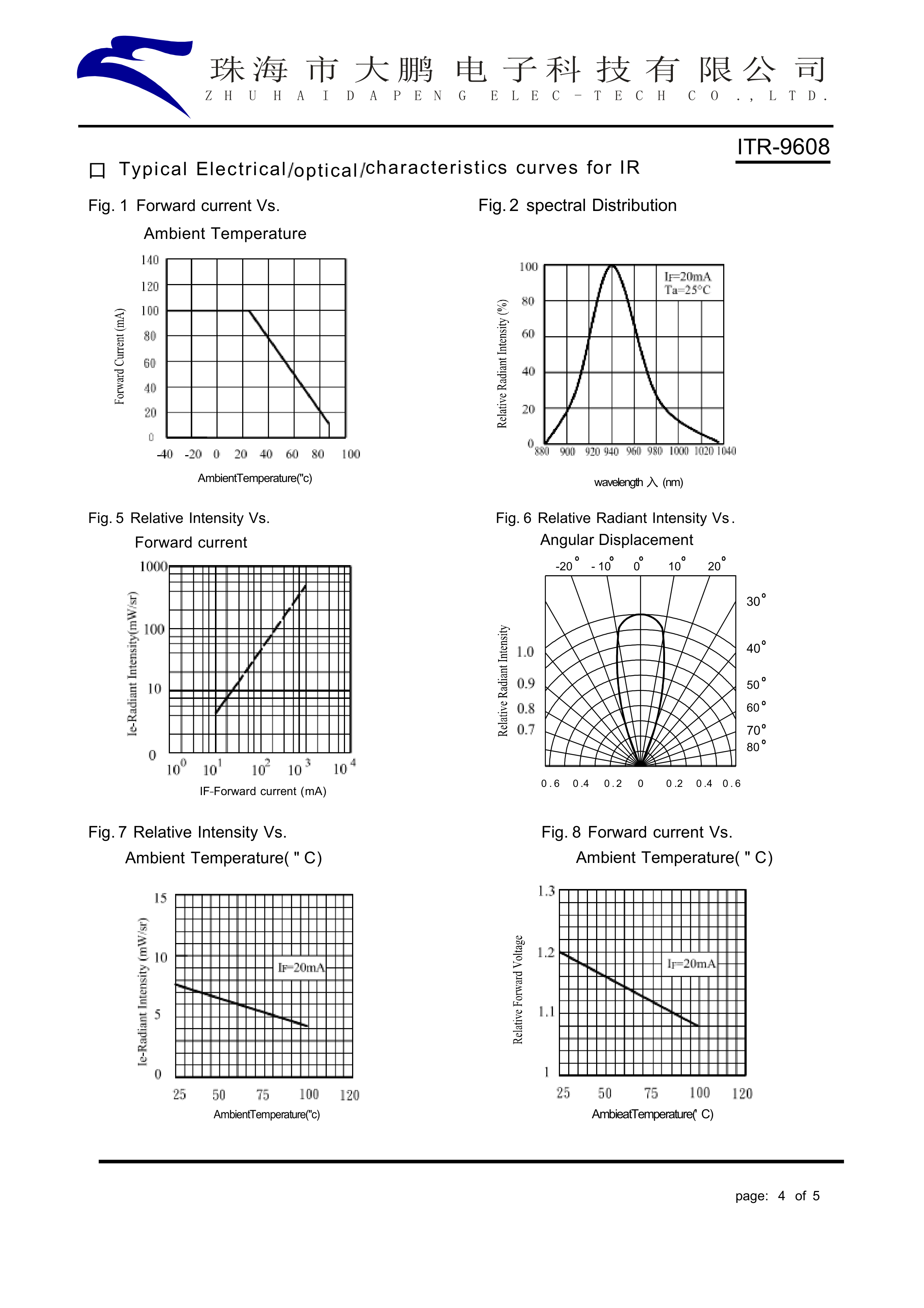

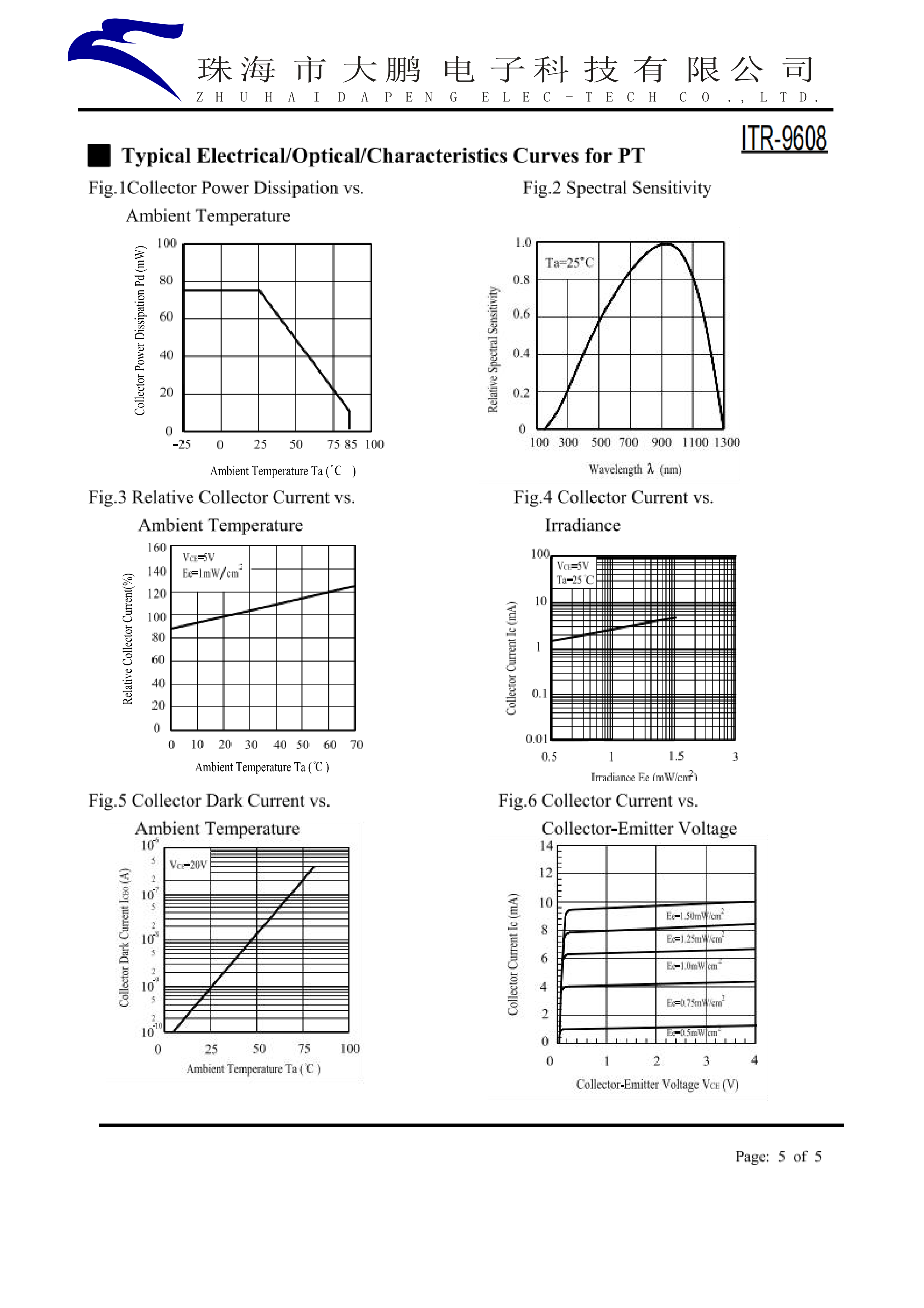

Electrical Characteristics
Ta = 25 °C.
| Section | Parameter | Symbol | Min | Typ | Max | Unit | Conditions |
|---|---|---|---|---|---|---|---|
| IR LED | Forward voltage | VF1 | 1.2 | 1.5 | V | IF = 20 mA | |
| IR LED | Forward voltage | VF2 | 1.4 | 1.8 | V | IF = 100 mA, tp = 100 µs, tp/T = 0.01 | |
| IR LED | Forward voltage | VF3 | 2.6 | 4.0 | V | IF = 1 A, tp = 100 µs, tp/T = 0.01 | |
| IR LED | Reverse current | IR | 10 | µA | VR = 5 V | ||
| IR LED | Peak wavelength | λp | 940 | nm | IF = 20 mA | ||
| IR LED | Viewing half-angle | 2θ½ | 60 | Deg | IF = 20 mA | ||
| Phototransistor | Dark current | ICEO | 100 | nA | VCE = 20 V, Ee = 0 mW/cm² | ||
| Phototransistor | C-E saturation voltage | VCE(sat) | 0.4 | V | Ic = 2 mA, Ee = 1 mW/cm² | ||
| Transfer | Collector-on current | Ic(ON) | 0.5 | mA | VCE = 5 V, IF = 20 mA | ||
| Transfer | Rise time | tr | 15 | µs | VCE = 5 V, Ic = 1 mA, RL = 1 kΩ | ||
| Transfer | Fall time | tf | 15 | µs | VCE = 5 V, Ic = 1 mA, RL = 1 kΩ |
Notes: (*1) Peak-current conditions: tw = 100 µs, T = 10 ms. (*2) Soldering condition: t = 5 s maximum.
Packages
- Package: 4-pin through-hole slotted opto-interrupter, black thermoplastic body
- Body size: 13.0 mm × 6.8 mm × 6.0 ± 0.2 mm
- Slot width / depth: 5.0 ± 0.2 mm slot, 3.2 ± 0.2 mm deep
- Lead pitch: 2.54 ± 0.2 mm between pin pairs; 10.0 ± 0.3 mm across the slot
- Lead length (minimum): 6.0 mm
- Tolerances: Dimensions ± 0.25 mm unless otherwise noted
- Pin 1 orientation: Anode on the IR emitter side; see the Pinout tab for the full mapping
- Companion dice: IR928-6c (IR LED) and PT928-6c (phototransistor)
