Capacitor Molecule

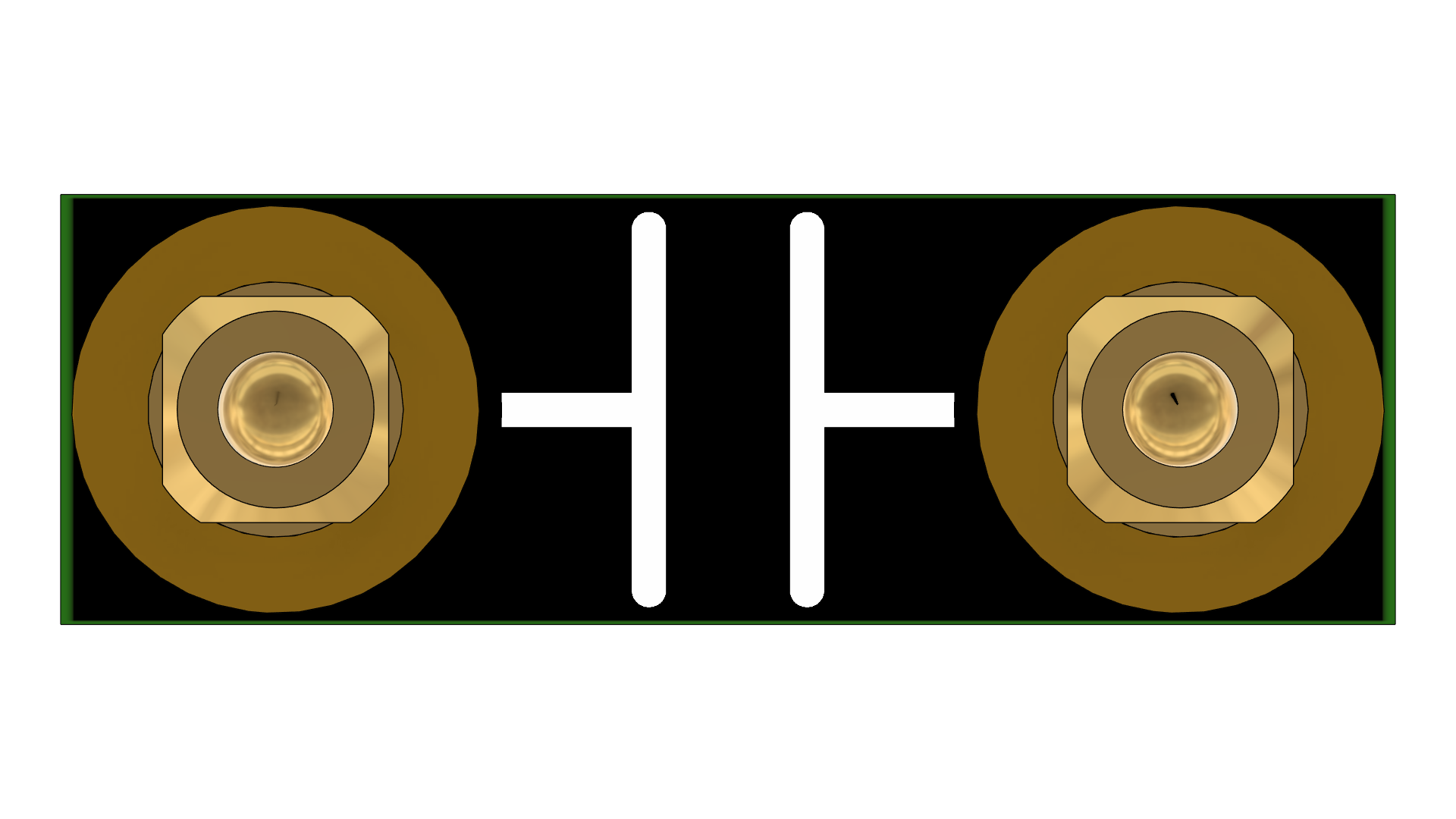

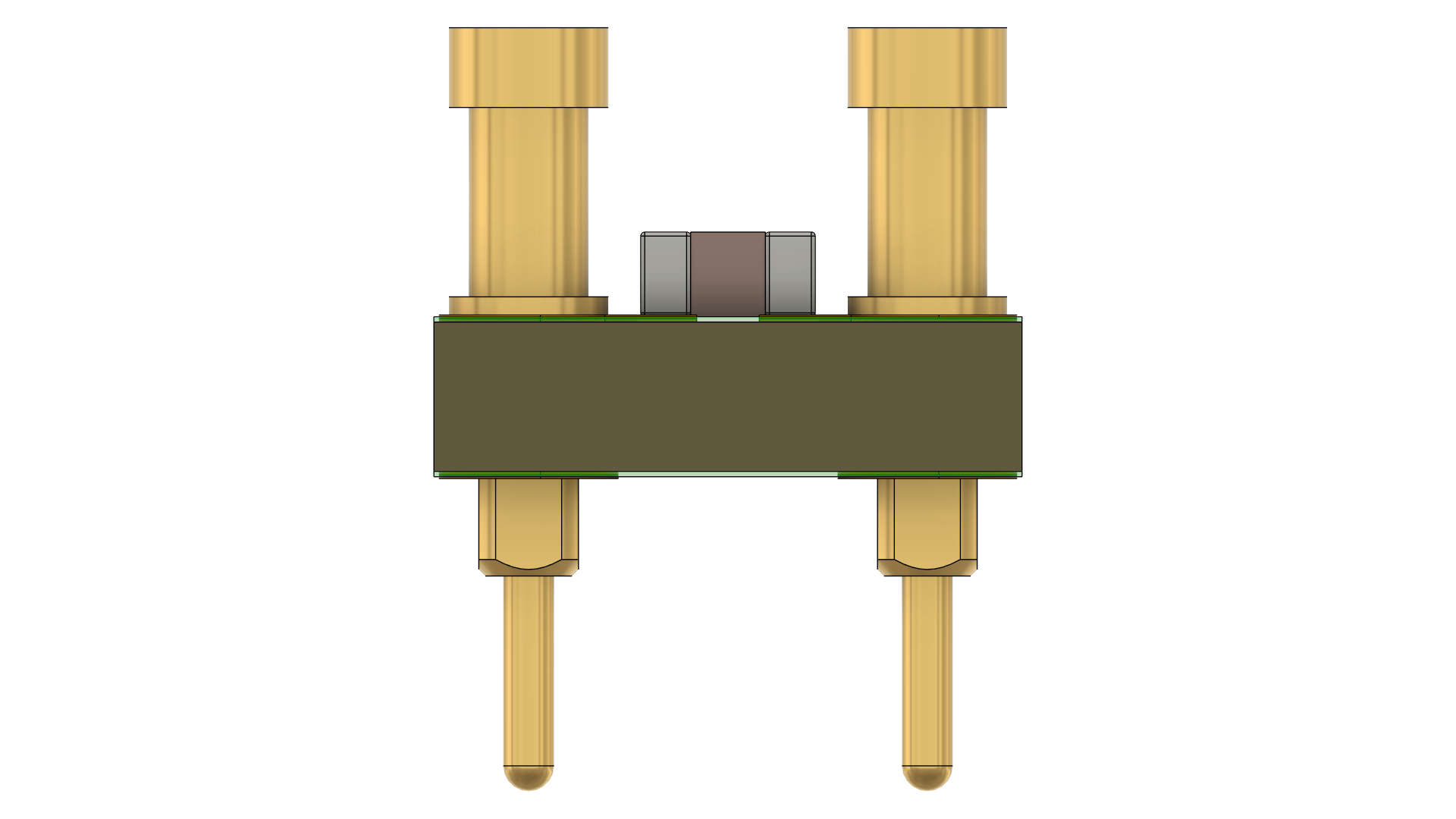

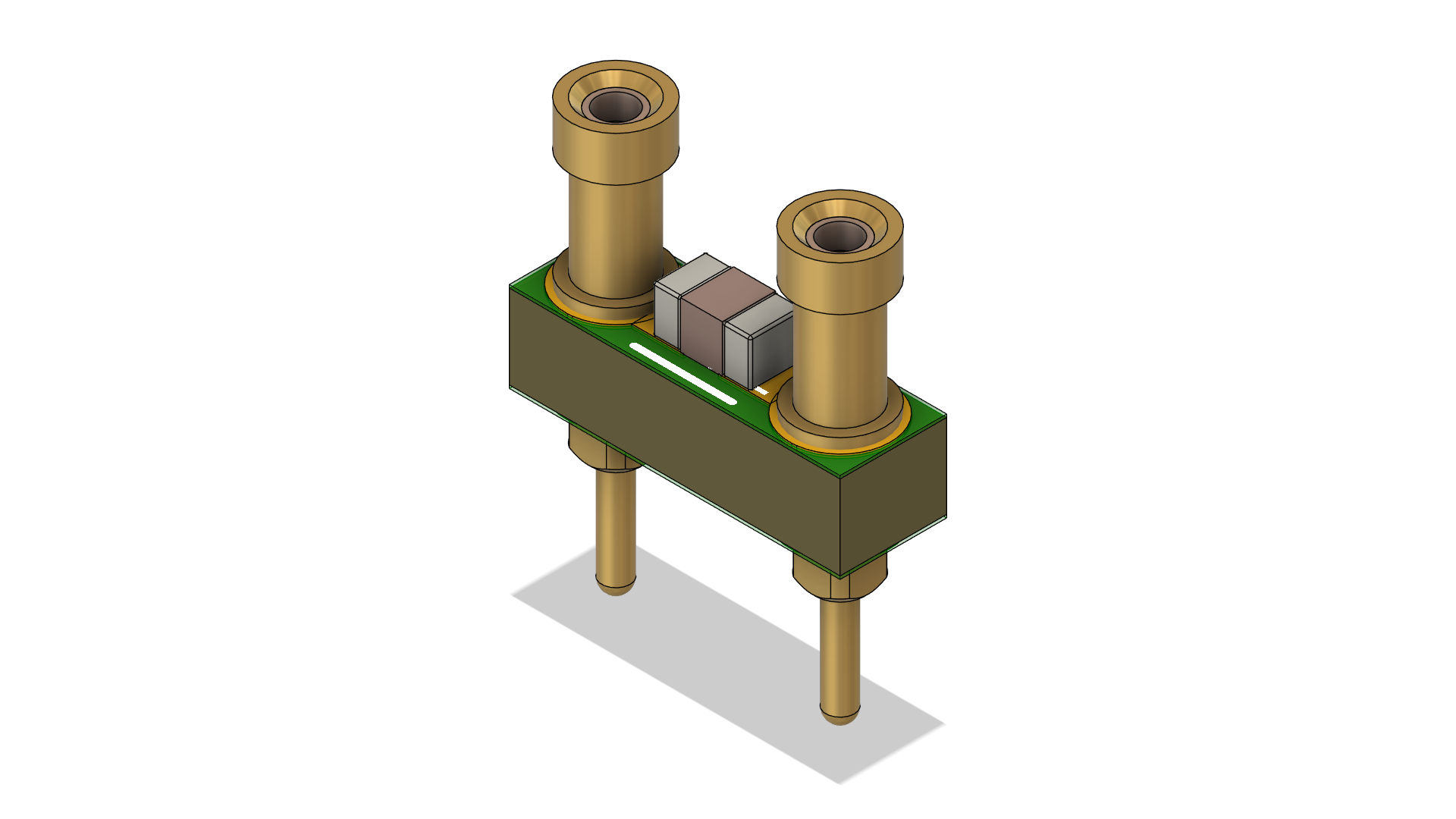

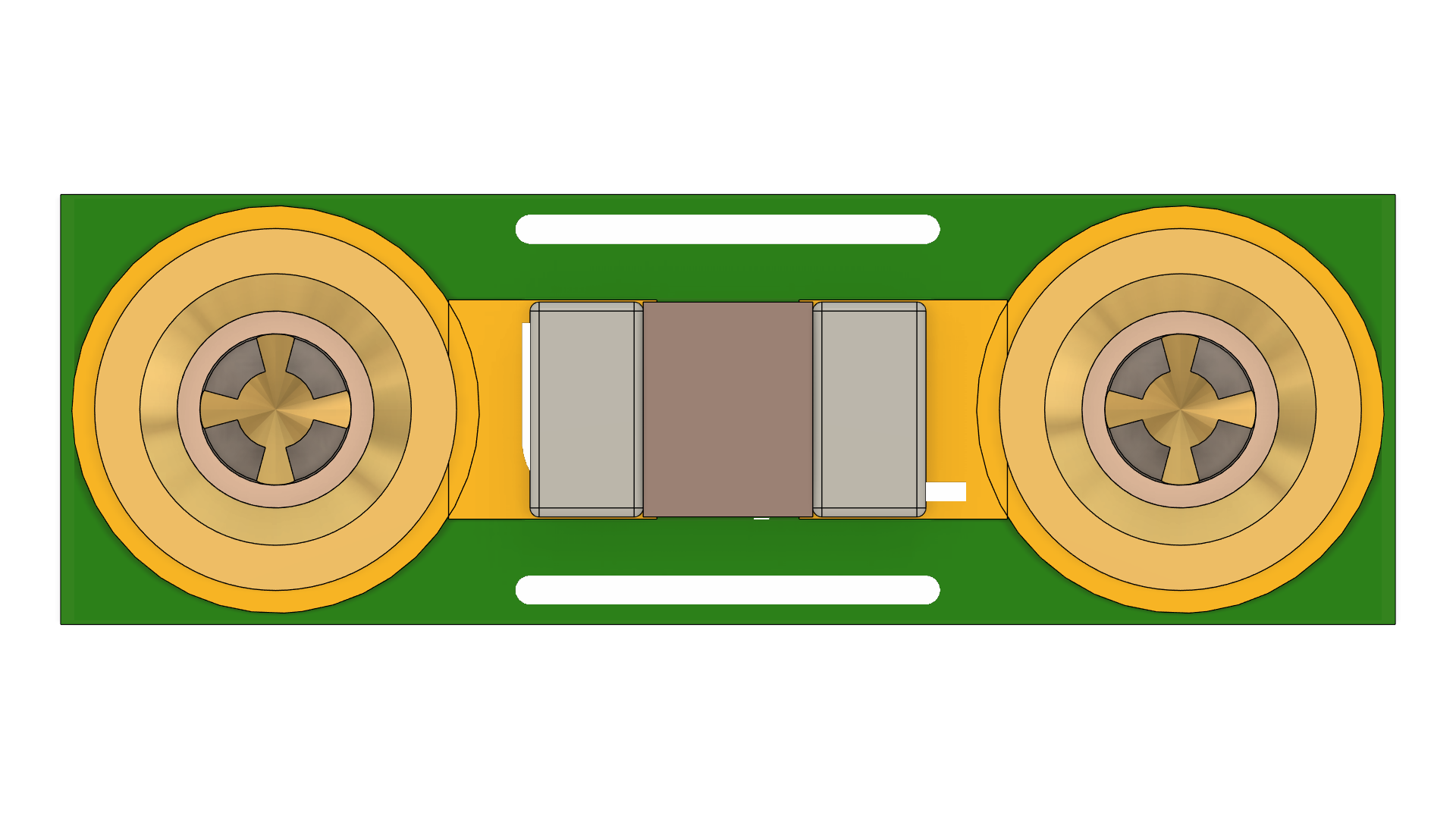

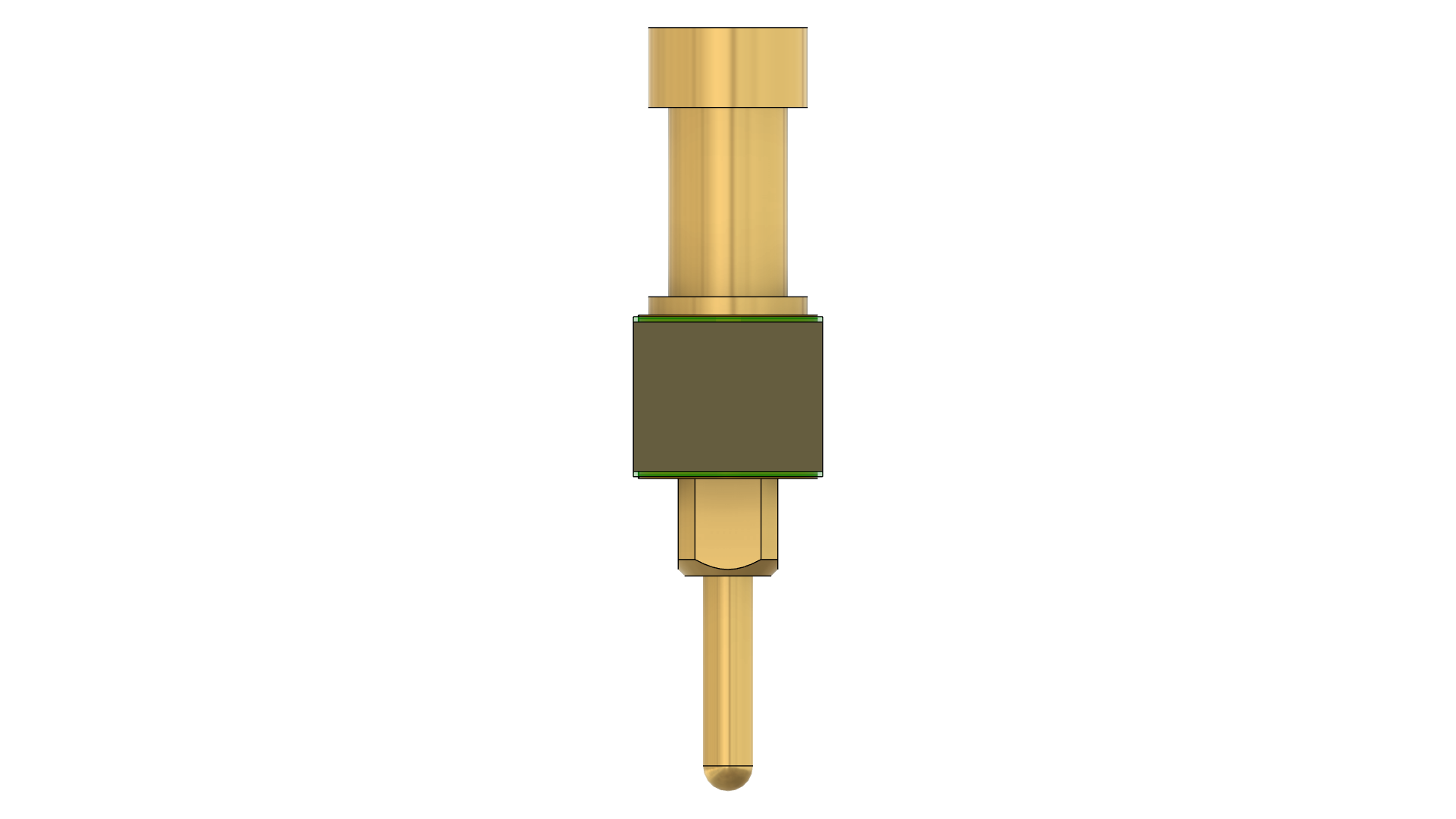

This molecule is a surface mount 0603 ceramic capacitor with a value of 1μF. Its standardized footprint and form factor allow for quick integration into prototype circuits and in-circuit testing.
NSF Relevance
Passive components such as resistors, capacitors, and inductors are necessary for enabling testing and development of nearly all analog and digital circuitry.
Science Drivers
component_testing
Created by: adonis
Version: v1
Category: other
