502535 LiPo

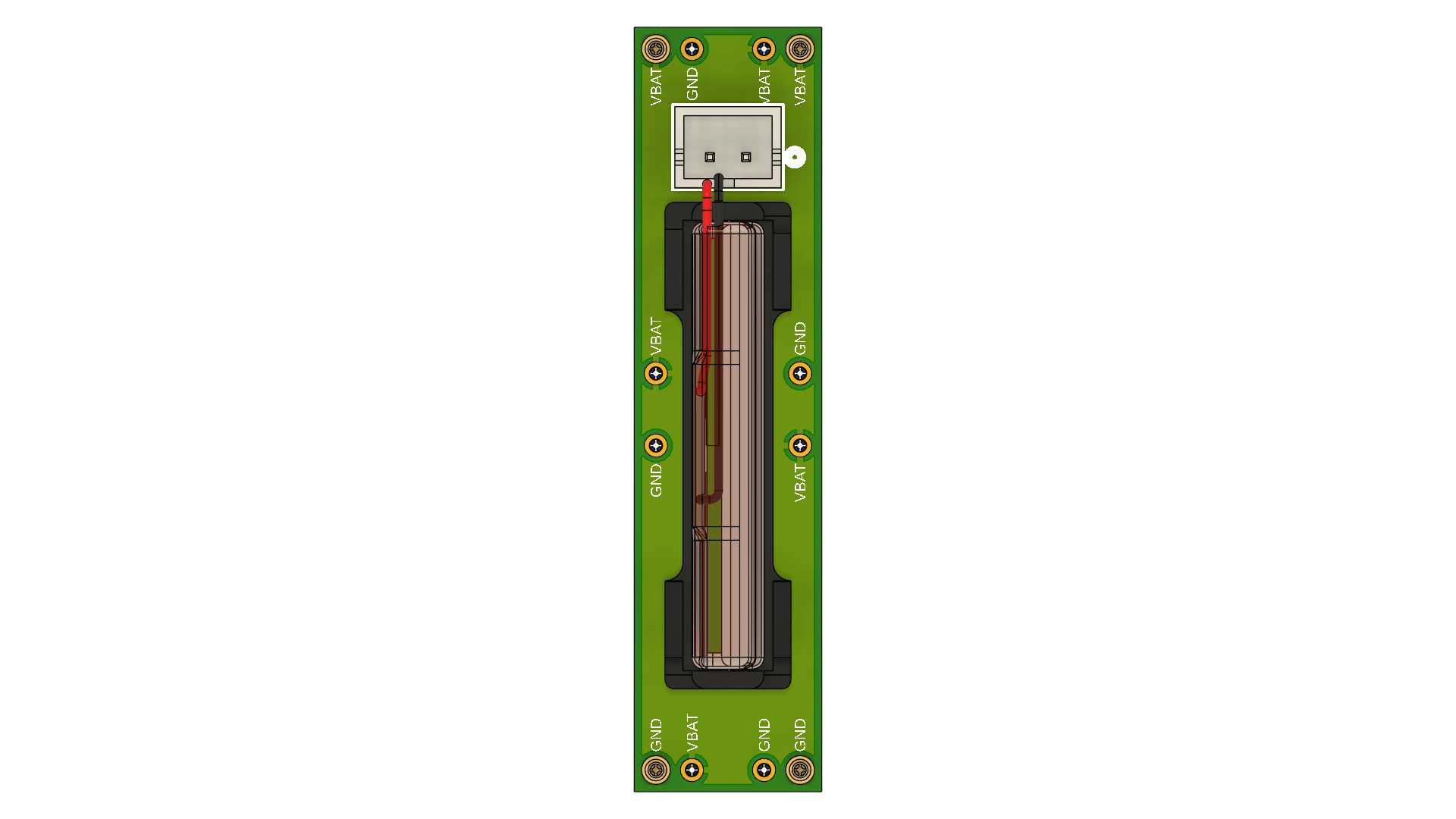

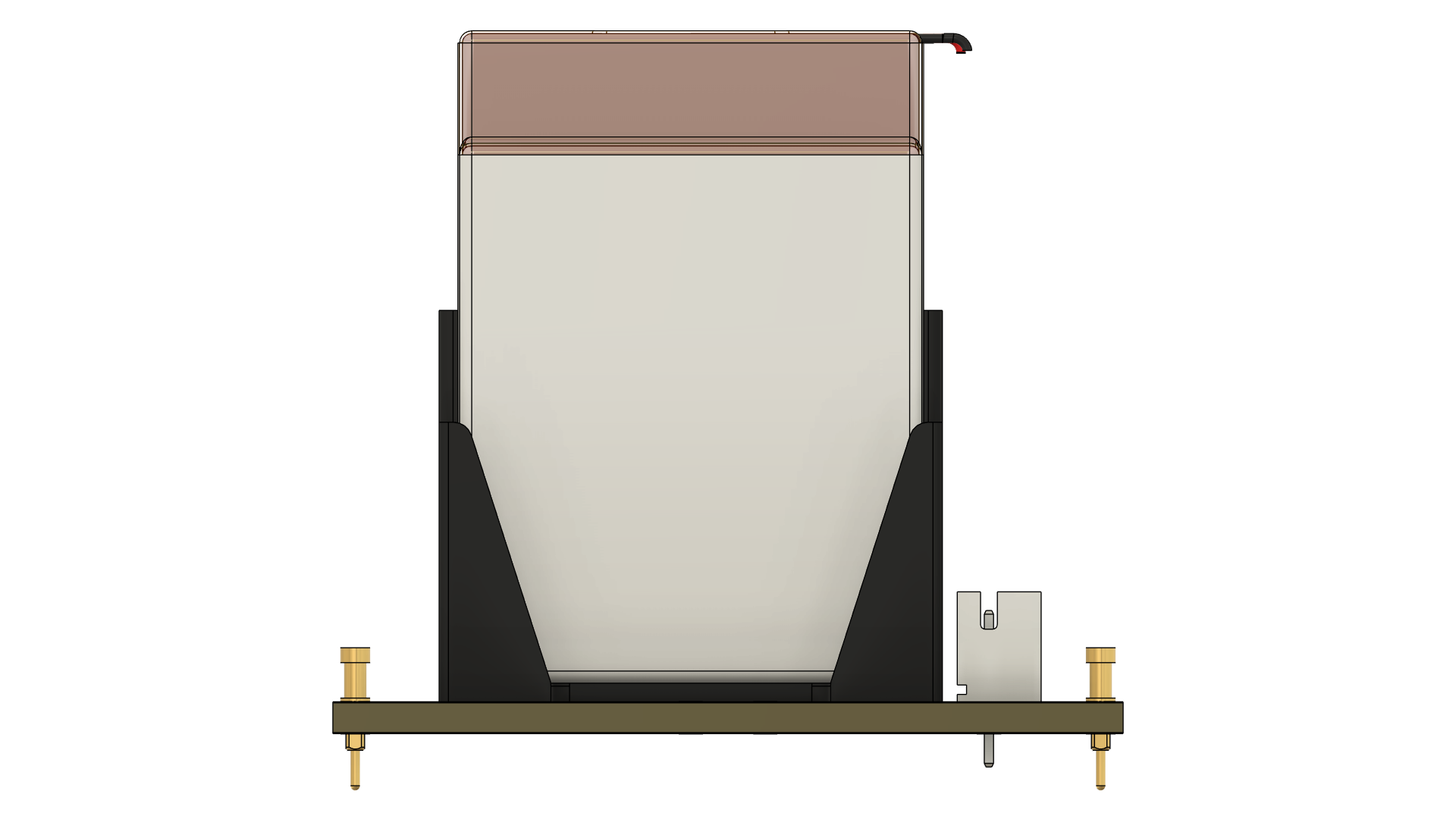

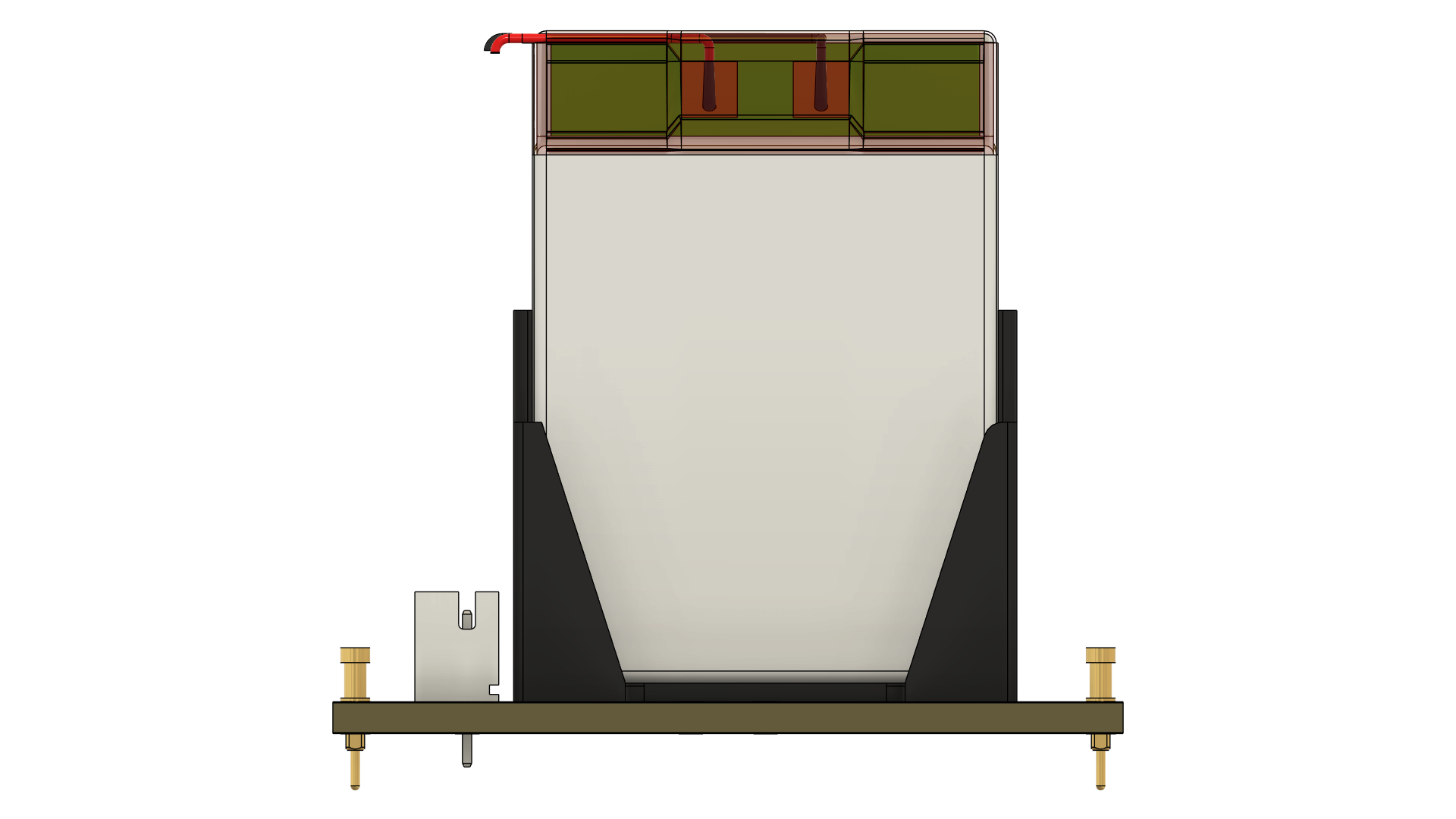

This molecule is a thin, rechargeable lithium polymer battery with a nominal voltage of 3.7V and a capacity of 400mAh. Its physical dimensions are: 5mm thick, 25mm wide, and 35mm long. This battery features a built-in protection circuit (PCM) for overcharge and overdischarge.
NSF Relevance
This compact Li-Po battery serves as a drop-in power source for the COSMIIC platform, enabling safe and rapid testing of implantable and embedded systems. Its standardized form factor and built-in protection accelerate experimentation with power management and wireless charging without custom battery development.
Science Drivers
battery_testing, component_testing, implantable_healthcare
Created by: adonis
Version: v1
Category: other
Files
502535_LIPO_Molecule_v8_gerbers.zip
ZIP File
bom.csv
CSV File
cpl.csv
CSV File
