WAGO 2601-1112 — PCB Terminal Block (12-pos, 3.5 mm pitch, horizontal)

Unreviewed

by Kyle Bergstedt

WAGO 2601 series PCB terminal block, push-in CAGE CLAMP, 12 positions, 3.5 mm pin spacing, horizontal mount.

Overview Files Versions Dependencies Discussions Activity

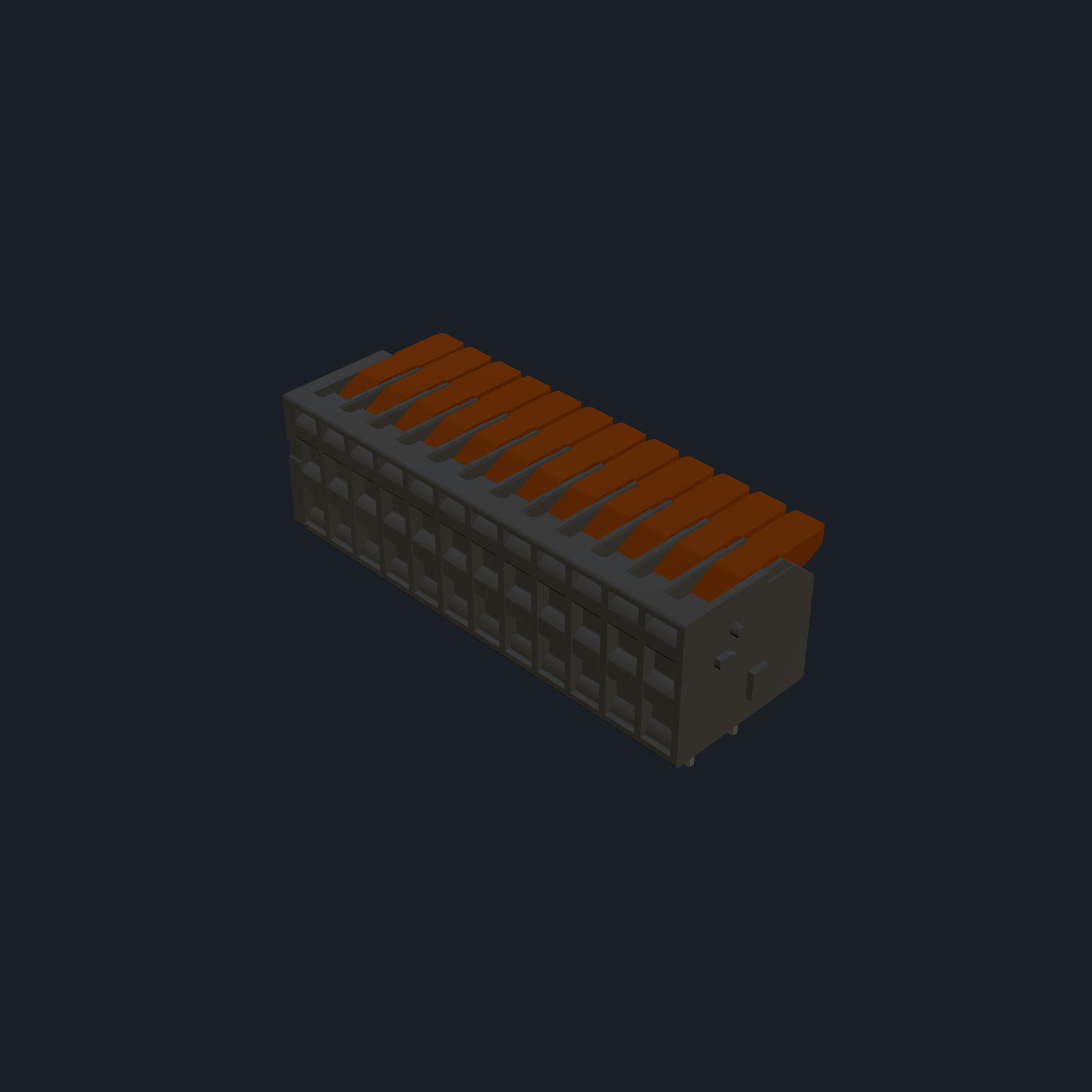

3D Model

WAGO 2601-1112 — PCB Terminal Block (12-pos, 3.5 mm pitch, horizontal)

3D component model for the WAGO 2601-1112 PCB terminal block.

  • Series: 2601 (horizontal mount / right-angle)
  • Positions: 12
  • Pin spacing: 3.5 mm
  • Technology: Push-in CAGE CLAMP with operating lever
  • Wire range: 0.2–1.5 mm² (AWG 24–16)

Source

3D model downloaded from WAGO PARTcommunity (3Dfindit) — manufacturer-sourced CADENAS model.
KiCad footprint: TerminalBlock_WAGO/TerminalBlock_WAGO_2601-1112_1x12_P3.50mm_Horizontal

Provenance — STEP model. Manufacturer-sourced from WAGO via CADENAS PARTcommunity (3Dfindit). Z-up rotation applied (120° around 1,1,1 axis). Not parametrically generated.

Files

📦 3d-wago-2601-1112.glb 3D Model (GLB) 📐 2601-1112.stp STEP CAD Model 📌 wago-fp-2601-1112.kicad_mod KiCad Footprint 🖼 3d-wago-2601-1112-hero.png Image 🖼 3d-wago-2601-1112-thumb.png Image
