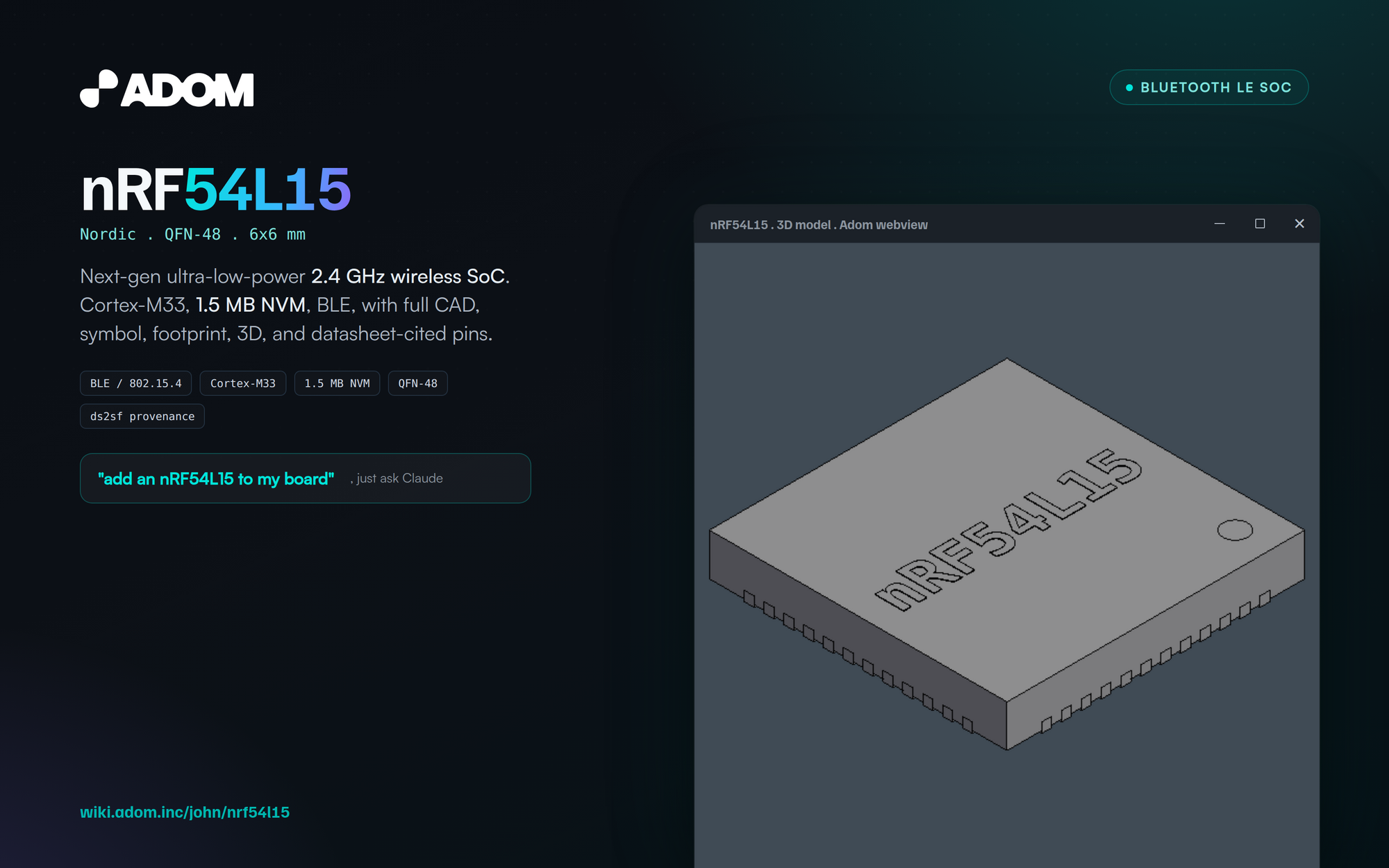

3D Model
Symbol & Footprint
Schematic Symbol
Open full view ↗PCB Footprint
Open full view ↗Datasheet
Open full view ↗Contents
nRF54L15
Nordic Semiconductor. Next-gen ultra-low-power 2.4 GHz wireless SoC: Arm Cortex-M33, 1.5 MB NVM, Bluetooth LE / Bluetooth mesh / 802.15.4, NFC-A, and a high-performance peripheral set. Package QFN-48 (QFAA), 6x6 mm, 0.4 mm pitch.
The interactive 3D model, schematic symbol, and footprint render above (the wiki builds them from the CAD files in this repo). Below: specifications, datasheet-cited pins, and sourcing.
Specifications
| Core | Arm Cortex-M33 |
| Memory | 1.5 MB NVM (RRAM) |
| Radio | 2.4 GHz: Bluetooth LE, Bluetooth mesh, 802.15.4 |
| GPIO | 48-pin QFN, 49 = exposed die pad (VSS, required) |
| Package | QFN-48 (QFAA) 6x6 mm, 0.4 mm pitch |
| Variants | nRF54L15 / L10 / L05 share this pinout, differ in NVM/RAM. WLCSP-300 variant is not pin-compatible. |
Provenance (datasheet-cited)
Pin and dimension data were extracted from Nordic's 845-page Product Specification by ds2sf (Claude-assisted), with a page citation for every claim:
| Data | Source | Page |
|---|---|---|
| Pin assignments (names, functions) | Table 73, QFN48 pin assignments | p.797 |
| QFN48 mechanical dimensions | Figure 167, QFN48 6x6 mm package | p.806 |
| Variant pinout / ordering | Mechanical + ordering sections | p.29, p.795 to p.806 |
ds2sf flags honest uncertainty (muxed protocol-select pins, tied decoupling pairs, and where the datasheet omits a recommended land pattern) rather than guessing. Full per-pin citations are in meta/nRF54L15-extraction.provenance.json.
Sourcing
Mouser NRF54L15-QFAA-R: ~$4.15 at qty 1, 8,130 in stock, lifecycle New Product (snapshot). Buy: Mouser | DigiKey
Manufacturer and resources
- Nordic nRF54L15 product page
- Product Specification (datasheet) (845 pages)
- nRF Connect SDK
- nRF54L15 DK | Nordic DevZone
CAD downloads
KiCad symbol (.kicad_sym) + footprint (.kicad_mod), 3D STEP, web GLB, and Fusion/EAGLE .lbr are in the downloads grid and the Files tab. CAD by Nordic via Ultra Librarian; GLB by service-step2glb.
