Bryan LED Nameplate

Public Unreviewed

by John Lauer

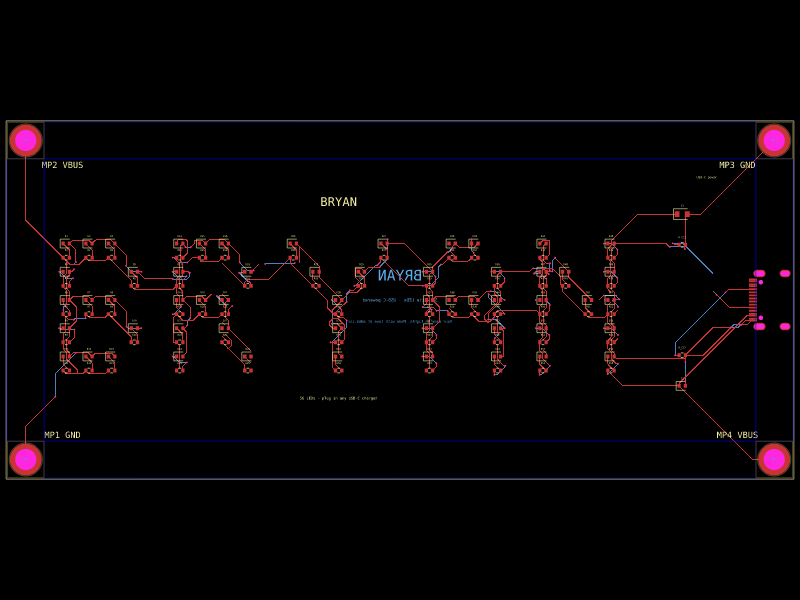

USB-C-powered desk nameplate: spells BRYAN in 56 white 0402 LEDs on a 128x58mm board. No microcontroller — each LED wires to VBUS through its own 180 ohm current-limiting resistor. Plug in any iPhone USB-C charger and it lights up. Built as an Adom molecule with 4 corner machine-contact pins.

moleculelednameplateusb-ctscircuitadom-tsci
