bhi385-wiretest

BHI385 wiretest

Test molecule for validating the Fusion → wiki → Hydrogen pipeline end to end. Source: Bosch_BHI385 (Fusion 360 Electronics).

It ships the STEP (auto-converted to a meters GLB with silkscreen at publish time via service-step2glb), the silkscreen PNGs, and the EAGLE .brd board file. The .brd is what Hydrogen's importer feeds to the board converter to generate the machine-pin / contact footprint JSON, so the molecule can be wired in the 3D editor. Not for production use — pipeline validation only.

Files

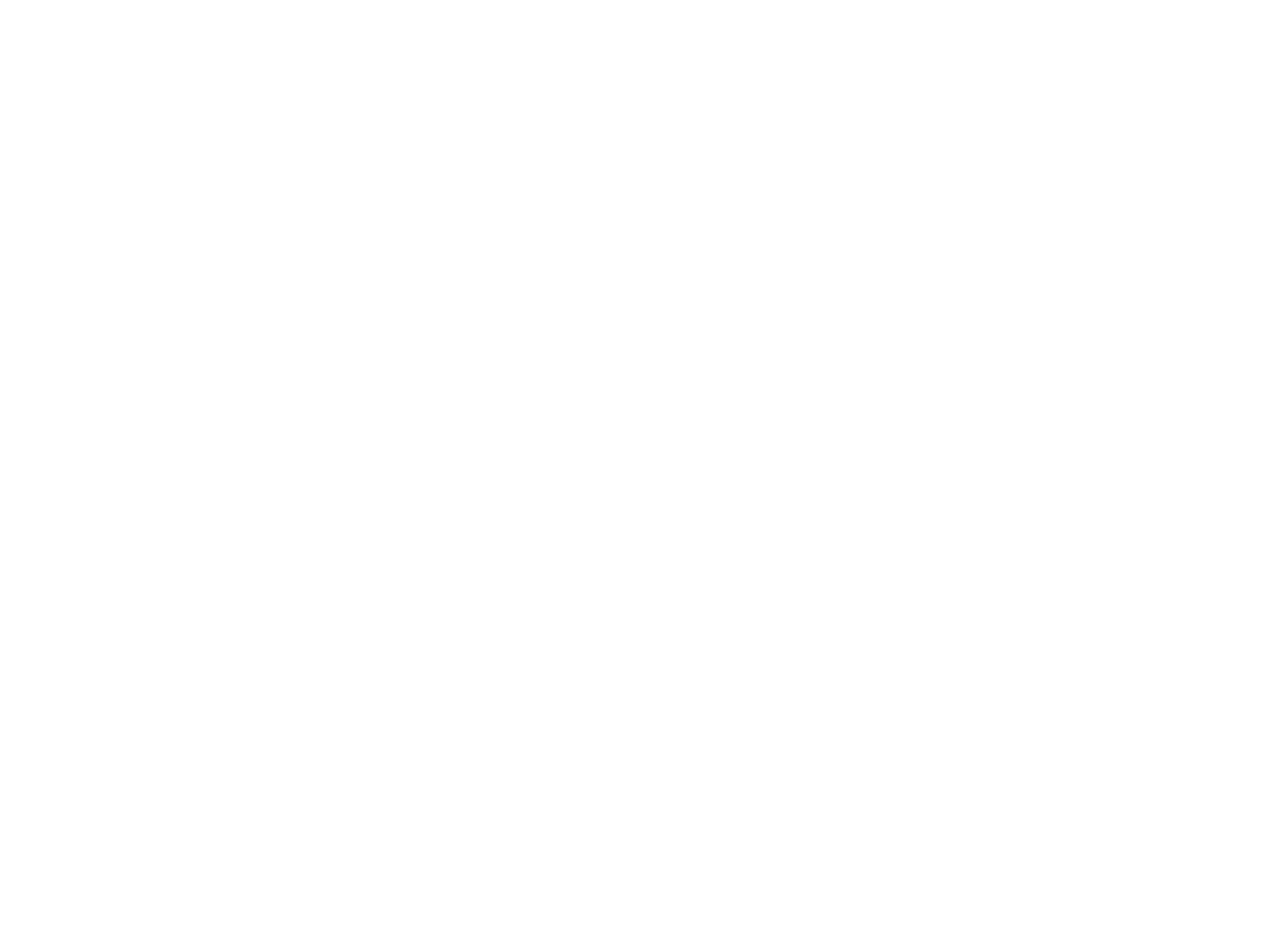

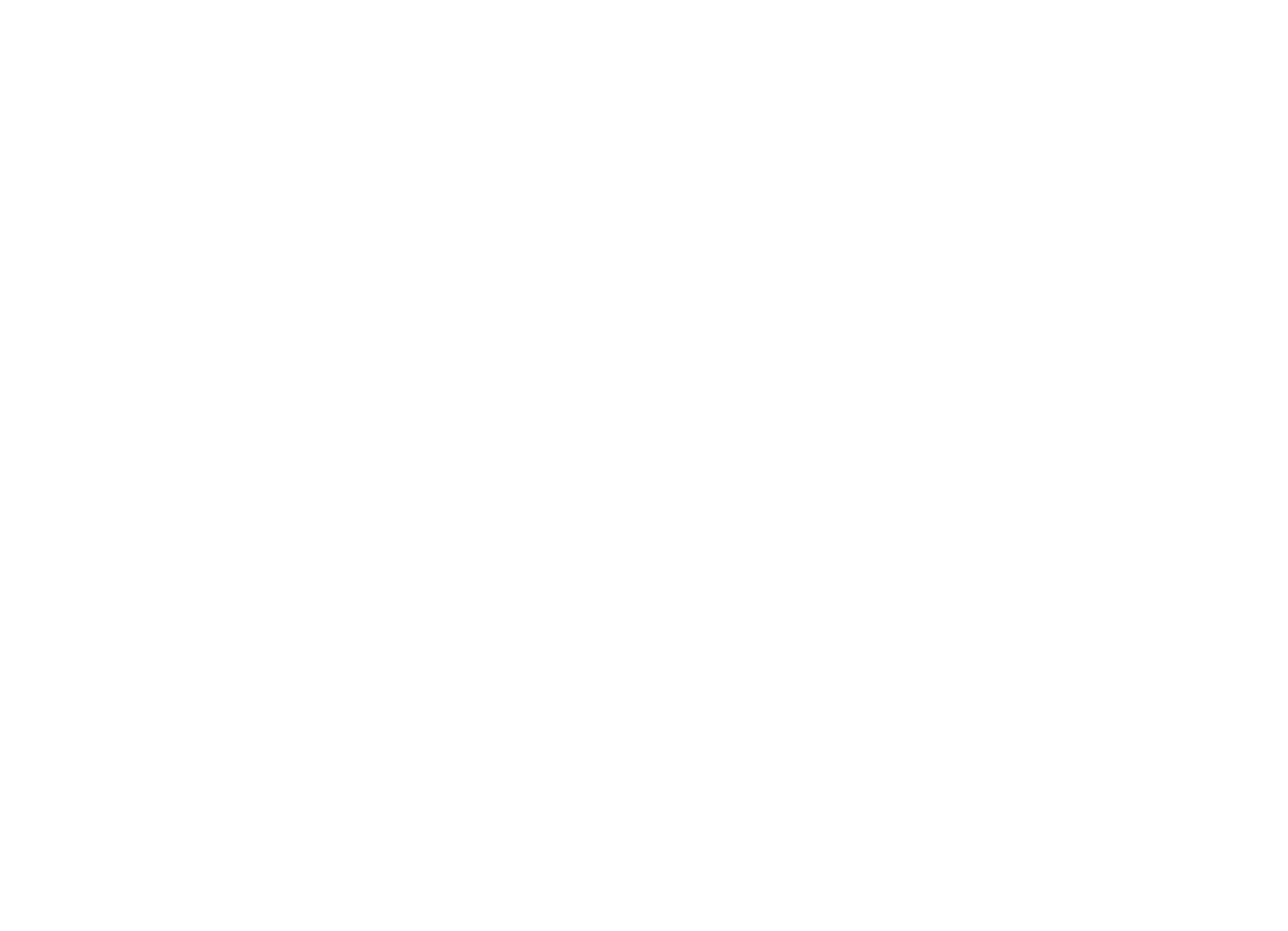

bhi385.glb 3D Model (GLB) bhi385.step STEP CAD Model bhi385_silkscreen_bottom.png Image bhi385_silkscreen_top.png Image bhi385.brd BRD File hero.png Image package.json Data File
