component

lrg-lrg-6x6-p16

Public Unreviewed

by cosmiic

COSMIIC 16-pitch base scaffold, 6x6 EVEN large-pin grid — 4 machine pins + 144 large contacts for modular implant assembly

cosmiicscaffoldmolecule16-pitchbase-scaffold
Overview Files Packages Releases Dependencies Issues Breadcrumbs Pull Requests Activity
lrg-lrg-6x6-p16

LRG_LRG 6x6 P16 Scaffold (EVEN)

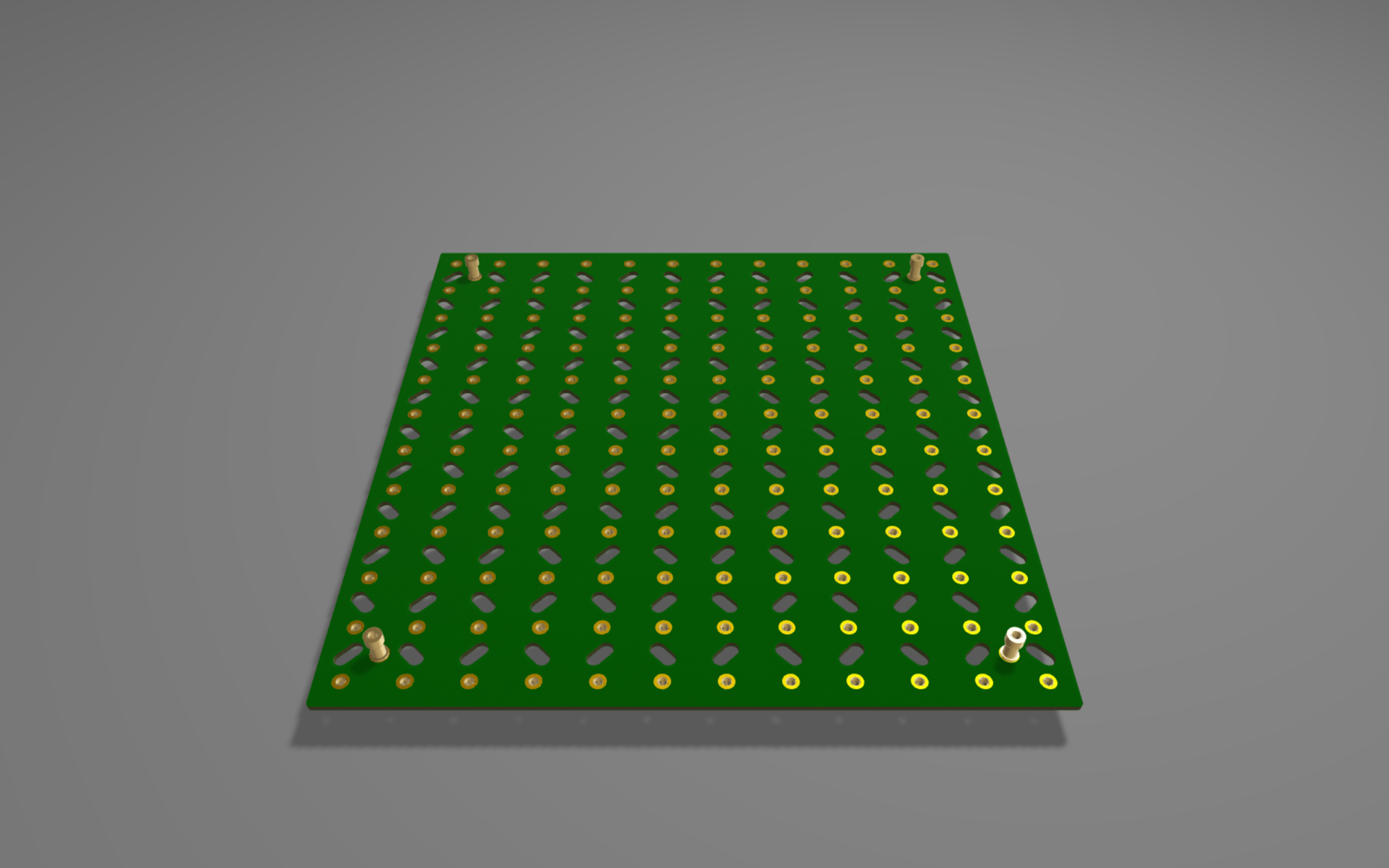

COSMIIC 16-pitch base scaffold — 6x6 EVEN large-pin grid with 4 machine pins and 144 large contacts, used as a modular assembly base for the COSMIIC platform.

Files

board.glb 3D Model (GLB) lrg-lrg-6x6-p16.glb 3D Model (GLB) LRG_LRG_6x6_P16_EVEN.step STEP CAD Model hero-photo-v1.png Image hero.png Image hero.png Image LRG_LRG_6x6_P16_EVEN.brd BRD File LRG_LRG_6x6_P16_EVEN.sch SCH File lrg-lrg-6x6-p16_footprint.json Data File lrg-lrg-6x6-p16_symbol.json Data File manifest.json Data File package.json Data File
