Sample Experiment: RC Low-Pass Filter Frequency Response

Reference page. This page was prepared for the NSF PCL FAIR-data due diligence (July 2026) as a working sample of how every Adom experiment is published. The experiment is a computed characterization: a closed-form model evaluated by the included code, not a bench measurement: and is fully reproducible bit-for-bit from the files on this page. Real bench experiments follow this exact same structure, with instrument captures (oscilloscope/spectrum-analyzer screenshots and CSV/JSON exports) in place of the model.

Objective

Characterize the frequency response (magnitude and phase) of a first-order RC low-pass filter (R = 1 kΩ, C = 100 nF) from 10 Hz to 1 MHz, and publish the result the standard Adom way: write-up + JSONL dataset + sidecar metadata + provenance + the AI skill that reproduces it.

Method

The transfer function H(f) = 1 / (1 + j·2πf·RC) is evaluated at 20 points per decade (101 points total). Expected cutoff: fc = 1/(2πRC) ≈ 1591.5 Hz. The whole run is deterministic: python3 analysis/run_experiment.py regenerates the dataset, its sidecar, and the plot exactly.

Results

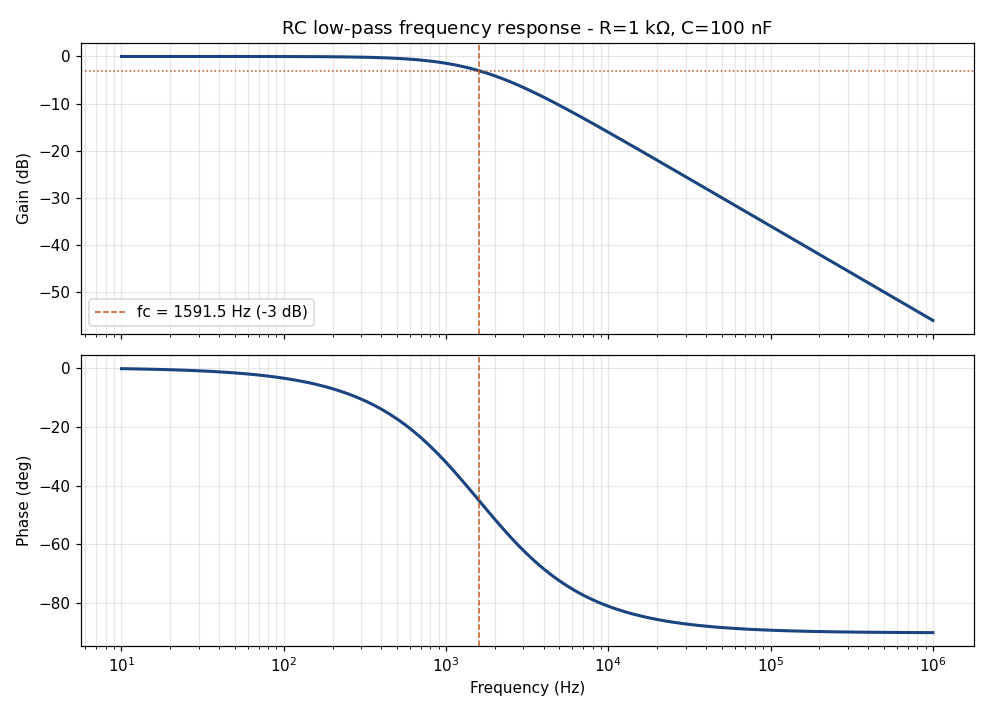

Bode plot

Check	Expected	Measured (dataset)
Gain at fc	−3.01 dB	−2.99 dB (at 1584.9 Hz grid point)
Phase at fc	−45°	−44.88°
Rolloff past fc	−20 dB/decade	−56.0 dB at 1 MHz (2.8 decades) ✓

How the data is organized (the part NSF asked about)

FAIR concern	Where it lives on this page
Data	`data/rc_lowpass_response.jsonl`: one JSON row per point: `frequency_hz`, `gain_linear`, `gain_db`, `phase_deg`
Metadata	`data/rc_lowpass_response.sidecar.json`: the sidecar JSON is the dataset's metadata, a small file that rides alongside the data with its schema (fields + units), parameters, generator, row count, sha256, and license
Provenance	`provenance.json`: who ran it (human-prompted, AI-executed), the input model and code, design-reference part numbers, output hashes, and the full chain from request to publication
Reproducibility	`skills/reproduce-rc-characterization/SKILL.md`: the AI skill; one command regenerates everything
Persistent identifier	this page's URL: `wiki.adom.inc/adom/sample-experiment-rc-lowpass` (git-backed and versioned)
Timeline	published immediately on completion, no embargo

Reproduce it

adom-wiki repo clone adom/sample-experiment-rc-lowpass
cd sample-experiment-rc-lowpass
python3 analysis/run_experiment.py   # regenerates data + sidecar + plot, bit-for-bit

License

Data and code on this page: CC-BY-4.0.
