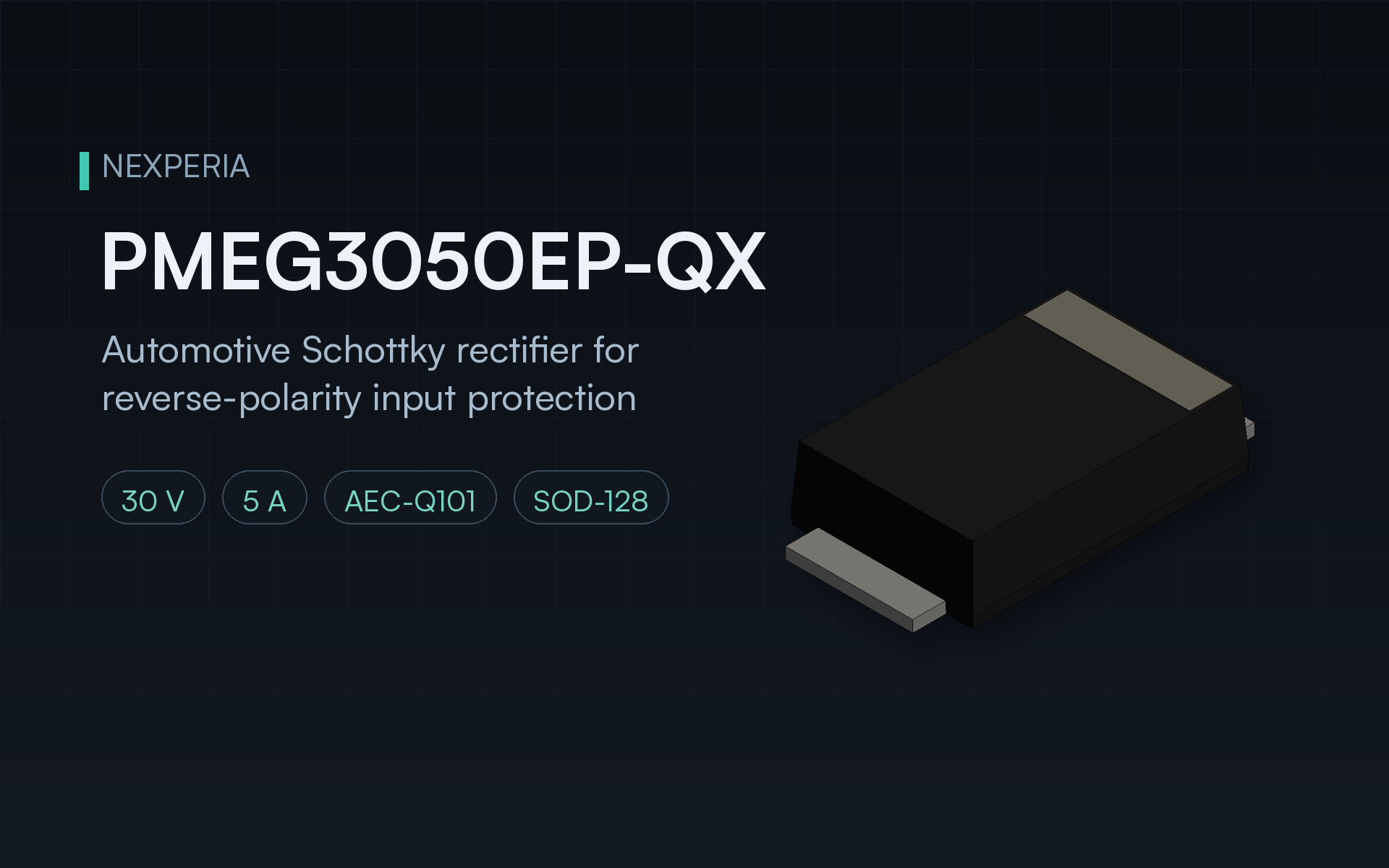

PMEG3050EP-QX: 30 V 5 A Automotive Schottky Rectifier, SOD-128
Public Made by Adomby adom
Nexperia PMEG3050EP-QX automotive Schottky barrier rectifier, 30 V reverse, 5 A average forward current, low forward voltage, AEC-Q101 qualified, SOD-128 package.
3D Model
Open in new tab ↗
Contents
README
markdownPMEG3050EP-QX: 30 V 5 A Automotive Schottky Rectifier, SOD-128
Automotive-qualified Schottky barrier rectifier with low forward voltage drop. 30 V reverse standoff and 5 A average forward current in the flat-lead SOD-128 package, AEC-Q101 qualified.
Key specs
| Parameter | Value |
|---|---|
| Reverse voltage | 30 V |
| Average forward current | 5 A |
| Forward voltage | 355 mV typ at 1 A |
| Qualification | AEC-Q101 |
| Package | SOD-128 (CFP5) |
Where it is used
Input protection diode (D1001) on the Large Automotive Eth Switch Molecule, ahead of the AP62300TWU-7 buck stage on the 12 V input.
Ordering
| Vendor | Part number |
|---|---|
| Nexperia | PMEG3050EP-QX |
Files
| File | What |
|---|---|
pmeg3050ep-qx.kicad_sym |
KiCad symbol (2 pins) |
D_SOD-128.kicad_mod |
KiCad footprint |
pmeg3050ep-qx.step / pmeg3050ep-qx.glb |
3D model |
pmeg3050ep-qx.lbr |
Fusion 360 / EAGLE library |
pmeg3050ep-qx.adom-lbr.json |
adom-lbr canonical JSON |
