LP5912Q1.1DRVRQ1 — Automotive 500 mA Low-Noise LDO, 1.1 V (TI)
Public Made by Adomby adom

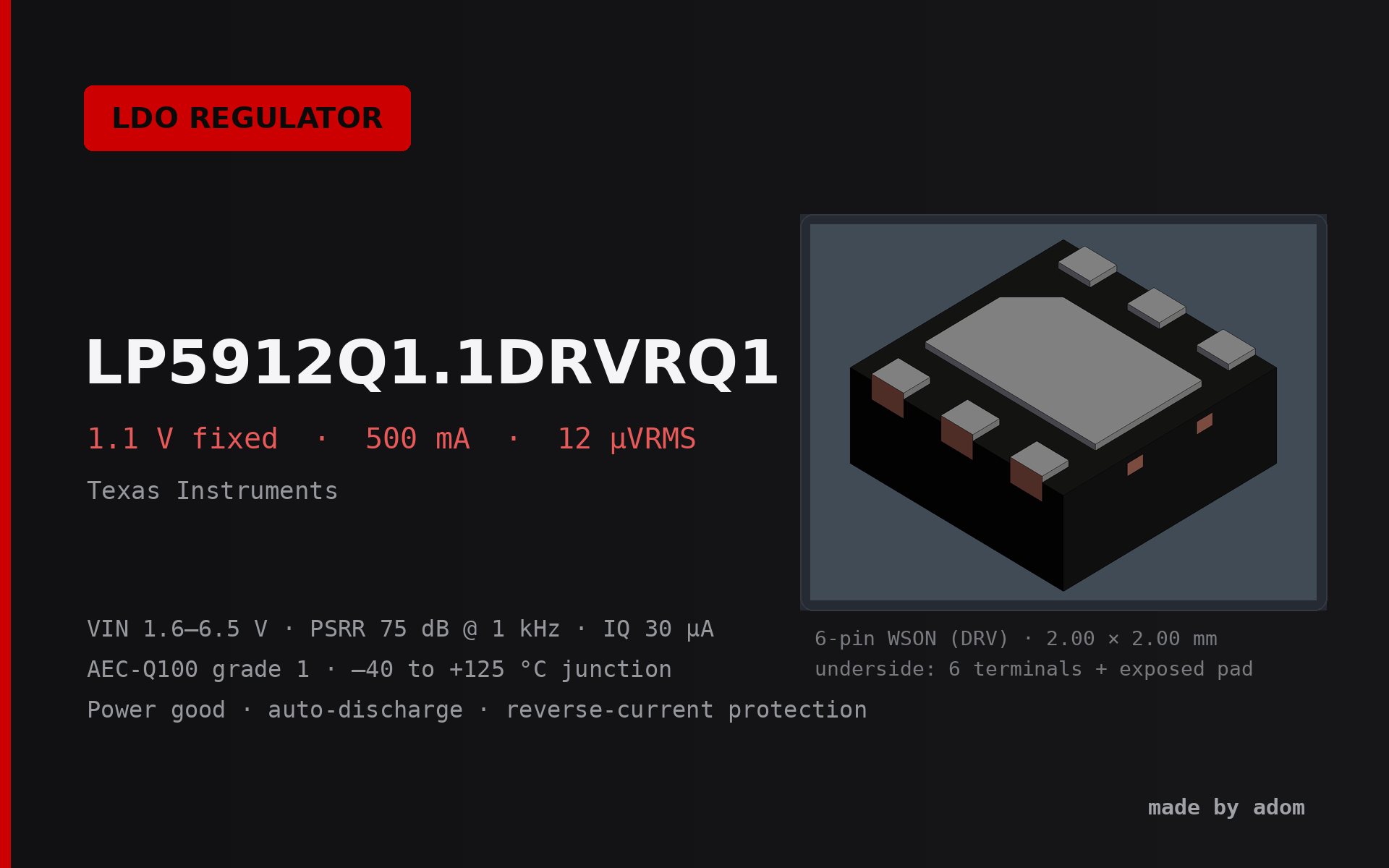

Texas Instruments LP5912-Q1 — AEC-Q100 grade-1 automotive 500-mA low-noise low-IQ LDO, fixed 1.1 V output. 1.6–6.5 V input, 12 µVRMS noise with no bypass capacitor, 75 dB PSRR at 1 kHz, 30 µA typical quiescent current, 170 mV typical dropout at 500 mA, open-drain power good, output auto-discharge and reverse-current protection, –40 to +125 °C junction, 6-pin WSON (DRV) 2.00 × 2.00 mm with exposed thermal pad.
3D Model
Open in new tab ↗
README
markdownLP5912Q1.1DRVRQ1: Automotive 500 mA Low-Noise LDO, 1.1 V Fixed (TI)
Texas Instruments LP5912-Q1 is an AEC-Q100 grade-1 low-dropout linear regulator that supplies up to 500 mA with 12 µVRMS output noise and 30 µA quiescent current, no noise-bypass capacitor required. This page is the 1.1 V fixed option in the 6-pin WSON (DRV) package.
| MPN | LP5912Q1.1DRVRQ1 (tape and reel, 3000 pcs) |
| Manufacturer | Texas Instruments |
| Package | WSON-6 (DRV0006A), body 2.00 × 2.00 mm, 0.80 mm max height, 0.65 mm pitch, exposed thermal pad |
| Part marking | 12QH |
| KiCad symbol | LP5912Q1_1DRVRQ1:LP5912Q1.1DRVRQ1 |
| KiCad footprint | LP5912Q1_1DRVRQ1:SON65P200X200X80-7N (SamacSys, part 717743) |
| 3D | lp5912q1-1drvrq1.glb (page viewer) + lp5912q1-1drvrq1.step (manufacturer model) |
| Fusion / EAGLE | LP5912Q1_1DRVRQ1.lbr, canonical hub lp5912q1-1drvrq1.adom-lbr.json |
| Datasheet | SNVSAA8C, ti.com |
| Order | Mouser 595-LP5912Q1.1DRVRQ1, DigiKey 296-46972-2-ND, LCSC C5220610 |
Electrical (LP5912-Q1, from SNVSAA8C)
| Parameter | Value |
|---|---|
| Output voltage (this option) | 1.1 V fixed, ±3% over line, load and temperature |
| Output current | 0 … 500 mA |
| Input voltage | 1.6 … 6.5 V (absolute max 7 V) |
| Dropout @ 500 mA | 170 mV typ / 250 mV max (for 1.6 V ≤ VOUT < 3.3 V) |
| Output noise | 12 µVRMS (10 Hz … 100 kHz), no bypass cap |
| PSRR | 80 dB @ 100 Hz, 75 dB @ 1 kHz, 65 dB @ 10 kHz, 40 dB @ 100 kHz |
| Quiescent current | 30 µA typ (enabled, no load), 0.2 µA typ in shutdown |
| Short-circuit / current limit | 700 … 1100 mA (900 mA typ) |
| Line / load regulation | 0.8 %/V · 0.0022 %/mA |
| Load transient | ±45 mV for 5 mA ↔ 500 mA in 10 µs |
| Turn-on time | 200 µs to 95% of VOUT |
| Power-good | asserts at 94% of VOUT, releases at 90%, 140 µs delay, open-drain |
| Output auto-discharge | 100 Ω pulldown when disabled |
| Thermal shutdown | 160 °C, 15 °C hysteresis |
| Operating junction temperature | –40 … +125 °C (AEC-Q100 grade 1) |
| ESD | ±2 kV HBM (AEC-Q100-002), ±1 kV CDM |
| RθJA | 71.2 °C/W (JEDEC high-K board, 2 thermal vias) |
Voltage options. LP5912-Q1 ships fixed from 0.8 V to 5.5 V; the DRV package covers 0.9, 1.1, 1.2, 1.5, 1.8, 2.8, 3.0 and 3.3 V as stocked orderables. Every option shares this symbol, footprint and 3D, so swapping voltage is a BOM change only. Devices ≥ 3.3 V tighten to ±2% tolerance and 95 mV typ dropout.
Pinout
| Pin | Name | Type | Notes |
|---|---|---|---|
| 1 | OUT | power out | regulated 1.1 V, 1 µF ceramic to GND |
| 2 | NC | no connect | no internal connection; leave open or tie to GND |
| 3 | PG | open drain | power good, needs an external pullup |
| 4 | EN | input | high = on, low = off; internal 3 MΩ pulldown, 1.3 V on / 0.3 V off threshold |
| 5 | GND | power in | ground |
| 6 | IN | power in | 1.6 … 6.5 V, 1 µF ceramic to GND |
| 7 | EP | passive | exposed thermal pad; solder to a ground copper area, or leave floating; never to another potential |
Files
LP5912Q1_1DRVRQ1.kicad_sym: KiCad 9/10 symbol, 5 standard fields, 7 pinsSON65P200X200X80-7N.kicad_mod: KiCad 9 footprint, modern(footprint …)syntaxlp5912q1-1drvrq1.step: manufacturer STEP.lp5912q1-1drvrq1.glb: color-preserving GLBLP5912Q1_1DRVRQ1.lbr: EAGLE / Fusion 360 Electronics library (symbol + package + deviceset)lp5912q1-1drvrq1.adom-lbr.json: canonical adom-lbr hub (exports to Altium, KiCad, IntLib)docs/LP5912-Q1-datasheet.pdf: TI SNVSAA8C, revised September 2016docs/symbol.svg,docs/footprint.svg: rendered symbol and footprint previewsskills/lp5912q1-1drvrq1-usage/SKILL.md: how to place, wire and order the part
CAD came from the SamacSys bundle (part 717743). The symbol was rebuilt in the Adom house style and the footprint converted to modern KiCad syntax; pad geometry is unchanged from the vendor model and sits within IPC-7351 nominal for TI's DRV0006A land pattern (signal pads 0.35 × 0.60 mm on a 2.10 mm span, exposed pad 1.10 × 1.70 mm).
