Hero Studio

A live playground for the hero image v2 definition: the lower third of every hero is a true-text overlay, rendered by the surface that shows it, never baked into the image.

The overlay carries the metadata that should stay dynamic and clickable: the type pill (APP / SKILL / BOOTSTRAP / COMPONENT), the trending score, the star count, the title, the author, and the wiki slug in the lower right. Because it is real text, every part of it can be a link, and the scores update daily without re-rendering a single PNG. The image part of the hero keeps the lower third text-free: the background gradient or brand tile simply continues to the bottom edge, and the app screenshot may bleed under the overlay zone knowing the scrim will cover it.

What you can flip, live

• Package: real pages from adom-wiki page trending, with their live scores, stars, installs, authors, and tags.
• Screenshot placement: bleed bottom, bleed right, bleed top, lower-right corner, upper-right corner, contained, and mirror (text right, window left). Mirror flips the whole background composition too: glows, tiles, and corner motifs.

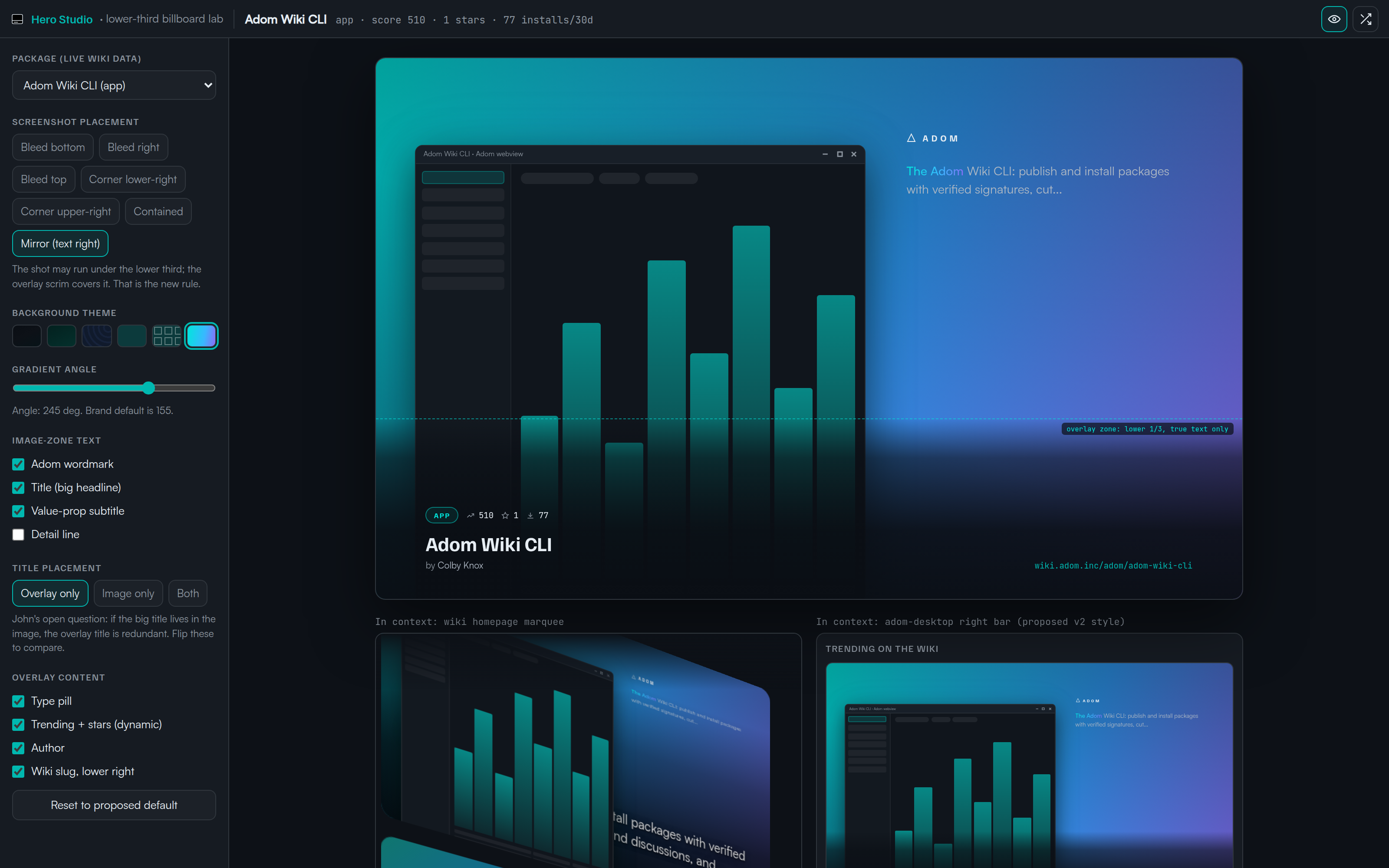

• Background theme: six on-brand looks, including the authentic Kickstand tiling patterns from the adom/brand page (concentric-arc onion corner, scattered pill field, outlined square grid) plus midnight dot-grid, PCB traces, and the flagship gradient.
• Gradient angle: rotate the base gradient to make a hero feel unique while staying on-brand (default 155).
• Image-zone text: wordmark, big title, value-prop subtitle, detail line.
• Title placement: overlay only, image only, or both, to settle the redundancy question directly.

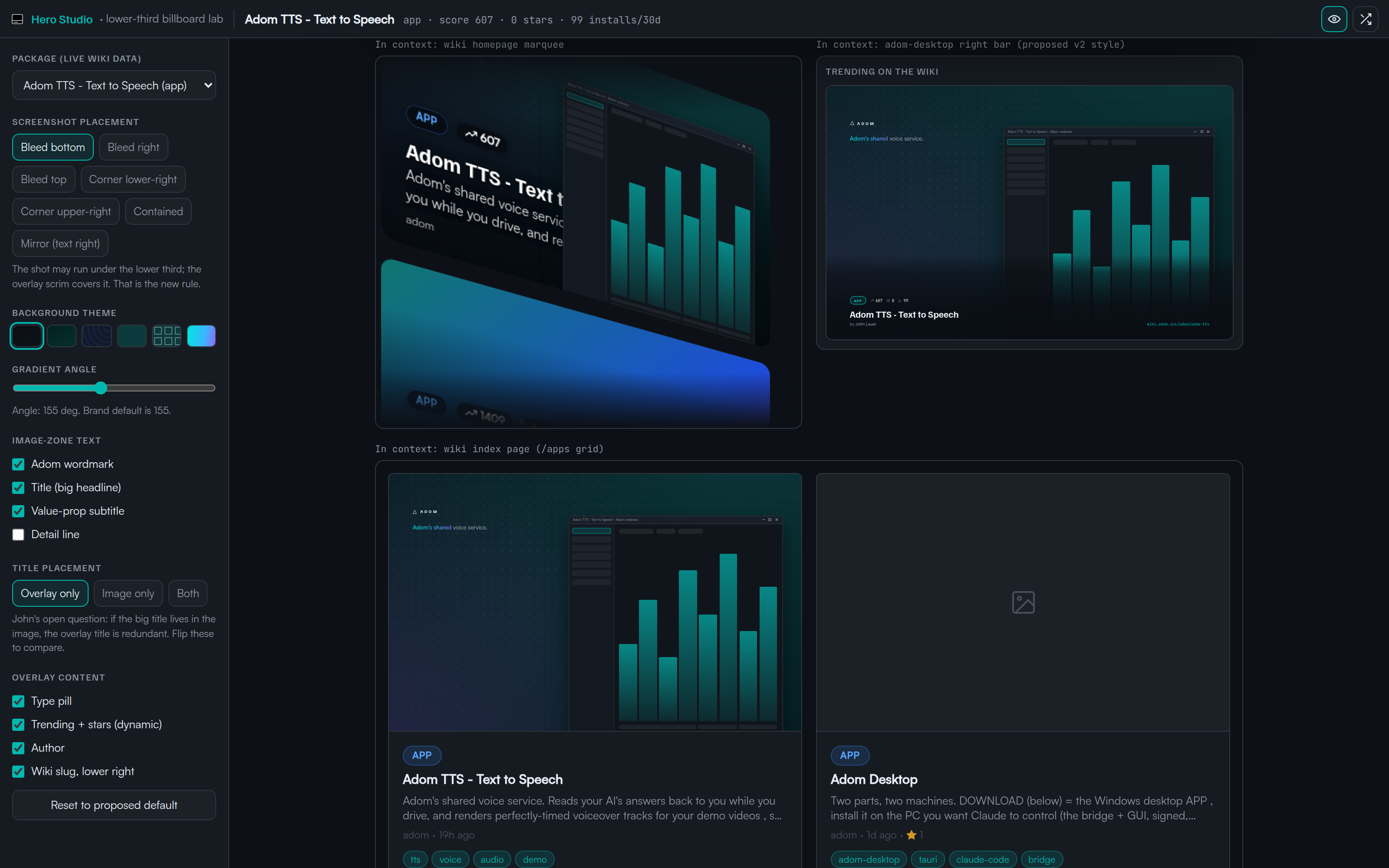

In-context previews, copied from the wiki source

The studio renders the same hero into pixel-faithful copies of the surfaces that will show it, so you judge the design where it actually lives:

• the wiki homepage marquee (.ts-slide tiles: caption scrim, badge plates, trending and star pills, scrolling track),

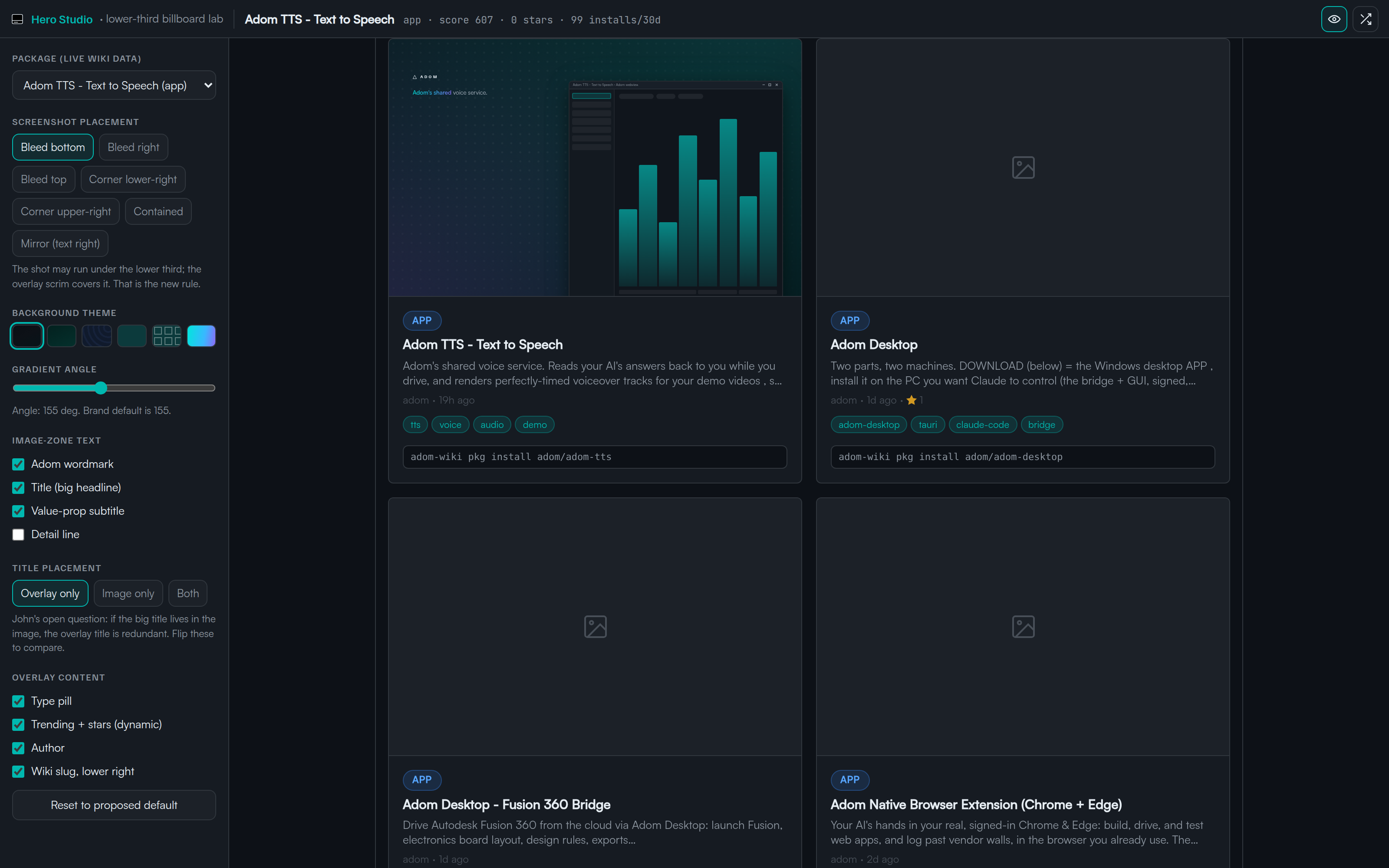

• the wiki index page card grid (.page-card: 16:10 hero slot, badge colors, meta row, tag chips, install row),
• an adom-desktop right bar showing the full v2 hero with its baked overlay.

The wiki surfaces receive the image part only, because the wiki already overlays its own true text. That is the core of the v2 idea: the overlay is per-surface chrome, and the homepage marquee already proves the pattern.

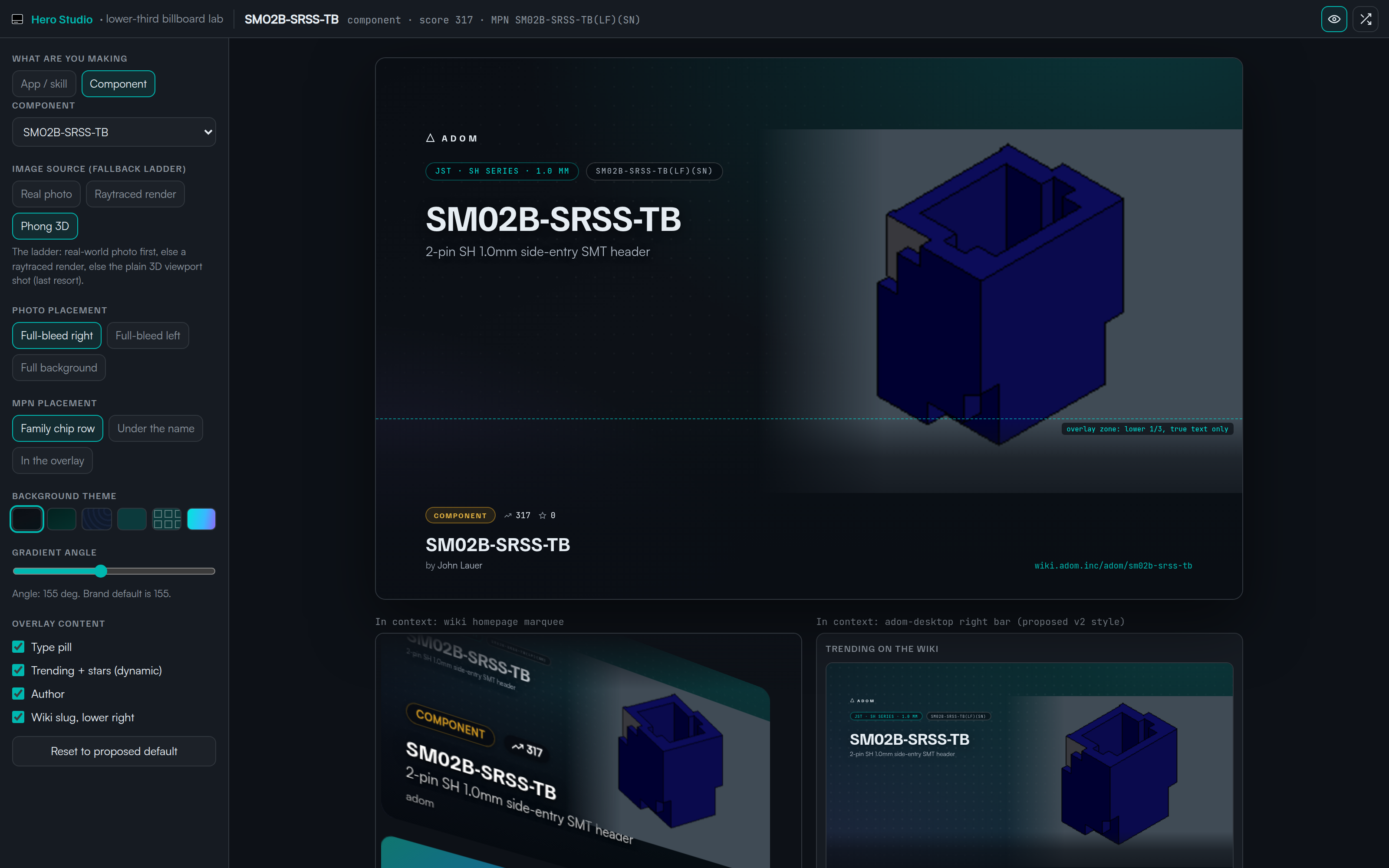

Component heroes

A separate mode for component pages, switched at the top of the panel ("What are you making"). A component hero leads with the physical part, not an app window:

• Image ladder: a real-world photo where the screenshot area would be; if none exists, a raytraced render; last resort, the plain phong 3D viewport shot. The ladder is the quality bar: the wiki's own sm02b-srss-tb hero is currently the bottom tier.
• Name where the title goes, and a plain-language spec line as the subtitle ("100k SMD 1% resistor").
• MPN placement: in the family chip row, under the name, or in the lower-third overlay next to the slug.
• Family chip ("JST · SH SERIES · 1.0 MM") in the eyebrow slot, following the adom-usb family-marker pattern.

The bundled component imagery is sample material for the lab: the photo tier is cropped from the john/adom-usb-sniffer-dap hero (a Wikimedia Commons photograph under its respective CC license), the phong tier is cropped from the live adom/sm02b-srss-tb hero, and the raytrace tier is an illustrative render. Swap in your own part's imagery when designing a real hero.

Run it

hero-studio            # serves on port 8846

Open /proxy/8846/ in a webview (or http://localhost:8846 locally). The server itself is plain Node with no dependencies; only Generate needs the renderer runtime below.

Refresh the sample data from the live wiki any time:

./refresh-data.sh      # needs the adom-wiki CLI, then restart the server

Runtime requirements (Generate)

Generate renders headless Chrome INSIDE the container the server runs in. Light images (Hydrogen Desktop containers, for example) do not ship any of this, on purpose. What the render pipeline needs:

• puppeteer-core (npm). On Node below 22.12 pin puppeteer-core@24; 25.x declares engines: node >=22.12 and can fail at launch rather than at import.
• A Chrome binary: npx @puppeteer/browsers install chrome@stable --path ~/.cache/puppeteer (that --path puts it where the renderer scans), or point CHROME at any binary.
• The browser's OS libraries (libnss3, libgbm1, libasound2t64 on noble, and friends); a Chrome binary that exists but cannot start is the classic light-container trap.
• python3 + PIL for the export downscale and provenance stamp.

hero-studio doctor checks all of it, including that Chrome actually launches, and prints the exact fix commands for whatever is missing. Install runs it and warns loudly; pose refuses to open the gate for a human until it passes. Whoever installed the package is already inside the container, so the fixes never require outside access.

When the container cannot run Chrome but Adom Desktop answers, Generate falls back to rendering through the HOST browser (pup): the host opens the render view via the workspace proxy URL, screenshots it, and the hero is cropped and stamped container-side (python3+PIL is the only container requirement on that path). The provenance stamp records renderer: local or renderer: pup. Pin a leg with POST /generate {"renderer":"pup"} per request or the HERO_RENDERER env server-wide.

Generate

The Generate button (or POST /generate) renders the current hero server-side with Puppeteer to the hero-standard 2000x1250 PNG, pops a toast and a preview modal in every open studio, and writes generated/latest.png. Each PNG carries a comment metadata chunk recording that hero-studio produced it, plus the exact studio state, so publish tooling can verify a hero came through the studio rather than being hand-rolled slop. The canonical flow for an agent is the pose gate: hero-studio pose <owner>/<slug>, which opens the studio in front of the human and blocks until THEY click Generate. An agent never calls POST /generate itself; a hero a human did not make should not exist.

Drive it (AI-first)

State lives on the server; the UI, the CLI, and any agent stay in lockstep through a live channel with a 1 second poll fallback (the SSE stream can be buffered by proxies).

GET  /state            # current studio state
POST /state            # merge a partial state, e.g. {"theme":"onion","gradAngle":245}
GET  /console          # the page's console ring buffer (no DevTools needed)
POST /ui/toast         # raise a toast: {"text":"...","kind":"info|success|error"}
GET  /api/pages        # the trending dataset the studio renders

Every control in the panel maps to a state field: page, layout, theme, gradAngle, titleMode, show.*, overlay.*, guides.
