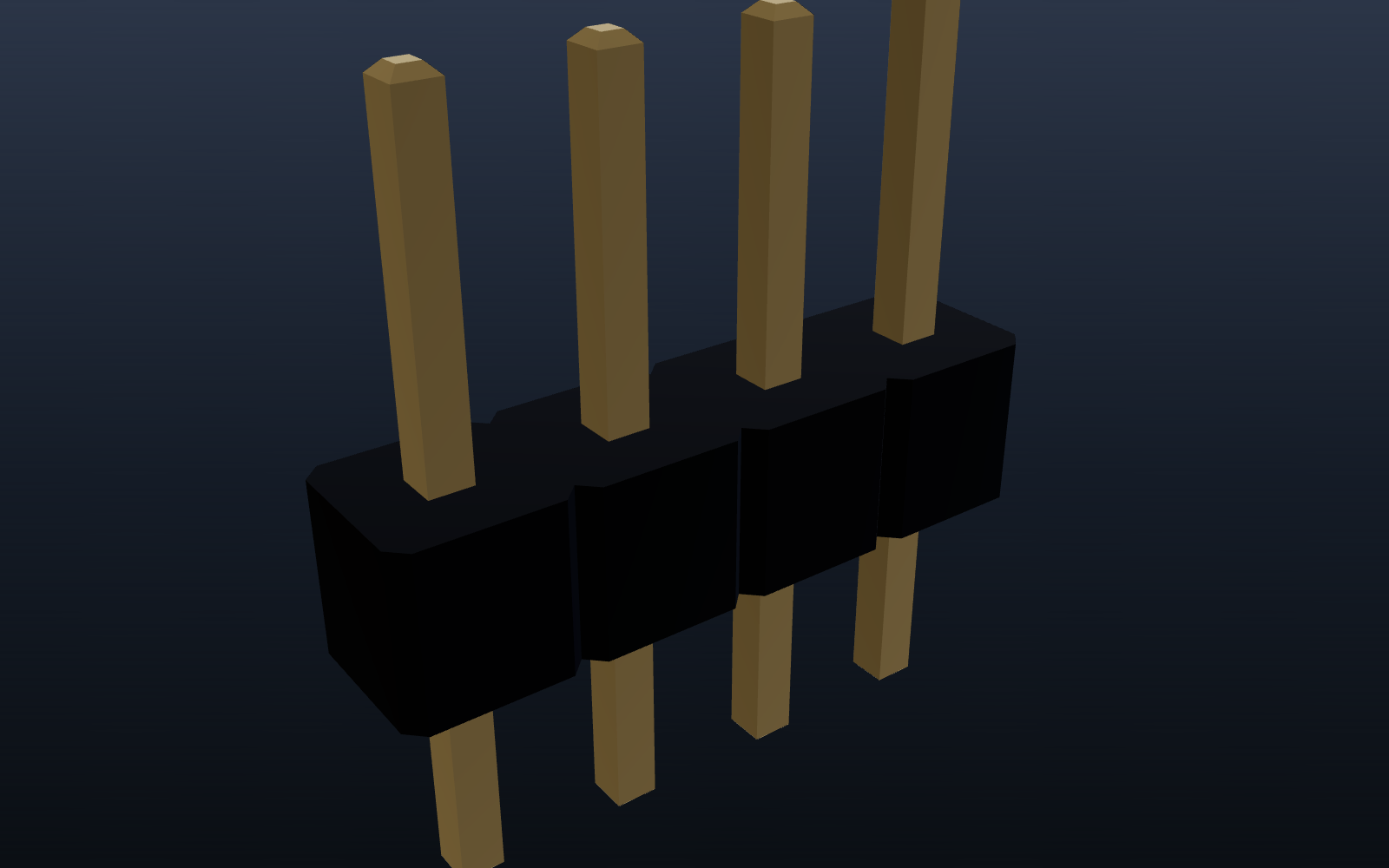

DEPRECATED generic 1x4 2.0mm pin header — replaced by real part JXTCONN PZ2.0V-1104P-H20 (adom/pz2-0v-1104p-h20)
3D Model
Open in new tab ↗
README
markdownconn-01x04-pin — DEPRECATED
⚠️ Deprecated. This was a generic, script-generated 1×4 2.0mm pin header with no real manufacturer or part number. It has been re-identified to the real, LCSC-sourced part and lives at:
→ JXTCONN PZ2.0V-1104P-H20 (LCSC C42431822)
Use that page for the symbol, footprint, 3D model, and sourcing. New designs should depend on the real part, not this generic placeholder.
Generic connector, single row, 01×04, 2.00mm pitch — kept only so existing references resolve. The geometry here is identical to the real part above.
Files
| Artifact | File |
|---|---|
| Schematic symbol | conn-01x04-pin.kicad_sym |
| PCB footprint | conn-01x04-pin.kicad_mod |
| 3D model | conn-01x04-pin.glb |
| Canonical hub | conn-01x04-pin.adom-lbr.json |
| Fusion 360 / EAGLE | conn-01x04-pin.lbr |
| STEP | conn-01x04-pin.step |
