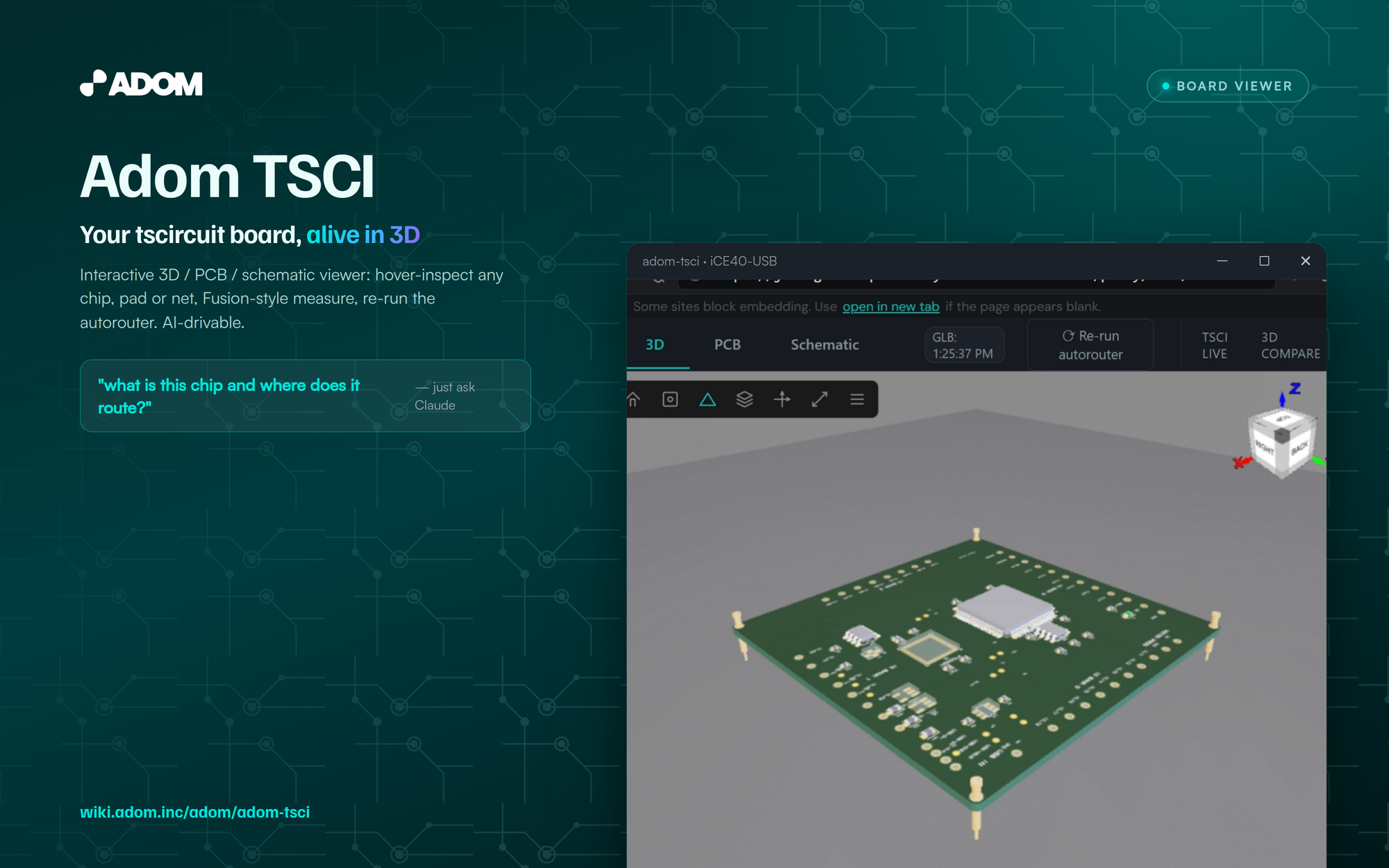

Tscircuit Board Viewer (adom-tsci)

Interactive tscircuit preview inside a Hydrogen webview panel. First-class 3D / PCB / Schematic tabs rendered from the tscircuit build output, plus:

• 🔍 Inspect tool (key I) — hover any feature for a labelled info card: chip refdes + footprint + pin count, pad → net routing ("Connects to MC1.pin1, TP1.pin1 via 2 direct traces"), machine- contact role (mechanical-only vs wired), board stackup + baked- texture resolution, silkscreen text.
• 📏 Measure tool (key M) — Fusion 360-style picking (pad / hole / chip / pin / edge), precision + mm/inches/mils.
• 🎬 Walkthrough Demo — narrated tour generated deterministically from circuit.json by adom-tsci walkthrough-gen (connectors → ICs → grouped passives → nets x-ray), with 3D flyover animations. Connector edges are computed (not hardcoded), long ref lists are capped, and it finishes on the ViewCube Home view with the Nets/x-ray panel turned off. Don't hand-edit walkthrough.json — it auto-regenerates on circuit.json drift.
• ⟳ Re-run autorouter — one click touches lib/index.tsx + spawns bunx tsci build --glbs --svgs.
• --texture-resolution N — re-bakes the board-surface texture (silkscreen + copper pads + annular rings + solder mask) up to 8192×8192 via circuit-json-to-gltf, cached by circuit.json content hash. Essential for readable silkscreen on big boards.
• Stale-deps check against @tscircuit/cli on startup.
• Secondary tabs: tsci live (raw RunFrame) and 3d compare.

Recent (1.4.x):

• Canonical Adom app-header — one-row brand · subject · actions with a hover app-info popover (version / engine / wiki / GitHub), brand fonts (Familjen Grotesk / Satoshi / JetBrains Mono), Adom-teal accent.
• Parts inspector lists EVERY component, grouped by kind (Resistors 92, LEDs 90, …) with collapsible groups — passives are no longer hidden.
• Ground plane is 65% transparent and self-heals — the bottom layer / bottom silkscreen show through; a footer readout reports the live transparency so a regression to opaque is caught instantly.
• Panel deep-linking — #3d / #pcb / #schematic / #parts / #tsci-live URL hashes select a panel (shareable + AI-drivable).
• view home — CLI/HTTP preset for the ViewCube Home view.
• TTY-gated CLI color so OK:/ERROR:/Hint: never leak ANSI into pipes.

As of v0.3.0 the 3D tab is fully AI-drivable: every toolbar button has a CLI subcommand + HTTP endpoint, plus there's a /eval channel for hot-patching the running JS and a /console forwarder so Claude can read uncaught errors without clicking anything. No Adom Viewer service dependency — the Adom 3D viewer library is bundled into the binary.

As of v0.4.1, adom-tsci start does a pre-flight /proc sweep for stale bun tsci dev processes and cleans them up before spawning, plus holds an atomic PID lock at /tmp/adom-tsci-<port>.pid. No more orphan tsci devs compounding across crashed restarts.

Credit to Ray

This app is an onboarding layer over Ray's authoritative tscircuit workflow guide at ~/.claude/skills/adom/guides/adom-tscircuit-skill.md. Everything it does with tscircuit — the <Molecule> component, MachineContactMedium placement rules, the sizing grid, the DRC notes, the bunx tsci build --glbs --svgs flags, the project skeleton — traces back to Ray's guide. Go read it for connector families, molecule generators, review servers, and DRC tooling. adom-tsci just makes the "show me what I'm building" step trivial.

The UI

Primary tabs:

• 3D (default). Full-bleed canvas rendered by the Adom 3D Viewer (Babylon-based engine, bundled into the binary — no AV). Contact shadow + 65%-transparent ground plane (the board's bottom layer / silkscreen show through; a footer readout reports the live transparency). The ViewCube (top-right) handles Home / Fit / view presets; a floating draggable toolbar over the canvas carries ▭ ground, ⎚ wireframe, axes, 📏 measure, inspect, and the walkthrough. Floating component panel lists every chip / passive / testpoint / contact from circuit.json — click a row to hide that component and see the traces routed under it.
• PCB. Inline dist/lib/index/pcb.svg in a panzoom container.
• Schematic. Inline dist/lib/index/schematic.svg, same panzoom.
• Parts. Inspector listing every component grouped by kind (Connectors / LEDs / Resistors / Capacitors / Machine pins …) — click any to verify its footprint ↔ 3D-body alignment.

Secondary tab:

• tsci live. The raw tscircuit RunFrame through a slingshot proxy. Escape hatch for features upstream tscircuit ships that we haven't wrapped yet. Dimmed 0.78 because RunFrame is hardcoded-light-theme.

The Re-run autorouter button

Top-right of the header, right next to the GLB timestamp pill.

Click it to:

1. Touch lib/index.tsx via the slingshot → tsci dev file server. Fires a FILE_UPDATED event, RunFrame's in-memory view refreshes.
2. Spawn bunx tsci build lib/index.tsx --glbs --svgs in the background. Regenerates the on-disk 3d.glb, pcb.svg, and schematic.svg, which the first-class tabs poll for (/glb/meta every 3 s). Within ~30 s the 3D tab re-renders with the new layout and the PCB + Schematic tabs re-fetch on next click.
3. Shift-click for a clean re-run — also deletes manual-edits.json first so any interactive trace edits made in RunFrame's PCB editor are discarded.

Same from the CLI: adom-tsci rerun or adom-tsci rerun --clean.

Stale-deps check

adom-tsci start fires a background query against https://registry.npmjs.org/@tscircuit/cli/latest on launch and compares to the version in <project>/node_modules/@tscircuit/cli/package.json. If you're behind, you get one HINT: line:

HINT: @tscircuit/cli is out of date (installed 0.1.1226, latest 0.1.1234).
Run `adom-tsci upgrade` to refresh.

Non-fatal, 3-second timeout, never blocks startup. tscircuit does daily releases; this nudges you when you drift behind.

adom-tsci upgrade [project-dir] shells out to bun update --latest in the target project.

Quick start

# Install (one-time)
adom-wiki pkg install adom/adom-tsci

# From inside a tscircuit project directory:
adom-tsci start .

# Edit lib/index.tsx, click ⟳ Re-run autorouter in the header,
# watch the 3D / PCB / Schematic tabs re-render.

# When done:
adom-tsci stop

If you don't have a tscircuit project yet, see the adom-tscircuit skill for the 4-file skeleton.

Demo video

A 4-minute feature tour of everything in 1.2.0 is published at apps/adom-tsci on the wiki — 34 scenes with TTS narration, recorded against the RP2040 dev-board molecule.

The full demo pipeline (scene script, TTS generation, per-scene recording, mux + concat) lives under demo/ and is reproducible — see demo/README.md. Run it against any tscircuit project to re-cut the tour.

Examples

Ready-to-build example molecules live under examples/ — clone, bun install, and adom-tsci start <example-dir> to preview.

examples/SN65HVD230-Molecule/

Small reference molecule: a Texas Instruments SN65HVD230 CAN transceiver in SOIC-8, wrapped in a 16×16 mm molecule with power + CAN bus broken out to six MachineContactMedium pins. Includes a 100 nF decoupling cap, the 120 Ω CAN bus termination resistor, and per-pin silkscreen labels.

examples/BME680-Breakout-Molecule/

Environmental-sensor breakout: a Bosch BME680 four-in-one sensor (temperature, humidity, barometric pressure, and a heated metal-oxide gas-resistance plate that tracks VOC concentration) in a 3×3 mm LGA-8 package, wrapped in a 24×16 mm molecule. Power + I²C bus + the two SPI-only pins (SDO, CSB) are broken out on six MachineContactMedium pins. Internally: 100 nF decoupling on each supply rail (VDD and VDDIO), 10 kΩ pull-ups on SDA and SCL, and a third 10 kΩ from CSB→VDDIO so the chip boots into I²C mode (address 0x77 by default; tie SDO low at the host to switch to 0x76 and run two BME680s on one bus). One <testpoint> per broken-out signal for probing-workcell access, and a bottom-silk ID card (part number, function, I²C address, supply range, revision).

examples/BHI360-Breakout-Molecule/

Motion-sensor breakout: a Bosch BHI360 6-axis IMU (accelerometer + gyroscope) with a built-in Fuser2 DSP core that runs orientation-fusion firmware on-chip, so the host MCU can stay asleep while the sensor tracks motion. LGA-20 (3×2.5 mm) package, wrapped in a 24×24 mm molecule. Eight MachineContactMedium pins break out the SPI/I²C interface (CSB / SCK / SDI / SDO, left edge) and power + interrupt (INT / VDD / VDDIO / GND, right edge) — tie CSB high at the host to select I²C, leave it driven for SPI. Internally: 100 nF decoupling on each supply rail (VDD core + VDDIO I/O), silkscreen section headers (SPI/I2C / PWR), a bottom-silk ID card, and one 0.8 mm <testpoint> per broken-out signal for probing-workcell access.

Demonstrates an LGA-20 part on a footprinter that only ships qfn/son/dfn/bga primitives — qfn20_w4mm_h4mm_p0.5mm is used as the closest spatial match (QFN pads sit where the LGA pads land on the bottom of the package).

examples/iCE40HX1K-VQ100-Molecule/

Big FPGA breakout: a Lattice iCE40HX1K in a 14×14 mm TQFP-100 (VQ100) package, wrapped in a 56×56 mm molecule that breaks out all 100 chip pins to MachineContactMedium contacts on the matching edge. Each pin also gets a dedicated <testpoint> for probing-workcell access.

Silkscreen sections group the pins functionally: SPI (programming), PROG (CRESET/CDONE), IO BANK 0/1/2/3, plus a NO USB / NO UART / NO SWD reminder — the iCE40 is an FPGA, not an MCU, so there's no debug port in the ARM sense; you program it through the SPI pins (pins 67–71) via an iCELink/FT232 adapter and boot from a downstream SPI flash.

examples/iCE40HX1K-USB-Molecule/

Same iCE40HX1K FPGA, now with USB-C programming built in — an "easy to use FPGA dev board." Plug a USB-C cable from your host into the board and load a bitstream with iceprog or fujprog. No external programmer, no JTAG dongle, no manual pin wiring.

Onboard stack:

• USB-C receptacle with ESD protection (USBLC6-2P6)
• FT2232H — dual-channel USB→SPI/UART bridge. Channel A in MPSSE mode talks to the iCE40's SPI programming pins (iceprog-compatible). Channel B is a USB-UART console you can attach to a soft-UART running inside your FPGA bitstream.
• W25Q16JV 2 MB SPI boot flash — the FT2232H writes your bitstream here, and the iCE40 reads from it on power-up so the board boots standalone without a host.
• AP7333-33 (3.3 V) and AP2112-1V2 (1.2 V) LDOs from USB 5 V for FPGA VCCIO + VCC core rails
• 12 MHz crystal for the FT2232H, 93LC56B EEPROM for its USB VID/PID
• 32 GPIO + 3 power contacts broken out on the molecule edge
• Programming pass-through — 6 edge contacts on the left side (SCK / SS / SO / SI / CRESET / CDONE, marked with a → VQ100 PROG silkscreen callout) that carry the FT2232H's SPI bus out to mate with a downstream iCE40HX1K-VQ100-Molecule. Dock that molecule here and a single iceprog invocation reaches the bare FPGA through this board's onboard USB bridge.
• 16 test points on the critical nets (VBUS, 3V3, 1V2, GND, USB D+/- on both sides of the ESD chip, the SPI programming bus, CRESET/CDONE, UART TX/RX) as SMT copper pads for a probing workcell's pogo pins — footprintVariant="pad", 1 mm diameter, top layer

Architecture

+---------------------------+        +---------------------------+
|  Hydrogen webview tab     |        |  adom-tsci (Rust)         |
|  /proxy/8850/             |<------>|  tiny_http on 8850        |
|                           |        |                           |
|  +----------+             |        |  /              shell.html
|  |   3D     |<------------+------->|  /glb           file stream
|  +----------+             |        |  /pcb.svg       file stream
|  |  PCB     |             |        |  /schematic.svg file stream
|  +----------+             |        |                           |
|  | Schematic|             |        |  /runframe/     slingshot
|  +----------+             |        |  /runframe/api/*  (proxy)
|                           |        |  /runframe/standalone.min.js
|  +----------+             |        |                           |
|  | tsci live|<------------+------->|  /runframe/…    slingshot
|  +----------+             |        |                           |
|                           |        |  /basic-3d.html     (legacy)
|                           |        |  /js/adom-3d-viewer.min.js
|                           |        |  /js/environmentSpecular.env
|                           |        |                           |
|                           |        |  /console  /eval  /eval/* (AI bridges)
|                           |        |  /api/set-view /api/set-camera
|                           |        |  /api/toggle   /api/toggle-component
|                           |        |  /api/components   /api/tour
|                           |        |  /rerun /reload /shutdown /health
|  ⟳ Re-run autorouter -----+------->|                           |
+---------------------------+        +---------------------------+
                                              |
                                              v
                                    +--------------------+
                                    | bun tsci dev       |
                                    |   -p 3040          |
                                    | (process group)    |
                                    +--------------------+

The slingshot fix (why this app exists)

tsci dev emits a hardcoded absolute URL in its HTML shell:

window.TSCIRCUIT_FILESERVER_API_BASE_URL = "http://127.0.0.1:3040/api";

Inside a Hydrogen webview iframe, 127.0.0.1 is the user's machine, not the container — so every fetch fails and RunFrame hangs at loading... forever. adom-tsci's slingshot rewrites that line (and the absolute /standalone.min.js script tag) to relative paths, then transparently proxies /runframe/api/* to tsci dev on port 3040.

v0.2 note: the v0.1 proxy handler had a bug where route-match query-string stripping also dropped the query string on forward, breaking files/get?file_path=.... v0.2 ships a full method/body/ query-aware proxy handler. If you're upgrading from v0.1, this is why your tabs suddenly work.

tsci dev uses HTTP polling (/api/events/list?since=<id>), no WebSockets, so the slingshot is a plain HTTP forwarder.

CLI commands

See SKILL.md for the full reference. Summary:

Command	Purpose
start <dir>	Spawn tsci dev, start slingshot, open webview tab
stop	Clean shutdown (kills whole tsci process group)
status [--json]	Query running instance state
open	Re-add or navigate webview tab
reload	Force first-class tabs to re-poll build outputs
rerun [--clean] [--fast]	Re-run the autorouter (touches .tsx + spawns build)
upgrade [dir]	bun update --latest in target project
health	Probe tsci_reachable
install	Drop SKILL.md into ~/.claude/skills/adom-tsci/
AI-drive the 3D viewer
view <preset>	home (ViewCube Home)/front/back/left/right/top/bottom/iso
camera [--alpha A] [--beta B] [--radius R]	Raw camera position
tour start | stop	Cinematic slow-orbit
toggle <flag>	Flip ground/wireframe/axes
toggle-component <NAME> [--hide | --show]	Show/hide a component (e.g. U1 to see traces)
list-chips	List components the UI discovered in the current GLB
eval "<js>"	Run JS inside the webview, print the result
console [--follow]	Tail the forwarded JS console (logs + uncaught errors)

HTTP API

Every state-mutating CLI command is a thin wrapper over an HTTP endpoint. AI agents and shell scripts can curl them directly:

curl http://127.0.0.1:8850/health
curl http://127.0.0.1:8850/glb/meta
curl -X POST http://127.0.0.1:8850/rerun
curl -X POST "http://127.0.0.1:8850/rerun?clean=1"
curl -X POST http://127.0.0.1:8850/shutdown

See SKILL.md for the full reference.

Development

git clone https://github.com/adom-inc/adom-tsci
cd adom-tsci
cargo build --release
cp target/release/adom-tsci ~/.local/bin/
adom-tsci install

Rust 1.70+, standard cargo toolchain. Unit tests cover the slingshot HTML rewrite (the load-bearing regex):

cargo test

Known v0.3 limitations

• Component mapping coverage is partial. The UI groups GLB meshes by nearest pcb_component centroid; some multi-mesh components (especially SOIC/SOT bodies with many primitives) can end up split across neighbouring names or fall into the Board catch-all. Kind-aware tolerances (chip=10mm, testpoint=1.2mm, contact=2mm, …) get most of the obvious ones right; edge cases tracked for v0.4.
• The tsci live tab is dimmed (filter: brightness(0.78)) because tscircuit's RunFrame is hardcoded light-theme. When they ship a dark mode, the filter comes out.
• Re-run autorouter rebuilds the whole circuit, not just the autorouter. tscircuit doesn't expose a standalone "run just the autorouter" entry point — the only way to refresh route layouts is to re-evaluate the circuit, which runs the whole pipeline. On a single-chip molecule this takes ~30 seconds.
• GLB is bundled into the binary (the adom-3d-viewer.min.js library is 13 MB, environmentSpecular.env is ~270 KB), pushing the release binary to ~18 MB. Trade-off: self-contained, zero runtime dependencies, offline-friendly.

Design document

The original design plan lives at docs/design/valiant-herding-dove.md, preserved from the v0.1 planning session. Every non-obvious choice (Rust over Bun, three.js in the generic pane, port 8850, the "don't touch Ray's guide" boundary, why the slingshot uses a regex rewrite) is documented there. v0.2 adds the first-class tabs, rerun button, upgrade check, and the renamed binary on top of that foundation — see the commit history for the v0.1 → v0.2 evolution.

Acknowledgements

• Ray — for the tscircuit workflow guide this app exists to support.
• tscircuit — for the DSL and the RunFrame bundle.
• The Adom platform team — for the webview panel API, Basic3dView, serve_glb, the shotlog service, the brand guide (icons must be monochrome #e6edf3 — this app's favicon follows that rule), and the hydrogen-tab-icons skill that documents how tab icons actually work.

License

MIT. See LICENSE.
