UNI-ROYAL 0603WAF4702T5E - 47 kOhm 1% 0603 chip resistor. Canonical adom-lbr JSON + KiCad symbol/footprint + step2glb 3D. Referenced by the Teazzers Taprite solenoid carrier boards.

componentresistor0603adom-lbr
Overview Files Packages Releases Dependencies Issues Breadcrumbs Pull Requests Activity

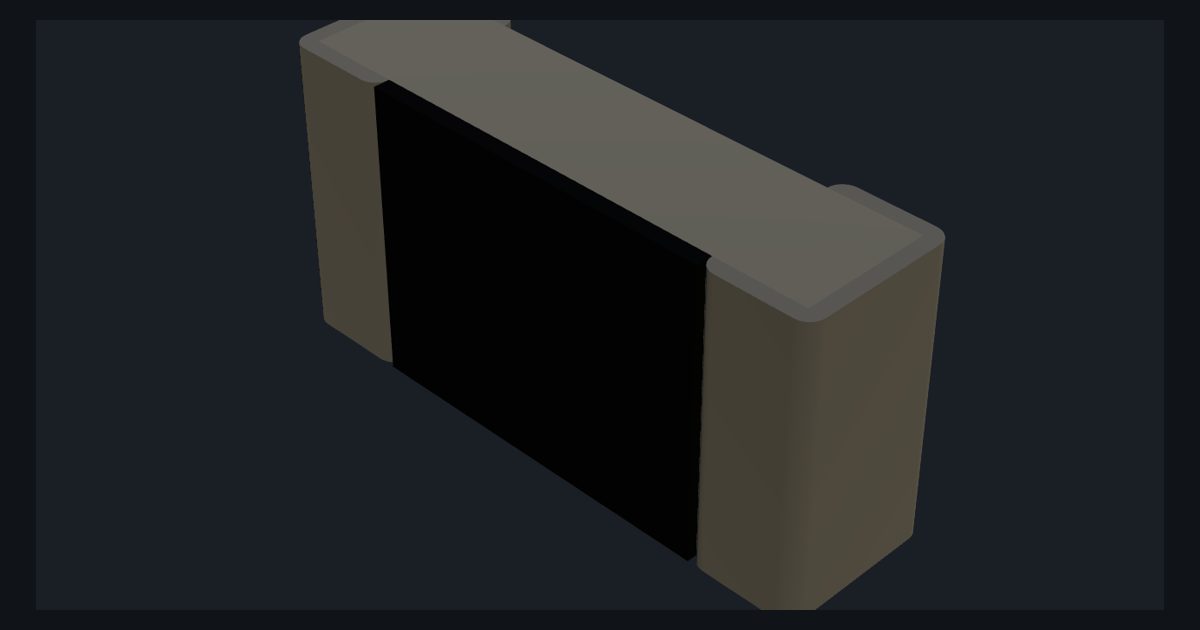

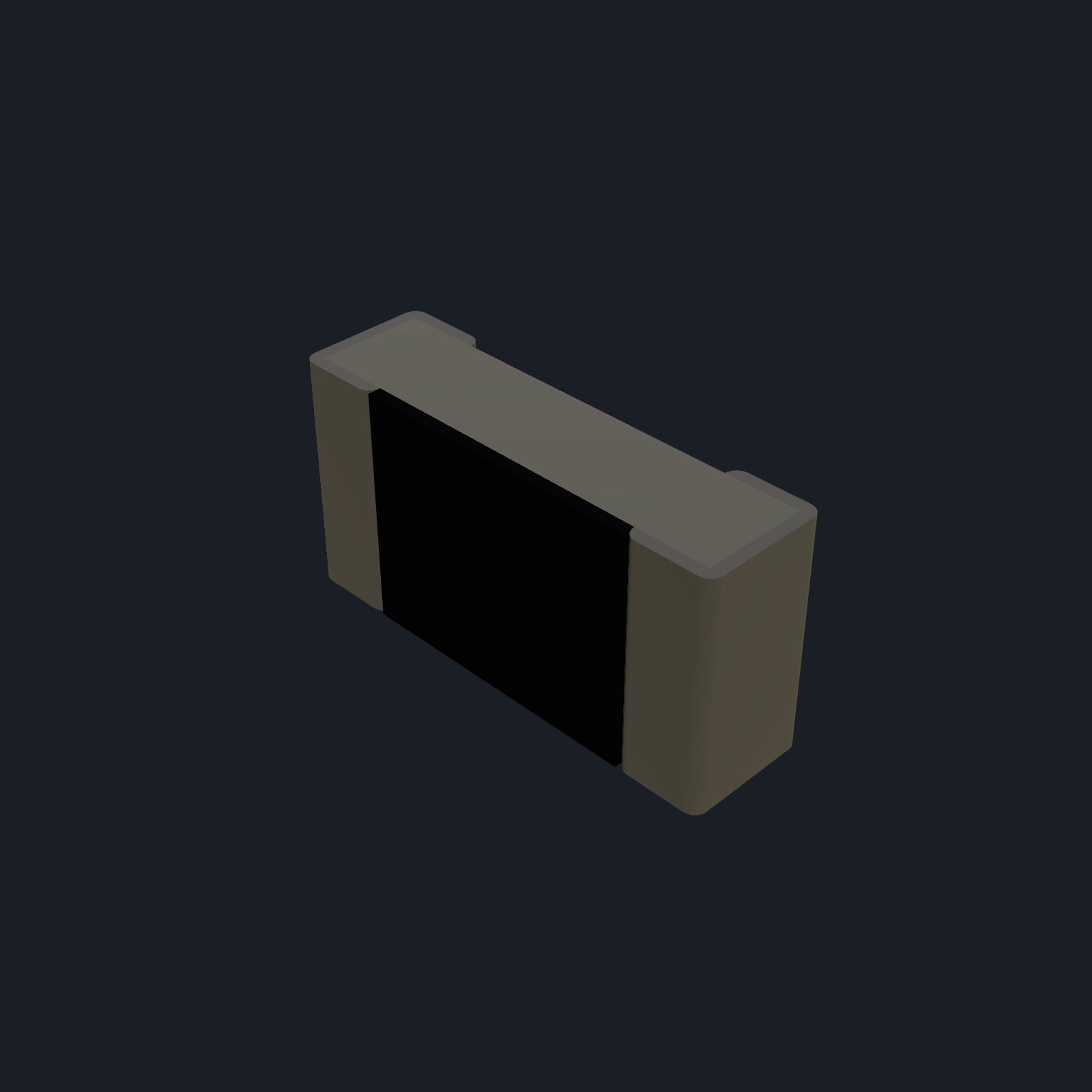

3D Model

Symbol & Footprint

Schematic Symbol

Open full view ↗

PCB Footprint

Open full view ↗

0603WAF4702T5E

UNI-ROYAL 47 kOhm 1% 0603 (1608 metric) chip resistor.

Assets: KiCad symbol + footprint (stdlib R / R_0603_1608Metric), STEP + step2glb GLB (decoder-free quantized), canonical 0603WAF4702T5E.adom-lbr.json, and a Fusion-ready .lbr.

MPN note: the source BOM listed this part only as "47k / R_0603" with no MPN; this page keys it to the standard basic part per the MPN-only rule (molecule-publish #142). If your build uses a different 47k 0603, swap the dep.

Files

0603WAF4702T5E.glb 3D Model (GLB) 0603WAF4702T5E.step STEP CAD Model 0603WAF4702T5E.kicad_mod KiCad Footprint 0603WAF4702T5E.kicad_sym KiCad Symbol 0603WAF4702T5E.adom-lbr.json Data File 0603WAF4702T5E.lbr EAGLE Library hero-render.png Image hero.png Image hero.png Image package.json Data File
