Summary

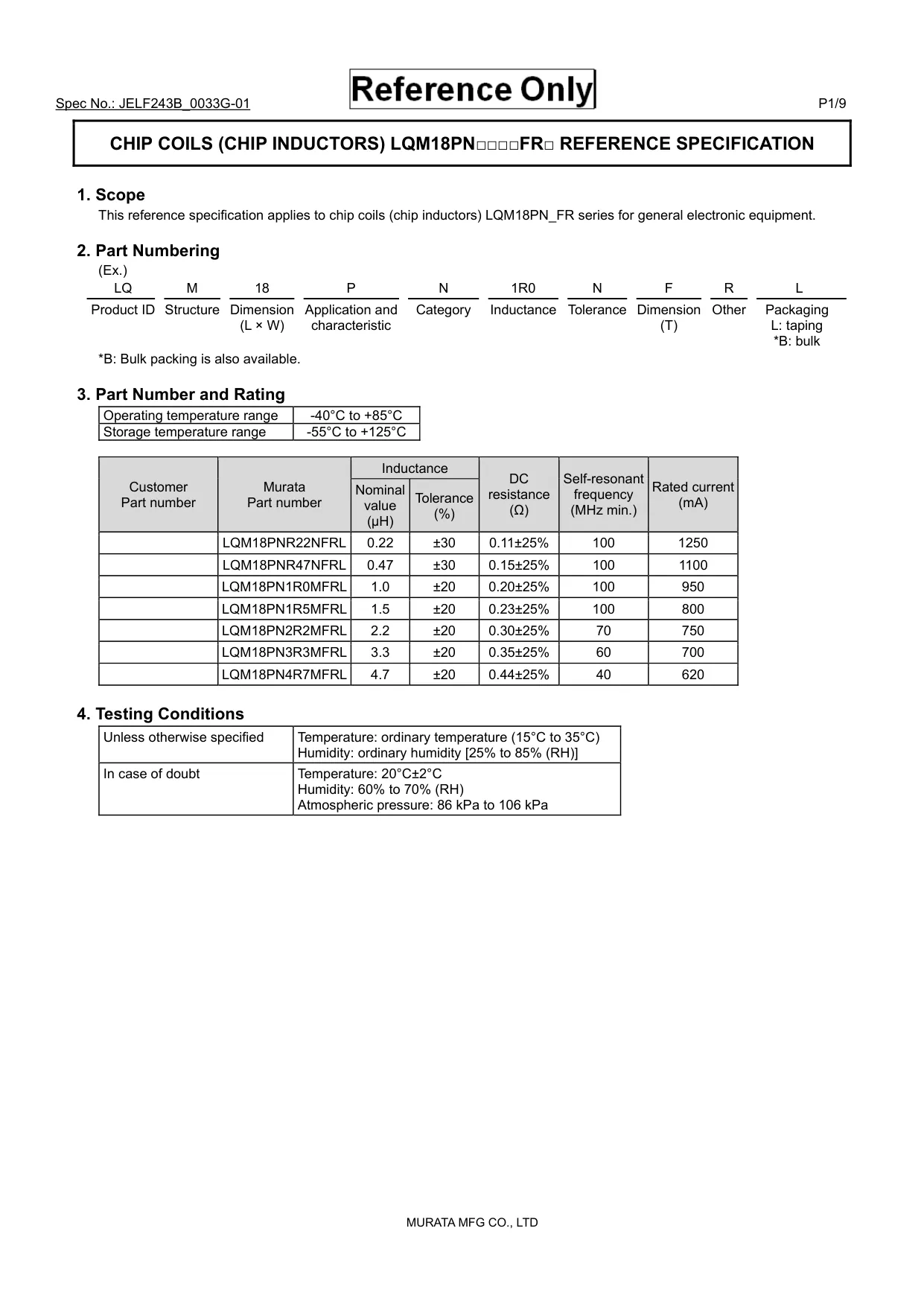

every figure cited to the datasheet below- 0603 chip coil, LQM18PN_FR series for general electronic equipment — 1.6 × 0.8 × 0.8 mm, 0.005 gp.1, p.2
- 4.7 µH ±20%, inductance measured at 1 MHz (Keysight 4294A, 1 mA)p.1, p.2
- Rated current 620 mA on a temperature-rise basis — product self-heating limited to 40 °C max, the spec's only rated-current criterionp.1, p.2
- DC resistance 0.44 Ω ±25%p.1
- Self-resonant frequency 40 MHz minp.1
- Operating −40 to +85 °C; storage −55 to +125 °Cp.1

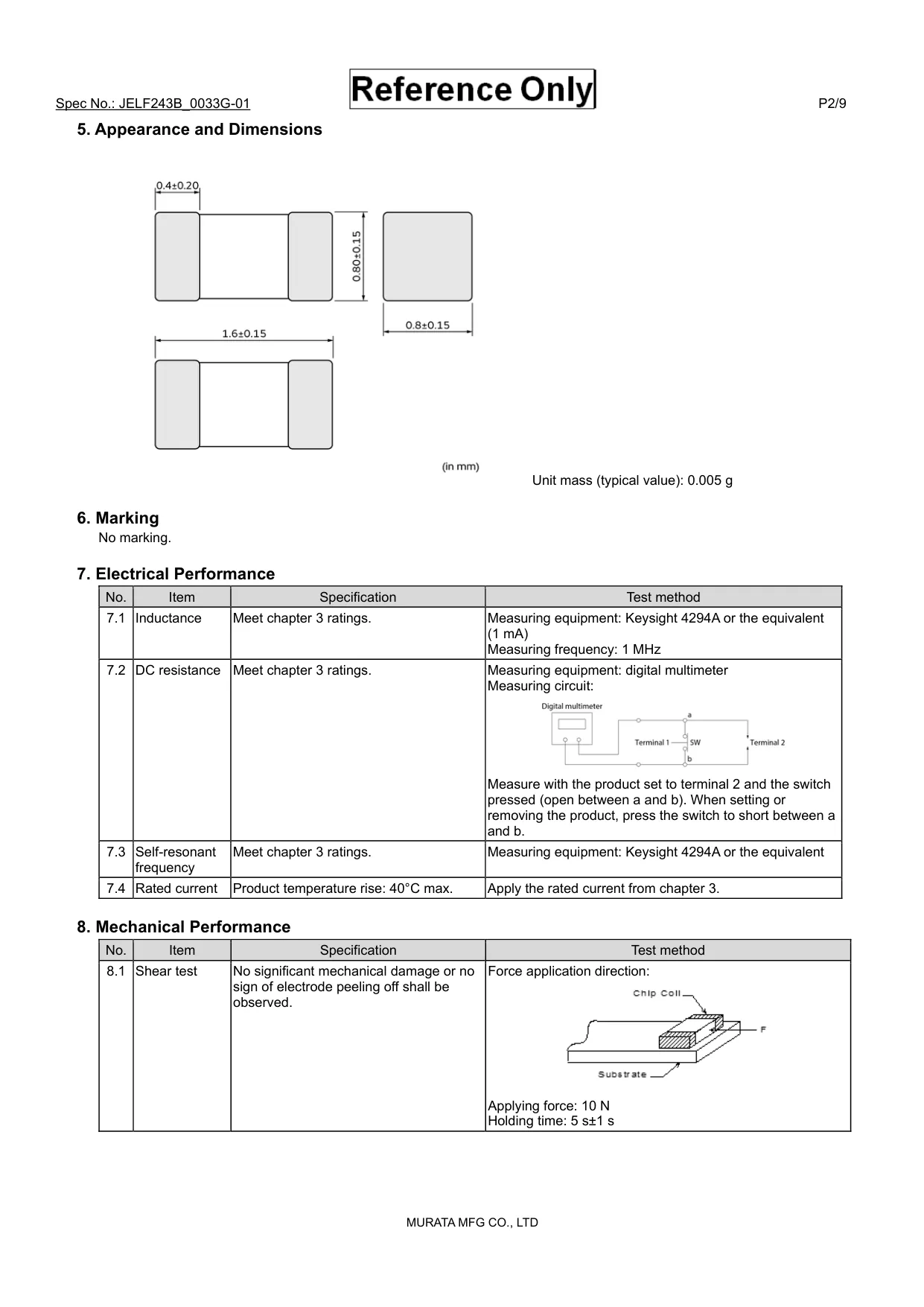

- No marking on the bodyp.2
- 1000 h heat, cold and humidity endurance with inductance change held within ±30%p.3

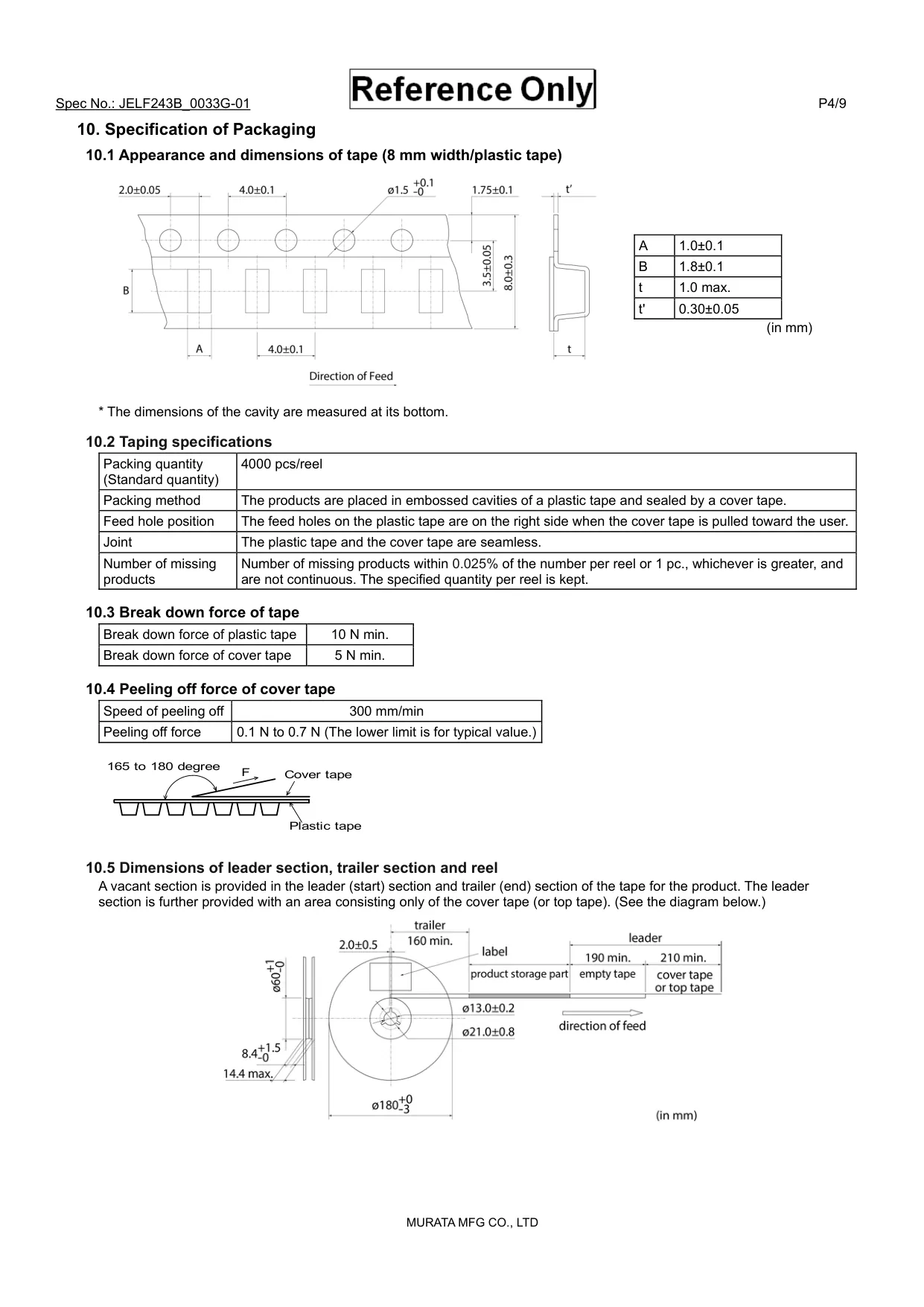

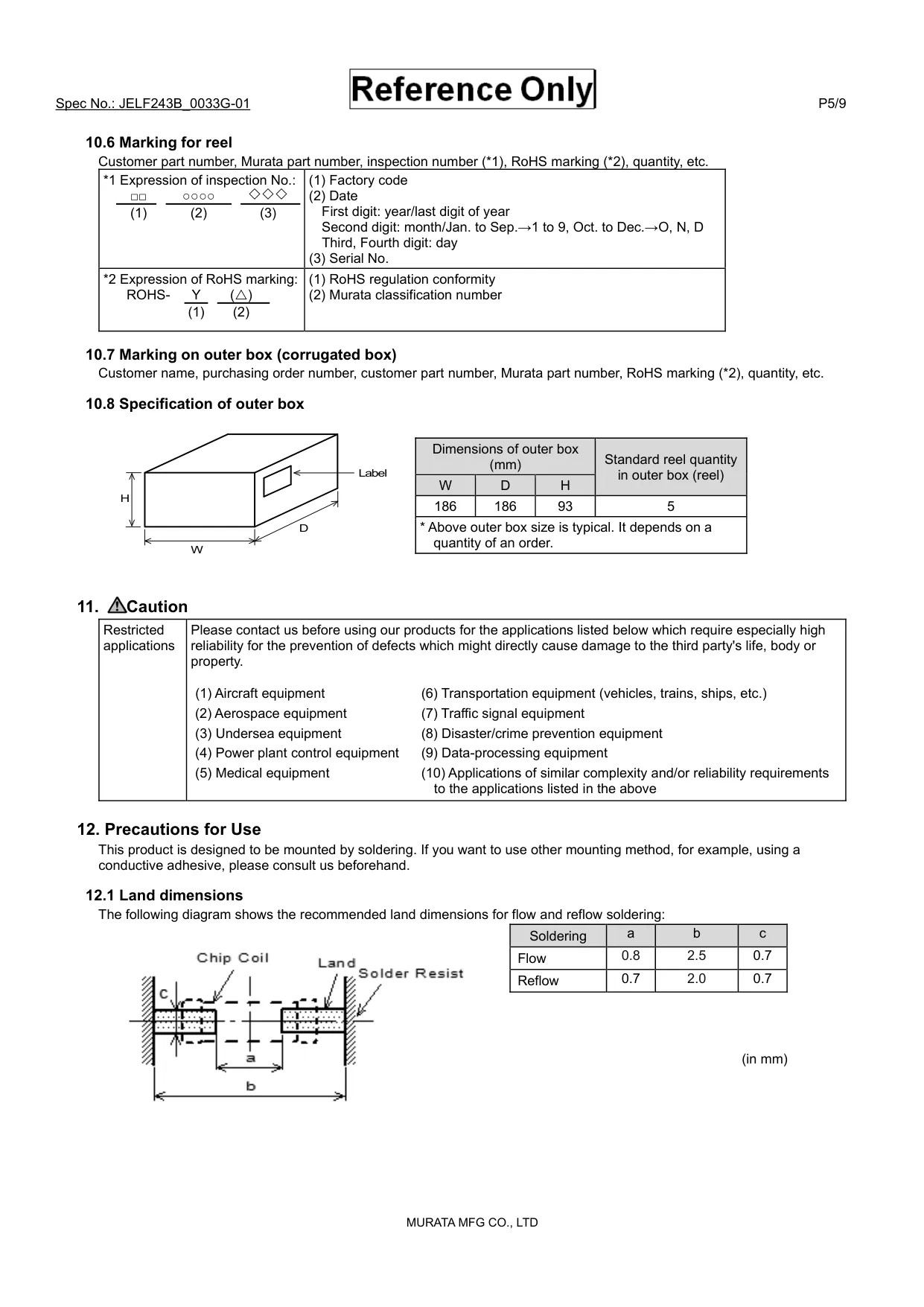

- 8 mm embossed plastic tape, 4,000 pcs per reelp.4

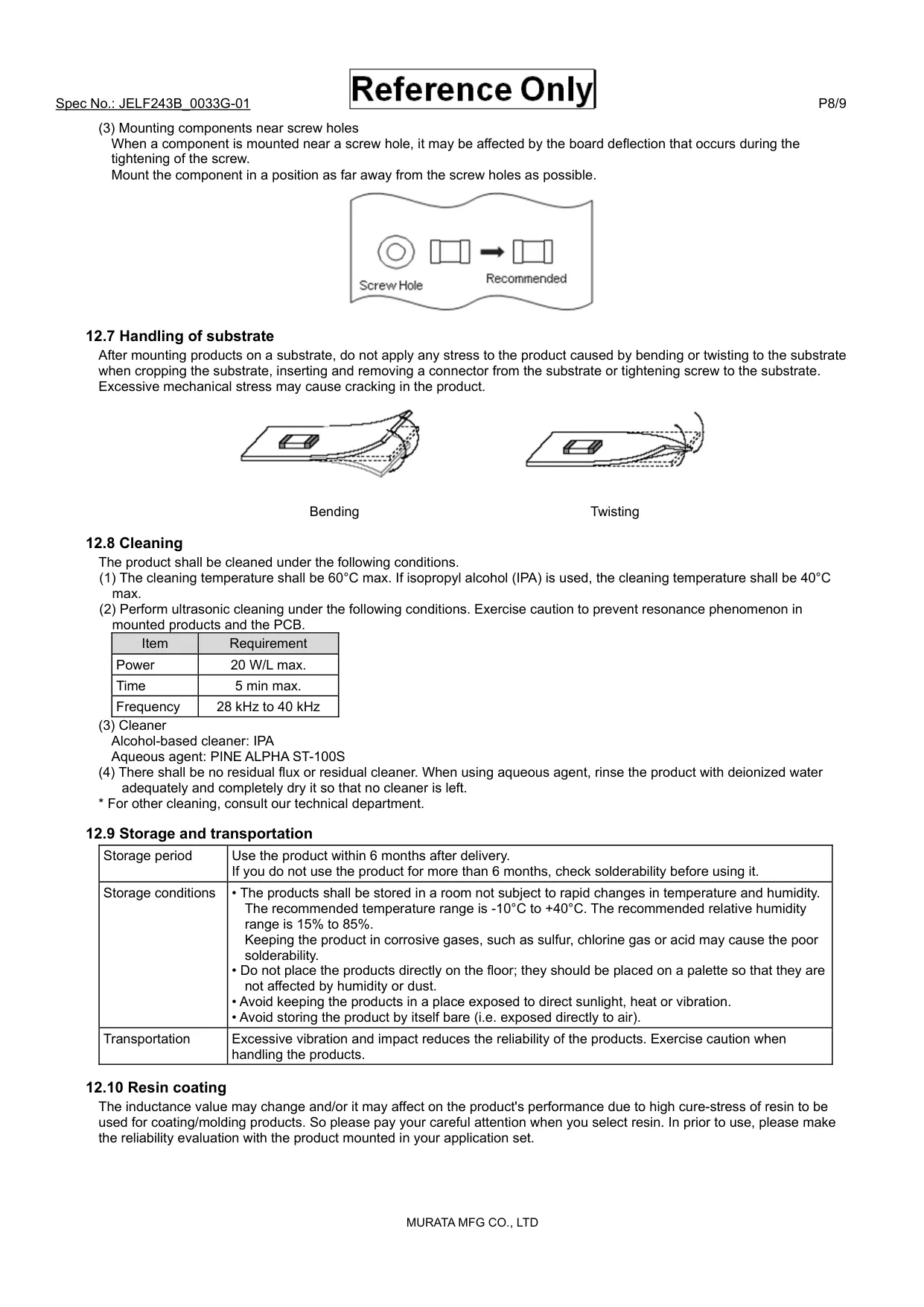

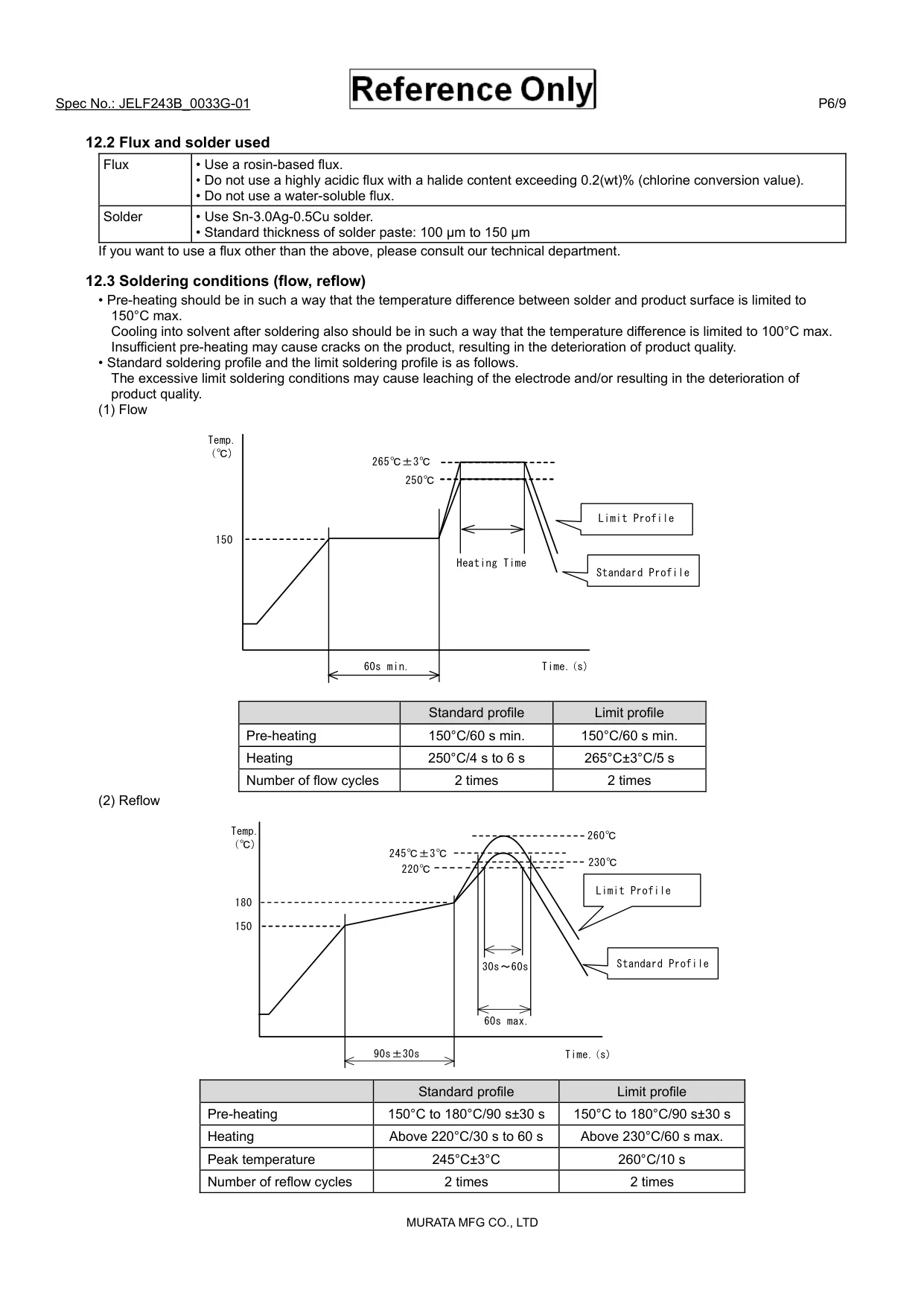

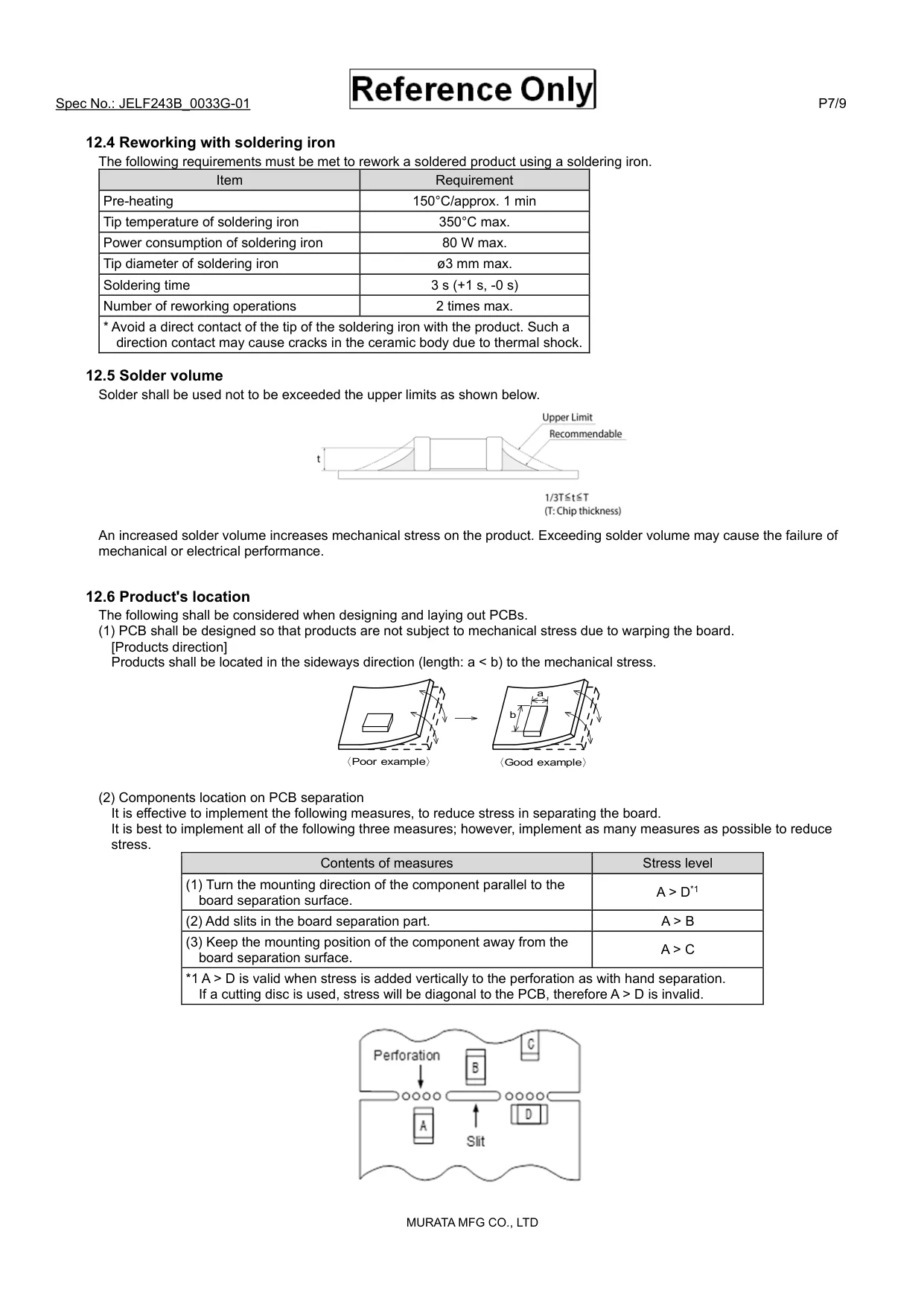

LQM18PN4R7MFRL is the largest FR value Adom stocks: 4.7 µH ±20% in the same 0603 body (1.6 × 0.8 × 0.8 mm) as the rest of Murata's LQM18PN_FR chip-coil series, inductance specified at 1 MHz.p.1, p.2 It trades current handling for inductance: 0.44 Ω ±25% of DC resistance, 620 mA rated, and self-resonance above 40 MHz — the lowest SRF of the series' seven values.p.1

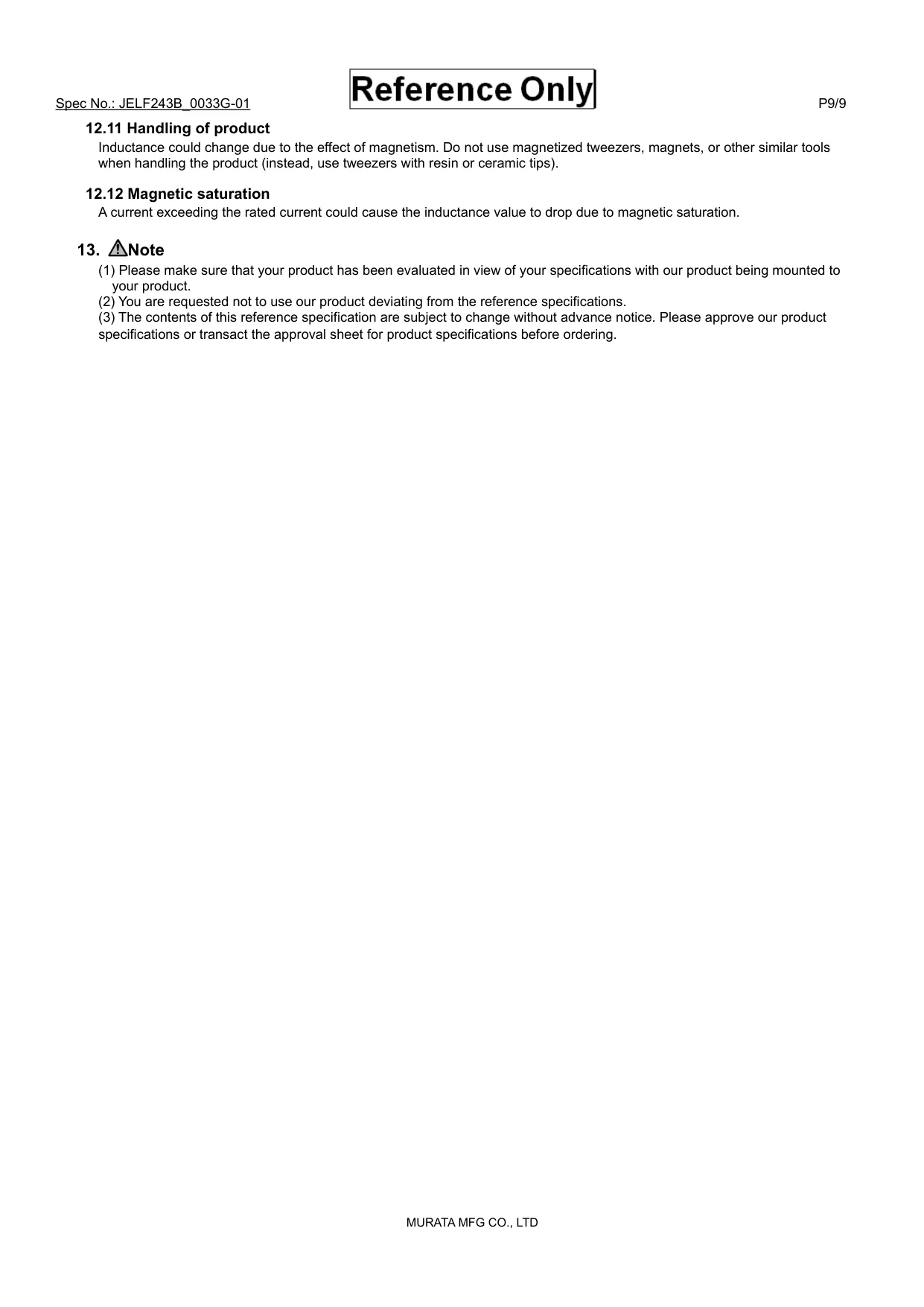

The 620 mA is a thermal rating — 40 °C self-heating max — and the only rated-current criterion this spec defines, with no separate inductance-change figure.p.1, p.2 Operating range is −40 to +85 °C (storage −55/+125 °C),p.1 the body carries no marking,p.2 and the reel holds 4,000 pieces on 8 mm embossed plastic tape.p.4
