Summary
every figure cited to the datasheet below- 0603 chip coil, LQM18PN_FR series for general electronic equipment — 1.6 × 0.8 × 0.8 mm, 0.005 gp.1, p.2
- 2.2 µH ±20%, inductance measured at 1 MHz (Keysight 4294A, 1 mA)p.1, p.2
- Rated current 750 mA on a temperature-rise basis — product self-heating limited to 40 °C max, the spec's only rated-current criterionp.1, p.2
- DC resistance 0.30 Ω ±25%p.1
- Self-resonant frequency 70 MHz minp.1
- Operating −40 to +85 °C; storage −55 to +125 °Cp.1
- No marking on the bodyp.2
- 1000 h heat, cold and humidity endurance with inductance change held within ±30%p.3
- 8 mm embossed plastic tape, 4,000 pcs per reelp.4
LQM18PN2R2MFRL is the 2.2 µH ±20% member of Murata's LQM18PN_FR chip-coil series for general electronic equipment: a 0603 body (1.6 × 0.8 × 0.8 mm) with its inductance specified at 1 MHz.p.1, p.2 It carries 0.30 Ω ±25% of DC resistance and a 750 mA rated current, with self-resonance above 70 MHz.p.1
The 750 mA is a thermal rating — 40 °C self-heating max — and the only rated-current criterion this spec defines, with no separate inductance-change figure.p.1, p.2 Operating range is −40 to +85 °C (storage −55/+125 °C),p.1 the body carries no marking,p.2 and the reel holds 4,000 pieces on 8 mm embossed plastic tape.p.4
3D Assembly
Static · Pick-and-Place — drag to orbit, scroll to zoomSchematic & Layout
interactive — drag to pan, scroll to zoom, click a pin or pad for detailSchematic Symbol
2D Layout
Datasheet

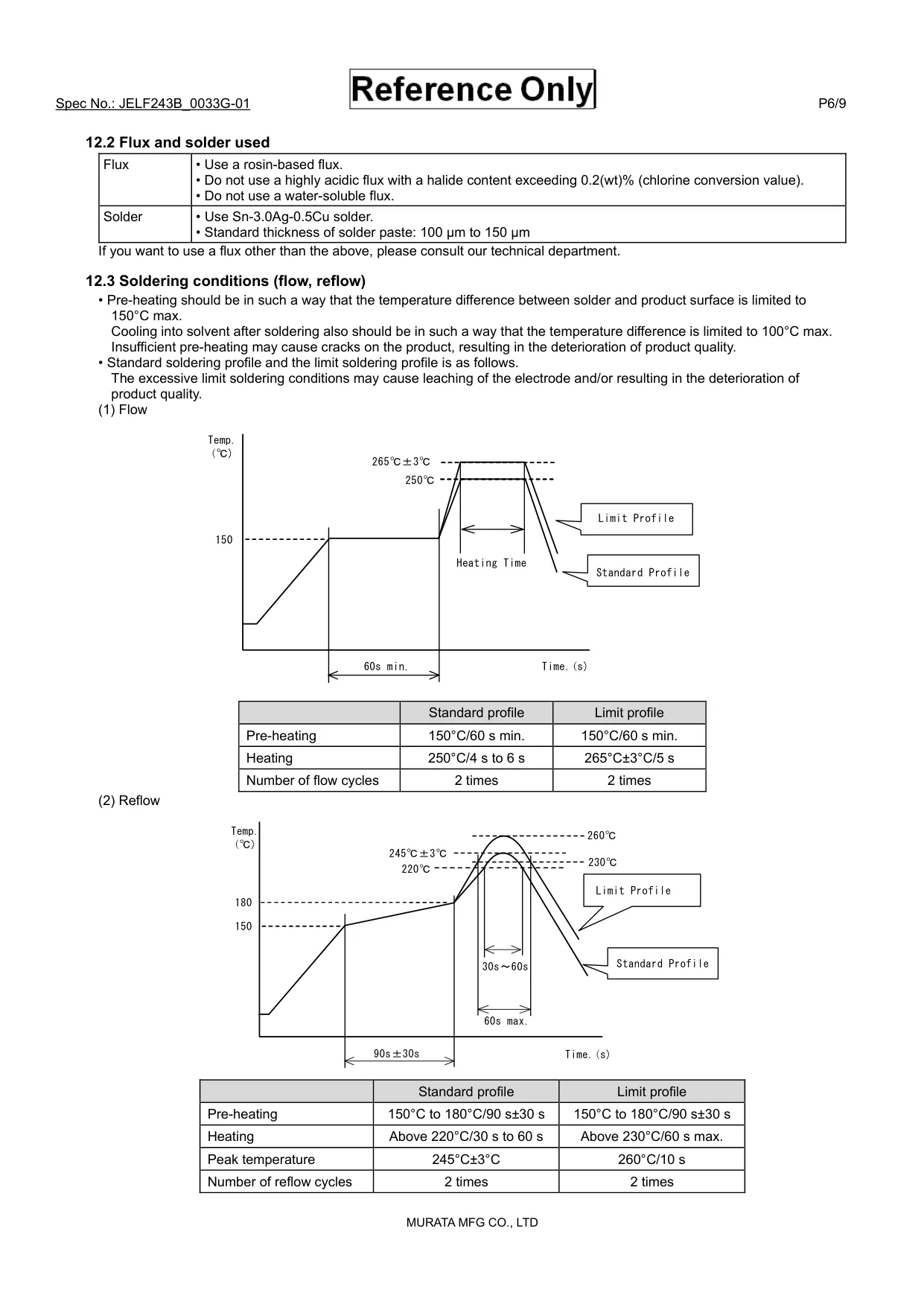

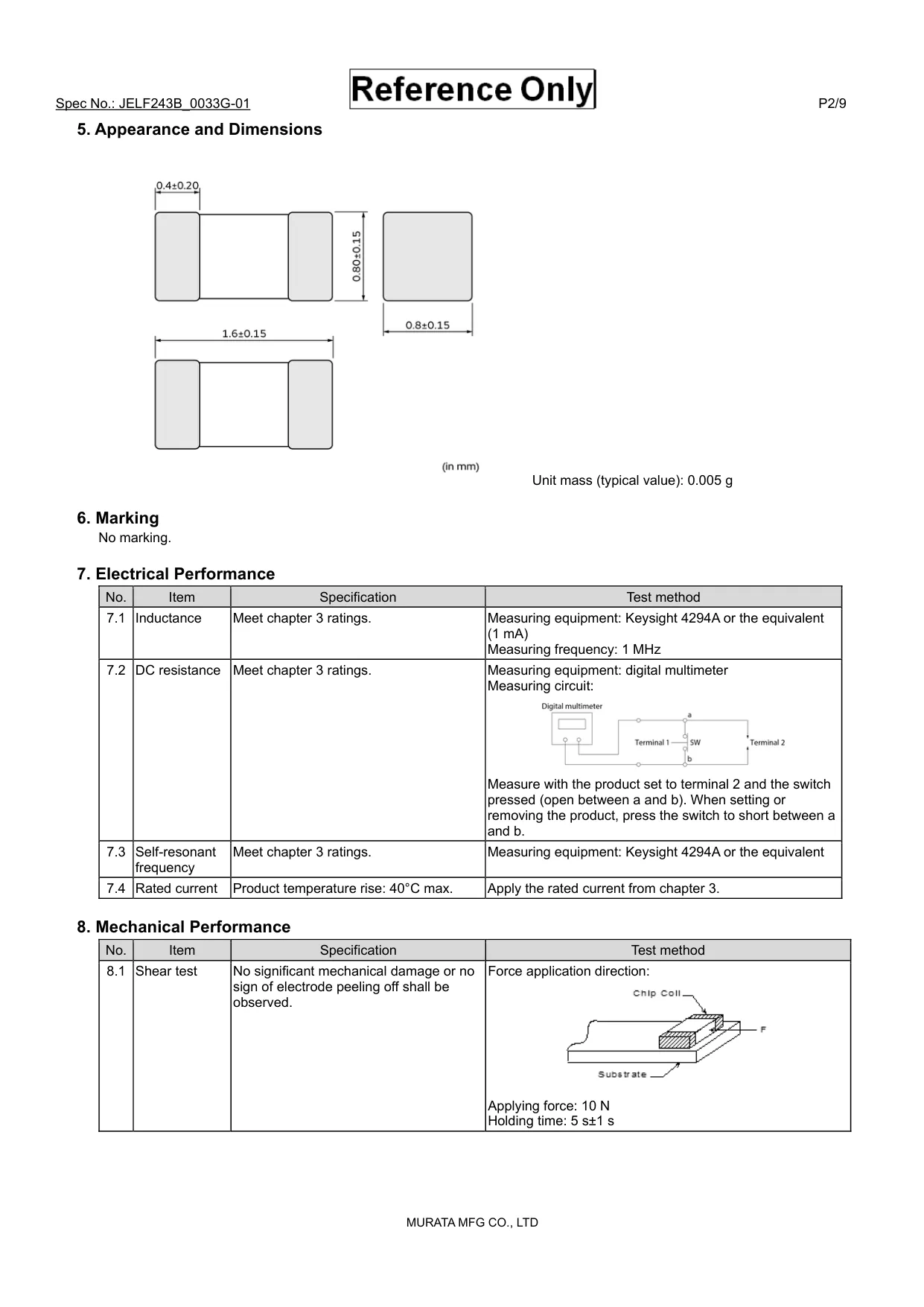

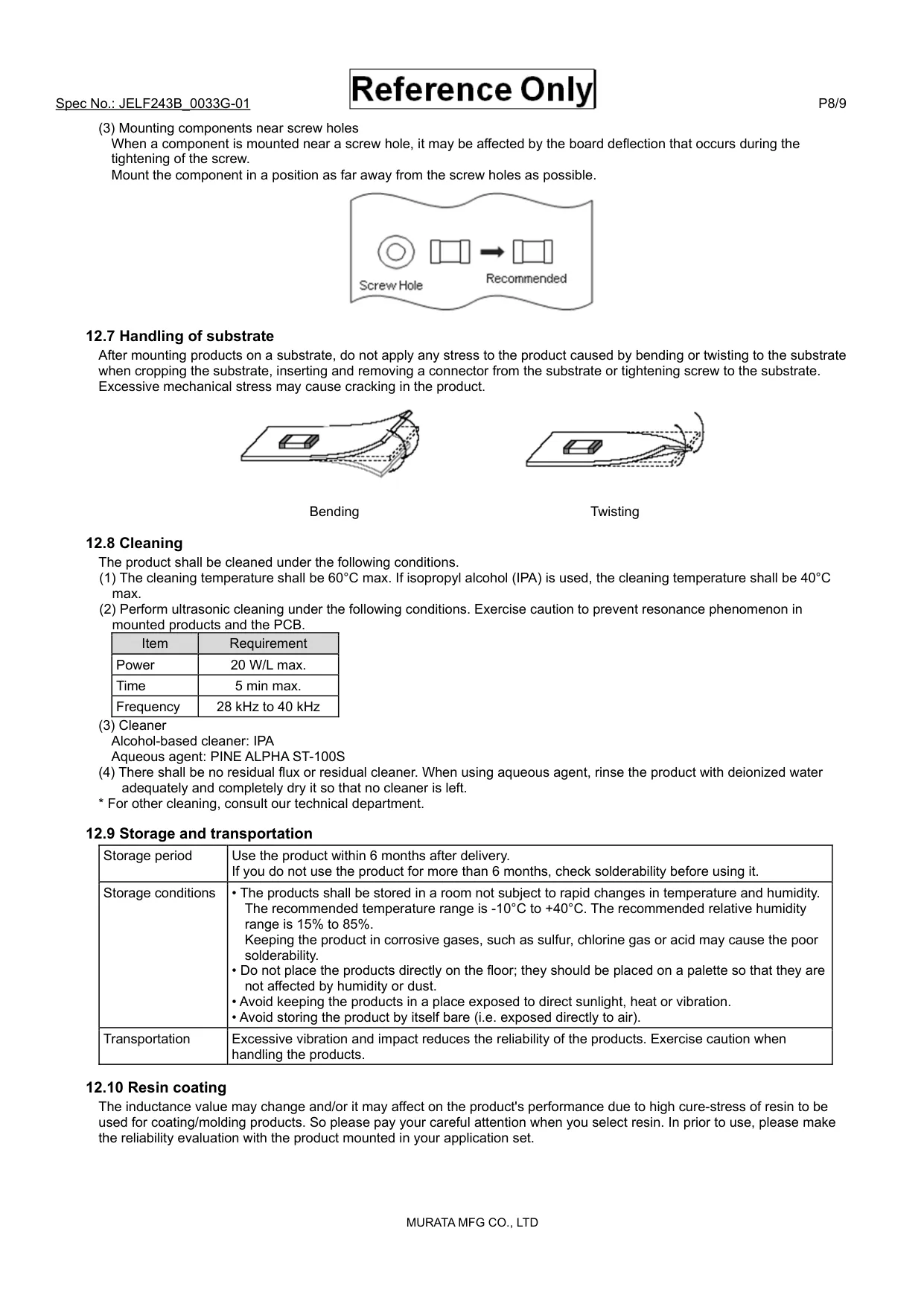

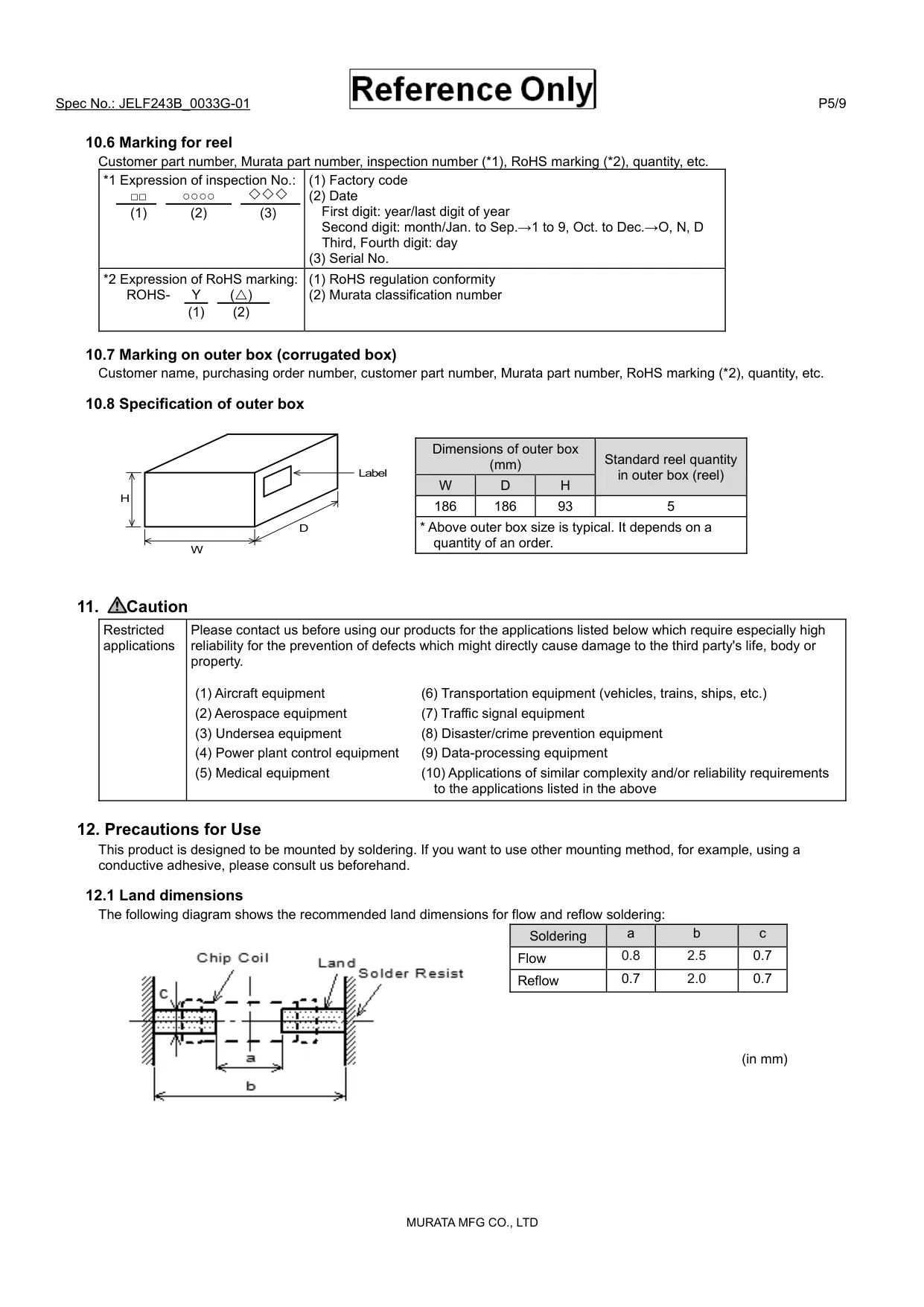

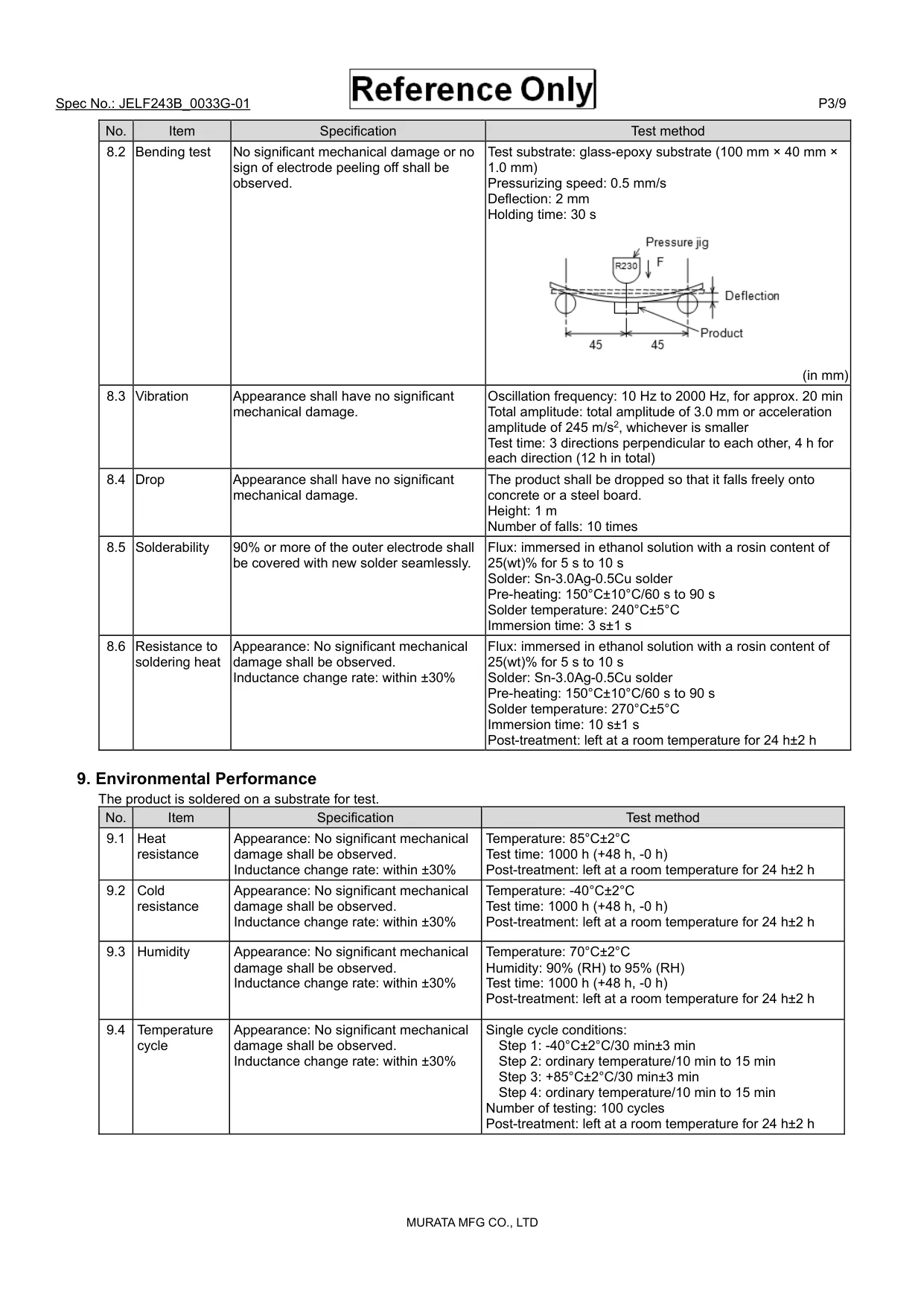

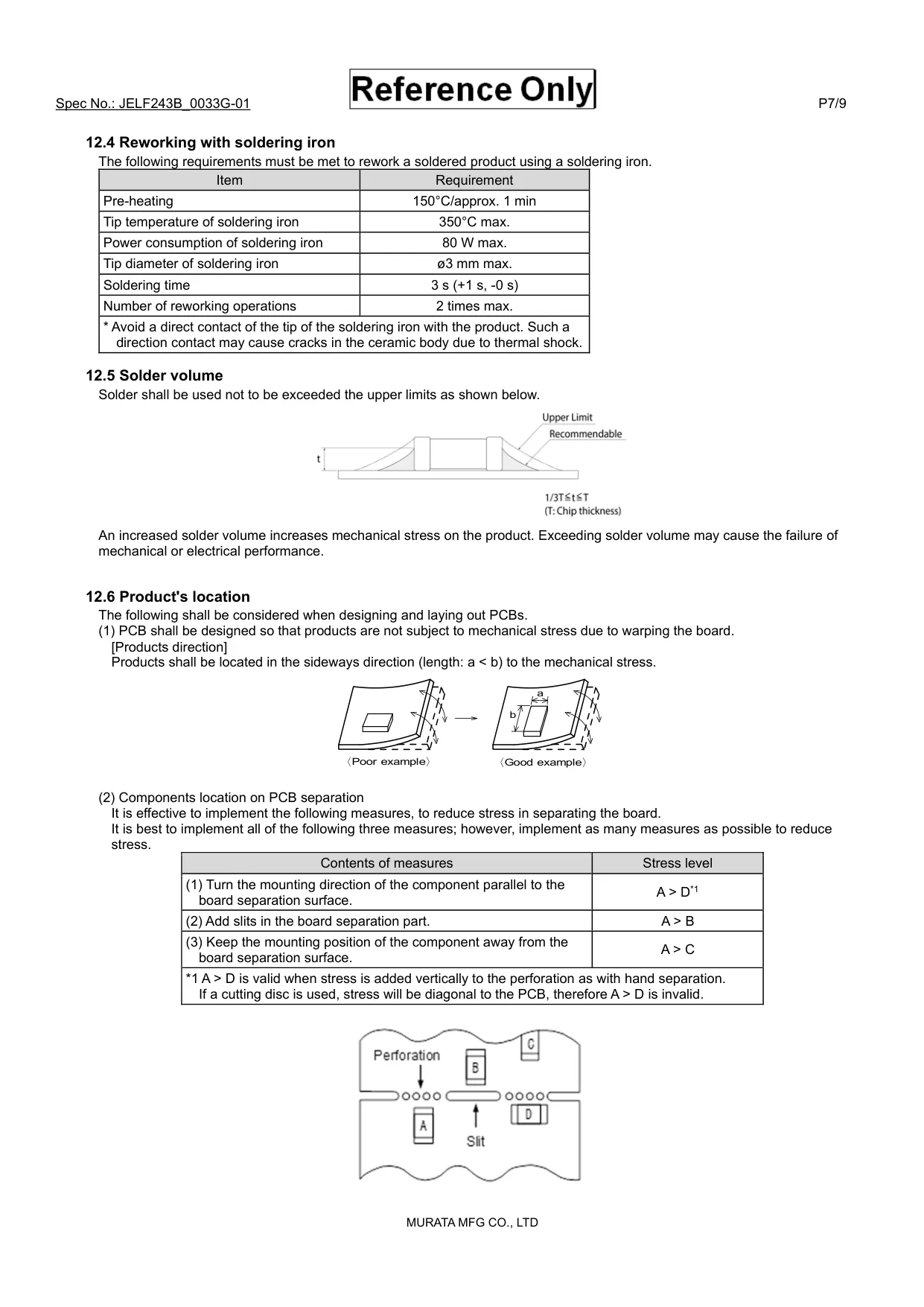

the source of every number on this pageDocumentFour Murata LQM18 reference specifications (per-part docs): JN = 'CHIP COIL (CHIP INDUCTOR) for Consumer equipment & Industrial equipment LQM18JN□□□□00D REFERENCE SPECIFICATION'; DH = 'CHIP COIL (CHIP INDUCTOR) for Automotive powertrain/safety equipment LQM18DH□□□□70□ Murata Standard Reference Specification [AEC-Q200]'; PN-FR = 'CHIP COILS (CHIP INDUCTORS) LQM18PN□□□□FR□ REFERENCE SPECIFICATION'; PN-FH = 'CHIP COIL (CHIP INDUCTOR) for Consumer equipment & Industrial equipment LQM18PN□□□□FH□ REFERENCE SPECIFICATION'
