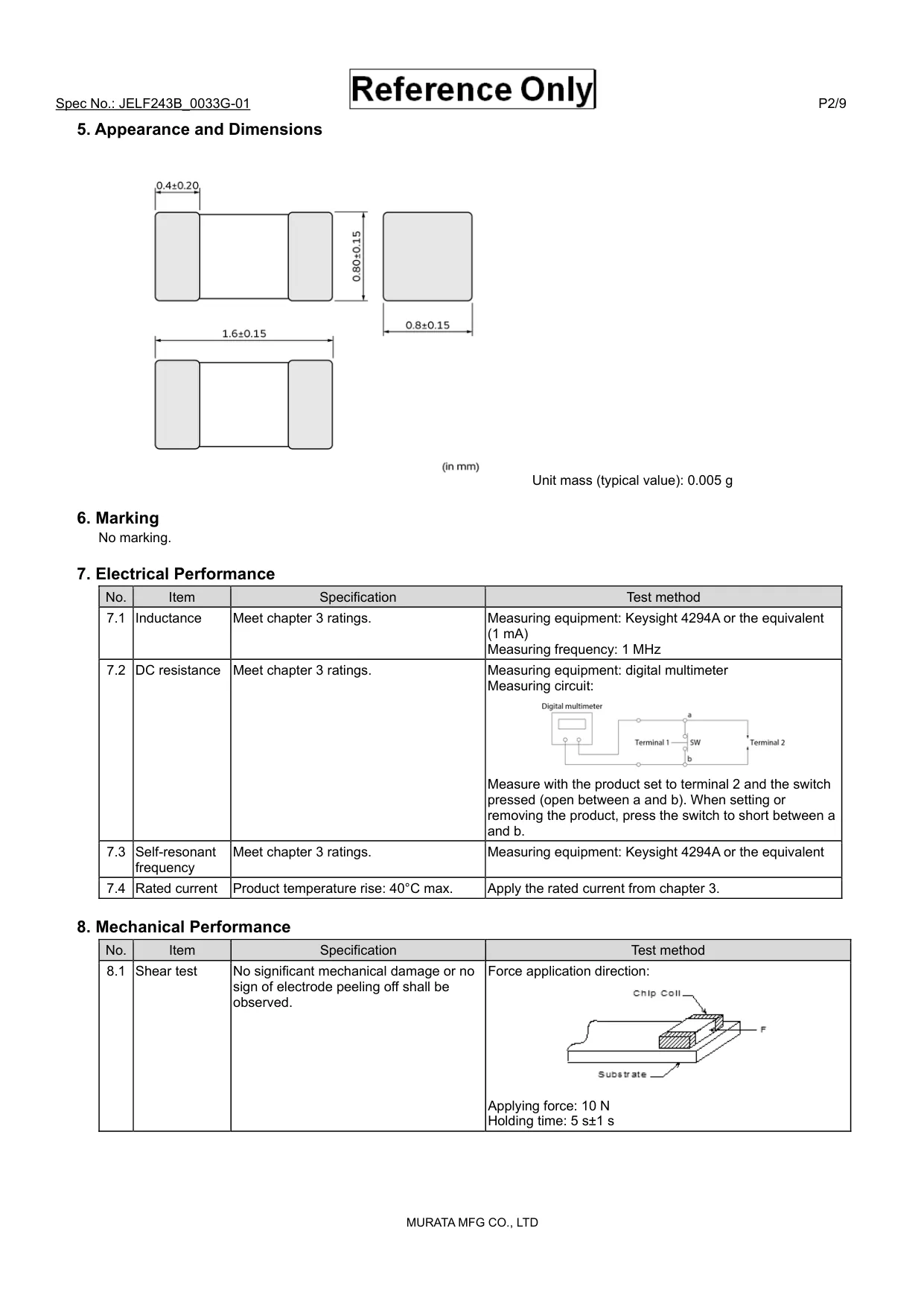

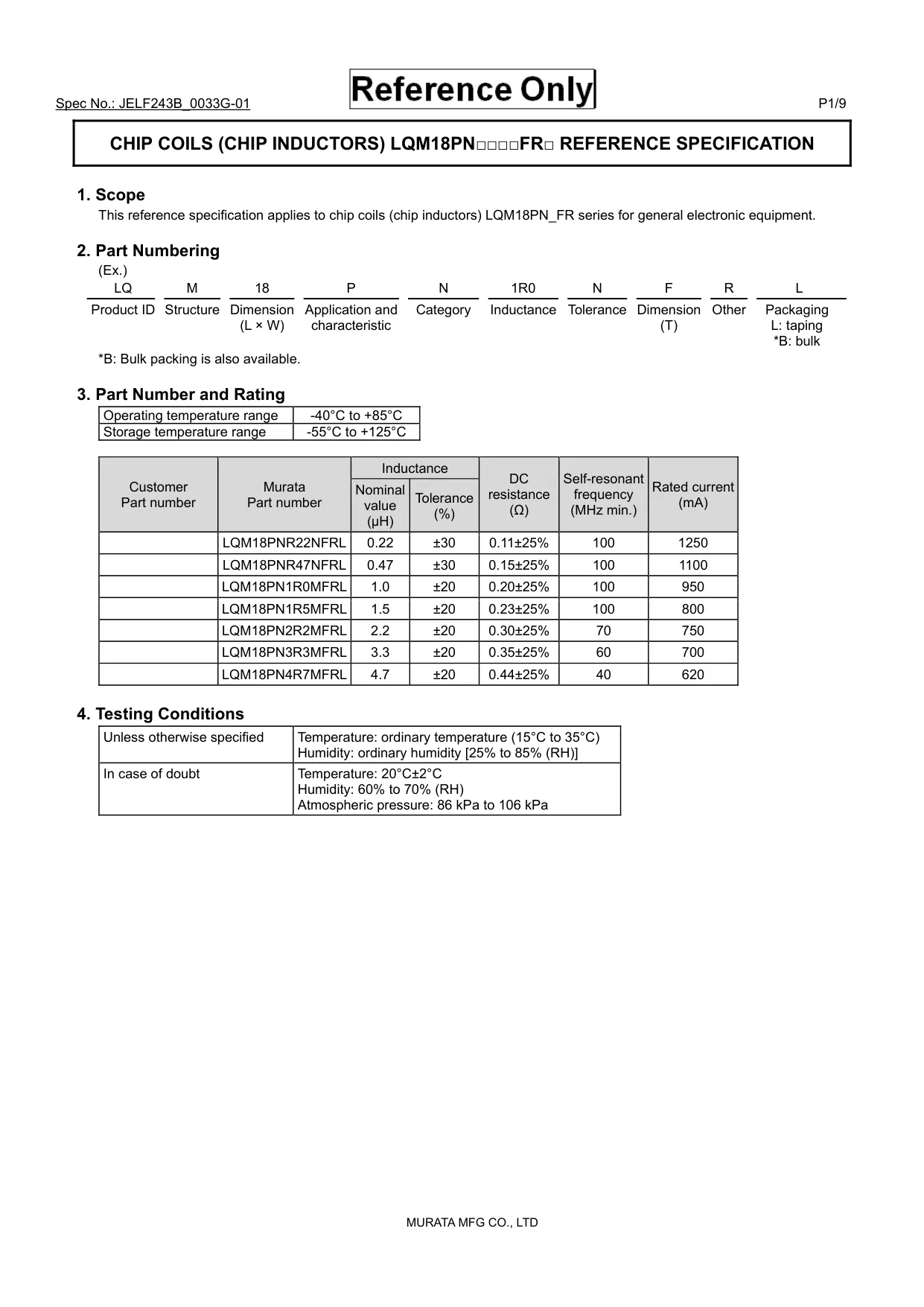

LQM18PN1R0MFRL is a 1.0 µH ±20% chip coil from Murata's LQM18PN_FR series for general electronic equipment: a 0603 body (1.6 × 0.8 × 0.8 mm) with its inductance specified at 1 MHz.p.1, p.2 With 0.20 Ω ±25% of DC resistance and 950 mA of rated current it is the FR value you use for point-of-load and power-line filtering; self-resonance stays above 100 MHz.p.1

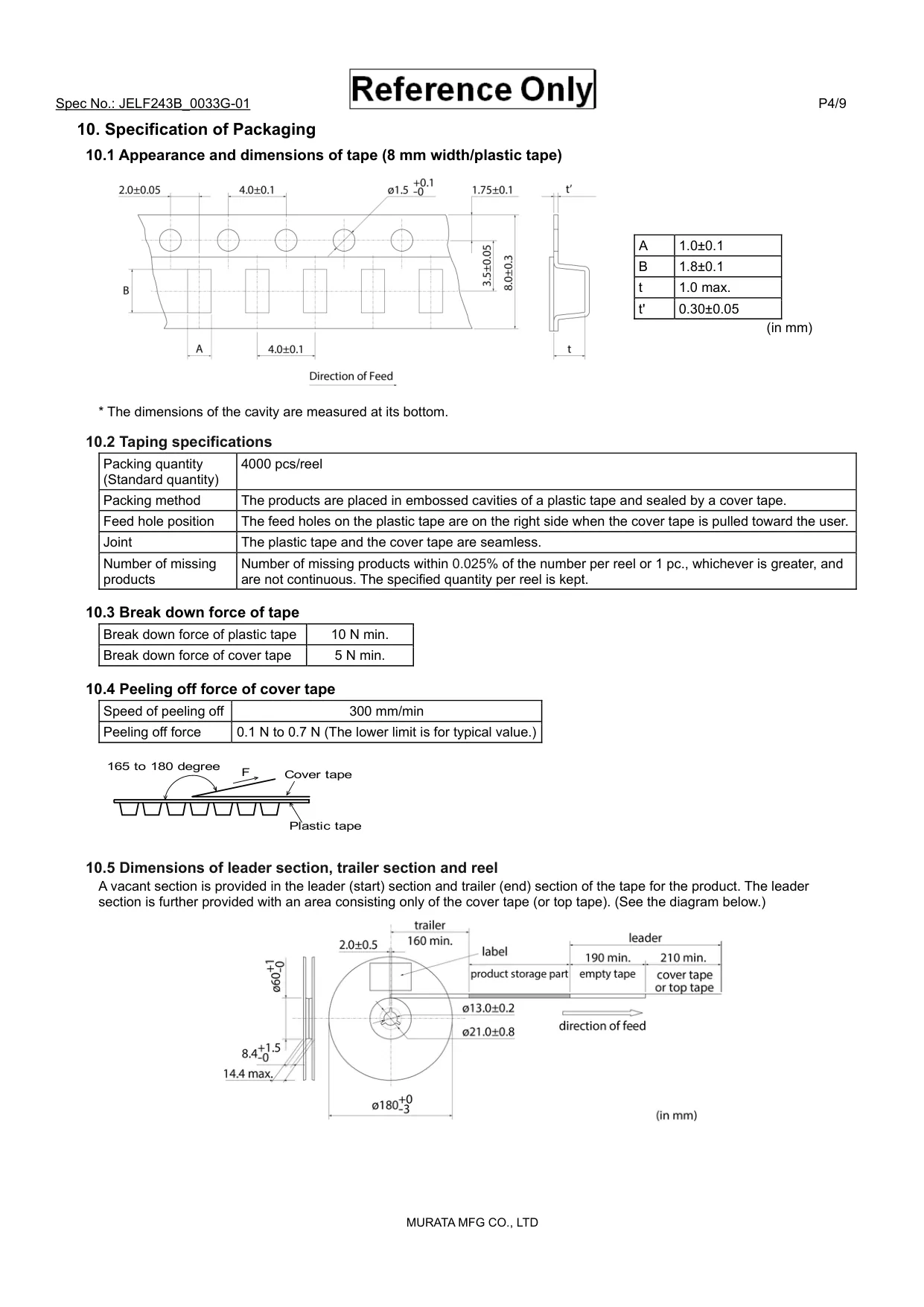

Note what the 950 mA means: it is a thermal rating — 40 °C self-heating max — and the only rated-current criterion this spec defines, with no separate inductance-change figure.p.1, p.2 Operating range is −40 to +85 °C (storage stretches to −55/+125 °C),p.1 the body carries no marking,p.2 and the reel holds 4,000 pieces on 8 mm embossed plastic tape.p.4
