IN-S63BTG

Summary

every figure cited to the datasheet below

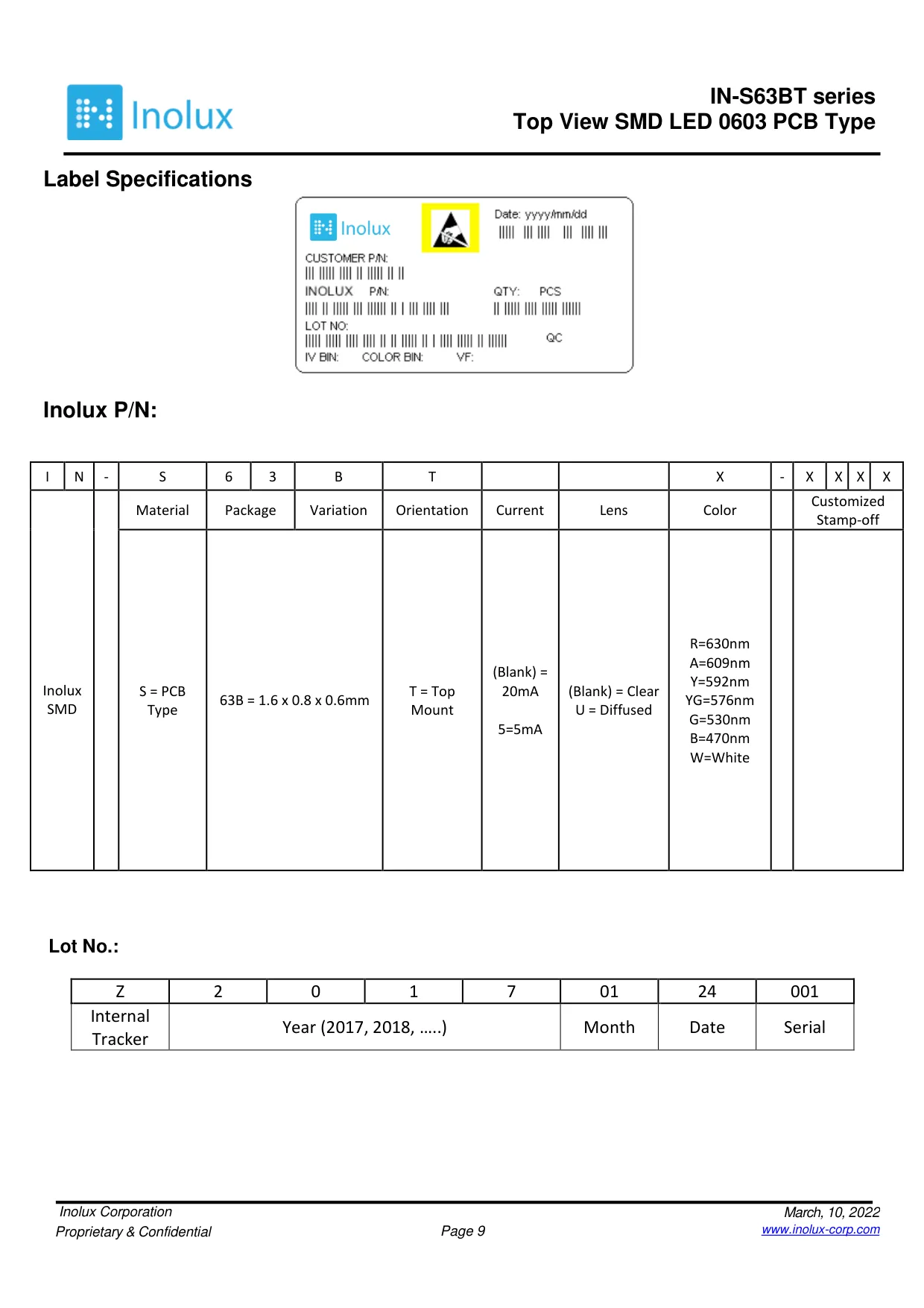

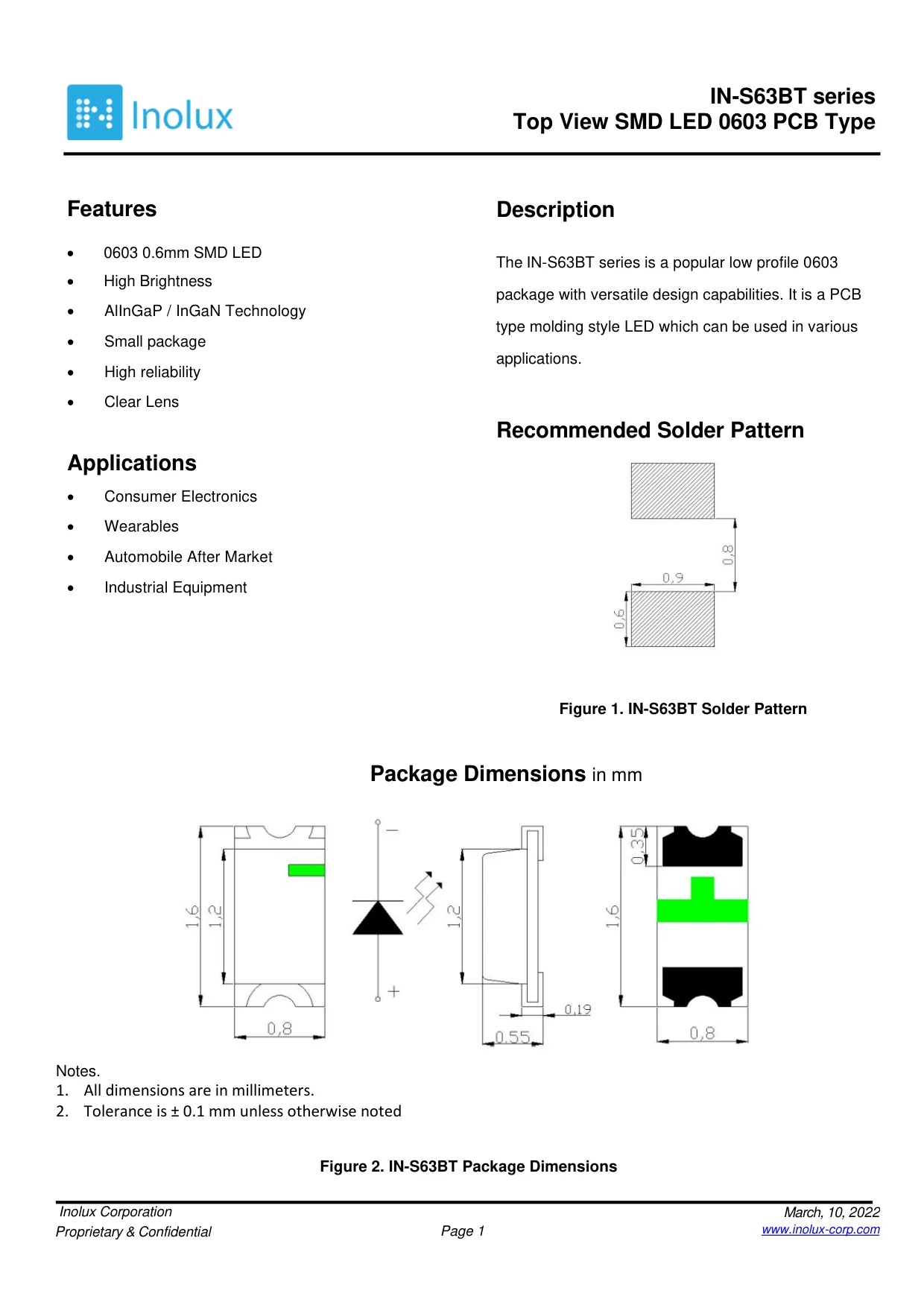

0603 top-view SMD LED in a clear-lens, PCB-type moulded package — 1.6 × 0.8 × 0.6 mm^{p.1, p.9}

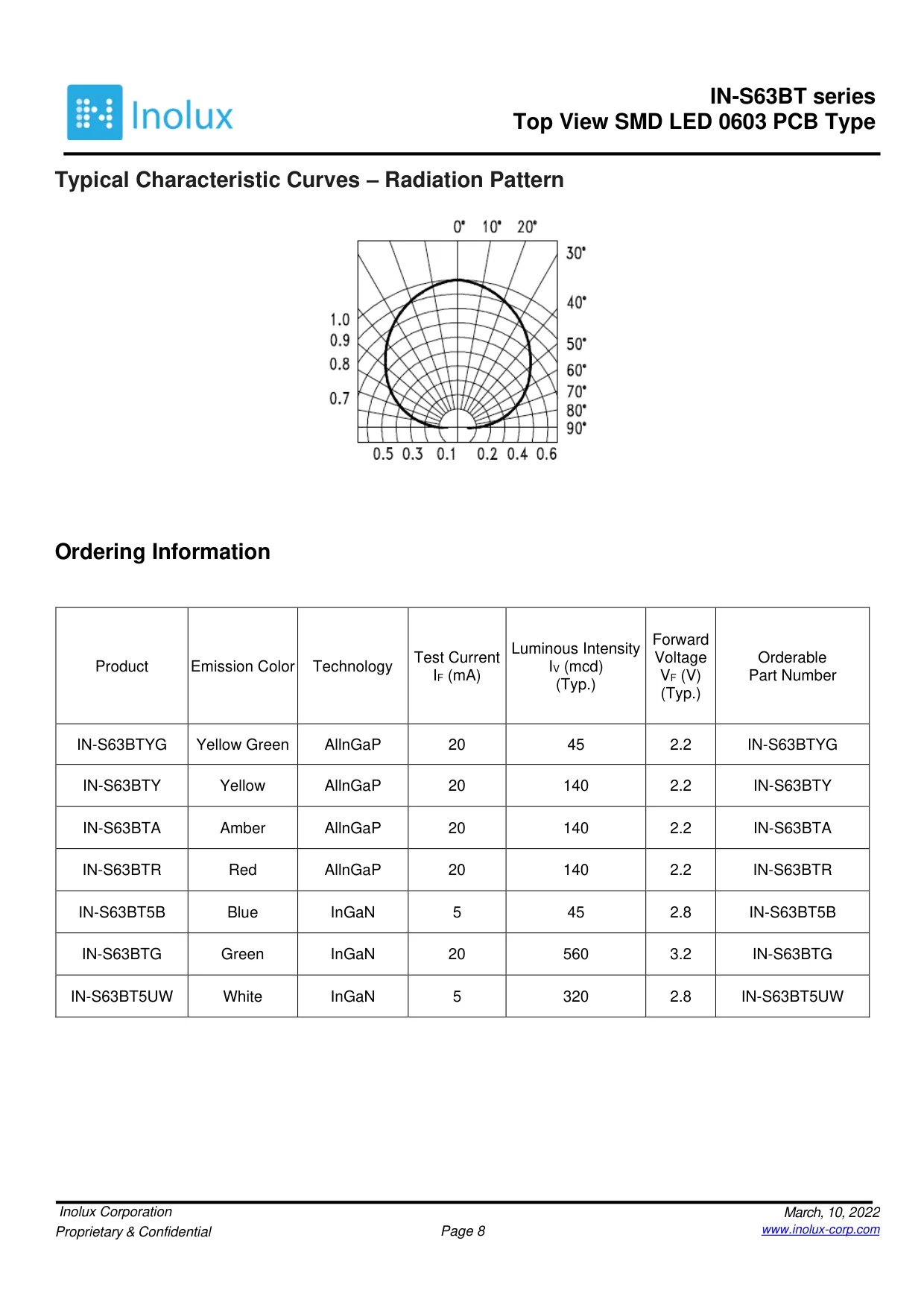

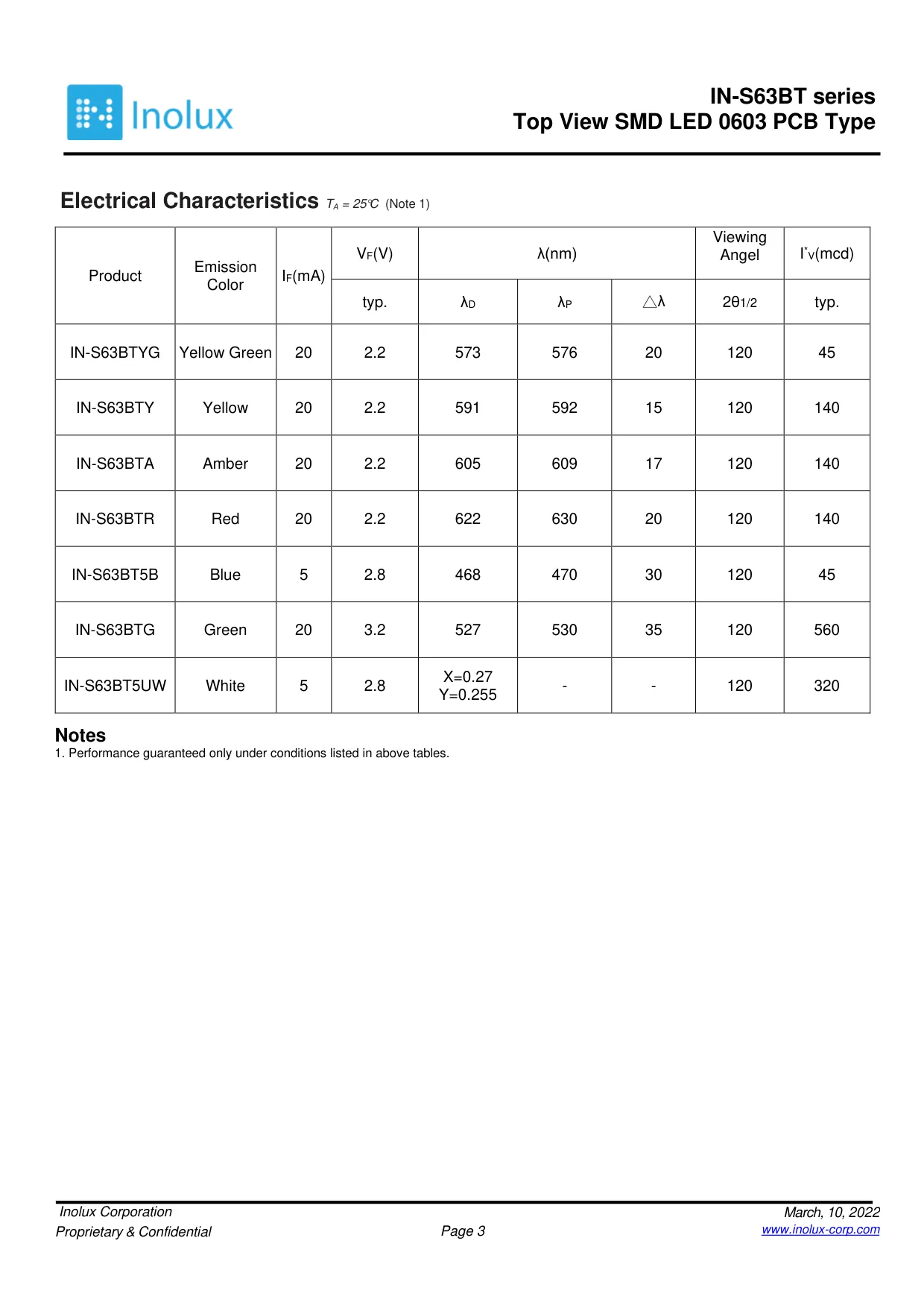

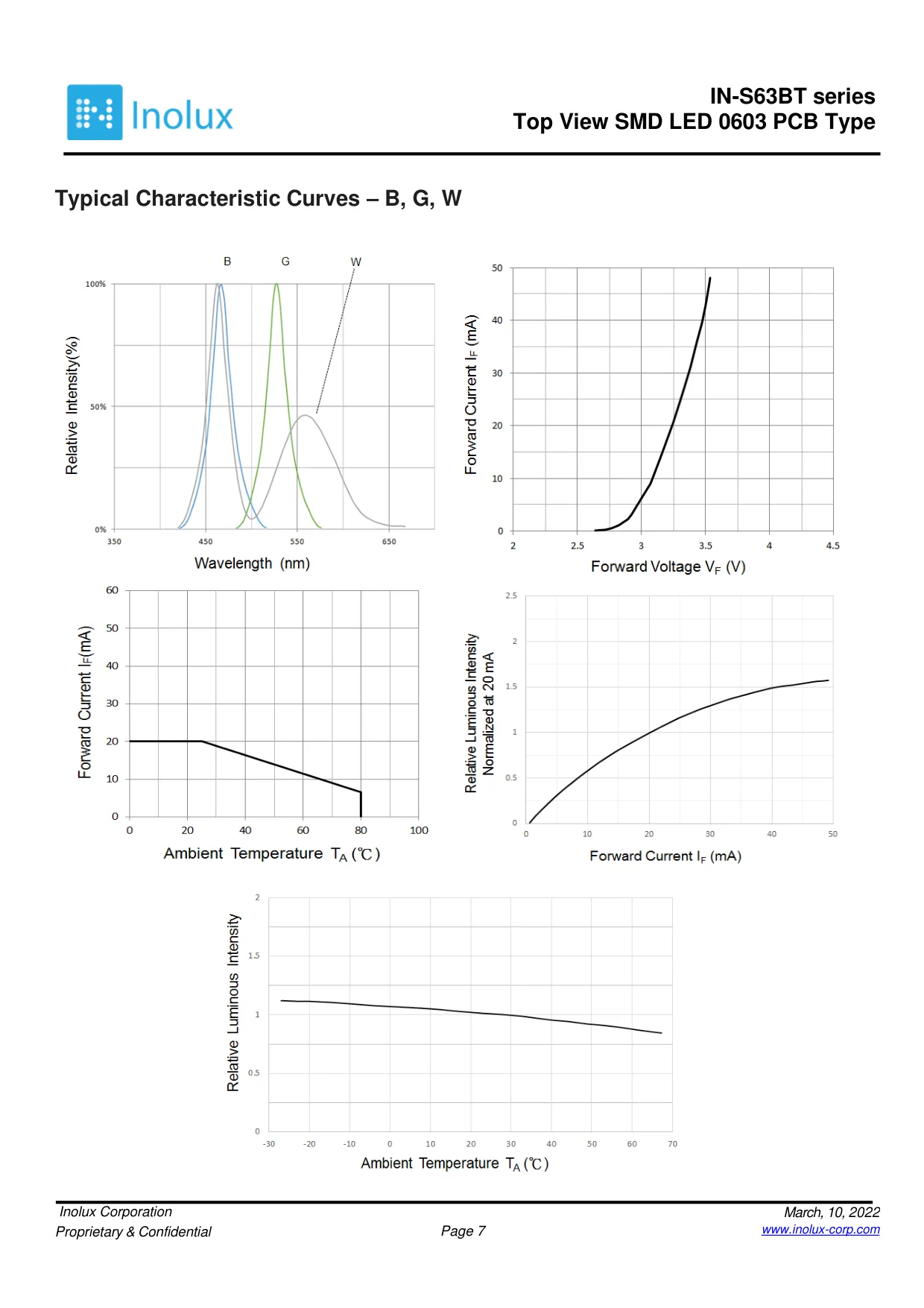

InGaN green emitter — dominant wavelength 527 nm, peak 530 nm, spectral width Δλ 35 nm^{p.3, p.8}
Forward voltage 3.2 V typ at the 20 mA test current^p.3
Luminous intensity 560 mcd typ at 20 mA — the brightest member of the series^{p.3, p.8}
120° viewing angle (2θ_1/2)^p.3

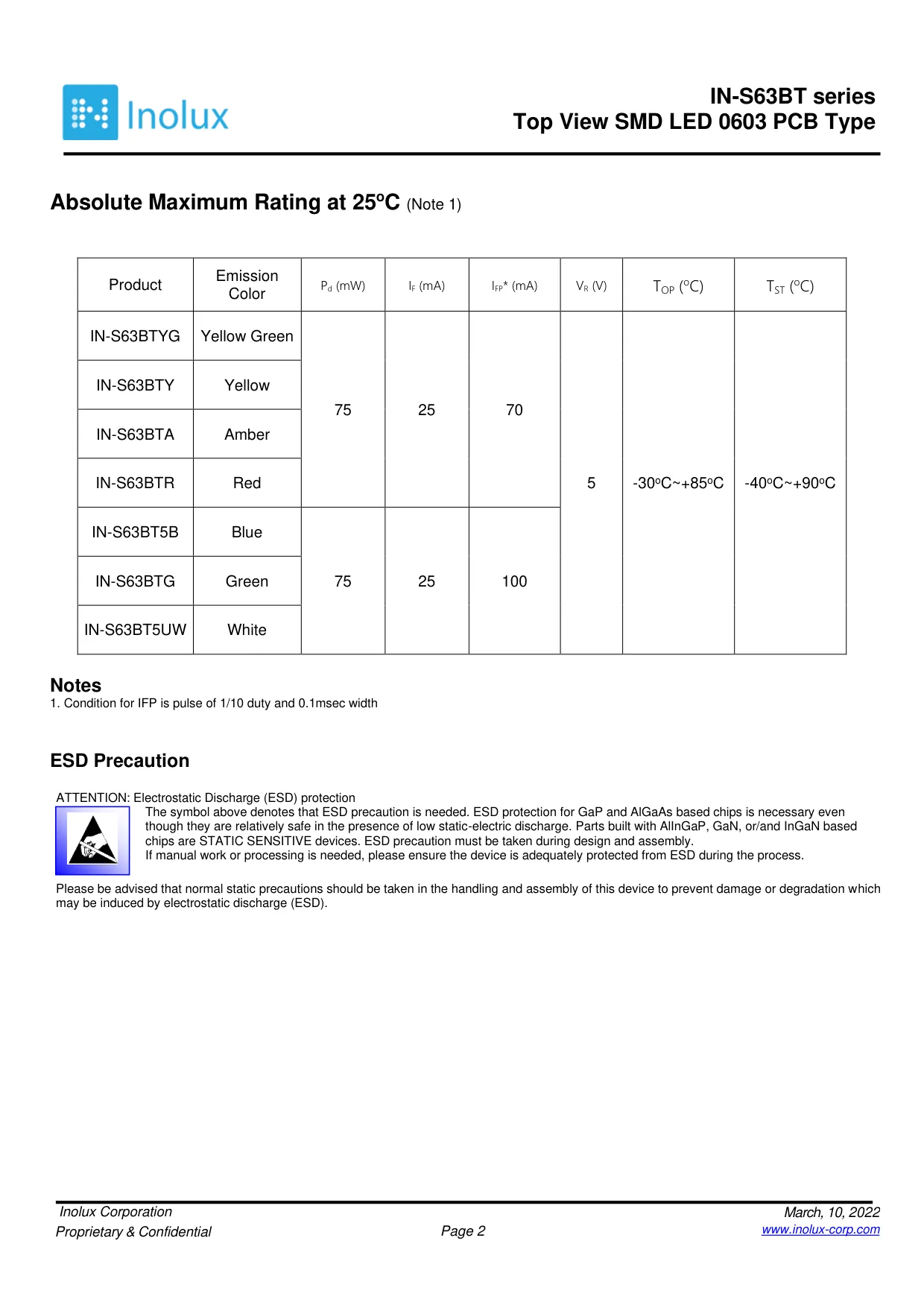

25 mA max continuous forward current; 100 mA peak at 1/10 duty, 0.1 ms pulse^p.2
5 V max reverse voltage; 75 mW max power dissipation^p.2
Operating −30 to +85 °C, storage −40 to +90 °C^p.2

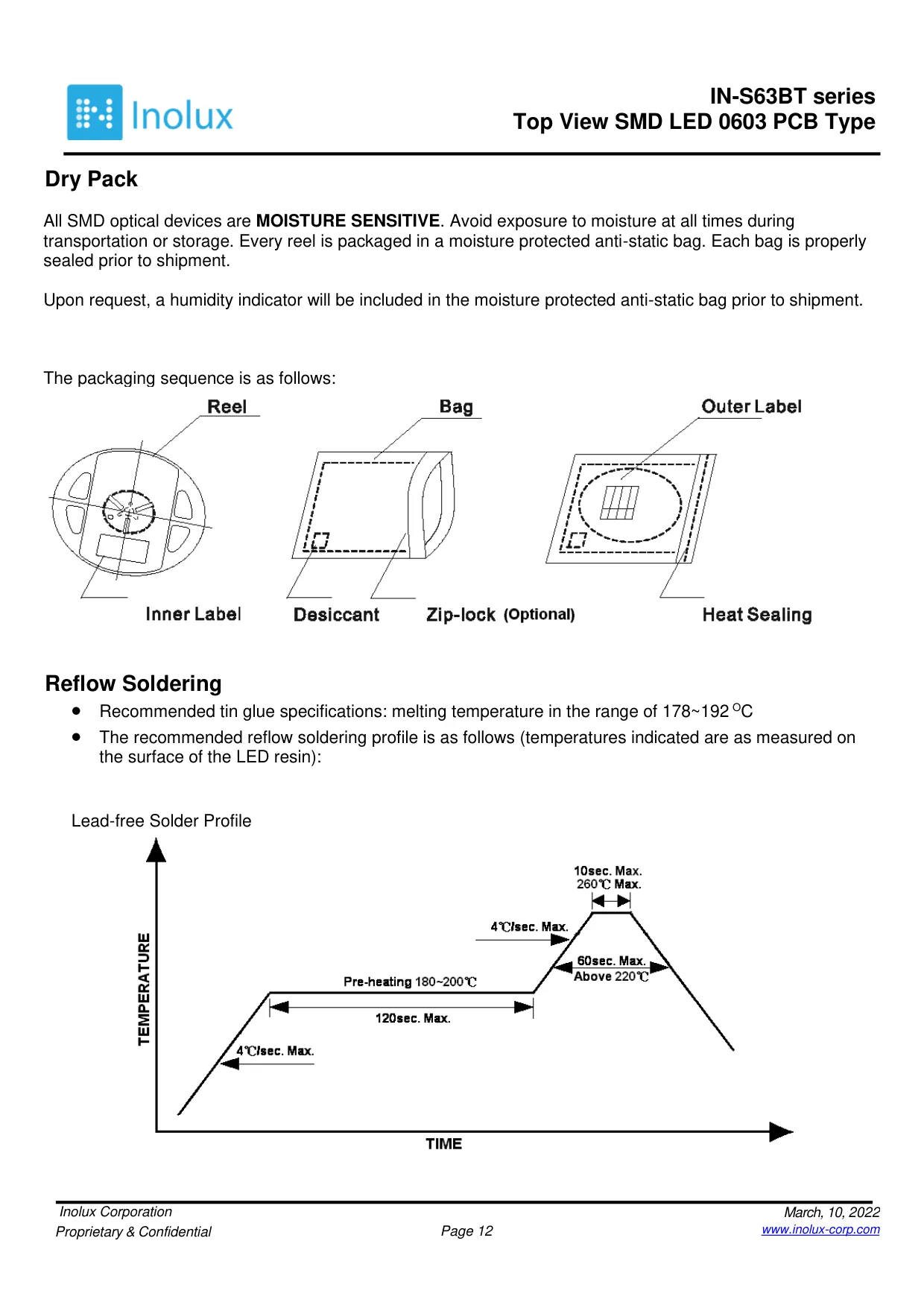

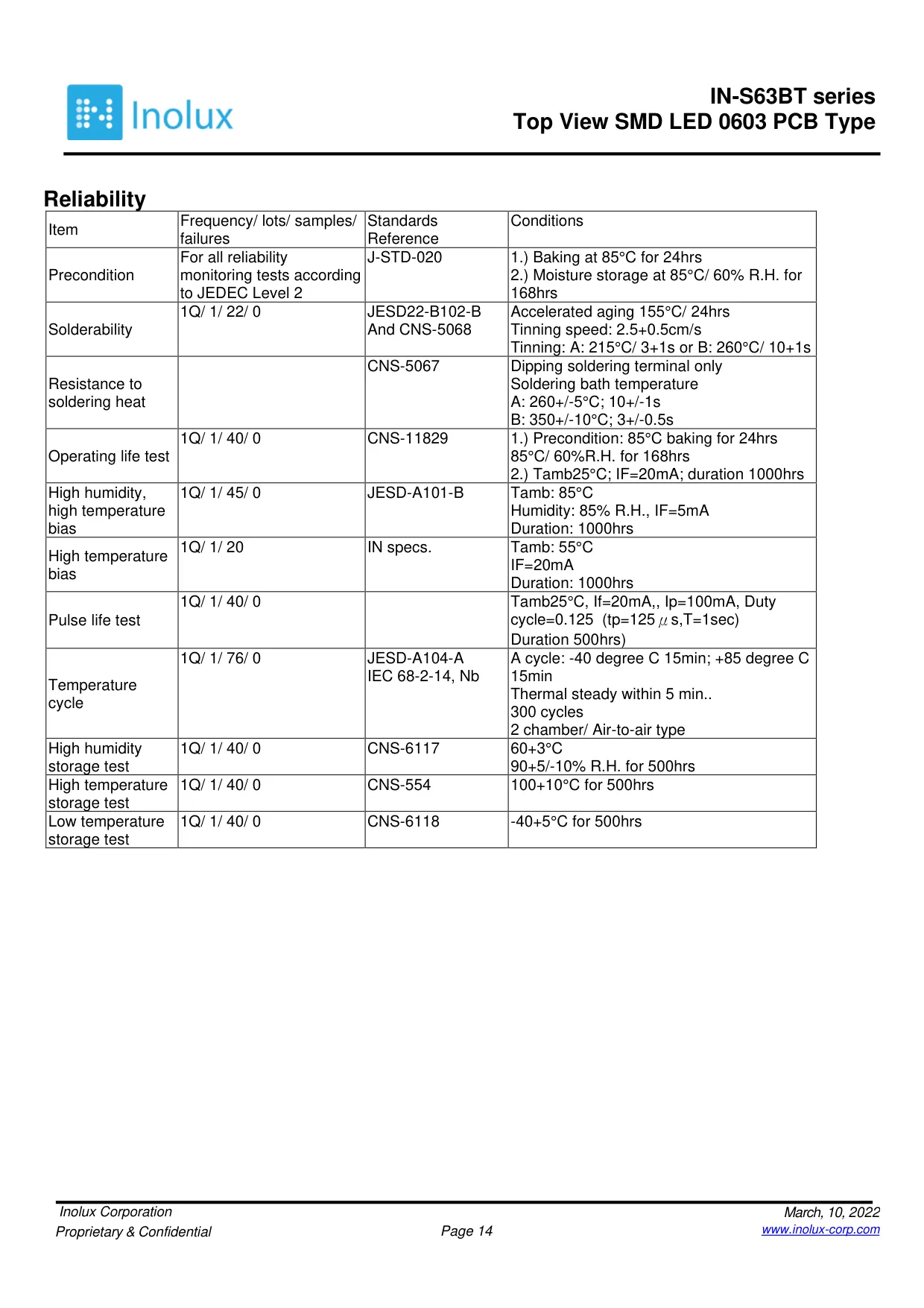

Moisture sensitive and ESD sensitive (InGaN) — ships dry-packed in a sealed moisture-barrier anti-static bag^{p.2, p.12}

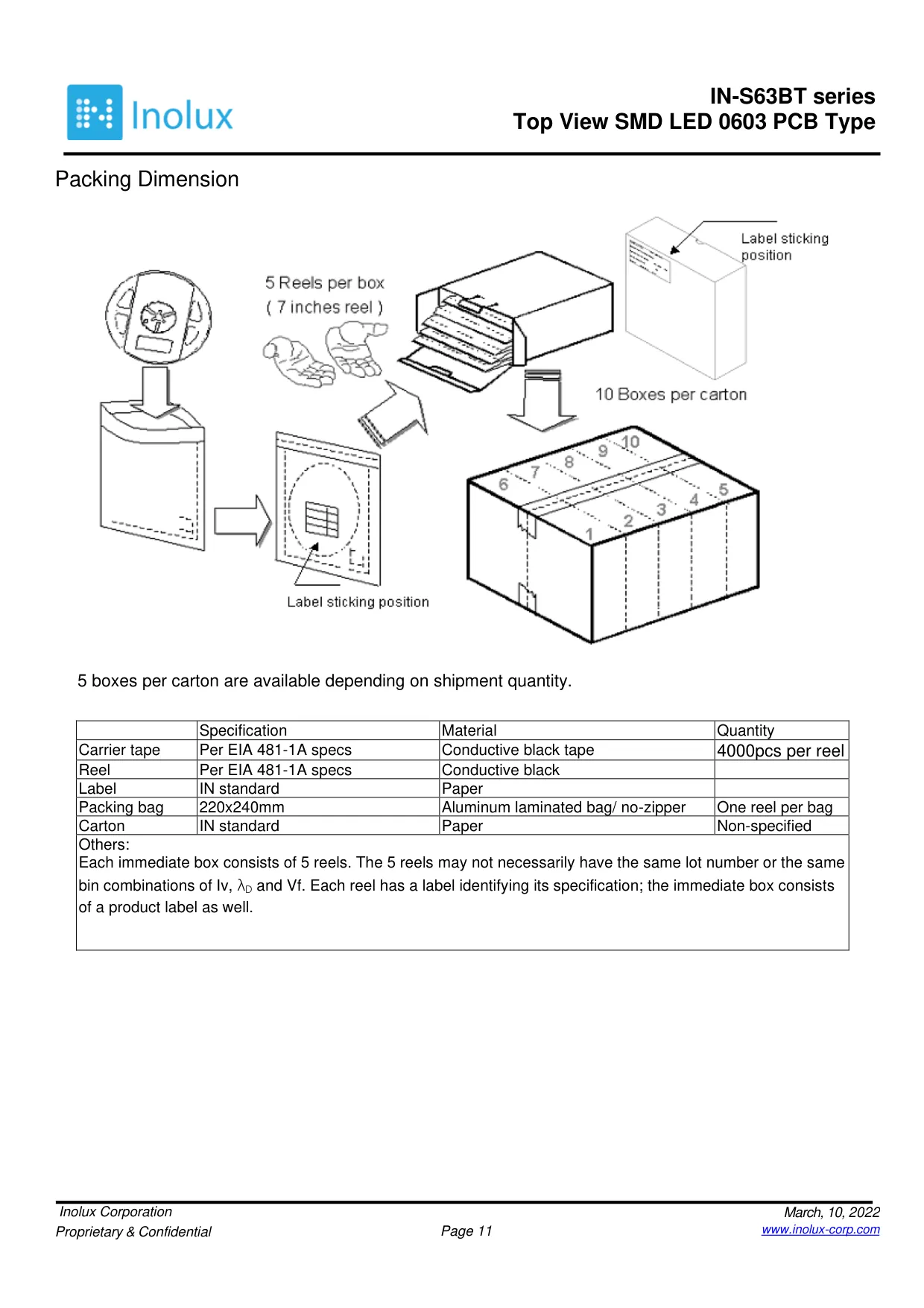

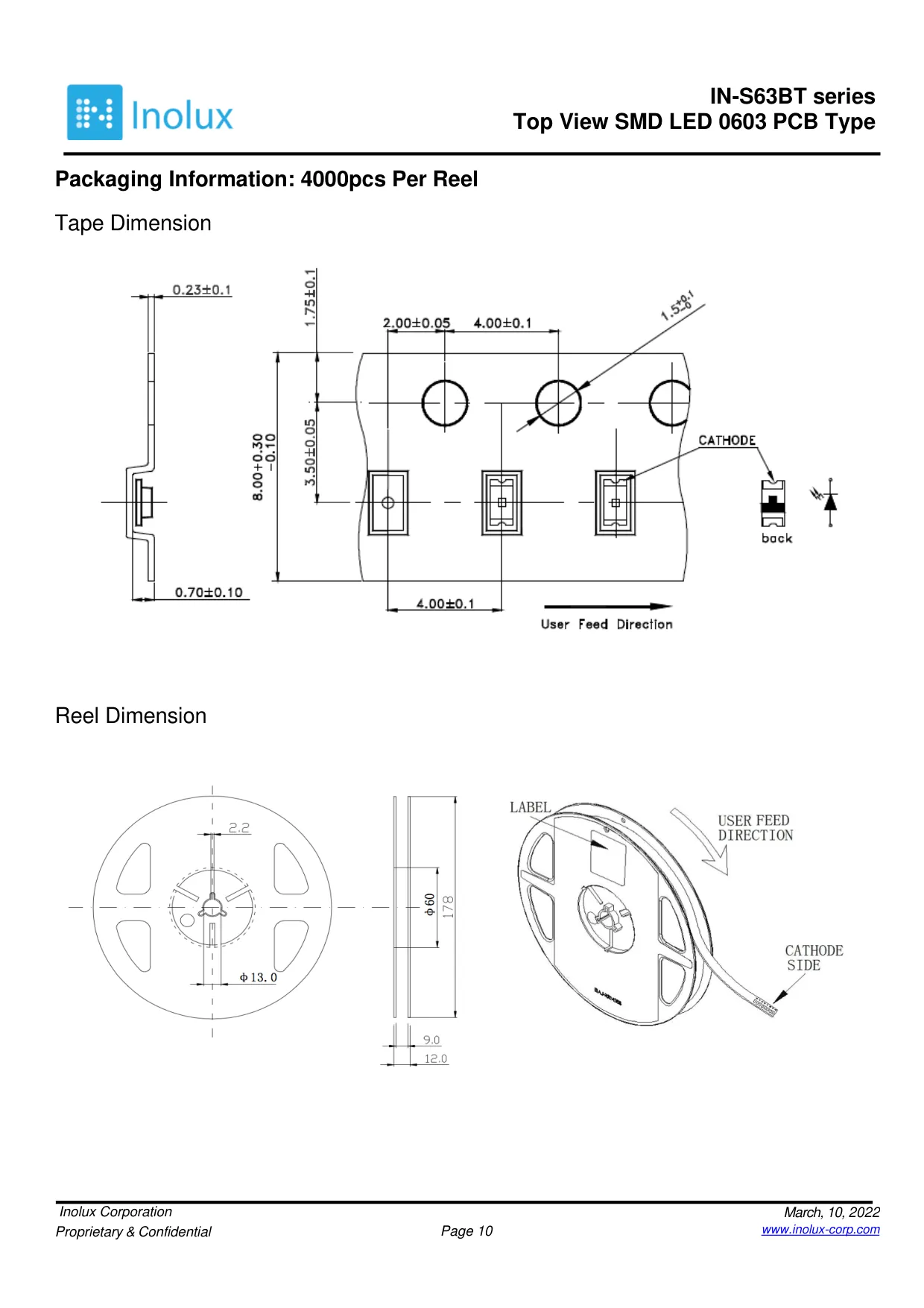

Supplied on tape and reel, 4000 pcs per reel (EIA-481-1A conductive black carrier tape)^{p.10, p.11}

IN-S63BTG is the green member of Inolux's IN-S63BT series: a low-profile 0603 top-view indicator LED in a clear, PCB-type moulded package.^p.1 The die is InGaN^p.8 at a dominant wavelength of 527 nm, and at 560 mcd typ it is the brightest part in the series at the 20 mA test point.^p.3

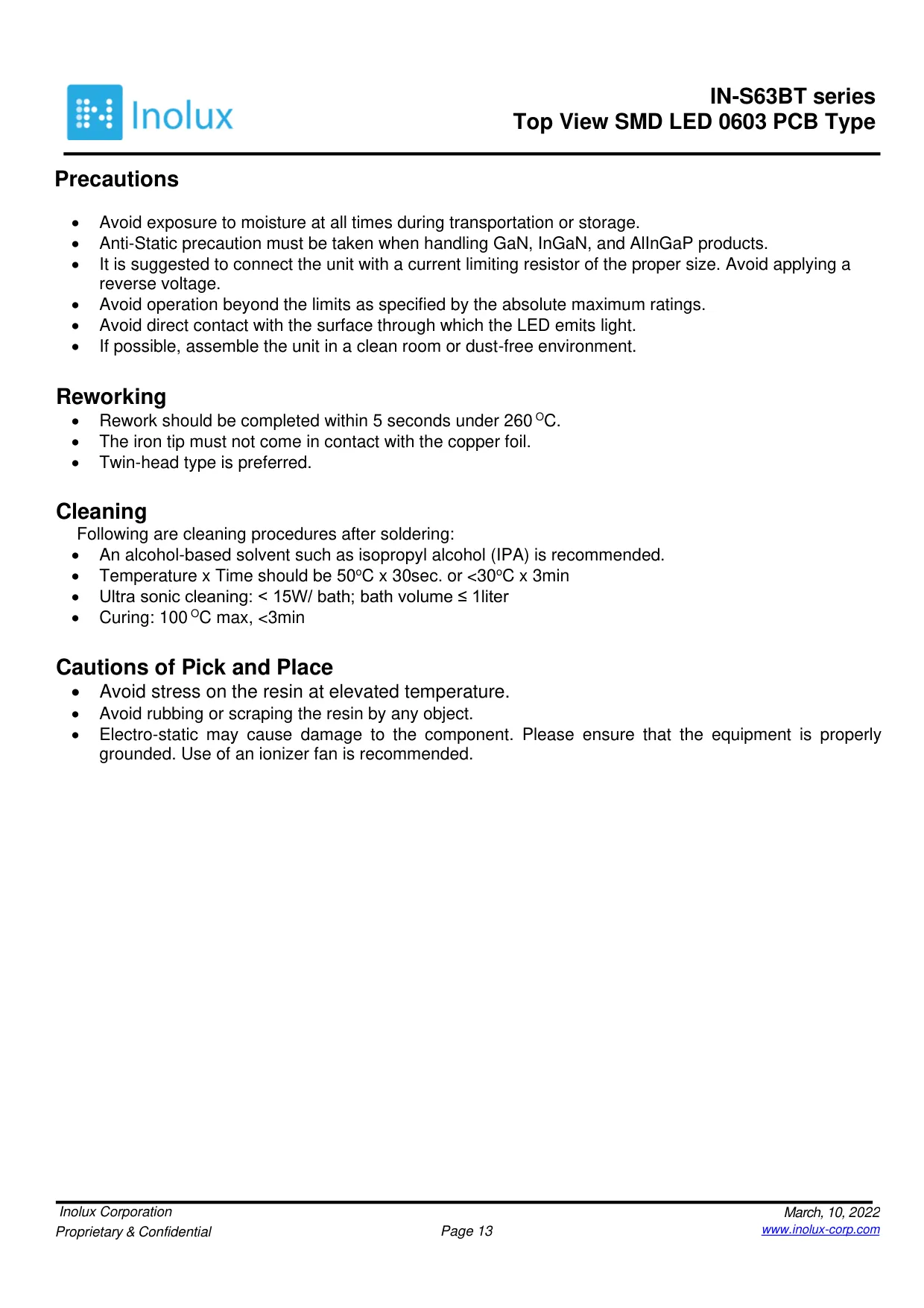

Forward voltage is 3.2 V typ at 20 mA^p.3 — a 3.3 V rail leaves about 0.1 V of headroom, which is no way to set a current, so treat it as a 5 V-rail part: (5 − 3.2) / 0.02 = 90 Ω for the full 20 mA. Use a current-limiting resistor — the datasheet asks for one explicitly^p.13 — and keep continuous current at or below 25 mA.^p.2 At 560 mcd, most status lights will run at a small fraction of the test current.

The 120° viewing angle^p.3 makes it a wide-angle panel indicator, reverse voltage is rated to only 5 V,^p.2 and InGaN chips are static-sensitive devices — ESD precautions apply in design and assembly.^p.2
