Summary
every figure cited to the datasheet below- 0805 multilayer ceramic chip capacitor — 2.00 × 1.25 × 1.25 mm body (±0.15 mm), 0.50 mm termination bands; Ni inner electrodes, Cu termination, 100% Sn Pb-free platingp.1
- 10 µF ±10%, rated 16 V — X5R (Class II) dielectric, code Ap.1
- X5R temperature characteristic: capacitance change within ±15% from −55 to +85 °Cp.2
- Capacitance measured at 1 kHz ±10% / 1.0±0.2 Vrms, after a 150 °C 1-hour heat treatment and 24±2 h rest (de-aging protocol); dissipation factor 0.1 maxp.2
- Insulation resistance 10,000 MΩ or 100 MΩ·µF, whichever is smaller, at rated voltagep.2
- Withstands 250% of rated voltage with no dielectric or mechanical breakdown; high-temperature resistance test at 100% of rated voltage for 1,000 hp.2
- Recommended soldering: reflow, peak 260 +0/−5 °C, 10 s maxp.2
- Supplied on embossed (plastic) carrier tape, 7-inch reelp.1
CL21A106KOQNNNG is a 10 µF ±10% X5R ceramic in 0805, rated 16 Vp.1 — the default output capacitor for 3.3 V and 5 V regulator rails. The X5R dielectric holds capacitance within ±15% from −55 to +85 °C, dissipation factor is 0.1 max, and insulation resistance is 10,000 MΩ or 100 MΩ·µF, whichever is smaller.p.2 The dielectric is proofed at 250% of rated voltage.p.2
Note the fine print in the measurement column: capacitance is specified at 1 kHz / 1.0 Vrms only after a 150 °C one-hour heat treatment and a 24-hour restp.2 — the de-aged, best-case reading. Reflow is the recommended soldering method, with a 260 +0/−5 °C peak held no longer than 10 s.p.2 The document is Samsung's 3-page short-form spec: it carries the decode, dimensions, reliability table and soldering method, but no tape dimensions, reel quantity, or bias/TCC curves.
3D Assembly
Static · Pick-and-Place — drag to orbit, scroll to zoomSchematic & Layout
interactive — drag to pan, scroll to zoom, click a pin or pad for detailSchematic Symbol
2D Layout
Datasheet
the source of every number on this page

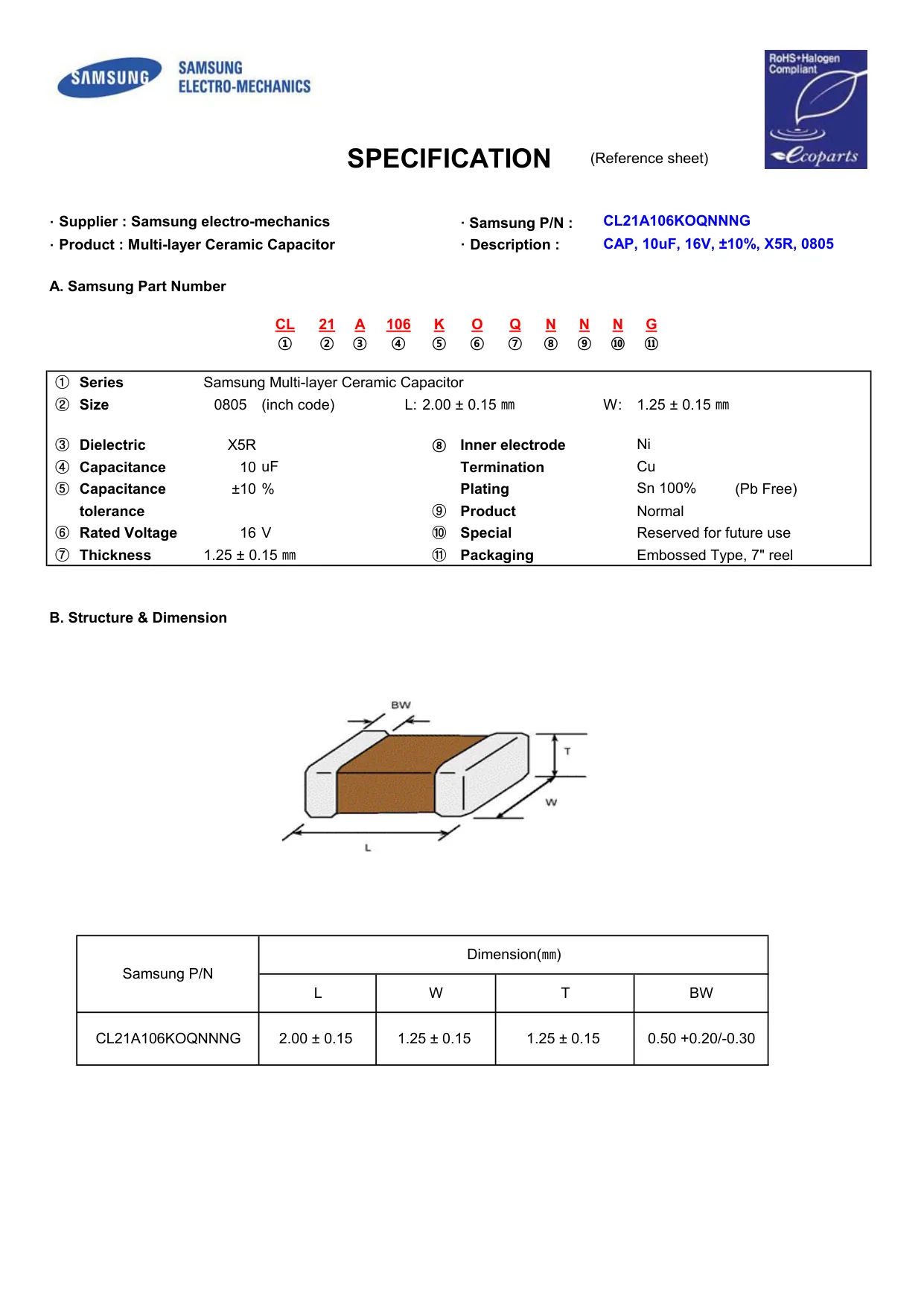

1

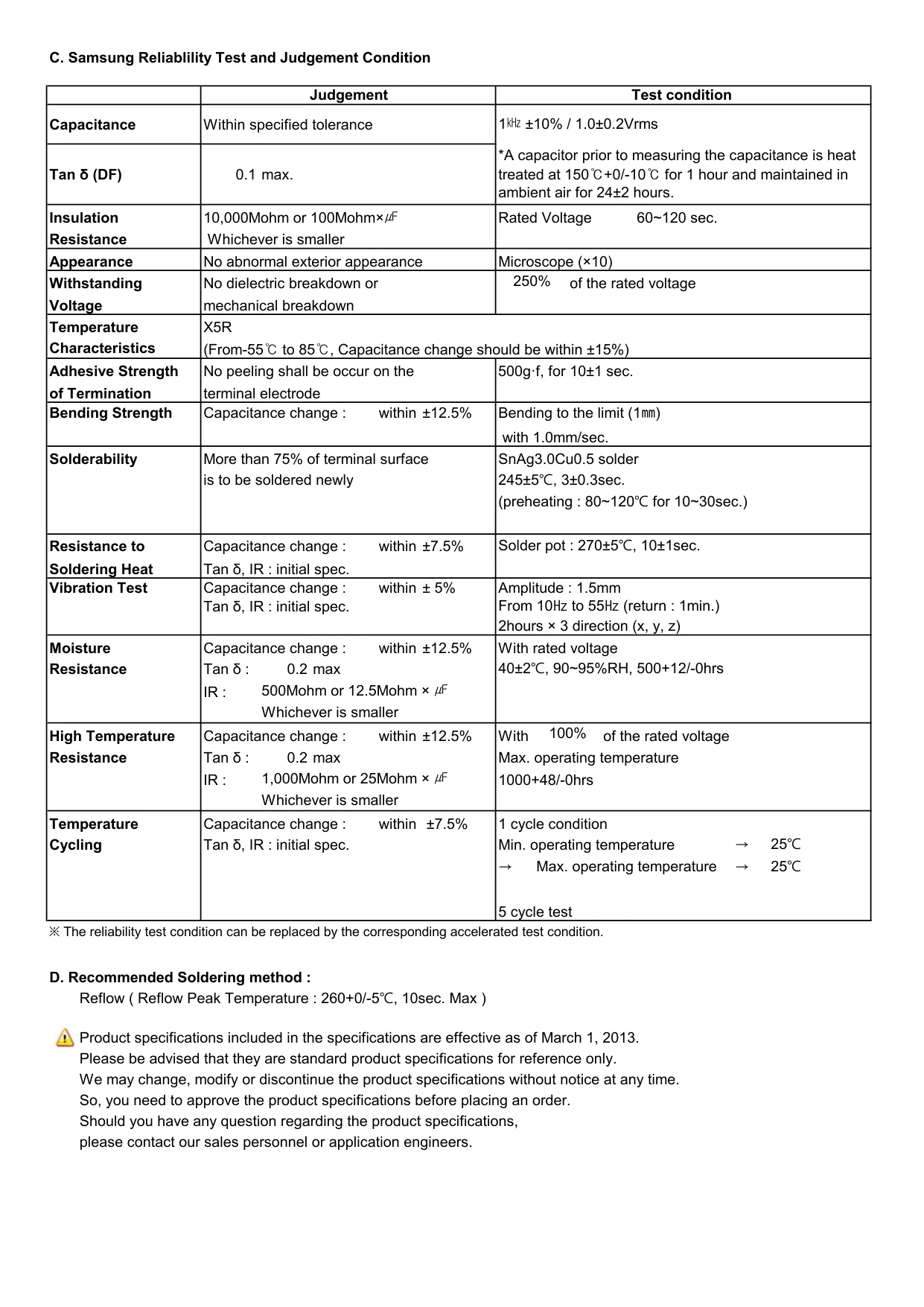

2

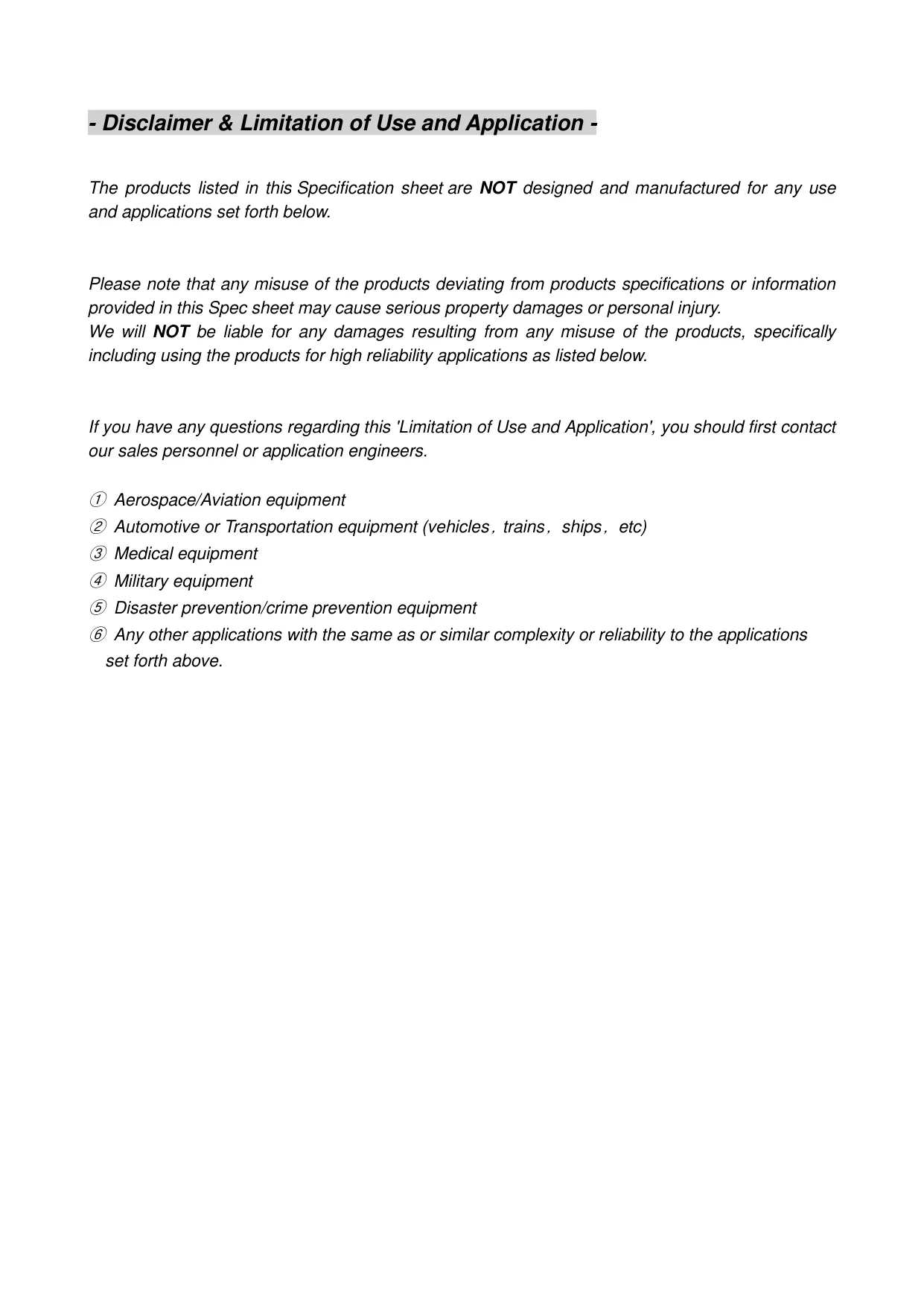

3md5 fb1618a3093bbd179178629dcfb6c399
