0402B224K160CT

Summary

every figure cited to the datasheet below

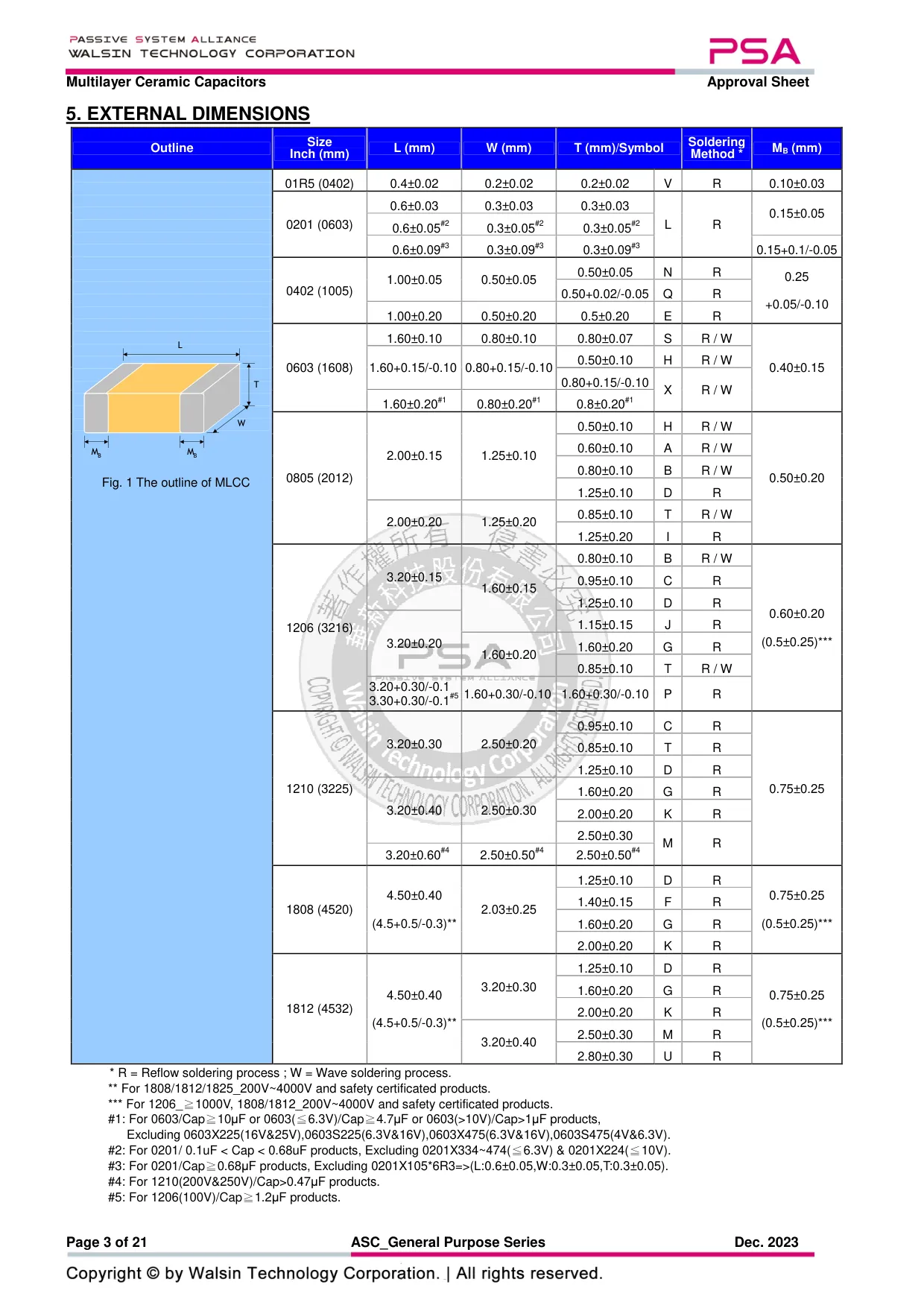

0402 (1005 metric) multilayer ceramic chip capacitor — 1.00 × 0.50 × 0.50 mm body (±0.05 mm, thickness code N), 0.25 mm termination bands; reflow soldering only^p.3

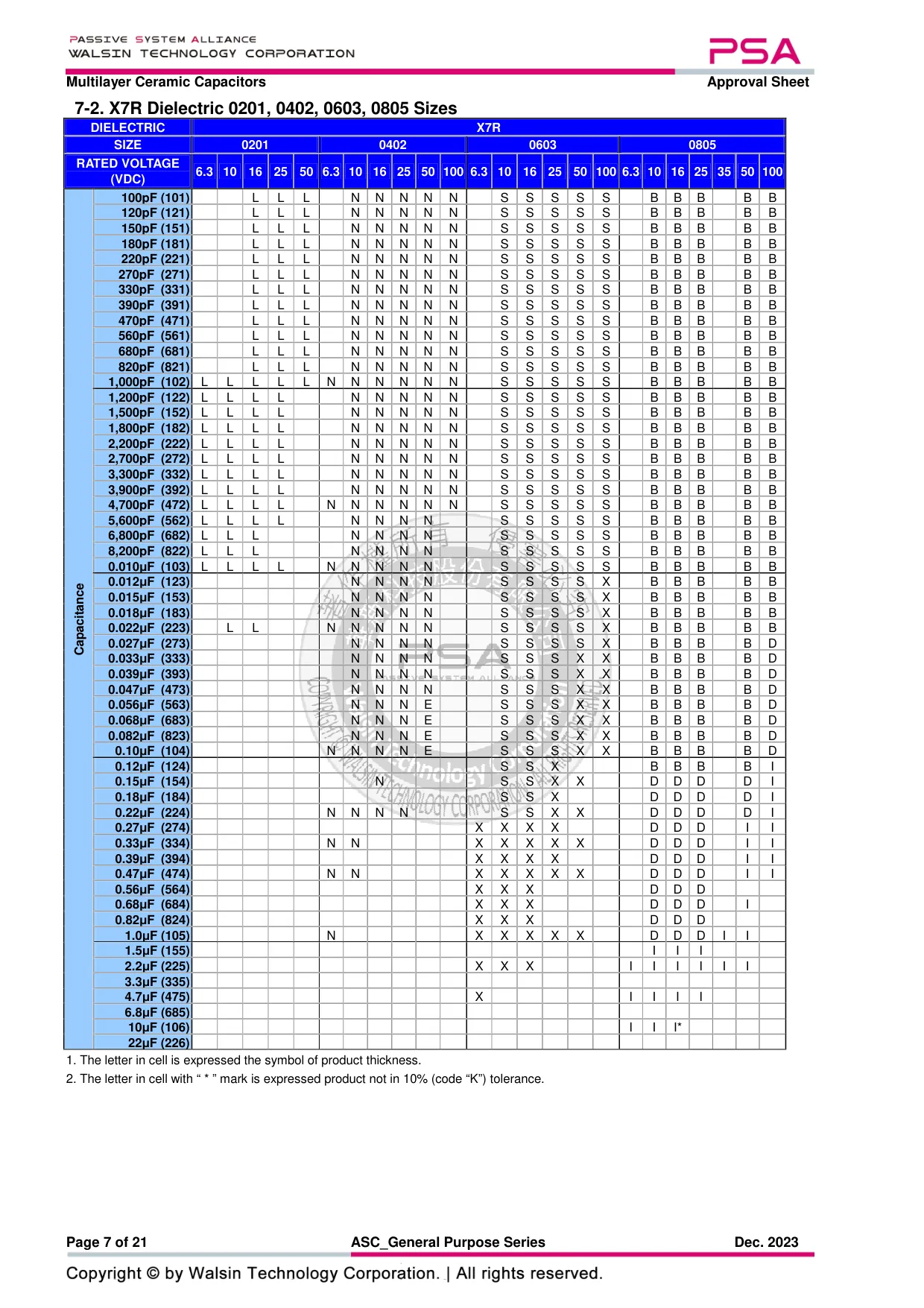

220 nF ±10% (code 224 K), rated 16 VDC — X7R Class II dielectric, code B; listed in the X7R capacitance-range grid at 0402 / 16 V^{p.2, p.7}

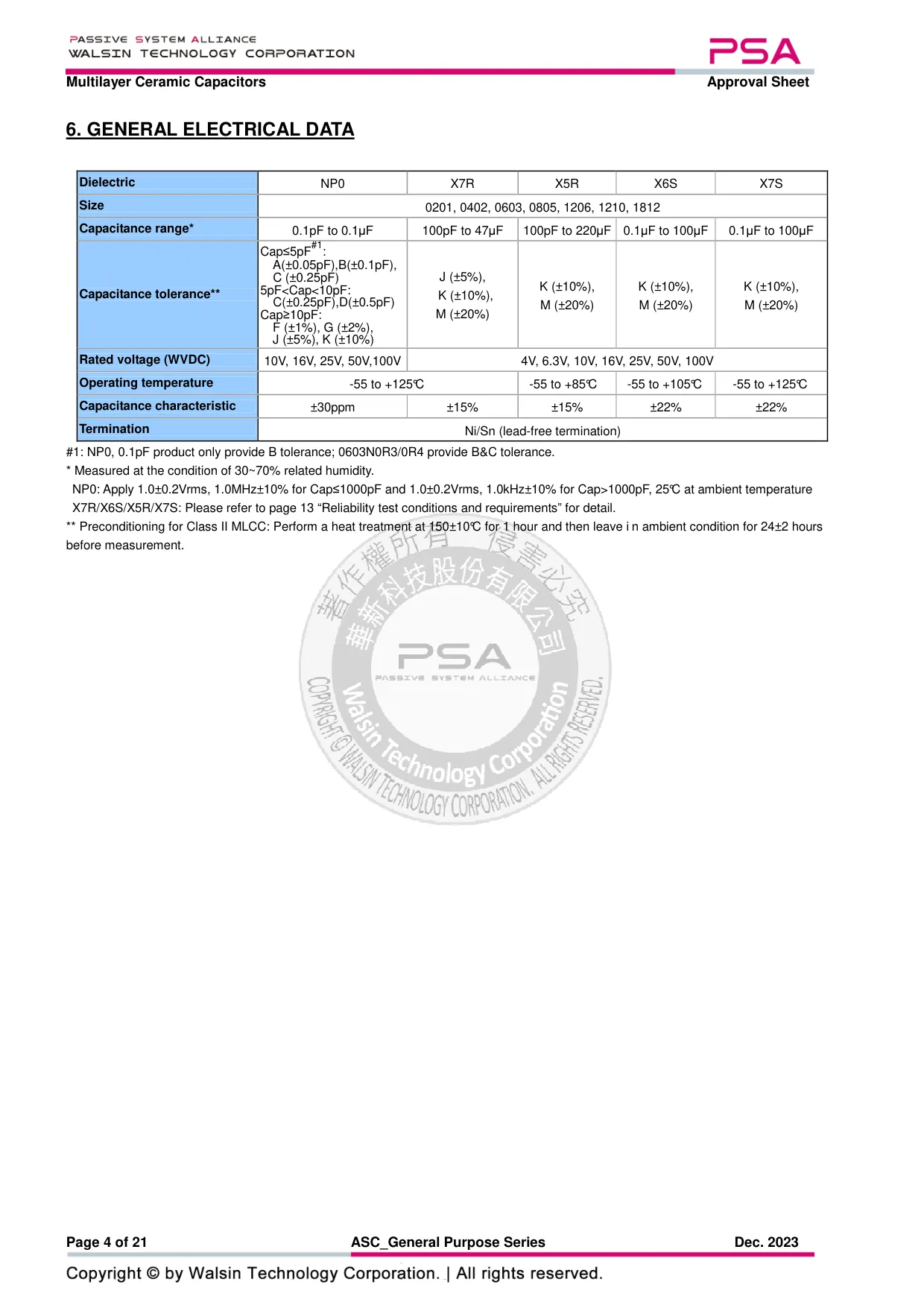

X7R temperature characteristic: capacitance within ±15% from −55 to +125 °C^{p.4, p.14}

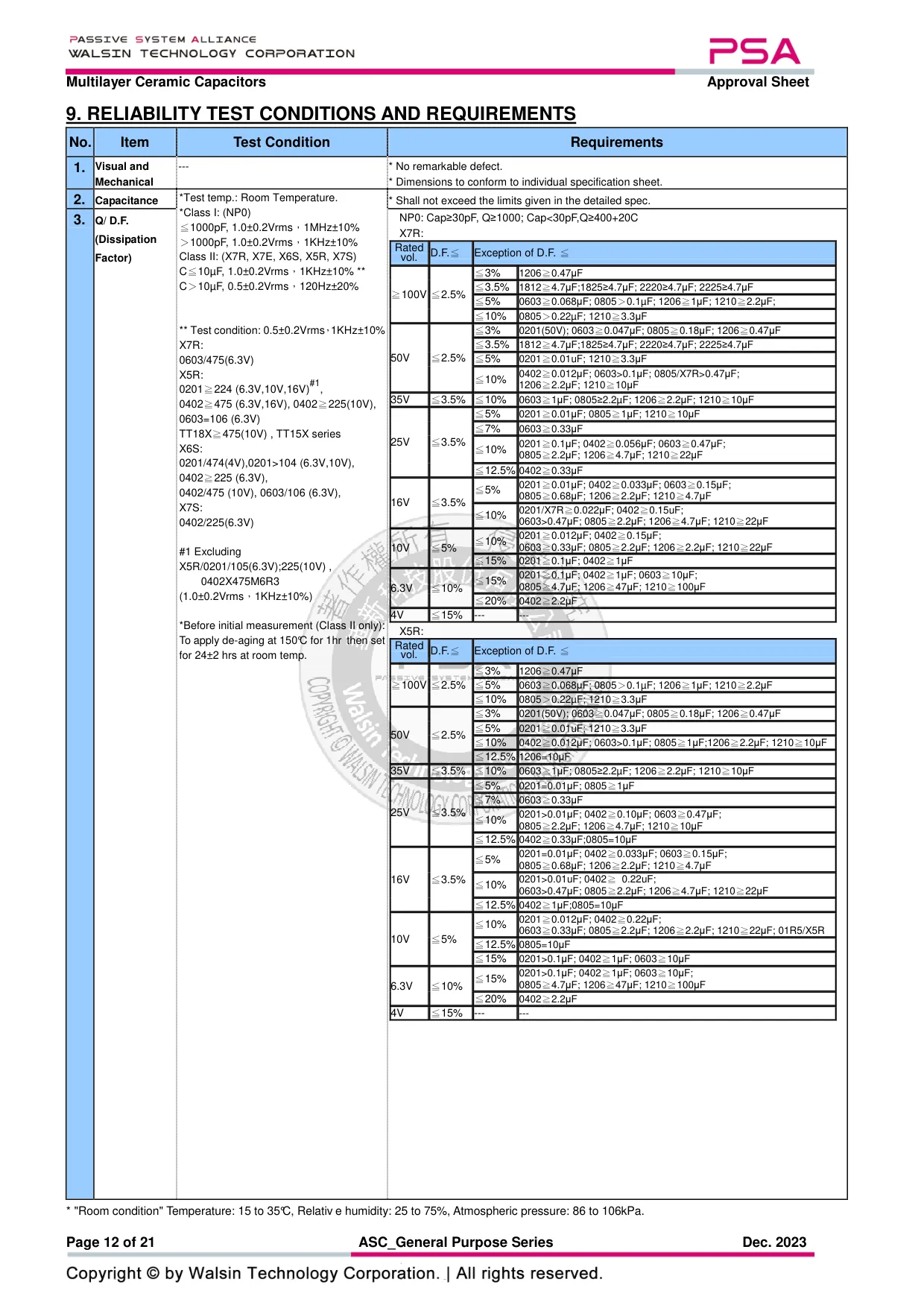

Dissipation factor ≤10% at 1 kHz / 1.0 Vrms; Class II parts get a 150 °C / 1 h de-aging plus 24 h rest before any measurement^{p.4, p.12}

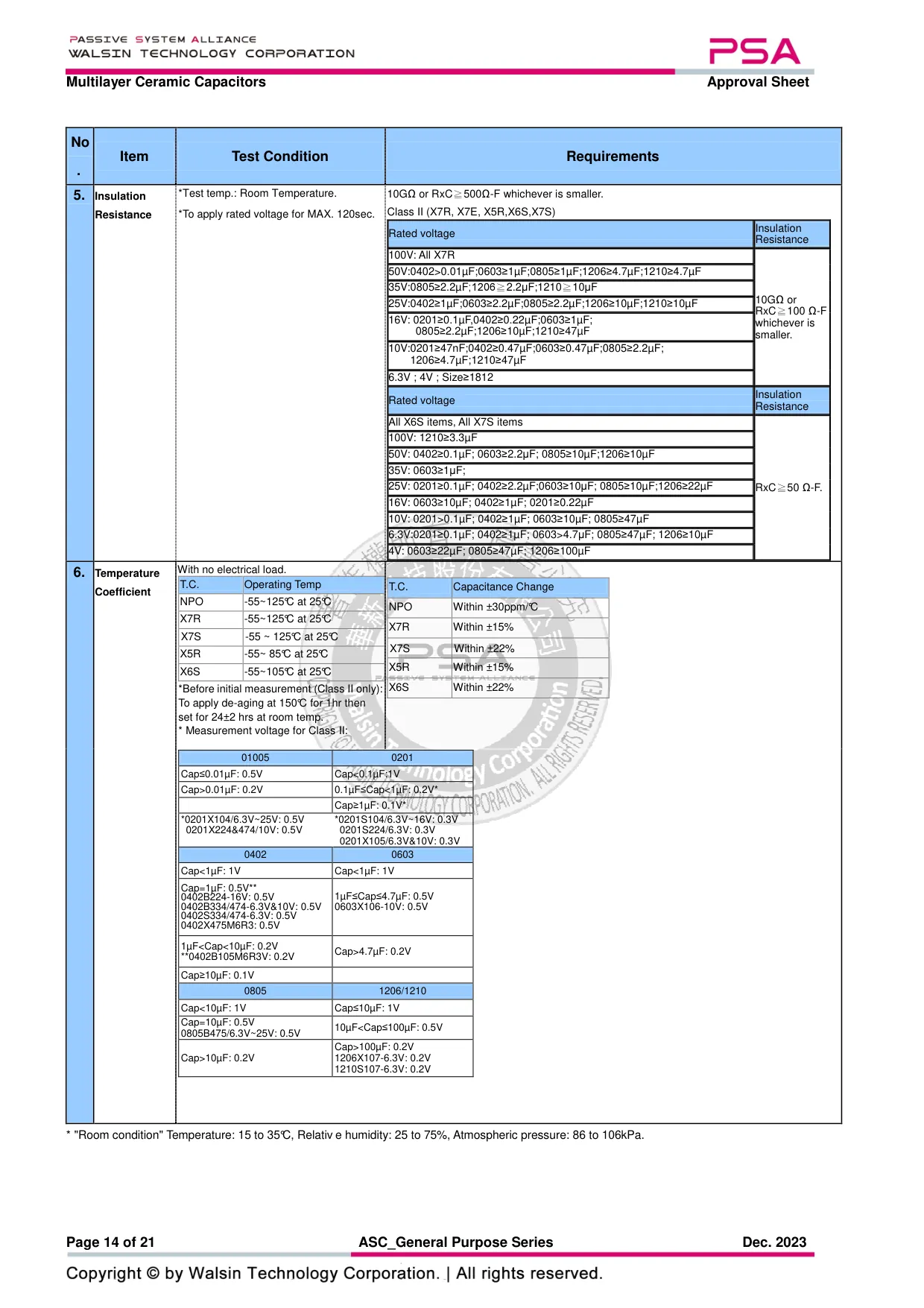

Insulation resistance 10 GΩ or R×C ≥ 100 Ω·F, whichever is smaller, at rated voltage^p.14

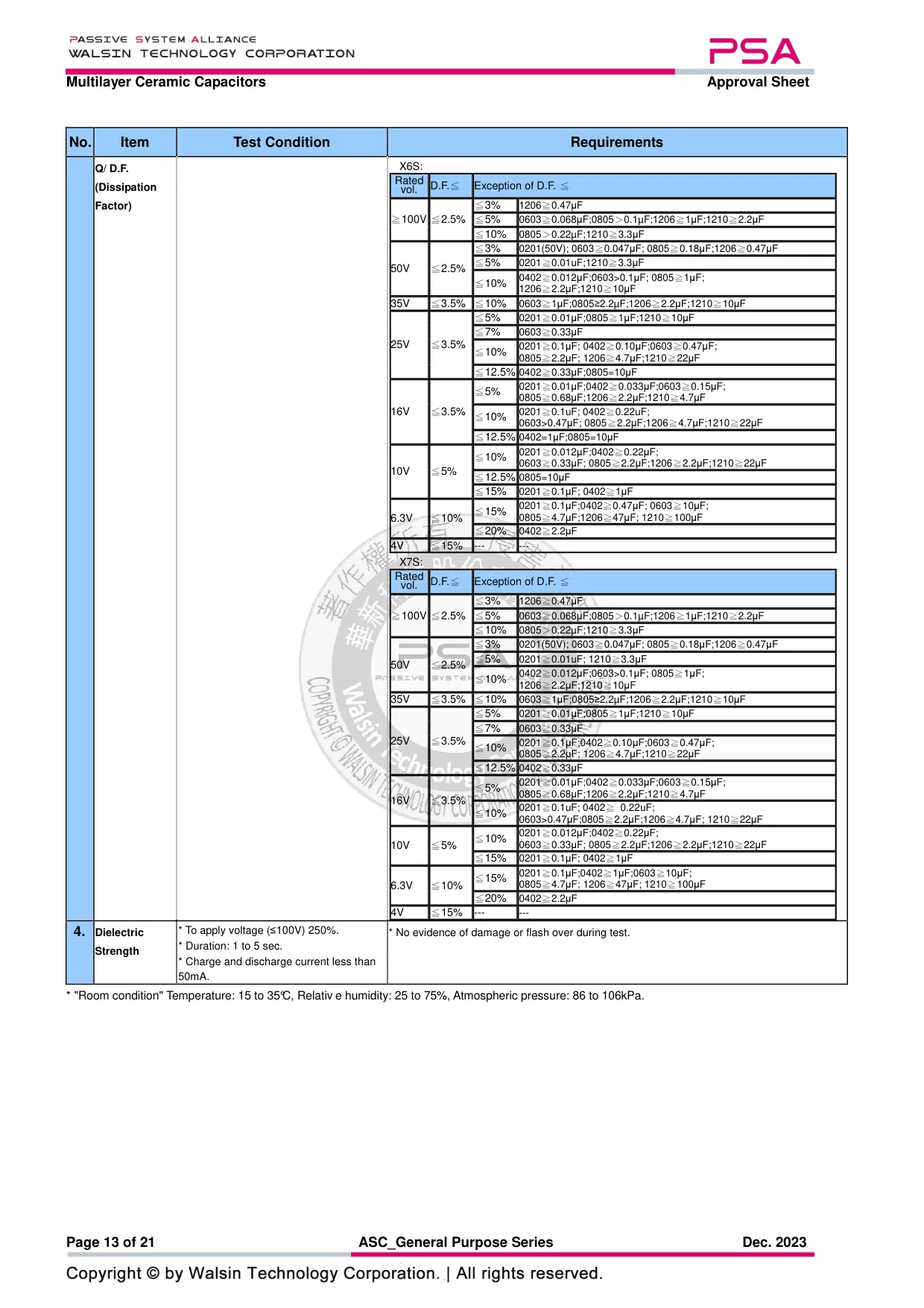

Dielectric strength: withstands 250% of rated voltage for 1–5 s with no damage or flashover^p.13

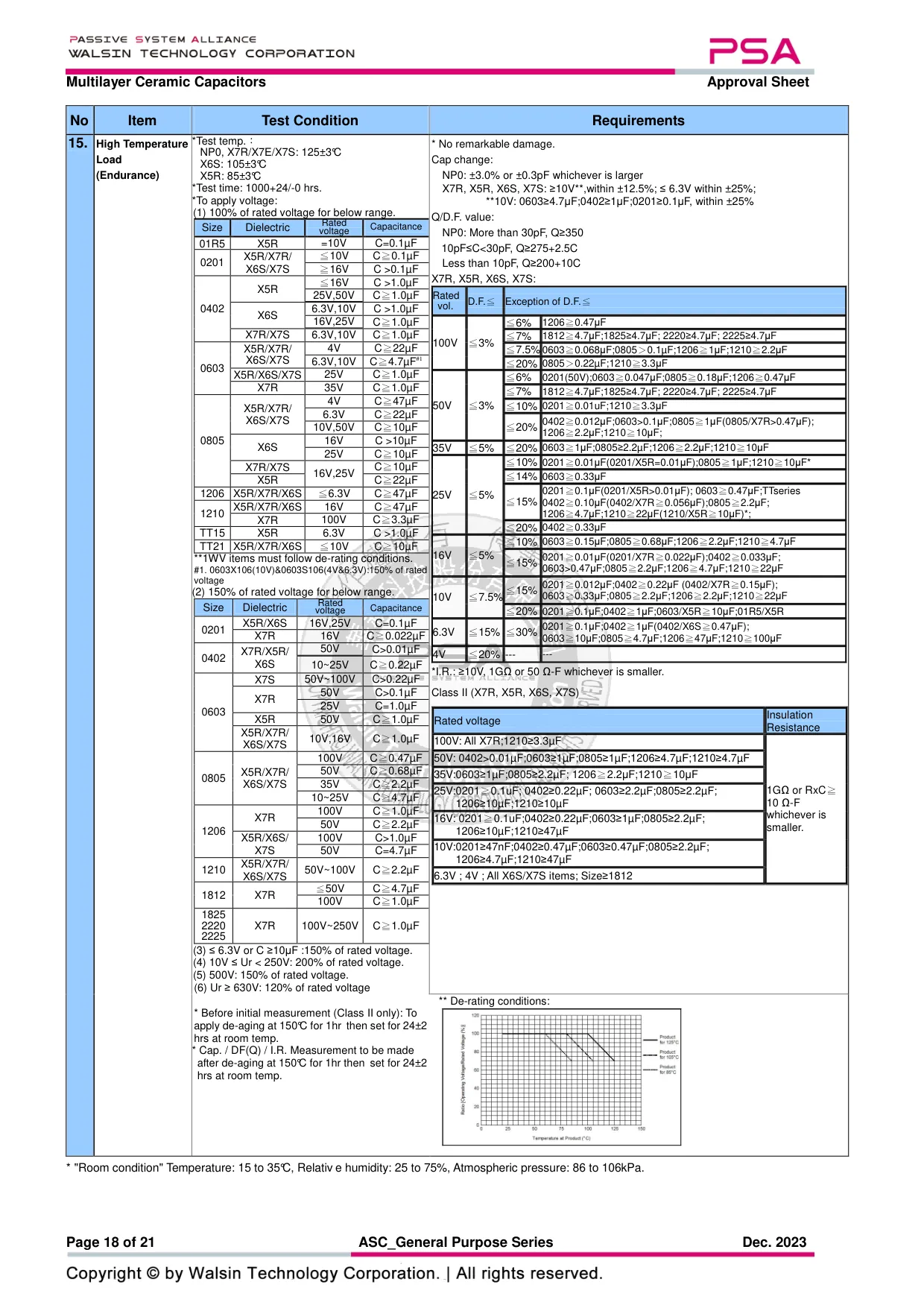

High-temperature load life: 1,000 h at 125 °C and 200% of rated voltage; capacitance change within ±12.5%^p.18

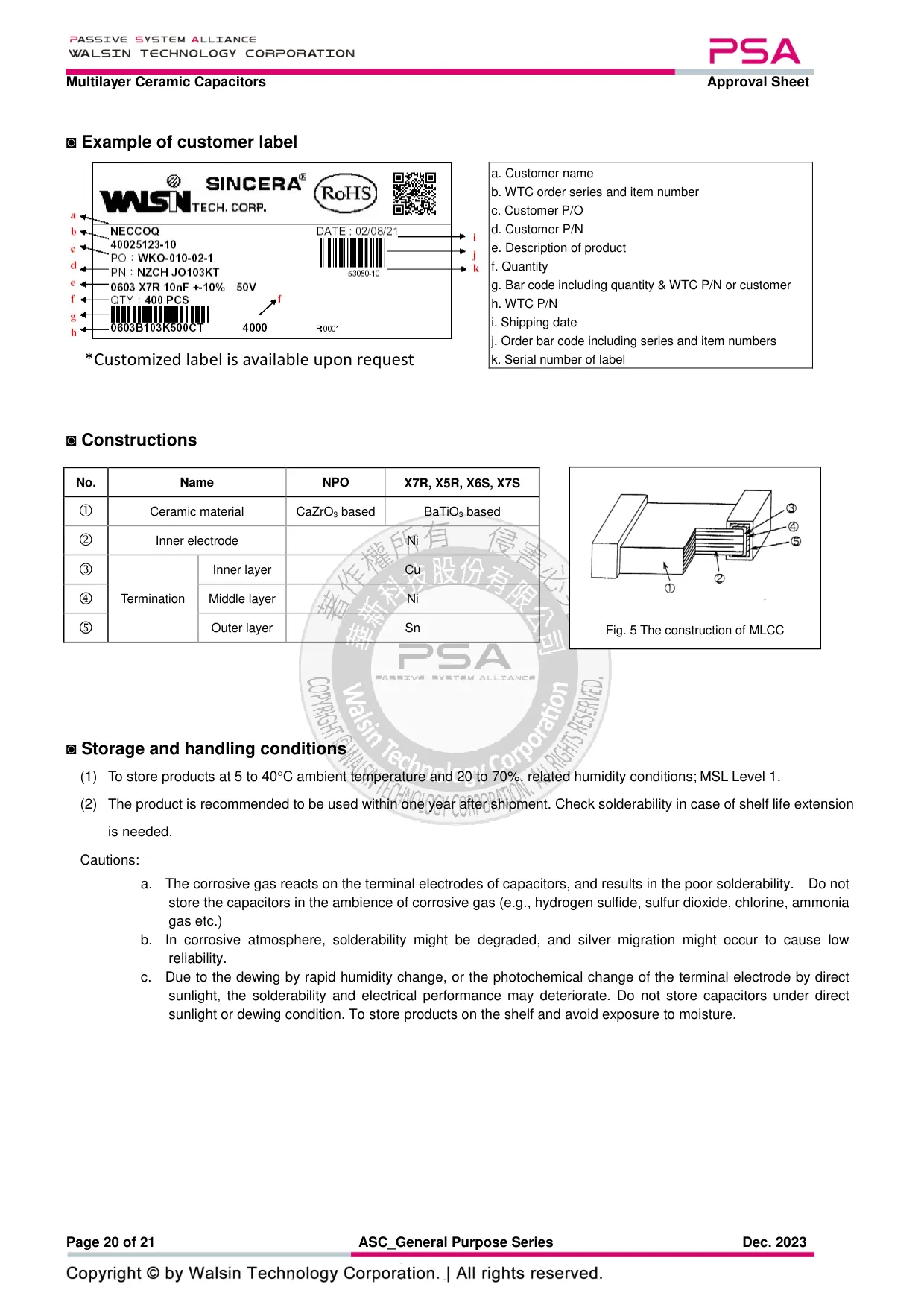

BaTiO₃-based ceramic, Ni inner electrodes, Cu/Ni/Sn termination (code C, pure-Sn outer plating)^{p.2, p.20}

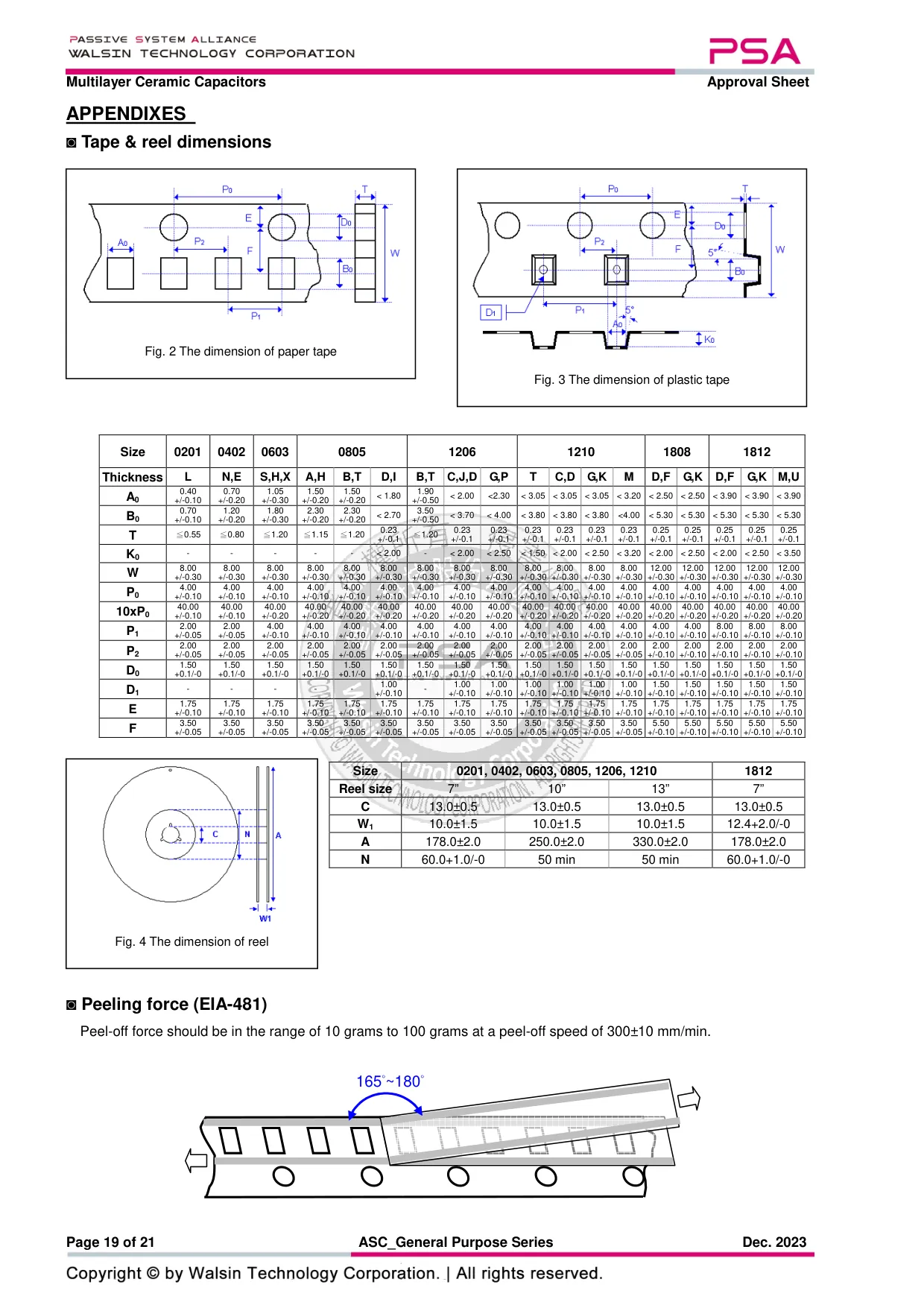

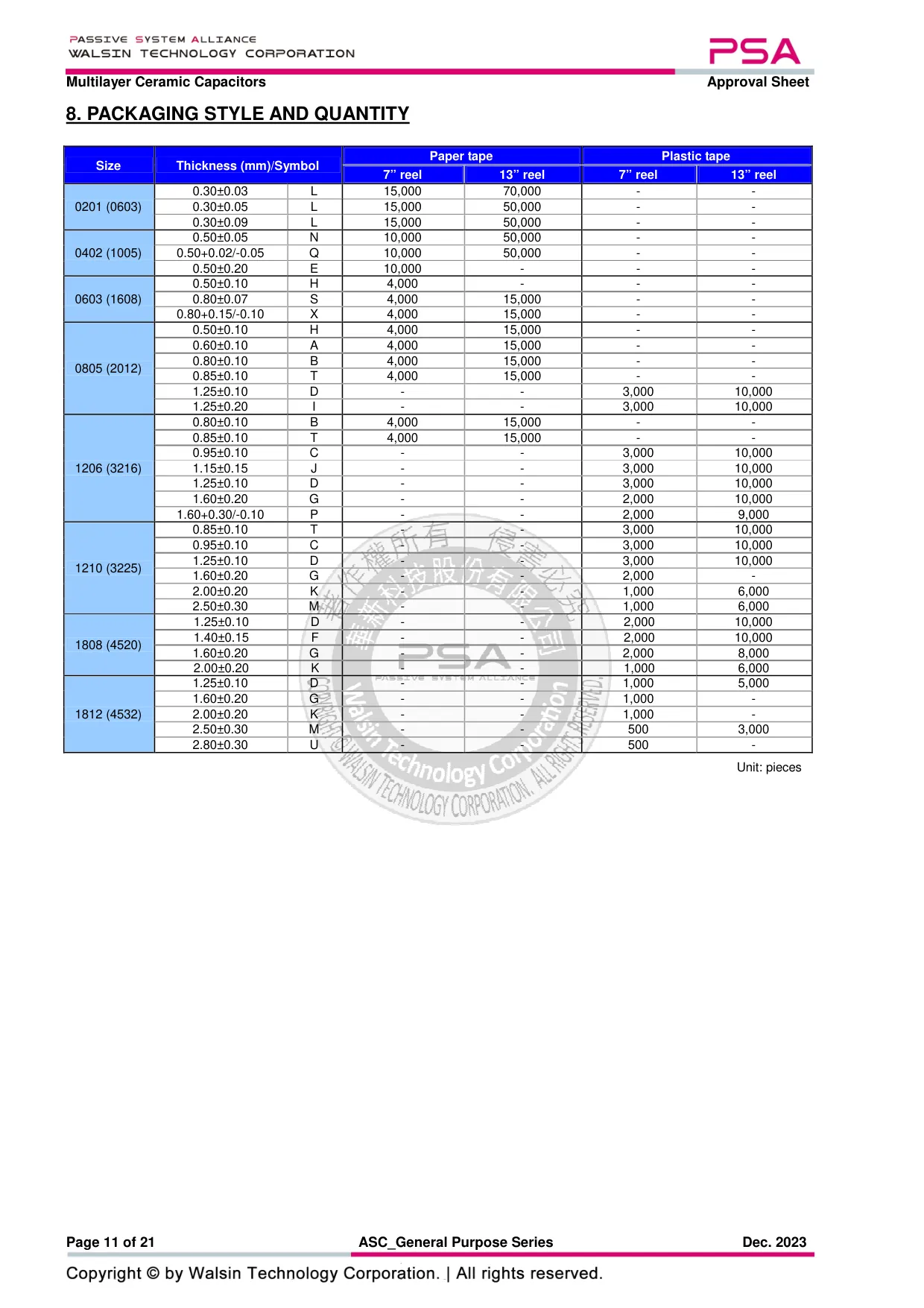

Paper carrier tape, 8 mm wide / 2 mm pocket pitch — 10,000 pcs per 7-inch (φ178 mm) reel, code T; store at 5–40 °C / 20–70% RH, MSL 1^{p.11, p.19, p.20}
