Thick film chip resistor 33 kOhm +/-1 %, 1/16 W, 50 V, 0402 (1005 metric)
← Commit history
Component record for rc0402fr-0733kl: files batch 1
56 files changed
+4514−2
LICENSE+15RC0402FR-0733KL.adom-lbr.json+219RC0402FR-0733KL.kicad_sym+23RC0402FR-0733KL.lbr+110RC0402FR-0733KL.step+1049README.md+167−2R_0402_1005Metric_RC0402FR-0733KL.kicad_mod+112altium/RC0402FR-0733KL.PcbLibaltium/RC0402FR-0733KL.SchLibdocs/figures/figures.json+93docs/figures/mount-p04-land.pngdocs/figures/rc-p03-marking.pngdocs/figures/rc-p04-dimensions.pngdocs/figures/rc-p05-table2.pngdocs/figures/rc-p07-packing.pngdocs/figures/rc-p07-power-voltage.pngdocs/figures/rc-p09-short-time-overload.pngdocs/hero.pngdocs/models/package-reference-step.pngdocs/models/step-plain.pngdocs/rc0402fr-0733kl-datasheet.pdfdocs/verify/hero-preview.pngdocs/verify/rc0402fr-0733kl-check.json+51docs/verify/rc0402fr-0733kl-overlay.pngdocs/yageo-chip-resistors-mounting-v10.pdfland-pattern/README.md+33land-pattern/land-check.json+45land-pattern/land-pattern-icon.pngland-pattern/land-pattern.pnglod/high.glblod/high.pnglod/low.glblod/low.pnglod/manifest.json+178lod/medium.glblod/medium.pnglod/super-low.glblod/super-low.pngmodels.json+146package-reference.glbpackage.json+10provenance.json+307provenance/tools/build.py+161provenance/tools/etch.py+35provenance/tools/figures.py+28provenance/tools/finish.py+49provenance/tools/landcheck.py+116provenance/tools/lod.py+199provenance/tools/ortho.py+123provenance/tools/overlay_chip.py+159provenance/tools/parts.py+125provenance/tools/rc0402fr-0733kl-overlay-spec.json+39provenance/tools/records.py+467rc0402fr-0733kl-hero.glbrc0402fr-0733kl-hero.overlay.json+125verification.json+330LICENSEadded+15@@ -0,0 +1,15 @@+RC0402FR-0733KL component page++Original Adom content on this page (README text, the KiCad symbol RC0402FR-0733KL.kicad_sym, the+verification drawings, the JSON records and the scripts in provenance/tools/)+is licensed under the Creative Commons Attribution 4.0 International License+(CC-BY-4.0): https://creativecommons.org/licenses/by/4.0/++Third-party files keep their own terms and are not relicensed by this page:+- R_0402_1005Metric_RC0402FR-0733KL.kicad_mod and RC0402FR-0733KL.step (and every model derived from it: package-reference.glb,+ rc0402fr-0733kl-hero.glb, lod/*.glb) are KiCad library content, CC-BY-SA 4.0 with the KiCad+ library exception (https://gitlab.com/kicad/libraries/kicad-footprints, https://gitlab.com/kicad/libraries/kicad-packages3D).+ The footprint geometry inside RC0402FR-0733KL.lbr and altium/RC0402FR-0733KL.PcbLib comes from the+ same KiCad footprint and keeps that license.+- The PDFs in docs/ and the page crops in docs/figures/ are YAGEO documents,+ copyright of their publisher, included unchanged (or cropped) for reference.
RC0402FR-0733KL.adom-lbr.jsonadded+219@@ -0,0 +1,219 @@+{+ "schema_version": 2,+ "mpn": "RC0402FR-0733KL",+ "manufacturer": "YAGEO",+ "package": "",+ "value": "",+ "category": "",+ "symbol": {+ "name": "RC0402FR-0733KL",+ "pins": [+ {+ "number": "1",+ "name": "",+ "x": 0,+ "y": 200,+ "length": 100,+ "rotation": 270,+ "electrical_type": "passive"+ },+ {+ "number": "2",+ "name": "",+ "x": 0,+ "y": -200,+ "length": 100,+ "rotation": 90,+ "electrical_type": "passive"+ }+ ],+ "body": null,+ "graphics": [+ {+ "kind": "rect",+ "x1": -40.0,+ "y1": -100.0,+ "x2": 40.0,+ "y2": 100.0,+ "width": 10.0,+ "filled": false,+ "fill_style": "none"+ }+ ],+ "designator_prefix": "R",+ "footprint": "R_0402_1005Metric_RC0402FR-0733KL",+ "parameters": [+ {+ "name": "Value",+ "value": "33k",+ "visible": true+ },+ {+ "name": "Datasheet",+ "value": "https://yageogroup.com/content/datasheet/asset/file/PYU-RC_GROUP_51_ROHS_L",+ "visible": false+ },+ {+ "name": "Description",+ "value": "Thick film chip resistor 33 kOhm +/-1 %, 1/16 W, 50 V, 0402 (1005 metric)",+ "visible": false+ },+ {+ "name": "MPN",+ "value": "RC0402FR-0733KL",+ "visible": false+ },+ {+ "name": "Manufacturer",+ "value": "YAGEO",+ "visible": false+ },+ {+ "name": "Mouser",+ "value": "603-RC0402FR-0733KL",+ "visible": false+ },+ {+ "name": "DigiKey",+ "value": "311-33.0KLRTR-ND",+ "visible": false+ },+ {+ "name": "LCSC",+ "value": "C138003",+ "visible": false+ },+ {+ "name": "Adom Wiki",+ "value": "https://wiki.adom.inc/adom/rc0402fr-0733kl",+ "visible": false+ },+ {+ "name": "ki_keywords",+ "value": "resistor 0402 RC0402FR-0733KL",+ "visible": false+ },+ {+ "name": "Supplier 1",+ "value": "Mouser",+ "visible": false+ },+ {+ "name": "Supplier Part Number 1",+ "value": "603-RC0402FR-0733KL",+ "visible": false+ },+ {+ "name": "Supplier 2",+ "value": "Digi-Key",+ "visible": false+ },+ {+ "name": "Supplier Part Number 2",+ "value": "311-33.0KLRTR-ND",+ "visible": false+ },+ {+ "name": "Supplier 3",+ "value": "LCSC",+ "visible": false+ },+ {+ "name": "Supplier Part Number 3",+ "value": "C138003",+ "visible": false+ },+ {+ "name": "Manufacturer Part Number",+ "value": "RC0402FR-0733KL",+ "visible": false+ }+ ],+ "pin_numbers_hidden": true,+ "pin_names_hidden": true+ },+ "footprint": {+ "name": "R_0402_1005Metric_RC0402FR-0733KL",+ "pads": [+ {+ "number": "1",+ "x_mm": -0.51,+ "y_mm": 0.0,+ "w_mm": 0.54,+ "h_mm": 0.64,+ "drill_mm": 0.0,+ "rotation": 0.0,+ "shape": "roundrect"+ },+ {+ "number": "2",+ "x_mm": 0.51,+ "y_mm": 0.0,+ "w_mm": 0.54,+ "h_mm": 0.64,+ "drill_mm": 0.0,+ "rotation": 0.0,+ "shape": "roundrect"+ }+ ],+ "graphics": [+ {+ "kind": "line",+ "layer": {+ "role": "silk"+ },+ "x1": -0.153641,+ "y1": -0.38,+ "x2": 0.153641,+ "y2": -0.38,+ "width": 0.12+ },+ {+ "kind": "line",+ "layer": {+ "role": "silk"+ },+ "x1": -0.153641,+ "y1": 0.38,+ "x2": 0.153641,+ "y2": 0.38,+ "width": 0.12+ },+ {+ "kind": "rect",+ "layer": {+ "role": "courtyard"+ },+ "x1": -0.93,+ "y1": -0.47,+ "x2": 0.93,+ "y2": 0.47,+ "width": 0.05+ },+ {+ "kind": "rect",+ "layer": {+ "role": "fab"+ },+ "x1": -0.525,+ "y1": -0.27,+ "x2": 0.525,+ "y2": 0.27,+ "width": 0.1+ }+ ]+ },+ "connect": [+ {+ "pin": "1",+ "pad": "1"+ },+ {+ "pin": "2",+ "pad": "2"+ }+ ],+ "provenance": {+ "source": "kicad_import"+ }+}
RC0402FR-0733KL.kicad_symadded+23@@ -0,0 +1,23 @@+(kicad_symbol_lib (version 20241209) (generator "adom_passive_symbol")+ (symbol "RC0402FR-0733KL" (pin_numbers (hide yes)) (pin_names (offset 0.254) (hide yes)) (exclude_from_sim no) (in_bom yes) (on_board yes)+ (property "Reference" "R" (at 2.54 1.27 0) (effects (font (size 1.27 1.27)) (justify left)))+ (property "Value" "33k" (at 2.54 -1.27 0) (effects (font (size 1.27 1.27)) (justify left)))+ (property "Footprint" "R_0402_1005Metric_RC0402FR-0733KL" (at 0 -7.62 0) (effects (font (size 1.27 1.27)) hide))+ (property "Datasheet" "https://yageogroup.com/content/datasheet/asset/file/PYU-RC_GROUP_51_ROHS_L" (at 0 -10.16 0) (effects (font (size 1.27 1.27)) hide))+ (property "Description" "Thick film chip resistor 33 kOhm +/-1 %, 1/16 W, 50 V, 0402 (1005 metric)" (at 0 -12.7 0) (effects (font (size 1.27 1.27)) hide))+ (property "MPN" "RC0402FR-0733KL" (at 0 -15.24 0) (effects (font (size 1.27 1.27)) hide))+ (property "Manufacturer" "YAGEO" (at 0 -17.78 0) (effects (font (size 1.27 1.27)) hide))+ (property "Mouser" "603-RC0402FR-0733KL" (at 0 -20.32 0) (effects (font (size 1.27 1.27)) hide))+ (property "DigiKey" "311-33.0KLRTR-ND" (at 0 -22.86 0) (effects (font (size 1.27 1.27)) hide))+ (property "LCSC" "C138003" (at 0 -25.4 0) (effects (font (size 1.27 1.27)) hide))+ (property "Adom Wiki" "https://wiki.adom.inc/adom/rc0402fr-0733kl" (at 0 -27.94 0) (effects (font (size 1.27 1.27)) hide))+ (property "ki_keywords" "resistor 0402 RC0402FR-0733KL" (at 0 0 0) (effects (font (size 1.27 1.27)) hide))+ (symbol "RC0402FR-0733KL_0_1"+ (rectangle (start -1.016 -2.54) (end 1.016 2.54) (stroke (width 0.254) (type default)) (fill (type none)))+ )+ (symbol "RC0402FR-0733KL_1_1"+ (pin passive line (at 0 5.08 270) (length 2.54) (name "~" (effects (font (size 1.27 1.27)))) (number "1" (effects (font (size 1.27 1.27)))))+ (pin passive line (at 0 -5.08 90) (length 2.54) (name "~" (effects (font (size 1.27 1.27)))) (number "2" (effects (font (size 1.27 1.27)))))+ )+ )+)
RC0402FR-0733KL.lbradded+110@@ -0,0 +1,110 @@+<?xml version="1.0" encoding="utf-8"?>+<!DOCTYPE eagle SYSTEM "eagle.dtd">+<eagle version="9.6.2">+<drawing>+<settings><setting alwaysvectorfont="no"/></settings>+<grid distance="0.1" unitdist="inch" unit="inch" style="lines" multiple="1" display="no" altdistance="0.01" altunitdist="inch" altunit="inch"/>+<layers>+<layer number="1" name="Top" color="4" fill="1" visible="yes" active="yes"/>+<layer number="16" name="Bottom" color="1" fill="1" visible="yes" active="yes"/>+<layer number="17" name="Pads" color="2" fill="1" visible="yes" active="yes"/>+<layer number="18" name="Vias" color="2" fill="1" visible="yes" active="yes"/>+<layer number="19" name="Unrouted" color="6" fill="1" visible="yes" active="yes"/>+<layer number="20" name="Dimension" color="15" fill="1" visible="yes" active="yes"/>+<layer number="21" name="tPlace" color="7" fill="1" visible="yes" active="yes"/>+<layer number="22" name="bPlace" color="7" fill="1" visible="yes" active="yes"/>+<layer number="23" name="tOrigins" color="15" fill="1" visible="yes" active="yes"/>+<layer number="24" name="bOrigins" color="15" fill="1" visible="yes" active="yes"/>+<layer number="25" name="tNames" color="7" fill="1" visible="yes" active="yes"/>+<layer number="26" name="bNames" color="7" fill="1" visible="yes" active="yes"/>+<layer number="27" name="tValues" color="7" fill="1" visible="yes" active="yes"/>+<layer number="28" name="bValues" color="7" fill="1" visible="yes" active="yes"/>+<layer number="29" name="tStop" color="7" fill="3" visible="no" active="yes"/>+<layer number="30" name="bStop" color="7" fill="6" visible="no" active="yes"/>+<layer number="31" name="tCream" color="7" fill="4" visible="no" active="yes"/>+<layer number="32" name="bCream" color="7" fill="5" visible="no" active="yes"/>+<layer number="33" name="tFinish" color="6" fill="3" visible="no" active="yes"/>+<layer number="34" name="bFinish" color="6" fill="6" visible="no" active="yes"/>+<layer number="35" name="tGlue" color="7" fill="4" visible="no" active="yes"/>+<layer number="36" name="bGlue" color="7" fill="5" visible="no" active="yes"/>+<layer number="37" name="tTest" color="7" fill="1" visible="no" active="yes"/>+<layer number="38" name="bTest" color="7" fill="1" visible="no" active="yes"/>+<layer number="39" name="tKeepout" color="4" fill="11" visible="no" active="yes"/>+<layer number="40" name="bKeepout" color="1" fill="11" visible="no" active="yes"/>+<layer number="41" name="tRestrict" color="4" fill="10" visible="no" active="yes"/>+<layer number="42" name="bRestrict" color="1" fill="10" visible="no" active="yes"/>+<layer number="43" name="vRestrict" color="2" fill="10" visible="no" active="yes"/>+<layer number="44" name="Drills" color="7" fill="1" visible="no" active="yes"/>+<layer number="45" name="Holes" color="7" fill="1" visible="no" active="yes"/>+<layer number="46" name="Milling" color="3" fill="1" visible="no" active="yes"/>+<layer number="47" name="Measures" color="7" fill="1" visible="no" active="yes"/>+<layer number="48" name="Document" color="7" fill="1" visible="yes" active="yes"/>+<layer number="49" name="Reference" color="7" fill="1" visible="yes" active="yes"/>+<layer number="91" name="Nets" color="2" fill="1" visible="yes" active="yes"/>+<layer number="92" name="Busses" color="1" fill="1" visible="yes" active="yes"/>+<layer number="93" name="Pins" color="2" fill="1" visible="no" active="yes"/>+<layer number="94" name="Symbols" color="4" fill="1" visible="yes" active="yes"/>+<layer number="95" name="Names" color="7" fill="1" visible="yes" active="yes"/>+<layer number="96" name="Values" color="7" fill="1" visible="yes" active="yes"/>+<layer number="97" name="Info" color="7" fill="1" visible="yes" active="yes"/>+<layer number="98" name="Guide" color="6" fill="1" visible="yes" active="yes"/>+</layers>+<library>+<description>Thick film chip resistor 33 kOhm +/-1 %, 1/16 W, 50 V, 0402 (1005 metric)</description>+<packages>+<package name="R_0402_1005Metric_RC0402FR-0733KL">+ <description>2 pads, 1.6 x 0.6 mm. Resistor SMD 0402 (1005 Metric), square (rectangular) end terminal, IPC-7351 nominal</description>+ <smd name="1" x="-0.5100" y="-0.0000" dx="0.5400" dy="0.6400" layer="1" roundness="50"/>+ <smd name="2" x="0.5100" y="-0.0000" dx="0.5400" dy="0.6400" layer="1" roundness="50"/>+ <wire x1="-0.5250" y1="0.2700" x2="0.5250" y2="0.2700" width="0.1000" layer="51"/>+ <wire x1="0.5250" y1="0.2700" x2="0.5250" y2="-0.2700" width="0.1000" layer="51"/>+ <wire x1="0.5250" y1="-0.2700" x2="-0.5250" y2="-0.2700" width="0.1000" layer="51"/>+ <wire x1="-0.5250" y1="-0.2700" x2="-0.5250" y2="0.2700" width="0.1000" layer="51"/>+ <wire x1="-0.1536" y1="0.3800" x2="0.1536" y2="0.3800" width="0.1200" layer="21"/>+ <wire x1="-0.1536" y1="-0.3800" x2="0.1536" y2="-0.3800" width="0.1200" layer="21"/>+ <text x="0" y="0.980" size="1.27" layer="25" align="bottom-center">>NAME</text>+ <text x="0" y="-0.980" size="1.27" layer="27" align="top-center">>VALUE</text>+</package>+</packages>+<symbols>+<symbol name="RC0402FR-0733KL">+ <description>Thick film chip resistor 33 kOhm +/-1 %, 1/16 W, 50 V, 0402 (1005 metric)</description>+ <wire x1="-7.62" y1="5.08" x2="7.62" y2="5.08" width="0.254" layer="94"/>+ <wire x1="7.62" y1="5.08" x2="7.62" y2="-2.54" width="0.254" layer="94"/>+ <wire x1="7.62" y1="-2.54" x2="-7.62" y2="-2.54" width="0.254" layer="94"/>+ <wire x1="-7.62" y1="-2.54" x2="-7.62" y2="5.08" width="0.254" layer="94"/>+ <text x="2.5400" y="1.2700" size="1.27" layer="95" align="center">>NAME</text>+ <text x="2.5400" y="-1.2700" size="1.27" layer="96" align="center">>VALUE</text>+ <pin name="1" x="-12.7" y="2.54" length="middle" direction="pas"/>+ <pin name="2" x="-12.7" y="0" length="middle" direction="pas"/>+</symbol>+</symbols>+<devicesets>+<deviceset name="RC0402FR-0733KL" prefix="R">+ <description>Thick film chip resistor 33 kOhm +/-1 %, 1/16 W, 50 V, 0402 (1005 metric)</description>+ <gates>+ <gate name="G$1" symbol="RC0402FR-0733KL" x="0" y="0"/>+ </gates>+ <devices>+ <device name="" package="R_0402_1005Metric_RC0402FR-0733KL">+ <connects>+ <connect gate="G$1" pin="1" pad="1"/>+ <connect gate="G$1" pin="2" pad="2"/>+ </connects>+ <technologies>+ <technology name="">+ <attribute name="MPN" value="RC0402FR-0733KL" constant="no"/>+ <attribute name="MANUFACTURER" value="YAGEO" constant="no"/>+ <attribute name="ADOM_WIKI" value="https://wiki.adom.inc/adom/rc0402fr-0733kl" constant="no"/>+ <attribute name="MOUSER_PN" value="603-RC0402FR-0733KL" constant="no"/>+ <attribute name="DIGIKEY_PN" value="311-33.0KLRTR-ND" constant="no"/>+ <attribute name="LCSC_PN" value="C138003" constant="no"/>+ </technology>+ </technologies>+ </device>+ </devices>+</deviceset>+</devicesets>+</library>+</drawing>+</eagle>
RC0402FR-0733KL.stepadded+1049@@ -0,0 +1,1049 @@+ISO-10303-21;+HEADER;+/* R_0402_1005Metric.step 3D STEP model for use in ECAD systems+ * Copyright (C) 2018, kicad StepUp+ * + * This work is licensed under the [Creative Commons CC-BY-SA 4.0 License](https://creativecommons.org/licenses/by-sa/4.0/legalcode), + * with the following exception:+ * To the extent that the creation of electronic designs that use 'Licensed Material' can be considered to be 'Adapted Material', + * then the copyright holder waives article 3 of the license with respect to these designs and any generated files which use data provided + * as part of the 'Licensed Material'.+ * You are free to use the library data in your own projects without the obligation to share your project files under this or any other license agreement.+ * However, if you wish to redistribute these libraries, or parts thereof (including in modified form) as a collection then the exception above does not apply. + * Please refer to https://github.com/KiCad/kicad-packages3D/blob/master/LICENSE.md for further clarification of the exception.+ * Disclaimer of Warranties and Limitation of Liability.+ * These libraries are provided in the hope that they will be useful, but are provided without warranty of any kind, express or implied.+ * *USE 3D CAD DATA AT YOUR OWN RISK*+ * *DO NOT RELY UPON ANY INFORMATION FOUND HERE WITHOUT INDEPENDENT VERIFICATION.*+ * + */++FILE_DESCRIPTION(+/* description */ ('model of R_0402_1005Metric'),+/* implementation_level */ '2;1');++FILE_NAME(+/* name */ 'R_0402_1005Metric.step',+/* time_stamp */ '2018-01-04T00:45:35',+/* author */ ('kicad StepUp','ksu'),+/* organization */ ('FreeCAD'),+/* preprocessor_version */ 'OCC',+/* originating_system */ 'kicad StepUp',+/* authorisation */ '');++FILE_SCHEMA(('AUTOMOTIVE_DESIGN { 1 0 10303 214 1 1 1 1 }'));+ENDSEC;++DATA;+#1 = APPLICATION_PROTOCOL_DEFINITION('international standard',+'automotive_design',2000,#2);+#2 = APPLICATION_CONTEXT(+'core data for automotive mechanical design processes');+#3 = SHAPE_DEFINITION_REPRESENTATION(#4,#10);+#4 = PRODUCT_DEFINITION_SHAPE('','',#5);+#5 = PRODUCT_DEFINITION('design','',#6,#9);+#6 = PRODUCT_DEFINITION_FORMATION('','',#7);+#7 = PRODUCT('R_0402_1005Metric','R_0402_1005Metric','',(#8));+#8 = PRODUCT_CONTEXT('',#2,'mechanical');+#9 = PRODUCT_DEFINITION_CONTEXT('part definition',#2,'design');+#10 = ADVANCED_BREP_SHAPE_REPRESENTATION('',(#11,#15),#805);+#11 = AXIS2_PLACEMENT_3D('',#12,#13,#14);+#12 = CARTESIAN_POINT('',(0.,0.,0.));+#13 = DIRECTION('',(0.,0.,1.));+#14 = DIRECTION('',(1.,0.,-0.));+#15 = MANIFOLD_SOLID_BREP('',#16);+#16 = CLOSED_SHELL('',(#17,#57,#140,#165,#190,#257,#274,#291,#340,#357,+#374,#423,#440,#509,#540,#564,#633,#657,#674,#691,#708,#725,#742,+#759,#776,#793));+#17 = ADVANCED_FACE('',(#18),#52,.F.);+#18 = FACE_BOUND('',#19,.F.);+#19 = EDGE_LOOP('',(#20,#30,#38,#46));+#20 = ORIENTED_EDGE('',*,*,#21,.F.);+#21 = EDGE_CURVE('',#22,#24,#26,.T.);+#22 = VERTEX_POINT('',#23);+#23 = CARTESIAN_POINT('',(-0.5,-0.25,3.5E-02));+#24 = VERTEX_POINT('',#25);+#25 = CARTESIAN_POINT('',(-0.5,-0.25,0.315));+#26 = LINE('',#27,#28);+#27 = CARTESIAN_POINT('',(-0.5,-0.25,0.));+#28 = VECTOR('',#29,1.);+#29 = DIRECTION('',(0.,0.,1.));+#30 = ORIENTED_EDGE('',*,*,#31,.T.);+#31 = EDGE_CURVE('',#22,#32,#34,.T.);+#32 = VERTEX_POINT('',#33);+#33 = CARTESIAN_POINT('',(-0.5,0.25,3.5E-02));+#34 = LINE('',#35,#36);+#35 = CARTESIAN_POINT('',(-0.5,-0.25,3.5E-02));+#36 = VECTOR('',#37,1.);+#37 = DIRECTION('',(0.,1.,0.));+#38 = ORIENTED_EDGE('',*,*,#39,.T.);+#39 = EDGE_CURVE('',#32,#40,#42,.T.);+#40 = VERTEX_POINT('',#41);+#41 = CARTESIAN_POINT('',(-0.5,0.25,0.315));+#42 = LINE('',#43,#44);+#43 = CARTESIAN_POINT('',(-0.5,0.25,0.));+#44 = VECTOR('',#45,1.);+#45 = DIRECTION('',(0.,0.,1.));+#46 = ORIENTED_EDGE('',*,*,#47,.F.);+#47 = EDGE_CURVE('',#24,#40,#48,.T.);+#48 = LINE('',#49,#50);+#49 = CARTESIAN_POINT('',(-0.5,-0.25,0.315));+#50 = VECTOR('',#51,1.);+#51 = DIRECTION('',(0.,1.,0.));+#52 = PLANE('',#53);+#53 = AXIS2_PLACEMENT_3D('',#54,#55,#56);+#54 = CARTESIAN_POINT('',(-0.5,-0.25,0.));+#55 = DIRECTION('',(1.,0.,0.));+#56 = DIRECTION('',(0.,0.,1.));+#57 = ADVANCED_FACE('',(#58),#135,.F.);+#58 = FACE_BOUND('',#59,.F.);+#59 = EDGE_LOOP('',(#60,#70,#77,#78,#87,#95,#104,#112,#120,#128));+#60 = ORIENTED_EDGE('',*,*,#61,.F.);+#61 = EDGE_CURVE('',#62,#64,#66,.T.);+#62 = VERTEX_POINT('',#63);+#63 = CARTESIAN_POINT('',(-0.465,-0.25,-2.775557561563E-17));+#64 = VERTEX_POINT('',#65);+#65 = CARTESIAN_POINT('',(-0.335,-0.25,-2.775557561563E-17));+#66 = LINE('',#67,#68);+#67 = CARTESIAN_POINT('',(-0.5,-0.25,0.));+#68 = VECTOR('',#69,1.);+#69 = DIRECTION('',(1.,0.,0.));+#70 = ORIENTED_EDGE('',*,*,#71,.F.);+#71 = EDGE_CURVE('',#22,#62,#72,.T.);+#72 = CIRCLE('',#73,3.5E-02);+#73 = AXIS2_PLACEMENT_3D('',#74,#75,#76);+#74 = CARTESIAN_POINT('',(-0.465,-0.25,3.5E-02));+#75 = DIRECTION('',(0.,-1.,0.));+#76 = DIRECTION('',(0.,0.,1.));+#77 = ORIENTED_EDGE('',*,*,#21,.T.);+#78 = ORIENTED_EDGE('',*,*,#79,.T.);+#79 = EDGE_CURVE('',#24,#80,#82,.T.);+#80 = VERTEX_POINT('',#81);+#81 = CARTESIAN_POINT('',(-0.465,-0.25,0.35));+#82 = CIRCLE('',#83,3.5E-02);+#83 = AXIS2_PLACEMENT_3D('',#84,#85,#86);+#84 = CARTESIAN_POINT('',(-0.465,-0.25,0.315));+#85 = DIRECTION('',(0.,1.,0.));+#86 = DIRECTION('',(0.,0.,1.));+#87 = ORIENTED_EDGE('',*,*,#88,.T.);+#88 = EDGE_CURVE('',#80,#89,#91,.T.);+#89 = VERTEX_POINT('',#90);+#90 = CARTESIAN_POINT('',(-0.335,-0.25,0.35));+#91 = LINE('',#92,#93);+#92 = CARTESIAN_POINT('',(-0.5,-0.25,0.35));+#93 = VECTOR('',#94,1.);+#94 = DIRECTION('',(1.,0.,0.));+#95 = ORIENTED_EDGE('',*,*,#96,.F.);+#96 = EDGE_CURVE('',#97,#89,#99,.T.);+#97 = VERTEX_POINT('',#98);+#98 = CARTESIAN_POINT('',(-0.3,-0.25,0.315));+#99 = CIRCLE('',#100,3.5E-02);+#100 = AXIS2_PLACEMENT_3D('',#101,#102,#103);+#101 = CARTESIAN_POINT('',(-0.335,-0.25,0.315));+#102 = DIRECTION('',(0.,-1.,0.));+#103 = DIRECTION('',(0.,0.,1.));+#104 = ORIENTED_EDGE('',*,*,#105,.F.);+#105 = EDGE_CURVE('',#106,#97,#108,.T.);+#106 = VERTEX_POINT('',#107);+#107 = CARTESIAN_POINT('',(-0.465,-0.25,0.315));+#108 = LINE('',#109,#110);+#109 = CARTESIAN_POINT('',(-0.465,-0.25,0.315));+#110 = VECTOR('',#111,1.);+#111 = DIRECTION('',(1.,0.,0.));+#112 = ORIENTED_EDGE('',*,*,#113,.F.);+#113 = EDGE_CURVE('',#114,#106,#116,.T.);+#114 = VERTEX_POINT('',#115);+#115 = CARTESIAN_POINT('',(-0.465,-0.25,3.5E-02));+#116 = LINE('',#117,#118);+#117 = CARTESIAN_POINT('',(-0.465,-0.25,3.5E-02));+#118 = VECTOR('',#119,1.);+#119 = DIRECTION('',(0.,0.,1.));+#120 = ORIENTED_EDGE('',*,*,#121,.T.);+#121 = EDGE_CURVE('',#114,#122,#124,.T.);+#122 = VERTEX_POINT('',#123);+#123 = CARTESIAN_POINT('',(-0.3,-0.25,3.5E-02));+#124 = LINE('',#125,#126);+#125 = CARTESIAN_POINT('',(-0.465,-0.25,3.5E-02));+#126 = VECTOR('',#127,1.);+#127 = DIRECTION('',(1.,0.,0.));+#128 = ORIENTED_EDGE('',*,*,#129,.T.);+#129 = EDGE_CURVE('',#122,#64,#130,.T.);+#130 = CIRCLE('',#131,3.5E-02);+#131 = AXIS2_PLACEMENT_3D('',#132,#133,#134);+#132 = CARTESIAN_POINT('',(-0.335,-0.25,3.5E-02));+#133 = DIRECTION('',(0.,1.,0.));+#134 = DIRECTION('',(0.,0.,1.));+#135 = PLANE('',#136);+#136 = AXIS2_PLACEMENT_3D('',#137,#138,#139);+#137 = CARTESIAN_POINT('',(-0.5,-0.25,0.));+#138 = DIRECTION('',(0.,1.,0.));+#139 = DIRECTION('',(0.,0.,1.));+#140 = ADVANCED_FACE('',(#141),#160,.T.);+#141 = FACE_BOUND('',#142,.F.);+#142 = EDGE_LOOP('',(#143,#144,#152,#159));+#143 = ORIENTED_EDGE('',*,*,#71,.T.);+#144 = ORIENTED_EDGE('',*,*,#145,.T.);+#145 = EDGE_CURVE('',#62,#146,#148,.T.);+#146 = VERTEX_POINT('',#147);+#147 = CARTESIAN_POINT('',(-0.465,0.25,-2.775557561563E-17));+#148 = LINE('',#149,#150);+#149 = CARTESIAN_POINT('',(-0.465,-0.25,-2.775557561563E-17));+#150 = VECTOR('',#151,1.);+#151 = DIRECTION('',(0.,1.,0.));+#152 = ORIENTED_EDGE('',*,*,#153,.F.);+#153 = EDGE_CURVE('',#32,#146,#154,.T.);+#154 = CIRCLE('',#155,3.5E-02);+#155 = AXIS2_PLACEMENT_3D('',#156,#157,#158);+#156 = CARTESIAN_POINT('',(-0.465,0.25,3.5E-02));+#157 = DIRECTION('',(0.,-1.,0.));+#158 = DIRECTION('',(0.,0.,1.));+#159 = ORIENTED_EDGE('',*,*,#31,.F.);+#160 = CYLINDRICAL_SURFACE('',#161,3.5E-02);+#161 = AXIS2_PLACEMENT_3D('',#162,#163,#164);+#162 = CARTESIAN_POINT('',(-0.465,-0.25,3.5E-02));+#163 = DIRECTION('',(0.,1.,0.));+#164 = DIRECTION('',(-1.,0.,0.));+#165 = ADVANCED_FACE('',(#166),#185,.T.);+#166 = FACE_BOUND('',#167,.T.);+#167 = EDGE_LOOP('',(#168,#169,#177,#184));+#168 = ORIENTED_EDGE('',*,*,#79,.T.);+#169 = ORIENTED_EDGE('',*,*,#170,.T.);+#170 = EDGE_CURVE('',#80,#171,#173,.T.);+#171 = VERTEX_POINT('',#172);+#172 = CARTESIAN_POINT('',(-0.465,0.25,0.35));+#173 = LINE('',#174,#175);+#174 = CARTESIAN_POINT('',(-0.465,-0.25,0.35));+#175 = VECTOR('',#176,1.);+#176 = DIRECTION('',(0.,1.,0.));+#177 = ORIENTED_EDGE('',*,*,#178,.F.);+#178 = EDGE_CURVE('',#40,#171,#179,.T.);+#179 = CIRCLE('',#180,3.5E-02);+#180 = AXIS2_PLACEMENT_3D('',#181,#182,#183);+#181 = CARTESIAN_POINT('',(-0.465,0.25,0.315));+#182 = DIRECTION('',(0.,1.,0.));+#183 = DIRECTION('',(0.,0.,1.));+#184 = ORIENTED_EDGE('',*,*,#47,.F.);+#185 = CYLINDRICAL_SURFACE('',#186,3.5E-02);+#186 = AXIS2_PLACEMENT_3D('',#187,#188,#189);+#187 = CARTESIAN_POINT('',(-0.465,-0.25,0.315));+#188 = DIRECTION('',(0.,1.,0.));+#189 = DIRECTION('',(-1.,0.,0.));+#190 = ADVANCED_FACE('',(#191),#252,.T.);+#191 = FACE_BOUND('',#192,.T.);+#192 = EDGE_LOOP('',(#193,#201,#202,#203,#204,#212,#221,#229,#237,#245)+);+#193 = ORIENTED_EDGE('',*,*,#194,.F.);+#194 = EDGE_CURVE('',#146,#195,#197,.T.);+#195 = VERTEX_POINT('',#196);+#196 = CARTESIAN_POINT('',(-0.335,0.25,-2.775557561563E-17));+#197 = LINE('',#198,#199);+#198 = CARTESIAN_POINT('',(-0.5,0.25,0.));+#199 = VECTOR('',#200,1.);+#200 = DIRECTION('',(1.,0.,0.));+#201 = ORIENTED_EDGE('',*,*,#153,.F.);+#202 = ORIENTED_EDGE('',*,*,#39,.T.);+#203 = ORIENTED_EDGE('',*,*,#178,.T.);+#204 = ORIENTED_EDGE('',*,*,#205,.T.);+#205 = EDGE_CURVE('',#171,#206,#208,.T.);+#206 = VERTEX_POINT('',#207);+#207 = CARTESIAN_POINT('',(-0.335,0.25,0.35));+#208 = LINE('',#209,#210);+#209 = CARTESIAN_POINT('',(-0.5,0.25,0.35));+#210 = VECTOR('',#211,1.);+#211 = DIRECTION('',(1.,0.,0.));+#212 = ORIENTED_EDGE('',*,*,#213,.F.);+#213 = EDGE_CURVE('',#214,#206,#216,.T.);+#214 = VERTEX_POINT('',#215);+#215 = CARTESIAN_POINT('',(-0.3,0.25,0.315));+#216 = CIRCLE('',#217,3.5E-02);+#217 = AXIS2_PLACEMENT_3D('',#218,#219,#220);+#218 = CARTESIAN_POINT('',(-0.335,0.25,0.315));+#219 = DIRECTION('',(0.,-1.,0.));+#220 = DIRECTION('',(0.,0.,1.));+#221 = ORIENTED_EDGE('',*,*,#222,.F.);+#222 = EDGE_CURVE('',#223,#214,#225,.T.);+#223 = VERTEX_POINT('',#224);+#224 = CARTESIAN_POINT('',(-0.465,0.25,0.315));+#225 = LINE('',#226,#227);+#226 = CARTESIAN_POINT('',(-0.465,0.25,0.315));+#227 = VECTOR('',#228,1.);+#228 = DIRECTION('',(1.,0.,0.));+#229 = ORIENTED_EDGE('',*,*,#230,.F.);+#230 = EDGE_CURVE('',#231,#223,#233,.T.);+#231 = VERTEX_POINT('',#232);+#232 = CARTESIAN_POINT('',(-0.465,0.25,3.5E-02));+#233 = LINE('',#234,#235);+#234 = CARTESIAN_POINT('',(-0.465,0.25,3.5E-02));+#235 = VECTOR('',#236,1.);+#236 = DIRECTION('',(0.,0.,1.));+#237 = ORIENTED_EDGE('',*,*,#238,.T.);+#238 = EDGE_CURVE('',#231,#239,#241,.T.);+#239 = VERTEX_POINT('',#240);+#240 = CARTESIAN_POINT('',(-0.3,0.25,3.5E-02));+#241 = LINE('',#242,#243);+#242 = CARTESIAN_POINT('',(-0.465,0.25,3.5E-02));+#243 = VECTOR('',#244,1.);+#244 = DIRECTION('',(1.,0.,0.));+#245 = ORIENTED_EDGE('',*,*,#246,.T.);+#246 = EDGE_CURVE('',#239,#195,#247,.T.);+#247 = CIRCLE('',#248,3.5E-02);+#248 = AXIS2_PLACEMENT_3D('',#249,#250,#251);+#249 = CARTESIAN_POINT('',(-0.335,0.25,3.5E-02));+#250 = DIRECTION('',(0.,1.,0.));+#251 = DIRECTION('',(0.,0.,1.));+#252 = PLANE('',#253);+#253 = AXIS2_PLACEMENT_3D('',#254,#255,#256);+#254 = CARTESIAN_POINT('',(-0.5,0.25,0.));+#255 = DIRECTION('',(0.,1.,0.));+#256 = DIRECTION('',(0.,0.,1.));+#257 = ADVANCED_FACE('',(#258),#269,.F.);+#258 = FACE_BOUND('',#259,.F.);+#259 = EDGE_LOOP('',(#260,#261,#262,#263));+#260 = ORIENTED_EDGE('',*,*,#194,.F.);+#261 = ORIENTED_EDGE('',*,*,#145,.F.);+#262 = ORIENTED_EDGE('',*,*,#61,.T.);+#263 = ORIENTED_EDGE('',*,*,#264,.T.);+#264 = EDGE_CURVE('',#64,#195,#265,.T.);+#265 = LINE('',#266,#267);+#266 = CARTESIAN_POINT('',(-0.335,-0.25,-2.775557561563E-17));+#267 = VECTOR('',#268,1.);+#268 = DIRECTION('',(0.,1.,0.));+#269 = PLANE('',#270);+#270 = AXIS2_PLACEMENT_3D('',#271,#272,#273);+#271 = CARTESIAN_POINT('',(-0.5,-0.25,0.));+#272 = DIRECTION('',(0.,0.,1.));+#273 = DIRECTION('',(1.,0.,0.));+#274 = ADVANCED_FACE('',(#275),#286,.T.);+#275 = FACE_BOUND('',#276,.T.);+#276 = EDGE_LOOP('',(#277,#278,#279,#280));+#277 = ORIENTED_EDGE('',*,*,#129,.T.);+#278 = ORIENTED_EDGE('',*,*,#264,.T.);+#279 = ORIENTED_EDGE('',*,*,#246,.F.);+#280 = ORIENTED_EDGE('',*,*,#281,.F.);+#281 = EDGE_CURVE('',#122,#239,#282,.T.);+#282 = LINE('',#283,#284);+#283 = CARTESIAN_POINT('',(-0.3,-0.25,3.5E-02));+#284 = VECTOR('',#285,1.);+#285 = DIRECTION('',(0.,1.,0.));+#286 = CYLINDRICAL_SURFACE('',#287,3.5E-02);+#287 = AXIS2_PLACEMENT_3D('',#288,#289,#290);+#288 = CARTESIAN_POINT('',(-0.335,-0.25,3.5E-02));+#289 = DIRECTION('',(0.,1.,0.));+#290 = DIRECTION('',(1.,0.,0.));+#291 = ADVANCED_FACE('',(#292),#335,.F.);+#292 = FACE_BOUND('',#293,.F.);+#293 = EDGE_LOOP('',(#294,#295,#296,#297,#305,#313,#321,#329));+#294 = ORIENTED_EDGE('',*,*,#121,.F.);+#295 = ORIENTED_EDGE('',*,*,#113,.T.);+#296 = ORIENTED_EDGE('',*,*,#105,.T.);+#297 = ORIENTED_EDGE('',*,*,#298,.T.);+#298 = EDGE_CURVE('',#97,#299,#301,.T.);+#299 = VERTEX_POINT('',#300);+#300 = CARTESIAN_POINT('',(0.3,-0.25,0.315));+#301 = LINE('',#302,#303);+#302 = CARTESIAN_POINT('',(-0.3,-0.25,0.315));+#303 = VECTOR('',#304,1.);+#304 = DIRECTION('',(1.,0.,0.));+#305 = ORIENTED_EDGE('',*,*,#306,.T.);+#306 = EDGE_CURVE('',#299,#307,#309,.T.);+#307 = VERTEX_POINT('',#308);+#308 = CARTESIAN_POINT('',(0.465,-0.25,0.315));+#309 = LINE('',#310,#311);+#310 = CARTESIAN_POINT('',(-0.465,-0.25,0.315));+#311 = VECTOR('',#312,1.);+#312 = DIRECTION('',(1.,0.,0.));+#313 = ORIENTED_EDGE('',*,*,#314,.F.);+#314 = EDGE_CURVE('',#315,#307,#317,.T.);+#315 = VERTEX_POINT('',#316);+#316 = CARTESIAN_POINT('',(0.465,-0.25,3.5E-02));+#317 = LINE('',#318,#319);+#318 = CARTESIAN_POINT('',(0.465,-0.25,3.5E-02));+#319 = VECTOR('',#320,1.);+#320 = DIRECTION('',(0.,0.,1.));+#321 = ORIENTED_EDGE('',*,*,#322,.F.);+#322 = EDGE_CURVE('',#323,#315,#325,.T.);+#323 = VERTEX_POINT('',#324);+#324 = CARTESIAN_POINT('',(0.3,-0.25,3.5E-02));+#325 = LINE('',#326,#327);+#326 = CARTESIAN_POINT('',(-0.465,-0.25,3.5E-02));+#327 = VECTOR('',#328,1.);+#328 = DIRECTION('',(1.,0.,0.));+#329 = ORIENTED_EDGE('',*,*,#330,.F.);+#330 = EDGE_CURVE('',#122,#323,#331,.T.);+#331 = LINE('',#332,#333);+#332 = CARTESIAN_POINT('',(-0.465,-0.25,3.5E-02));+#333 = VECTOR('',#334,1.);+#334 = DIRECTION('',(1.,0.,0.));+#335 = PLANE('',#336);+#336 = AXIS2_PLACEMENT_3D('',#337,#338,#339);+#337 = CARTESIAN_POINT('',(-0.465,-0.25,3.5E-02));+#338 = DIRECTION('',(0.,1.,0.));+#339 = DIRECTION('',(0.,0.,1.));+#340 = ADVANCED_FACE('',(#341),#352,.T.);+#341 = FACE_BOUND('',#342,.T.);+#342 = EDGE_LOOP('',(#343,#344,#345,#346));+#343 = ORIENTED_EDGE('',*,*,#205,.F.);+#344 = ORIENTED_EDGE('',*,*,#170,.F.);+#345 = ORIENTED_EDGE('',*,*,#88,.T.);+#346 = ORIENTED_EDGE('',*,*,#347,.T.);+#347 = EDGE_CURVE('',#89,#206,#348,.T.);+#348 = LINE('',#349,#350);+#349 = CARTESIAN_POINT('',(-0.335,-0.25,0.35));+#350 = VECTOR('',#351,1.);+#351 = DIRECTION('',(0.,1.,0.));+#352 = PLANE('',#353);+#353 = AXIS2_PLACEMENT_3D('',#354,#355,#356);+#354 = CARTESIAN_POINT('',(-0.5,-0.25,0.35));+#355 = DIRECTION('',(0.,0.,1.));+#356 = DIRECTION('',(1.,0.,0.));+#357 = ADVANCED_FACE('',(#358),#369,.T.);+#358 = FACE_BOUND('',#359,.F.);+#359 = EDGE_LOOP('',(#360,#361,#362,#363));+#360 = ORIENTED_EDGE('',*,*,#96,.T.);+#361 = ORIENTED_EDGE('',*,*,#347,.T.);+#362 = ORIENTED_EDGE('',*,*,#213,.F.);+#363 = ORIENTED_EDGE('',*,*,#364,.F.);+#364 = EDGE_CURVE('',#97,#214,#365,.T.);+#365 = LINE('',#366,#367);+#366 = CARTESIAN_POINT('',(-0.3,-0.25,0.315));+#367 = VECTOR('',#368,1.);+#368 = DIRECTION('',(0.,1.,0.));+#369 = CYLINDRICAL_SURFACE('',#370,3.5E-02);+#370 = AXIS2_PLACEMENT_3D('',#371,#372,#373);+#371 = CARTESIAN_POINT('',(-0.335,-0.25,0.315));+#372 = DIRECTION('',(0.,1.,0.));+#373 = DIRECTION('',(1.,0.,0.));+#374 = ADVANCED_FACE('',(#375),#418,.T.);+#375 = FACE_BOUND('',#376,.T.);+#376 = EDGE_LOOP('',(#377,#378,#379,#380,#388,#396,#404,#412));+#377 = ORIENTED_EDGE('',*,*,#238,.F.);+#378 = ORIENTED_EDGE('',*,*,#230,.T.);+#379 = ORIENTED_EDGE('',*,*,#222,.T.);+#380 = ORIENTED_EDGE('',*,*,#381,.T.);+#381 = EDGE_CURVE('',#214,#382,#384,.T.);+#382 = VERTEX_POINT('',#383);+#383 = CARTESIAN_POINT('',(0.3,0.25,0.315));+#384 = LINE('',#385,#386);+#385 = CARTESIAN_POINT('',(-0.3,0.25,0.315));+#386 = VECTOR('',#387,1.);+#387 = DIRECTION('',(1.,0.,0.));+#388 = ORIENTED_EDGE('',*,*,#389,.T.);+#389 = EDGE_CURVE('',#382,#390,#392,.T.);+#390 = VERTEX_POINT('',#391);+#391 = CARTESIAN_POINT('',(0.465,0.25,0.315));+#392 = LINE('',#393,#394);+#393 = CARTESIAN_POINT('',(-0.465,0.25,0.315));+#394 = VECTOR('',#395,1.);+#395 = DIRECTION('',(1.,0.,0.));+#396 = ORIENTED_EDGE('',*,*,#397,.F.);+#397 = EDGE_CURVE('',#398,#390,#400,.T.);+#398 = VERTEX_POINT('',#399);+#399 = CARTESIAN_POINT('',(0.465,0.25,3.5E-02));+#400 = LINE('',#401,#402);+#401 = CARTESIAN_POINT('',(0.465,0.25,3.5E-02));+#402 = VECTOR('',#403,1.);+#403 = DIRECTION('',(0.,0.,1.));+#404 = ORIENTED_EDGE('',*,*,#405,.F.);+#405 = EDGE_CURVE('',#406,#398,#408,.T.);+#406 = VERTEX_POINT('',#407);+#407 = CARTESIAN_POINT('',(0.3,0.25,3.5E-02));+#408 = LINE('',#409,#410);+#409 = CARTESIAN_POINT('',(-0.465,0.25,3.5E-02));+#410 = VECTOR('',#411,1.);+#411 = DIRECTION('',(1.,0.,0.));+#412 = ORIENTED_EDGE('',*,*,#413,.F.);+#413 = EDGE_CURVE('',#239,#406,#414,.T.);+#414 = LINE('',#415,#416);+#415 = CARTESIAN_POINT('',(-0.465,0.25,3.5E-02));+#416 = VECTOR('',#417,1.);+#417 = DIRECTION('',(1.,0.,0.));+#418 = PLANE('',#419);+#419 = AXIS2_PLACEMENT_3D('',#420,#421,#422);+#420 = CARTESIAN_POINT('',(-0.465,0.25,3.5E-02));+#421 = DIRECTION('',(0.,1.,0.));+#422 = DIRECTION('',(0.,0.,1.));+#423 = ADVANCED_FACE('',(#424),#435,.F.);+#424 = FACE_BOUND('',#425,.F.);+#425 = EDGE_LOOP('',(#426,#427,#428,#434));+#426 = ORIENTED_EDGE('',*,*,#281,.F.);+#427 = ORIENTED_EDGE('',*,*,#330,.T.);+#428 = ORIENTED_EDGE('',*,*,#429,.T.);+#429 = EDGE_CURVE('',#323,#406,#430,.T.);+#430 = LINE('',#431,#432);+#431 = CARTESIAN_POINT('',(0.3,-0.25,3.5E-02));+#432 = VECTOR('',#433,1.);+#433 = DIRECTION('',(0.,1.,0.));+#434 = ORIENTED_EDGE('',*,*,#413,.F.);+#435 = PLANE('',#436);+#436 = AXIS2_PLACEMENT_3D('',#437,#438,#439);+#437 = CARTESIAN_POINT('',(-0.465,-0.25,3.5E-02));+#438 = DIRECTION('',(0.,0.,1.));+#439 = DIRECTION('',(1.,0.,0.));+#440 = ADVANCED_FACE('',(#441),#504,.F.);+#441 = FACE_BOUND('',#442,.F.);+#442 = EDGE_LOOP('',(#443,#453,#460,#461,#462,#463,#472,#480,#489,#497)+);+#443 = ORIENTED_EDGE('',*,*,#444,.F.);+#444 = EDGE_CURVE('',#445,#447,#449,.T.);+#445 = VERTEX_POINT('',#446);+#446 = CARTESIAN_POINT('',(0.335,-0.25,-2.775557561563E-17));+#447 = VERTEX_POINT('',#448);+#448 = CARTESIAN_POINT('',(0.465,-0.25,-2.775557561563E-17));+#449 = LINE('',#450,#451);+#450 = CARTESIAN_POINT('',(0.3,-0.25,0.));+#451 = VECTOR('',#452,1.);+#452 = DIRECTION('',(1.,0.,0.));+#453 = ORIENTED_EDGE('',*,*,#454,.F.);+#454 = EDGE_CURVE('',#323,#445,#455,.T.);+#455 = CIRCLE('',#456,3.5E-02);+#456 = AXIS2_PLACEMENT_3D('',#457,#458,#459);+#457 = CARTESIAN_POINT('',(0.335,-0.25,3.5E-02));+#458 = DIRECTION('',(0.,-1.,0.));+#459 = DIRECTION('',(0.,0.,1.));+#460 = ORIENTED_EDGE('',*,*,#322,.T.);+#461 = ORIENTED_EDGE('',*,*,#314,.T.);+#462 = ORIENTED_EDGE('',*,*,#306,.F.);+#463 = ORIENTED_EDGE('',*,*,#464,.T.);+#464 = EDGE_CURVE('',#299,#465,#467,.T.);+#465 = VERTEX_POINT('',#466);+#466 = CARTESIAN_POINT('',(0.335,-0.25,0.35));+#467 = CIRCLE('',#468,3.5E-02);+#468 = AXIS2_PLACEMENT_3D('',#469,#470,#471);+#469 = CARTESIAN_POINT('',(0.335,-0.25,0.315));+#470 = DIRECTION('',(0.,1.,0.));+#471 = DIRECTION('',(0.,0.,1.));+#472 = ORIENTED_EDGE('',*,*,#473,.T.);+#473 = EDGE_CURVE('',#465,#474,#476,.T.);+#474 = VERTEX_POINT('',#475);+#475 = CARTESIAN_POINT('',(0.465,-0.25,0.35));+#476 = LINE('',#477,#478);+#477 = CARTESIAN_POINT('',(0.3,-0.25,0.35));+#478 = VECTOR('',#479,1.);+#479 = DIRECTION('',(1.,0.,0.));+#480 = ORIENTED_EDGE('',*,*,#481,.F.);+#481 = EDGE_CURVE('',#482,#474,#484,.T.);+#482 = VERTEX_POINT('',#483);+#483 = CARTESIAN_POINT('',(0.5,-0.25,0.315));+#484 = CIRCLE('',#485,3.5E-02);+#485 = AXIS2_PLACEMENT_3D('',#486,#487,#488);+#486 = CARTESIAN_POINT('',(0.465,-0.25,0.315));+#487 = DIRECTION('',(0.,-1.,0.));+#488 = DIRECTION('',(0.,0.,1.));+#489 = ORIENTED_EDGE('',*,*,#490,.F.);+#490 = EDGE_CURVE('',#491,#482,#493,.T.);+#491 = VERTEX_POINT('',#492);+#492 = CARTESIAN_POINT('',(0.5,-0.25,3.5E-02));+#493 = LINE('',#494,#495);+#494 = CARTESIAN_POINT('',(0.5,-0.25,0.));+#495 = VECTOR('',#496,1.);+#496 = DIRECTION('',(0.,0.,1.));+#497 = ORIENTED_EDGE('',*,*,#498,.T.);+#498 = EDGE_CURVE('',#491,#447,#499,.T.);+#499 = CIRCLE('',#500,3.5E-02);+#500 = AXIS2_PLACEMENT_3D('',#501,#502,#503);+#501 = CARTESIAN_POINT('',(0.465,-0.25,3.5E-02));+#502 = DIRECTION('',(0.,1.,0.));+#503 = DIRECTION('',(0.,0.,1.));+#504 = PLANE('',#505);+#505 = AXIS2_PLACEMENT_3D('',#506,#507,#508);+#506 = CARTESIAN_POINT('',(0.3,-0.25,0.));+#507 = DIRECTION('',(0.,1.,0.));+#508 = DIRECTION('',(0.,0.,1.));+#509 = ADVANCED_FACE('',(#510),#535,.F.);+#510 = FACE_BOUND('',#511,.F.);+#511 = EDGE_LOOP('',(#512,#513,#521,#529));+#512 = ORIENTED_EDGE('',*,*,#298,.F.);+#513 = ORIENTED_EDGE('',*,*,#514,.T.);+#514 = EDGE_CURVE('',#97,#515,#517,.T.);+#515 = VERTEX_POINT('',#516);+#516 = CARTESIAN_POINT('',(-0.3,-0.25,0.35));+#517 = LINE('',#518,#519);+#518 = CARTESIAN_POINT('',(-0.3,-0.25,0.315));+#519 = VECTOR('',#520,1.);+#520 = DIRECTION('',(0.,0.,1.));+#521 = ORIENTED_EDGE('',*,*,#522,.T.);+#522 = EDGE_CURVE('',#515,#523,#525,.T.);+#523 = VERTEX_POINT('',#524);+#524 = CARTESIAN_POINT('',(0.3,-0.25,0.35));+#525 = LINE('',#526,#527);+#526 = CARTESIAN_POINT('',(-0.3,-0.25,0.35));+#527 = VECTOR('',#528,1.);+#528 = DIRECTION('',(1.,0.,0.));+#529 = ORIENTED_EDGE('',*,*,#530,.F.);+#530 = EDGE_CURVE('',#299,#523,#531,.T.);+#531 = LINE('',#532,#533);+#532 = CARTESIAN_POINT('',(0.3,-0.25,0.315));+#533 = VECTOR('',#534,1.);+#534 = DIRECTION('',(0.,0.,1.));+#535 = PLANE('',#536);+#536 = AXIS2_PLACEMENT_3D('',#537,#538,#539);+#537 = CARTESIAN_POINT('',(-0.3,-0.25,0.315));+#538 = DIRECTION('',(0.,1.,0.));+#539 = DIRECTION('',(0.,0.,1.));+#540 = ADVANCED_FACE('',(#541),#559,.F.);+#541 = FACE_BOUND('',#542,.F.);+#542 = EDGE_LOOP('',(#543,#544,#545,#553));+#543 = ORIENTED_EDGE('',*,*,#514,.F.);+#544 = ORIENTED_EDGE('',*,*,#364,.T.);+#545 = ORIENTED_EDGE('',*,*,#546,.T.);+#546 = EDGE_CURVE('',#214,#547,#549,.T.);+#547 = VERTEX_POINT('',#548);+#548 = CARTESIAN_POINT('',(-0.3,0.25,0.35));+#549 = LINE('',#550,#551);+#550 = CARTESIAN_POINT('',(-0.3,0.25,0.315));+#551 = VECTOR('',#552,1.);+#552 = DIRECTION('',(0.,0.,1.));+#553 = ORIENTED_EDGE('',*,*,#554,.F.);+#554 = EDGE_CURVE('',#515,#547,#555,.T.);+#555 = LINE('',#556,#557);+#556 = CARTESIAN_POINT('',(-0.3,-0.25,0.35));+#557 = VECTOR('',#558,1.);+#558 = DIRECTION('',(0.,1.,0.));+#559 = PLANE('',#560);+#560 = AXIS2_PLACEMENT_3D('',#561,#562,#563);+#561 = CARTESIAN_POINT('',(-0.3,-0.25,0.315));+#562 = DIRECTION('',(1.,0.,0.));+#563 = DIRECTION('',(0.,0.,1.));+#564 = ADVANCED_FACE('',(#565),#628,.T.);+#565 = FACE_BOUND('',#566,.T.);+#566 = EDGE_LOOP('',(#567,#577,#584,#585,#586,#587,#596,#604,#613,#621)+);+#567 = ORIENTED_EDGE('',*,*,#568,.F.);+#568 = EDGE_CURVE('',#569,#571,#573,.T.);+#569 = VERTEX_POINT('',#570);+#570 = CARTESIAN_POINT('',(0.335,0.25,-2.775557561563E-17));+#571 = VERTEX_POINT('',#572);+#572 = CARTESIAN_POINT('',(0.465,0.25,-2.775557561563E-17));+#573 = LINE('',#574,#575);+#574 = CARTESIAN_POINT('',(0.3,0.25,0.));+#575 = VECTOR('',#576,1.);+#576 = DIRECTION('',(1.,0.,0.));+#577 = ORIENTED_EDGE('',*,*,#578,.F.);+#578 = EDGE_CURVE('',#406,#569,#579,.T.);+#579 = CIRCLE('',#580,3.5E-02);+#580 = AXIS2_PLACEMENT_3D('',#581,#582,#583);+#581 = CARTESIAN_POINT('',(0.335,0.25,3.5E-02));+#582 = DIRECTION('',(0.,-1.,0.));+#583 = DIRECTION('',(0.,0.,1.));+#584 = ORIENTED_EDGE('',*,*,#405,.T.);+#585 = ORIENTED_EDGE('',*,*,#397,.T.);+#586 = ORIENTED_EDGE('',*,*,#389,.F.);+#587 = ORIENTED_EDGE('',*,*,#588,.T.);+#588 = EDGE_CURVE('',#382,#589,#591,.T.);+#589 = VERTEX_POINT('',#590);+#590 = CARTESIAN_POINT('',(0.335,0.25,0.35));+#591 = CIRCLE('',#592,3.5E-02);+#592 = AXIS2_PLACEMENT_3D('',#593,#594,#595);+#593 = CARTESIAN_POINT('',(0.335,0.25,0.315));+#594 = DIRECTION('',(0.,1.,0.));+#595 = DIRECTION('',(0.,0.,1.));+#596 = ORIENTED_EDGE('',*,*,#597,.T.);+#597 = EDGE_CURVE('',#589,#598,#600,.T.);+#598 = VERTEX_POINT('',#599);+#599 = CARTESIAN_POINT('',(0.465,0.25,0.35));+#600 = LINE('',#601,#602);+#601 = CARTESIAN_POINT('',(0.3,0.25,0.35));+#602 = VECTOR('',#603,1.);+#603 = DIRECTION('',(1.,0.,0.));+#604 = ORIENTED_EDGE('',*,*,#605,.F.);+#605 = EDGE_CURVE('',#606,#598,#608,.T.);+#606 = VERTEX_POINT('',#607);+#607 = CARTESIAN_POINT('',(0.5,0.25,0.315));+#608 = CIRCLE('',#609,3.5E-02);+#609 = AXIS2_PLACEMENT_3D('',#610,#611,#612);+#610 = CARTESIAN_POINT('',(0.465,0.25,0.315));+#611 = DIRECTION('',(0.,-1.,0.));+#612 = DIRECTION('',(0.,0.,1.));+#613 = ORIENTED_EDGE('',*,*,#614,.F.);+#614 = EDGE_CURVE('',#615,#606,#617,.T.);+#615 = VERTEX_POINT('',#616);+#616 = CARTESIAN_POINT('',(0.5,0.25,3.5E-02));+#617 = LINE('',#618,#619);+#618 = CARTESIAN_POINT('',(0.5,0.25,0.));+#619 = VECTOR('',#620,1.);+#620 = DIRECTION('',(0.,0.,1.));+#621 = ORIENTED_EDGE('',*,*,#622,.T.);+#622 = EDGE_CURVE('',#615,#571,#623,.T.);+#623 = CIRCLE('',#624,3.5E-02);+#624 = AXIS2_PLACEMENT_3D('',#625,#626,#627);+#625 = CARTESIAN_POINT('',(0.465,0.25,3.5E-02));+#626 = DIRECTION('',(0.,1.,0.));+#627 = DIRECTION('',(0.,0.,1.));+#628 = PLANE('',#629);+#629 = AXIS2_PLACEMENT_3D('',#630,#631,#632);+#630 = CARTESIAN_POINT('',(0.3,0.25,0.));+#631 = DIRECTION('',(0.,1.,0.));+#632 = DIRECTION('',(0.,0.,1.));+#633 = ADVANCED_FACE('',(#634),#652,.T.);+#634 = FACE_BOUND('',#635,.T.);+#635 = EDGE_LOOP('',(#636,#637,#638,#646));+#636 = ORIENTED_EDGE('',*,*,#381,.F.);+#637 = ORIENTED_EDGE('',*,*,#546,.T.);+#638 = ORIENTED_EDGE('',*,*,#639,.T.);+#639 = EDGE_CURVE('',#547,#640,#642,.T.);+#640 = VERTEX_POINT('',#641);+#641 = CARTESIAN_POINT('',(0.3,0.25,0.35));+#642 = LINE('',#643,#644);+#643 = CARTESIAN_POINT('',(-0.3,0.25,0.35));+#644 = VECTOR('',#645,1.);+#645 = DIRECTION('',(1.,0.,0.));+#646 = ORIENTED_EDGE('',*,*,#647,.F.);+#647 = EDGE_CURVE('',#382,#640,#648,.T.);+#648 = LINE('',#649,#650);+#649 = CARTESIAN_POINT('',(0.3,0.25,0.315));+#650 = VECTOR('',#651,1.);+#651 = DIRECTION('',(0.,0.,1.));+#652 = PLANE('',#653);+#653 = AXIS2_PLACEMENT_3D('',#654,#655,#656);+#654 = CARTESIAN_POINT('',(-0.3,0.25,0.315));+#655 = DIRECTION('',(0.,1.,0.));+#656 = DIRECTION('',(0.,0.,1.));+#657 = ADVANCED_FACE('',(#658),#669,.T.);+#658 = FACE_BOUND('',#659,.F.);+#659 = EDGE_LOOP('',(#660,#661,#667,#668));+#660 = ORIENTED_EDGE('',*,*,#454,.T.);+#661 = ORIENTED_EDGE('',*,*,#662,.T.);+#662 = EDGE_CURVE('',#445,#569,#663,.T.);+#663 = LINE('',#664,#665);+#664 = CARTESIAN_POINT('',(0.335,-0.25,-2.775557561563E-17));+#665 = VECTOR('',#666,1.);+#666 = DIRECTION('',(0.,1.,0.));+#667 = ORIENTED_EDGE('',*,*,#578,.F.);+#668 = ORIENTED_EDGE('',*,*,#429,.F.);+#669 = CYLINDRICAL_SURFACE('',#670,3.5E-02);+#670 = AXIS2_PLACEMENT_3D('',#671,#672,#673);+#671 = CARTESIAN_POINT('',(0.335,-0.25,3.5E-02));+#672 = DIRECTION('',(0.,1.,0.));+#673 = DIRECTION('',(-1.,0.,0.));+#674 = ADVANCED_FACE('',(#675),#686,.F.);+#675 = FACE_BOUND('',#676,.F.);+#676 = EDGE_LOOP('',(#677,#678,#679,#680));+#677 = ORIENTED_EDGE('',*,*,#568,.F.);+#678 = ORIENTED_EDGE('',*,*,#662,.F.);+#679 = ORIENTED_EDGE('',*,*,#444,.T.);+#680 = ORIENTED_EDGE('',*,*,#681,.T.);+#681 = EDGE_CURVE('',#447,#571,#682,.T.);+#682 = LINE('',#683,#684);+#683 = CARTESIAN_POINT('',(0.465,-0.25,-2.775557561563E-17));+#684 = VECTOR('',#685,1.);+#685 = DIRECTION('',(0.,1.,0.));+#686 = PLANE('',#687);+#687 = AXIS2_PLACEMENT_3D('',#688,#689,#690);+#688 = CARTESIAN_POINT('',(0.3,-0.25,0.));+#689 = DIRECTION('',(0.,0.,1.));+#690 = DIRECTION('',(1.,0.,0.));+#691 = ADVANCED_FACE('',(#692),#703,.T.);+#692 = FACE_BOUND('',#693,.T.);+#693 = EDGE_LOOP('',(#694,#695,#696,#697));+#694 = ORIENTED_EDGE('',*,*,#498,.T.);+#695 = ORIENTED_EDGE('',*,*,#681,.T.);+#696 = ORIENTED_EDGE('',*,*,#622,.F.);+#697 = ORIENTED_EDGE('',*,*,#698,.F.);+#698 = EDGE_CURVE('',#491,#615,#699,.T.);+#699 = LINE('',#700,#701);+#700 = CARTESIAN_POINT('',(0.5,-0.25,3.5E-02));+#701 = VECTOR('',#702,1.);+#702 = DIRECTION('',(0.,1.,0.));+#703 = CYLINDRICAL_SURFACE('',#704,3.5E-02);+#704 = AXIS2_PLACEMENT_3D('',#705,#706,#707);+#705 = CARTESIAN_POINT('',(0.465,-0.25,3.5E-02));+#706 = DIRECTION('',(0.,1.,0.));+#707 = DIRECTION('',(1.,0.,0.));+#708 = ADVANCED_FACE('',(#709),#720,.T.);+#709 = FACE_BOUND('',#710,.T.);+#710 = EDGE_LOOP('',(#711,#712,#713,#714));+#711 = ORIENTED_EDGE('',*,*,#490,.F.);+#712 = ORIENTED_EDGE('',*,*,#698,.T.);+#713 = ORIENTED_EDGE('',*,*,#614,.T.);+#714 = ORIENTED_EDGE('',*,*,#715,.F.);+#715 = EDGE_CURVE('',#482,#606,#716,.T.);+#716 = LINE('',#717,#718);+#717 = CARTESIAN_POINT('',(0.5,-0.25,0.315));+#718 = VECTOR('',#719,1.);+#719 = DIRECTION('',(0.,1.,0.));+#720 = PLANE('',#721);+#721 = AXIS2_PLACEMENT_3D('',#722,#723,#724);+#722 = CARTESIAN_POINT('',(0.5,-0.25,0.));+#723 = DIRECTION('',(1.,0.,0.));+#724 = DIRECTION('',(0.,0.,1.));+#725 = ADVANCED_FACE('',(#726),#737,.T.);+#726 = FACE_BOUND('',#727,.F.);+#727 = EDGE_LOOP('',(#728,#729,#735,#736));+#728 = ORIENTED_EDGE('',*,*,#481,.T.);+#729 = ORIENTED_EDGE('',*,*,#730,.T.);+#730 = EDGE_CURVE('',#474,#598,#731,.T.);+#731 = LINE('',#732,#733);+#732 = CARTESIAN_POINT('',(0.465,-0.25,0.35));+#733 = VECTOR('',#734,1.);+#734 = DIRECTION('',(0.,1.,0.));+#735 = ORIENTED_EDGE('',*,*,#605,.F.);+#736 = ORIENTED_EDGE('',*,*,#715,.F.);+#737 = CYLINDRICAL_SURFACE('',#738,3.5E-02);+#738 = AXIS2_PLACEMENT_3D('',#739,#740,#741);+#739 = CARTESIAN_POINT('',(0.465,-0.25,0.315));+#740 = DIRECTION('',(0.,1.,0.));+#741 = DIRECTION('',(1.,0.,0.));+#742 = ADVANCED_FACE('',(#743),#754,.T.);+#743 = FACE_BOUND('',#744,.T.);+#744 = EDGE_LOOP('',(#745,#746,#752,#753));+#745 = ORIENTED_EDGE('',*,*,#597,.F.);+#746 = ORIENTED_EDGE('',*,*,#747,.F.);+#747 = EDGE_CURVE('',#465,#589,#748,.T.);+#748 = LINE('',#749,#750);+#749 = CARTESIAN_POINT('',(0.335,-0.25,0.35));+#750 = VECTOR('',#751,1.);+#751 = DIRECTION('',(0.,1.,0.));+#752 = ORIENTED_EDGE('',*,*,#473,.T.);+#753 = ORIENTED_EDGE('',*,*,#730,.T.);+#754 = PLANE('',#755);+#755 = AXIS2_PLACEMENT_3D('',#756,#757,#758);+#756 = CARTESIAN_POINT('',(0.3,-0.25,0.35));+#757 = DIRECTION('',(0.,0.,1.));+#758 = DIRECTION('',(1.,0.,0.));+#759 = ADVANCED_FACE('',(#760),#771,.T.);+#760 = FACE_BOUND('',#761,.T.);+#761 = EDGE_LOOP('',(#762,#763,#764,#765));+#762 = ORIENTED_EDGE('',*,*,#464,.T.);+#763 = ORIENTED_EDGE('',*,*,#747,.T.);+#764 = ORIENTED_EDGE('',*,*,#588,.F.);+#765 = ORIENTED_EDGE('',*,*,#766,.F.);+#766 = EDGE_CURVE('',#299,#382,#767,.T.);+#767 = LINE('',#768,#769);+#768 = CARTESIAN_POINT('',(0.3,-0.25,0.315));+#769 = VECTOR('',#770,1.);+#770 = DIRECTION('',(0.,1.,0.));+#771 = CYLINDRICAL_SURFACE('',#772,3.5E-02);+#772 = AXIS2_PLACEMENT_3D('',#773,#774,#775);+#773 = CARTESIAN_POINT('',(0.335,-0.25,0.315));+#774 = DIRECTION('',(0.,1.,0.));+#775 = DIRECTION('',(-1.,0.,0.));+#776 = ADVANCED_FACE('',(#777),#788,.T.);+#777 = FACE_BOUND('',#778,.T.);+#778 = EDGE_LOOP('',(#779,#780,#781,#782));+#779 = ORIENTED_EDGE('',*,*,#530,.F.);+#780 = ORIENTED_EDGE('',*,*,#766,.T.);+#781 = ORIENTED_EDGE('',*,*,#647,.T.);+#782 = ORIENTED_EDGE('',*,*,#783,.F.);+#783 = EDGE_CURVE('',#523,#640,#784,.T.);+#784 = LINE('',#785,#786);+#785 = CARTESIAN_POINT('',(0.3,-0.25,0.35));+#786 = VECTOR('',#787,1.);+#787 = DIRECTION('',(0.,1.,0.));+#788 = PLANE('',#789);+#789 = AXIS2_PLACEMENT_3D('',#790,#791,#792);+#790 = CARTESIAN_POINT('',(0.3,-0.25,0.315));+#791 = DIRECTION('',(1.,0.,0.));+#792 = DIRECTION('',(0.,0.,1.));+#793 = ADVANCED_FACE('',(#794),#800,.T.);+#794 = FACE_BOUND('',#795,.T.);+#795 = EDGE_LOOP('',(#796,#797,#798,#799));+#796 = ORIENTED_EDGE('',*,*,#554,.F.);+#797 = ORIENTED_EDGE('',*,*,#522,.T.);+#798 = ORIENTED_EDGE('',*,*,#783,.T.);+#799 = ORIENTED_EDGE('',*,*,#639,.F.);+#800 = PLANE('',#801);+#801 = AXIS2_PLACEMENT_3D('',#802,#803,#804);+#802 = CARTESIAN_POINT('',(-0.3,-0.25,0.35));+#803 = DIRECTION('',(0.,0.,1.));+#804 = DIRECTION('',(1.,0.,0.));+#805 = ( GEOMETRIC_REPRESENTATION_CONTEXT(3)+GLOBAL_UNCERTAINTY_ASSIGNED_CONTEXT((#809)) GLOBAL_UNIT_ASSIGNED_CONTEXT+((#806,#807,#808)) REPRESENTATION_CONTEXT('Context #1',+'3D Context with UNIT and UNCERTAINTY') );+#806 = ( LENGTH_UNIT() NAMED_UNIT(*) SI_UNIT(.MILLI.,.METRE.) );+#807 = ( NAMED_UNIT(*) PLANE_ANGLE_UNIT() SI_UNIT($,.RADIAN.) );+#808 = ( NAMED_UNIT(*) SI_UNIT($,.STERADIAN.) SOLID_ANGLE_UNIT() );+#809 = UNCERTAINTY_MEASURE_WITH_UNIT(LENGTH_MEASURE(1.E-07),#806,+'distance_accuracy_value','confusion accuracy');+#810 = PRODUCT_RELATED_PRODUCT_CATEGORY('part',$,(#7));+#811 = MECHANICAL_DESIGN_GEOMETRIC_PRESENTATION_REPRESENTATION('',(#812,+#820,#827,#834,#841,#848,#855,#862,#870,#877,#884,#891,#898,#905,+#913,#920,#927,#934,#941,#948,#955,#962,#969,#976,#983,#990),#805);+#812 = STYLED_ITEM('color',(#813),#17);+#813 = PRESENTATION_STYLE_ASSIGNMENT((#814));+#814 = SURFACE_STYLE_USAGE(.BOTH.,#815);+#815 = SURFACE_SIDE_STYLE('',(#816));+#816 = SURFACE_STYLE_FILL_AREA(#817);+#817 = FILL_AREA_STYLE('',(#818));+#818 = FILL_AREA_STYLE_COLOUR('',#819);+#819 = COLOUR_RGB('',0.824000000954,0.819999992847,0.78100001812);+#820 = STYLED_ITEM('color',(#821),#57);+#821 = PRESENTATION_STYLE_ASSIGNMENT((#822));+#822 = SURFACE_STYLE_USAGE(.BOTH.,#823);+#823 = SURFACE_SIDE_STYLE('',(#824));+#824 = SURFACE_STYLE_FILL_AREA(#825);+#825 = FILL_AREA_STYLE('',(#826));+#826 = FILL_AREA_STYLE_COLOUR('',#819);+#827 = STYLED_ITEM('color',(#828),#140);+#828 = PRESENTATION_STYLE_ASSIGNMENT((#829));+#829 = SURFACE_STYLE_USAGE(.BOTH.,#830);+#830 = SURFACE_SIDE_STYLE('',(#831));+#831 = SURFACE_STYLE_FILL_AREA(#832);+#832 = FILL_AREA_STYLE('',(#833));+#833 = FILL_AREA_STYLE_COLOUR('',#819);+#834 = STYLED_ITEM('color',(#835),#165);+#835 = PRESENTATION_STYLE_ASSIGNMENT((#836));+#836 = SURFACE_STYLE_USAGE(.BOTH.,#837);+#837 = SURFACE_SIDE_STYLE('',(#838));+#838 = SURFACE_STYLE_FILL_AREA(#839);+#839 = FILL_AREA_STYLE('',(#840));+#840 = FILL_AREA_STYLE_COLOUR('',#819);+#841 = STYLED_ITEM('color',(#842),#190);+#842 = PRESENTATION_STYLE_ASSIGNMENT((#843));+#843 = SURFACE_STYLE_USAGE(.BOTH.,#844);+#844 = SURFACE_SIDE_STYLE('',(#845));+#845 = SURFACE_STYLE_FILL_AREA(#846);+#846 = FILL_AREA_STYLE('',(#847));+#847 = FILL_AREA_STYLE_COLOUR('',#819);+#848 = STYLED_ITEM('color',(#849),#257);+#849 = PRESENTATION_STYLE_ASSIGNMENT((#850));+#850 = SURFACE_STYLE_USAGE(.BOTH.,#851);+#851 = SURFACE_SIDE_STYLE('',(#852));+#852 = SURFACE_STYLE_FILL_AREA(#853);+#853 = FILL_AREA_STYLE('',(#854));+#854 = FILL_AREA_STYLE_COLOUR('',#819);+#855 = STYLED_ITEM('color',(#856),#274);+#856 = PRESENTATION_STYLE_ASSIGNMENT((#857));+#857 = SURFACE_STYLE_USAGE(.BOTH.,#858);+#858 = SURFACE_SIDE_STYLE('',(#859));+#859 = SURFACE_STYLE_FILL_AREA(#860);+#860 = FILL_AREA_STYLE('',(#861));+#861 = FILL_AREA_STYLE_COLOUR('',#819);+#862 = STYLED_ITEM('color',(#863),#291);+#863 = PRESENTATION_STYLE_ASSIGNMENT((#864));+#864 = SURFACE_STYLE_USAGE(.BOTH.,#865);+#865 = SURFACE_SIDE_STYLE('',(#866));+#866 = SURFACE_STYLE_FILL_AREA(#867);+#867 = FILL_AREA_STYLE('',(#868));+#868 = FILL_AREA_STYLE_COLOUR('',#869);+#869 = COLOUR_RGB('',0.894999980927,0.89099997282,0.813000023365);+#870 = STYLED_ITEM('color',(#871),#340);+#871 = PRESENTATION_STYLE_ASSIGNMENT((#872));+#872 = SURFACE_STYLE_USAGE(.BOTH.,#873);+#873 = SURFACE_SIDE_STYLE('',(#874));+#874 = SURFACE_STYLE_FILL_AREA(#875);+#875 = FILL_AREA_STYLE('',(#876));+#876 = FILL_AREA_STYLE_COLOUR('',#819);+#877 = STYLED_ITEM('color',(#878),#357);+#878 = PRESENTATION_STYLE_ASSIGNMENT((#879));+#879 = SURFACE_STYLE_USAGE(.BOTH.,#880);+#880 = SURFACE_SIDE_STYLE('',(#881));+#881 = SURFACE_STYLE_FILL_AREA(#882);+#882 = FILL_AREA_STYLE('',(#883));+#883 = FILL_AREA_STYLE_COLOUR('',#819);+#884 = STYLED_ITEM('color',(#885),#374);+#885 = PRESENTATION_STYLE_ASSIGNMENT((#886));+#886 = SURFACE_STYLE_USAGE(.BOTH.,#887);+#887 = SURFACE_SIDE_STYLE('',(#888));+#888 = SURFACE_STYLE_FILL_AREA(#889);+#889 = FILL_AREA_STYLE('',(#890));+#890 = FILL_AREA_STYLE_COLOUR('',#869);+#891 = STYLED_ITEM('color',(#892),#423);+#892 = PRESENTATION_STYLE_ASSIGNMENT((#893));+#893 = SURFACE_STYLE_USAGE(.BOTH.,#894);+#894 = SURFACE_SIDE_STYLE('',(#895));+#895 = SURFACE_STYLE_FILL_AREA(#896);+#896 = FILL_AREA_STYLE('',(#897));+#897 = FILL_AREA_STYLE_COLOUR('',#869);+#898 = STYLED_ITEM('color',(#899),#440);+#899 = PRESENTATION_STYLE_ASSIGNMENT((#900));+#900 = SURFACE_STYLE_USAGE(.BOTH.,#901);+#901 = SURFACE_SIDE_STYLE('',(#902));+#902 = SURFACE_STYLE_FILL_AREA(#903);+#903 = FILL_AREA_STYLE('',(#904));+#904 = FILL_AREA_STYLE_COLOUR('',#819);+#905 = STYLED_ITEM('color',(#906),#509);+#906 = PRESENTATION_STYLE_ASSIGNMENT((#907));+#907 = SURFACE_STYLE_USAGE(.BOTH.,#908);+#908 = SURFACE_SIDE_STYLE('',(#909));+#909 = SURFACE_STYLE_FILL_AREA(#910);+#910 = FILL_AREA_STYLE('',(#911));+#911 = FILL_AREA_STYLE_COLOUR('',#912);+#912 = COLOUR_RGB('',8.200000226498E-02,8.600000292063E-02,+9.399999678135E-02);+#913 = STYLED_ITEM('color',(#914),#540);+#914 = PRESENTATION_STYLE_ASSIGNMENT((#915));+#915 = SURFACE_STYLE_USAGE(.BOTH.,#916);+#916 = SURFACE_SIDE_STYLE('',(#917));+#917 = SURFACE_STYLE_FILL_AREA(#918);+#918 = FILL_AREA_STYLE('',(#919));+#919 = FILL_AREA_STYLE_COLOUR('',#912);+#920 = STYLED_ITEM('color',(#921),#564);+#921 = PRESENTATION_STYLE_ASSIGNMENT((#922));+#922 = SURFACE_STYLE_USAGE(.BOTH.,#923);+#923 = SURFACE_SIDE_STYLE('',(#924));+#924 = SURFACE_STYLE_FILL_AREA(#925);+#925 = FILL_AREA_STYLE('',(#926));+#926 = FILL_AREA_STYLE_COLOUR('',#819);+#927 = STYLED_ITEM('color',(#928),#633);+#928 = PRESENTATION_STYLE_ASSIGNMENT((#929));+#929 = SURFACE_STYLE_USAGE(.BOTH.,#930);+#930 = SURFACE_SIDE_STYLE('',(#931));+#931 = SURFACE_STYLE_FILL_AREA(#932);+#932 = FILL_AREA_STYLE('',(#933));+#933 = FILL_AREA_STYLE_COLOUR('',#912);+#934 = STYLED_ITEM('color',(#935),#657);+#935 = PRESENTATION_STYLE_ASSIGNMENT((#936));+#936 = SURFACE_STYLE_USAGE(.BOTH.,#937);+#937 = SURFACE_SIDE_STYLE('',(#938));+#938 = SURFACE_STYLE_FILL_AREA(#939);+#939 = FILL_AREA_STYLE('',(#940));+#940 = FILL_AREA_STYLE_COLOUR('',#819);+#941 = STYLED_ITEM('color',(#942),#674);+#942 = PRESENTATION_STYLE_ASSIGNMENT((#943));+#943 = SURFACE_STYLE_USAGE(.BOTH.,#944);+#944 = SURFACE_SIDE_STYLE('',(#945));+#945 = SURFACE_STYLE_FILL_AREA(#946);+#946 = FILL_AREA_STYLE('',(#947));+#947 = FILL_AREA_STYLE_COLOUR('',#819);+#948 = STYLED_ITEM('color',(#949),#691);+#949 = PRESENTATION_STYLE_ASSIGNMENT((#950));+#950 = SURFACE_STYLE_USAGE(.BOTH.,#951);+#951 = SURFACE_SIDE_STYLE('',(#952));+#952 = SURFACE_STYLE_FILL_AREA(#953);+#953 = FILL_AREA_STYLE('',(#954));+#954 = FILL_AREA_STYLE_COLOUR('',#819);+#955 = STYLED_ITEM('color',(#956),#708);+#956 = PRESENTATION_STYLE_ASSIGNMENT((#957));+#957 = SURFACE_STYLE_USAGE(.BOTH.,#958);+#958 = SURFACE_SIDE_STYLE('',(#959));+#959 = SURFACE_STYLE_FILL_AREA(#960);+#960 = FILL_AREA_STYLE('',(#961));+#961 = FILL_AREA_STYLE_COLOUR('',#819);+#962 = STYLED_ITEM('color',(#963),#725);+#963 = PRESENTATION_STYLE_ASSIGNMENT((#964));+#964 = SURFACE_STYLE_USAGE(.BOTH.,#965);+#965 = SURFACE_SIDE_STYLE('',(#966));+#966 = SURFACE_STYLE_FILL_AREA(#967);+#967 = FILL_AREA_STYLE('',(#968));+#968 = FILL_AREA_STYLE_COLOUR('',#819);+#969 = STYLED_ITEM('color',(#970),#742);+#970 = PRESENTATION_STYLE_ASSIGNMENT((#971));+#971 = SURFACE_STYLE_USAGE(.BOTH.,#972);+#972 = SURFACE_SIDE_STYLE('',(#973));+#973 = SURFACE_STYLE_FILL_AREA(#974);+#974 = FILL_AREA_STYLE('',(#975));+#975 = FILL_AREA_STYLE_COLOUR('',#819);+#976 = STYLED_ITEM('color',(#977),#759);+#977 = PRESENTATION_STYLE_ASSIGNMENT((#978));+#978 = SURFACE_STYLE_USAGE(.BOTH.,#979);+#979 = SURFACE_SIDE_STYLE('',(#980));+#980 = SURFACE_STYLE_FILL_AREA(#981);+#981 = FILL_AREA_STYLE('',(#982));+#982 = FILL_AREA_STYLE_COLOUR('',#819);+#983 = STYLED_ITEM('color',(#984),#776);+#984 = PRESENTATION_STYLE_ASSIGNMENT((#985));+#985 = SURFACE_STYLE_USAGE(.BOTH.,#986);+#986 = SURFACE_SIDE_STYLE('',(#987));+#987 = SURFACE_STYLE_FILL_AREA(#988);+#988 = FILL_AREA_STYLE('',(#989));+#989 = FILL_AREA_STYLE_COLOUR('',#912);+#990 = STYLED_ITEM('color',(#991),#793);+#991 = PRESENTATION_STYLE_ASSIGNMENT((#992));+#992 = SURFACE_STYLE_USAGE(.BOTH.,#993);+#993 = SURFACE_SIDE_STYLE('',(#994));+#994 = SURFACE_STYLE_FILL_AREA(#995);+#995 = FILL_AREA_STYLE('',(#996));+#996 = FILL_AREA_STYLE_COLOUR('',#912);+ENDSEC;+END-ISO-10303-21;
README.md+167−2@@ -1,3 +1,168 @@-# RC0402FR-0733KL - YAGEO+# RC0402FR-0733KL -Thick film chip resistor 33 kOhm +/-1 %, 1/16 W, 50 V, 0402 (1005 metric)+YAGEO RC0402FR-0733KL: Thick film chip resistor 33 kOhm +/-1 %, 1/16 W, 50 V, 0402 (1005 metric). A general purpose thick film chip resistor from YAGEO's RC_L series.++::adom-verified{src="/adom/rc0402fr-0733kl/render/verification.json"}++| Field | Value |+|---|---|+| Manufacturer | YAGEO |+| Manufacturer part number | RC0402FR-0733KL |+| Type | Thick film chip resistor |+| Value | 33 kOhm |+| Tolerance | +/-1 % (F) |+| Voltage | 50 V max working, 100 V max overload; 45.4 V continuous at this value |+| Power rating | 1/16 W (0.0625 W) at 70 C |+| Operating temperature | -55 to 155 C |+| Package | 0402 (1005 metric) |+| Marking | none (RC0402 is not marked) |+| Datasheet | [YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025](docs/rc0402fr-0733kl-datasheet.pdf) |++## Key specifications++| Parameter | Value | Datasheet |+|---|---|---|+| Resistance | 33 kOhm (code 33K), E24 value | p.2 ordering information |+| Tolerance | +/-1 % (code F); 1 % range 1 Ohm to 10 MOhm | p.2, p.5 Table 2 (RC0402) |+| Rated power | 1/16 W (0.0625 W) at 70 C, standard power (reel code 07); derated linearly to 0 at 155 C | p.2 (5), p.5 Table 2, p.7 Fig. 10-1 |+| Maximum working voltage | 50 V | p.5 Table 2 |+| Maximum overload voltage | 100 V | p.5 Table 2 |+| Dielectric withstanding voltage | 100 V | p.5 Table 2 |+| Rated continuous voltage at this value | 45.4 V (power governs: sqrt(P x R) = 45.4 V is below the 50 V maximum working voltage) | p.7 Rated voltage formula |+| Short time overload test | 2.5 x RCWV or the maximum overload voltage, whichever is less, for 5 s: 100 V for this value | p.9 Table 5 |+| Temperature coefficient | +/-100 ppm/C for 10 Ohm < R <= 10 MOhm | p.5 Table 2 |+| Operating temperature | -55 to 155 C | p.5 Table 2, p.7 |+| Technology | thick film on ceramic substrate, matte tin on nickel terminations | p.4 Construction |+| Size | L 1.00 +/-0.05, W 0.50 +/-0.05, H 0.35 +/-0.05, I1 0.20 +/-0.10, I2 0.25 +/-0.10 (mm) | p.4 Table 1 |+| Marking | none (RC0402 is not marked) | p.3 Marking |+| Packaging (R, 07) | 7 inch (178 mm) paper taping reel, 10000 pcs | p.2, p.7 Table 4 |+| Moisture sensitivity | MSL 1 | p.2 Features |++All page numbers refer to the datasheet PDF in [docs/](docs/rc0402fr-0733kl-datasheet.pdf).++## Voltage rating++YAGEO rates the continuous working voltage as sqrt(P x R) or the maximum working voltage, whichever is less (p.7).+For this value power governs: sqrt(P x R) = sqrt(0.0625 W x 33 kOhm) = **45.4 V** continuous, below the 0402 size's 50 V maximum working voltage. The maximum overload voltage is 100 V; the short time overload test applies 100 V for 5 s (p.9).++++++## Notes++- Mouser lists the part as 'RoHS Compliant By Exemption'; the datasheet (p.2) says Pb-glass in electrodes, resistor element and glass is exempted.++## Ordering++| Distributor | Part number | Stock seen 2026-10-21 |+|---|---|---|+| Mouser | [603-RC0402FR-0733KL](https://www.mouser.com/ProductDetail/YAGEO/RC0402FR-0733KL?qs=OLdA50ig9KgSAim5D6WRlA%3D%3D) | 669,292 |+| DigiKey | [311-33.0KLRTR-ND](https://www.digikey.com/en/products/detail/yageo/RC0402FR-0733KL/726592) | 977,588 |+| LCSC / JLCPCB | [C138003](https://www.lcsc.com/product-detail/C138003.html) | 811,894 |++Stock figures are a snapshot from the Adom parts search on 2026-10-21; check the distributor before ordering. Packaging code+R with reel code 07 is a 7 inch paper tape reel of 10,000 pieces (p.7 Table 4).++## Manufacturer and resources++| Resource | Link |+|---|---|+| Product page | https://yageogroup.com/products/productDetail/RC0402FR-0733KL |+| Datasheet | YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025, [PDF](docs/rc0402fr-0733kl-datasheet.pdf) ([source](https://yageogroup.com/content/datasheet/asset/file/PYU-RC_GROUP_51_ROHS_L)) |+| Mounting and land pattern | YAGEO Chip Resistors Mounting, product specification V.10, Feb. 13, 2018, [PDF](docs/yageo-chip-resistors-mounting-v10.pdf) ([source](https://yageogroup.com/content/Resource%20Library/Product%20Guide-Catalog/yageo_PYu-R_Mount_10_19050818_343.pdf)) |+| Marking and packing | YAGEO's separate 'Chip resistors marking' and 'Chip resistors packing' sheets, named on p.3 and p.7 of the datasheet (not included here) |++## Pins++| Pin | Function |+|---|---|+| 1 | terminal (non-polar) |+| 2 | terminal (non-polar) |++A resistor has no polarity and no pin 1 orientation: either terminal may face either way.++## Marking++YAGEO does not mark RC0402 parts (p.3, Fig. 1): the top coat is plain.++++## Land pattern: KiCad footprint vs YAGEO++<table>+<tr>+<td width="104"><a href="land-pattern/README.md"><img src="land-pattern/land-pattern-icon.png" width="112" alt="Land pattern"></a><br><sub> Land pattern </sub></td>+<td>The footprint is KiCad's standard `R_0402_1005Metric`, and this guide lays its pads over YAGEO's recommended reflow land, at true scale. It matches YAGEO closely. Use it to decide whether to keep the KiCad pads or change them to YAGEO's numbers before layout.<br><br><a href="land-pattern/README.md">The comparison, with the numbers</a></td>+</tr>+</table>++## 3D model++No YAGEO STEP for this exact part number could be downloaded by plain HTTP: YAGEO's product pages build their CAD links in the browser and expose no direct STEP link. The page therefore uses KiCad's library model for the package, `R_0402_1005Metric.step`, with its bytes unchanged, renamed `RC0402FR-0733KL.step`, after checking it against the datasheet table (next section). The part is unmarked, so the model shows a plain top coat.++The page viewer shows `rc0402fr-0733kl-hero.glb`: the clean model plus nonphysical reference artwork drawn under it to the adom-hero+standard (adom/component-hero): the footprint's pads as teal dashed outlines at 50 % opacity, its silkscreen at 70 %+transparency and the pad numbers 1 and 2 (the terminals have no names). The part is non-polar, so no pin-1 dot is added.+The artwork never goes into the STEP, `package-reference.glb` or the board LODs.++++::adom-models{src="/adom/rc0402fr-0733kl/render/models.json"}++## Model checked against the datasheet++The KiCad model was rendered in orthographic top, bottom, side and end views at true scale and laid over a drawing made+at the same scale from the printed table (nominal outline, tolerance limits, allowed terminal band). Every dimension is+inside the printed range: L 1.000 mm (datasheet 0.95 to 1.05), W 0.500 mm (datasheet 0.45 to 0.55), T/H 0.350 mm (datasheet 0.30 to 0.40), I1 (terminal on top) 0.165 mm (datasheet 0.10 to 0.30), I2 (terminal on bottom) 0.165 mm (datasheet 0.15 to 0.35). The model is Z-up, seated on z = 0, centred on the footprint origin, long axis on X.++++Source: YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025, p.4 Table 1, RC0402: L 1.00 +/-0.05, W 0.50 +/-0.05, H 0.35 +/-0.05, I1 0.20 +/-0.10, I2 0.25 +/-0.10 (mm).++## Board levels of detail++Clean board-use GLBs (no footprint pads, outlines, labels or silkscreen) in four levels, all in the same Z-up, metre,+footprint-origin pose as the STEP. Previews are rendered from each GLB.++::adom-component-lod{src="/adom/rc0402fr-0733kl/render/lod/manifest.json"}++## CAD files++| File | What it is |+|---|---|+| `RC0402FR-0733KL.kicad_sym` | KiCad symbol (standard resistor graphic, pins on the 2.54 mm grid) with MPN, Manufacturer, Mouser, DigiKey and LCSC fields |+| `R_0402_1005Metric_RC0402FR-0733KL.kicad_mod` | KiCad footprint (KiCad library `R_0402_1005Metric`, renamed; model path `${KIPRJMOD}/RC0402FR-0733KL.step`) |+| `RC0402FR-0733KL.lbr` | Fusion / EAGLE library made with `adom-lbr generate` (attributes MPN, MANUFACTURER, MOUSER_PN, DIGIKEY_PN, LCSC_PN) |+| `altium/RC0402FR-0733KL.SchLib`, `altium/RC0402FR-0733KL.PcbLib` | Altium symbol and footprint libraries (native binary) made with `adom-lbr import-kicad` and `assemble-altium` (the PcbLib embeds the STEP body); `RC0402FR-0733KL.adom-lbr.json` is the adom-lbr hub record |+| `RC0402FR-0733KL.step` | 3D package model, STEP (KiCad library bytes) |+| `package-reference.glb` | 3D package model, GLB (clean, for board viewers) |+| `rc0402fr-0733kl-hero.glb` | the page's 3D view: package plus footprint pad outlines, silkscreen and pad labels |+| `lod/` | board-use GLBs in four levels of detail, with previews and manifest |++## Datasheet figures++The pages this record cites, cropped from the PDFs:++| Figure | Source |+|---|---|+| [p.4 Fig. 9 outline and Table 1 dimensions](docs/figures/rc-p04-dimensions.png) | YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025, p.4 |+| [p.5 Table 2 electrical characteristics (RC0402, RC0603)](docs/figures/rc-p05-table2.png) | YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025, p.5 |+| [p.3 Marking (RC0402 no marking; RC0603 codes)](docs/figures/rc-p03-marking.png) | YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025, p.3 |+| [p.7 power rating, derating and rated voltage formula](docs/figures/rc-p07-power-voltage.png) | YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025, p.7 |+| [p.7 Table 4 packing quantity](docs/figures/rc-p07-packing.png) | YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025, p.7 |+| [p.9 Table 5 short time overload test](docs/figures/rc-p09-short-time-overload.png) | YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025, p.9 |+| [Mounting V.10 p.4 Fig. 4 and Table 1 reflow footprint](docs/figures/mount-p04-land.png) | YAGEO Chip Resistors Mounting, product specification V.10, Feb. 13, 2018, p.4 |++## Sources and license++- YAGEO: YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025 (https://yageogroup.com/content/datasheet/asset/file/PYU-RC_GROUP_51_ROHS_L)+- YAGEO: YAGEO Chip Resistors Mounting, product specification V.10, Feb. 13, 2018 (https://yageogroup.com/content/Resource%20Library/Product%20Guide-Catalog/yageo_PYu-R_Mount_10_19050818_343.pdf)+- KiCad libraries: [Resistor_SMD.pretty/R_0402_1005Metric.kicad_mod](https://gitlab.com/kicad/libraries/kicad-footprints/-/blob/master/Resistor_SMD.pretty/R_0402_1005Metric.kicad_mod), [Resistor_SMD.3dshapes/R_0402_1005Metric.step](https://gitlab.com/kicad/libraries/kicad-packages3D/-/blob/master/Resistor_SMD.3dshapes/R_0402_1005Metric.step)+- Distributor numbers: Mouser, DigiKey and JLCPCB/LCSC through the Adom parts search, 2026-10-21++Original Adom content is CC-BY-4.0. The KiCad footprint and 3D files keep their upstream license (CC-BY-SA 4.0 with the+KiCad library exception) and the PDFs remain YAGEO's documents; see [LICENSE](LICENSE).+[provenance.json](provenance.json) records every source and file hash; the scripts that built the checks are in `provenance/tools/`.++This is a catalog record for the part, not a manufacturing approval: check YAGEO's current datasheet for your design.
R_0402_1005Metric_RC0402FR-0733KL.kicad_modadded+112@@ -0,0 +1,112 @@+(footprint "R_0402_1005Metric_RC0402FR-0733KL"+ (version 20260206)+ (generator "kicad-footprint-generator")+ (layer "F.Cu")+ (descr "Resistor SMD 0402 (1005 Metric), square (rectangular) end terminal, IPC-7351 nominal, (Body size source: IPC-SM-782 page 72, https://www.pcb-3d.com/wordpress/wp-content/uploads/ipc-sm-782a_amendment_1_and_2.pdf)")+ (tags "resistor")+ (property "Reference" "REF**"+ (at 0 -1.17 0)+ (layer "F.SilkS")+ (effects+ (font+ (size 1 1)+ (thickness 0.15)+ )+ )+ )+ (property "Value" "R_0402_1005Metric"+ (at 0 1.17 0)+ (layer "F.Fab")+ (effects+ (font+ (size 1 1)+ (thickness 0.15)+ )+ )+ )+ (property "KiLib_Generator" "SMD_2terminal_chip_molded"+ (at 0 0 0)+ (layer "F.SilkS")+ (hide yes)+ (effects+ (font+ (size 1 1)+ (thickness 0.15)+ )+ )+ )+ (attr smd)+ (duplicate_pad_numbers_are_jumpers no)+ (fp_line+ (start -0.153641 -0.38)+ (end 0.153641 -0.38)+ (stroke+ (width 0.12)+ (type solid)+ )+ (layer "F.SilkS")+ )+ (fp_line+ (start -0.153641 0.38)+ (end 0.153641 0.38)+ (stroke+ (width 0.12)+ (type solid)+ )+ (layer "F.SilkS")+ )+ (fp_rect+ (start -0.93 -0.47)+ (end 0.93 0.47)+ (stroke+ (width 0.05)+ (type solid)+ )+ (fill no)+ (layer "F.CrtYd")+ )+ (fp_rect+ (start -0.525 -0.27)+ (end 0.525 0.27)+ (stroke+ (width 0.1)+ (type solid)+ )+ (fill no)+ (layer "F.Fab")+ )+ (fp_text user "${REFERENCE}"+ (at 0 0 0)+ (layer "F.Fab")+ (effects+ (font+ (size 0.26 0.26)+ (thickness 0.04)+ )+ )+ )+ (pad "1" smd roundrect+ (at -0.51 0)+ (size 0.54 0.64)+ (layers "F.Cu" "F.Mask" "F.Paste")+ (roundrect_rratio 0.25)+ )+ (pad "2" smd roundrect+ (at 0.51 0)+ (size 0.54 0.64)+ (layers "F.Cu" "F.Mask" "F.Paste")+ (roundrect_rratio 0.25)+ )+ (embedded_fonts no)+ (model "${KIPRJMOD}/RC0402FR-0733KL.step"+ (offset+ (xyz 0 0 0)+ )+ (scale+ (xyz 1 1 1)+ )+ (rotate+ (xyz 0 0 0)+ )+ )+)
altium/RC0402FR-0733KL.PcbLibadded⋯ 1 unchanged line ⋯
altium/RC0402FR-0733KL.SchLibadded⋯ 1 unchanged line ⋯
docs/figures/figures.jsonadded+93@@ -0,0 +1,93 @@+[+ {+ "file": "docs/figures/rc-p04-dimensions.png",+ "document": "YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025",+ "page": 4,+ "crop_px_at_150dpi": [+ 82,+ 225,+ 1155,+ 1140+ ],+ "caption": "p.4 Fig. 9 outline and Table 1 dimensions",+ "sha256": "71e1467d41b570a2387327e40a2264b5a68e7eccfa817dd54b3ff8b73e39b7ea"+ },+ {+ "file": "docs/figures/rc-p05-table2.png",+ "document": "YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025",+ "page": 5,+ "crop_px_at_150dpi": [+ 82,+ 240,+ 1155,+ 1132+ ],+ "caption": "p.5 Table 2 electrical characteristics (RC0402, RC0603)",+ "sha256": "23a43c630e06a7e0f5a6205422f4e9533314cd16032d8e13e915a4ed2a2b2e2f"+ },+ {+ "file": "docs/figures/rc-p03-marking.png",+ "document": "YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025",+ "page": 3,+ "crop_px_at_150dpi": [+ 82,+ 225,+ 1155,+ 870+ ],+ "caption": "p.3 Marking (RC0402 no marking; RC0603 codes)",+ "sha256": "6b80b0d4a55888a66d359ec63185c72d476cd460c4e8ca12ceccbb86c80db48c"+ },+ {+ "file": "docs/figures/rc-p07-power-voltage.png",+ "document": "YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025",+ "page": 7,+ "crop_px_at_150dpi": [+ 82,+ 840,+ 1155,+ 1635+ ],+ "caption": "p.7 power rating, derating and rated voltage formula",+ "sha256": "c00ce948279a26f906d32ab2276e513bcd387538a226641caaa14a7b7b79d100"+ },+ {+ "file": "docs/figures/rc-p07-packing.png",+ "document": "YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025",+ "page": 7,+ "crop_px_at_150dpi": [+ 82,+ 180,+ 1155,+ 825+ ],+ "caption": "p.7 Table 4 packing quantity",+ "sha256": "df3920d86fe888f7aad9c023887979174a7b6a3a052d745ae4b7763de5294a55"+ },+ {+ "file": "docs/figures/rc-p09-short-time-overload.png",+ "document": "YAGEO General Purpose Chip Resistors RC_L series, product specification V.14, Nov. 14, 2025",+ "page": 9,+ "crop_px_at_150dpi": [+ 82,+ 225,+ 1155,+ 675+ ],+ "caption": "p.9 Table 5 short time overload test",+ "sha256": "270641325e974369b823b4893ac3c850e358a50ce78b96905472462ece78036f"+ },+ {+ "file": "docs/figures/mount-p04-land.png",+ "document": "YAGEO Chip Resistors Mounting, product specification V.10, Feb. 13, 2018",+ "page": 4,+ "crop_px_at_150dpi": [+ 82,+ 225,+ 1155,+ 1215+ ],+ "caption": "Mounting V.10 p.4 Fig. 4 and Table 1 reflow footprint",+ "sha256": "620e7784b500ceda6a856dc4b6457f27bf753071c87b86e1865f3761d18e2747"+ }+]

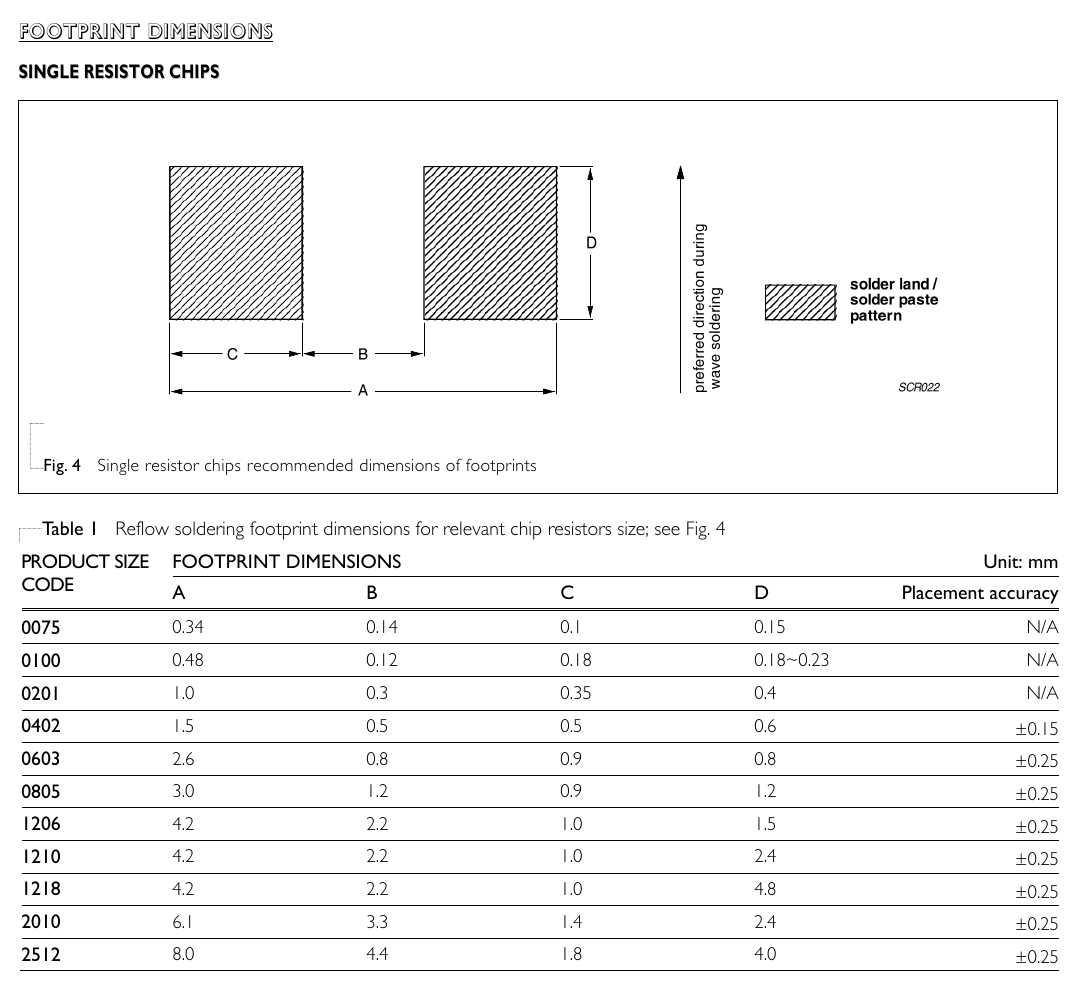

docs/figures/mount-p04-land.pngadded⋯ 1 unchanged line ⋯
